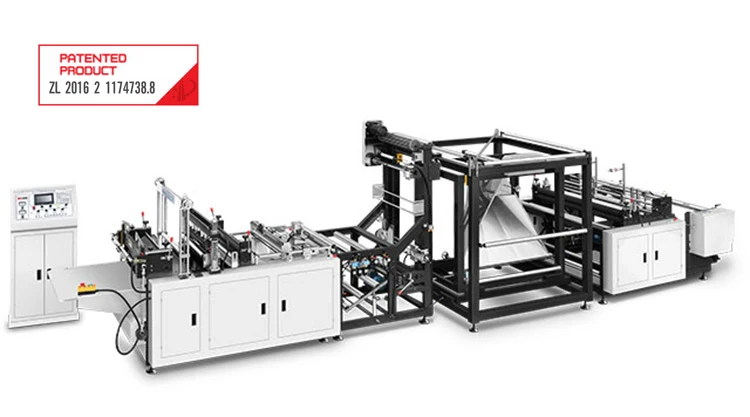

Patented product multifunctional new style non woven d cut bag making machines
- Category: Bag Making Machines >>>
- Supplier: Zhejiang Zhengxin Machinery Co. Ltd.
Share on (62409446673):
Product Overview
Description
Banner
Products Description
Model: ZXL-B800 Multifunctional Double line Non Woven Vest Bag Making Machine
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
Material | Rolls of pp spunbond non woven fabric Laminated non woven fabric | If you have different requirements, please let us know, and we will provide you with customized solutions based on the actual situation of the machine. | ||
Production speed | 20-120pcs/min | |||
Fabric thickness | 30-120gsm | |||

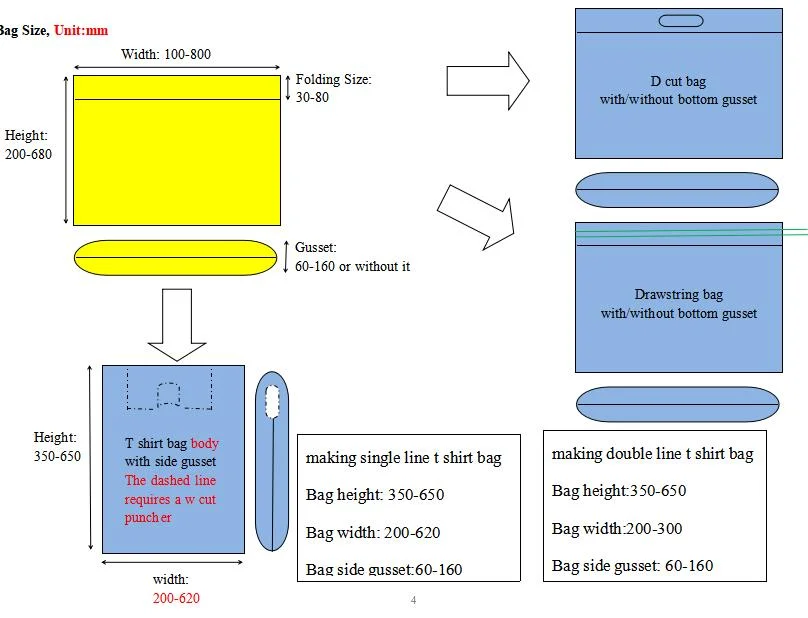

Bag width | 100-800mm | |||
Bag height | 200-680mm | |||
Power supplier | 220V/380V | |||
Power | 12kW | |||

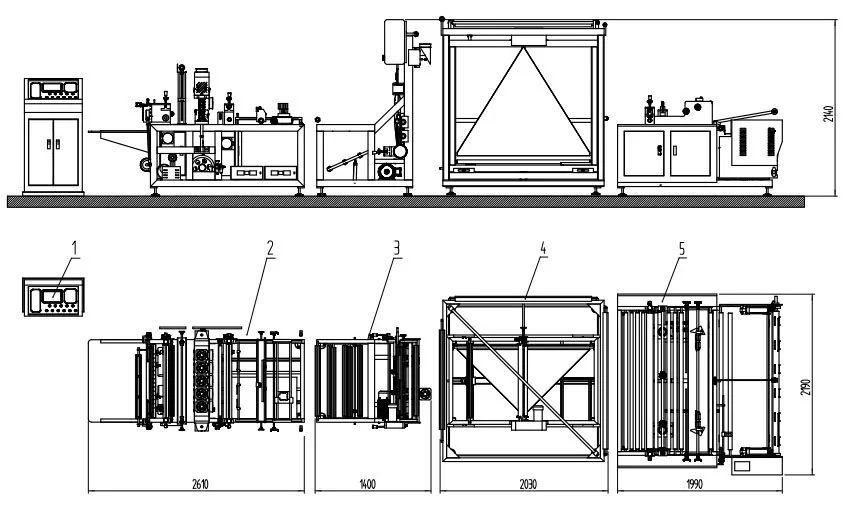

Overall dimension (L*W*H) | 8000*2200*2200mm | |||
Weight | 2500kg | |||
Online D-cut punching Bottom gusset and side gusset making Drawstring feeding Optional online T-shirt bag auto punching Pressure requirements: 0.8-1.0 Mpa (recommended 7.5KW screw air compressor with refrigerate air dryer and 0.6 m3air tank) | ||||

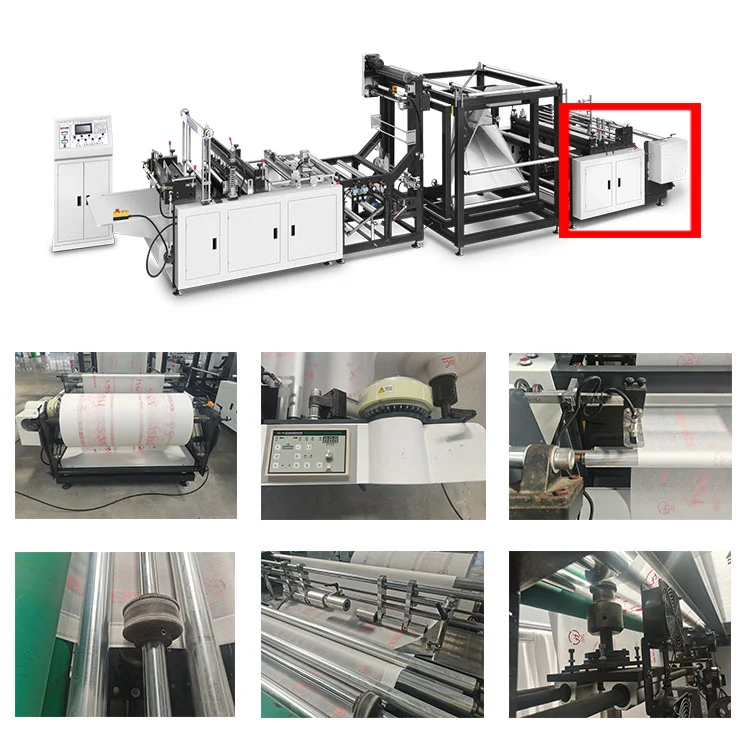

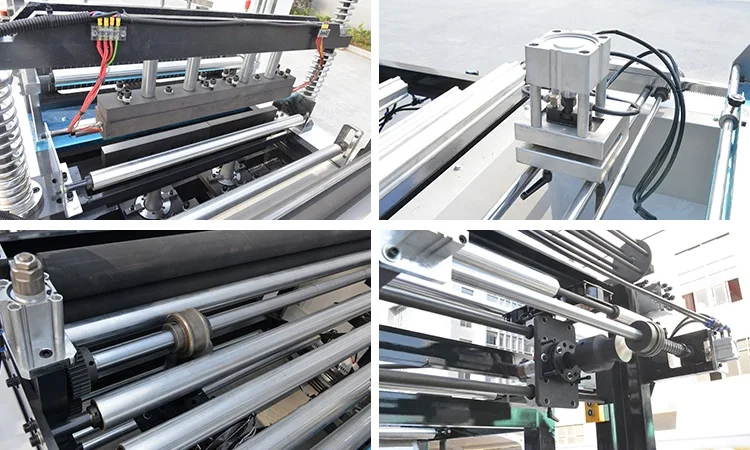

Auto loading material roll(lift by cylinders)
Inflatable shaft to fix the fabric roll when machine working Auto stop when material
run out of
run out of
Magnetic powder tension controller
Auto rectifying deviation system(EPC box and web guider)

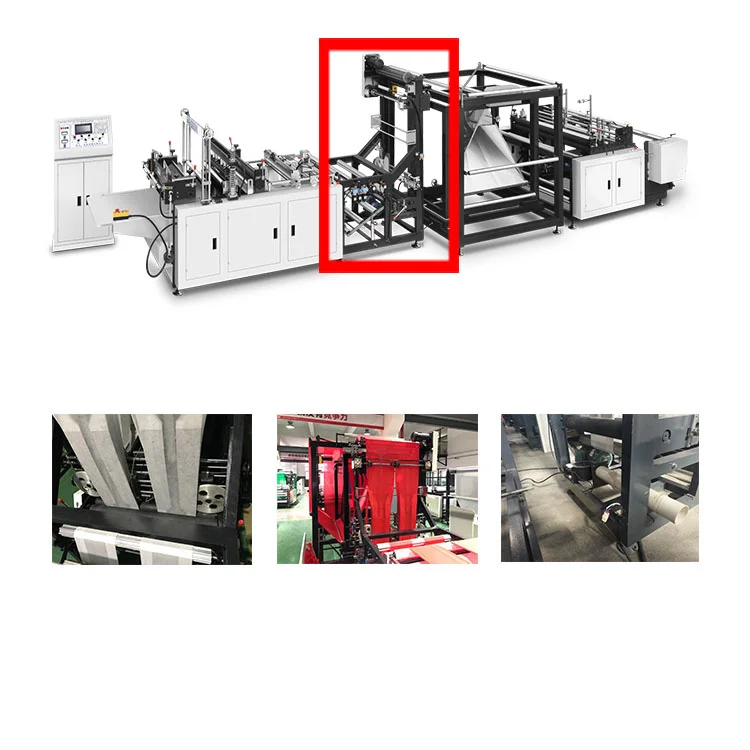

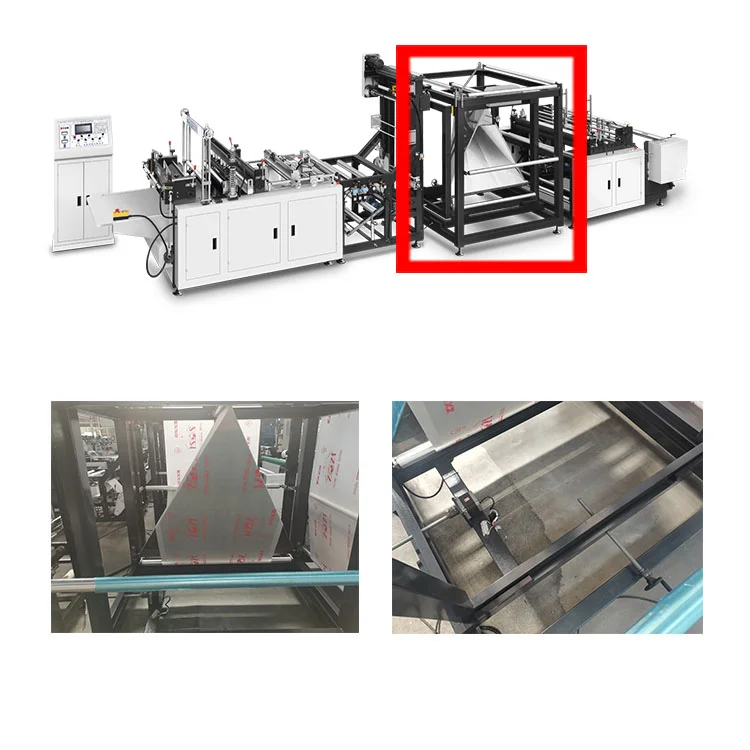

Bag mouth folding and
sealing by ultrasonic welding
sealing by ultrasonic welding
Cylinders to lift and fix the sealing mold
Custom-made sealing mould is available
Manual web guider
The blower removes waste fabric
T-shirt bag sealing by ultrasonic welding

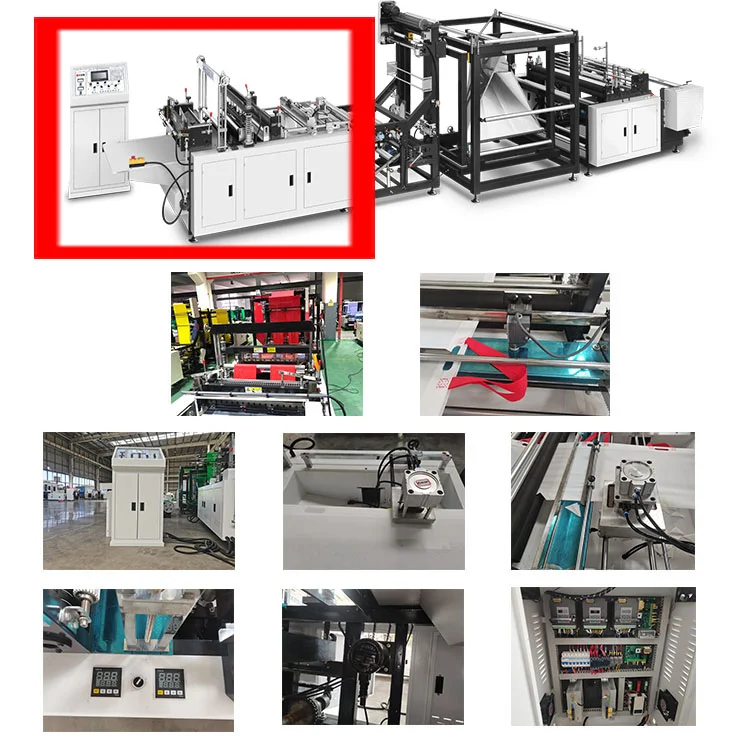

Online D-cut punching drawstring bag punching bag side sealing by ultrasonic welding
Durable cold cutter
Sealing mould with heating device inside(temperature control by thermal indicator) static eliminator device
Double stepping motor feeding system for
bag length fix
bag length fix
Man machine interface:touch screen
Motion control:PLC

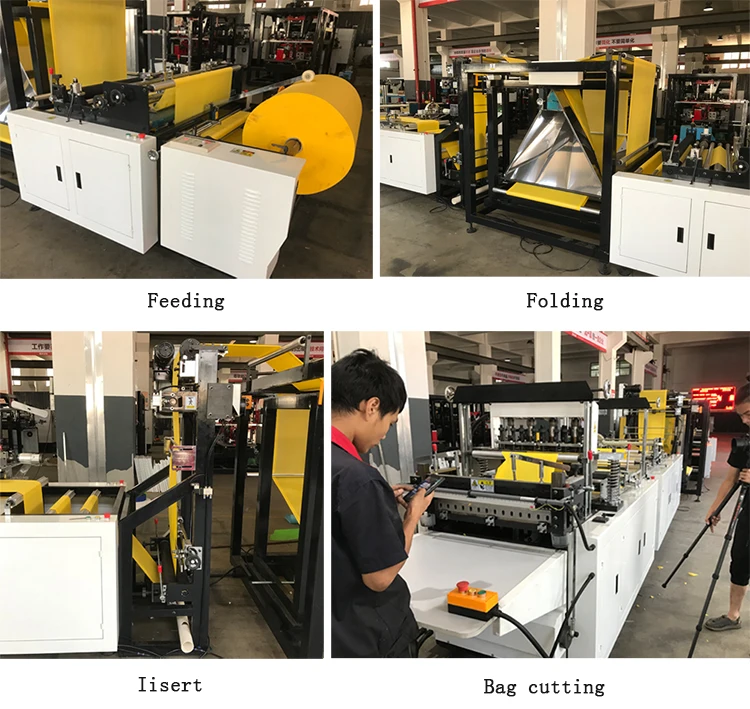

Production Process
Company Profile
Packaging & Shipping
Packaging | ||
Volume | CBM | |
Weight | KG | |
Packaging Details | Before packing, we grease the machine with white oil to make metal parts rustproof and shining forever. | |
The packaging is export standard sea worth and will use PET film for packing or pack it according to customers’ special requests. | ||
Delivery | within 30 days after the payment of deposit. Production lead time 7-30 days. | |
FAQ
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing ?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do after one year warranty period?
We also can do service for you, but you need pay salary for our technicians 80USD/day for each person.
6. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience. In
addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
10. How many workers do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing ?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do after one year warranty period?
We also can do service for you, but you need pay salary for our technicians 80USD/day for each person.
6. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience. In
addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
10. How many workers do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
