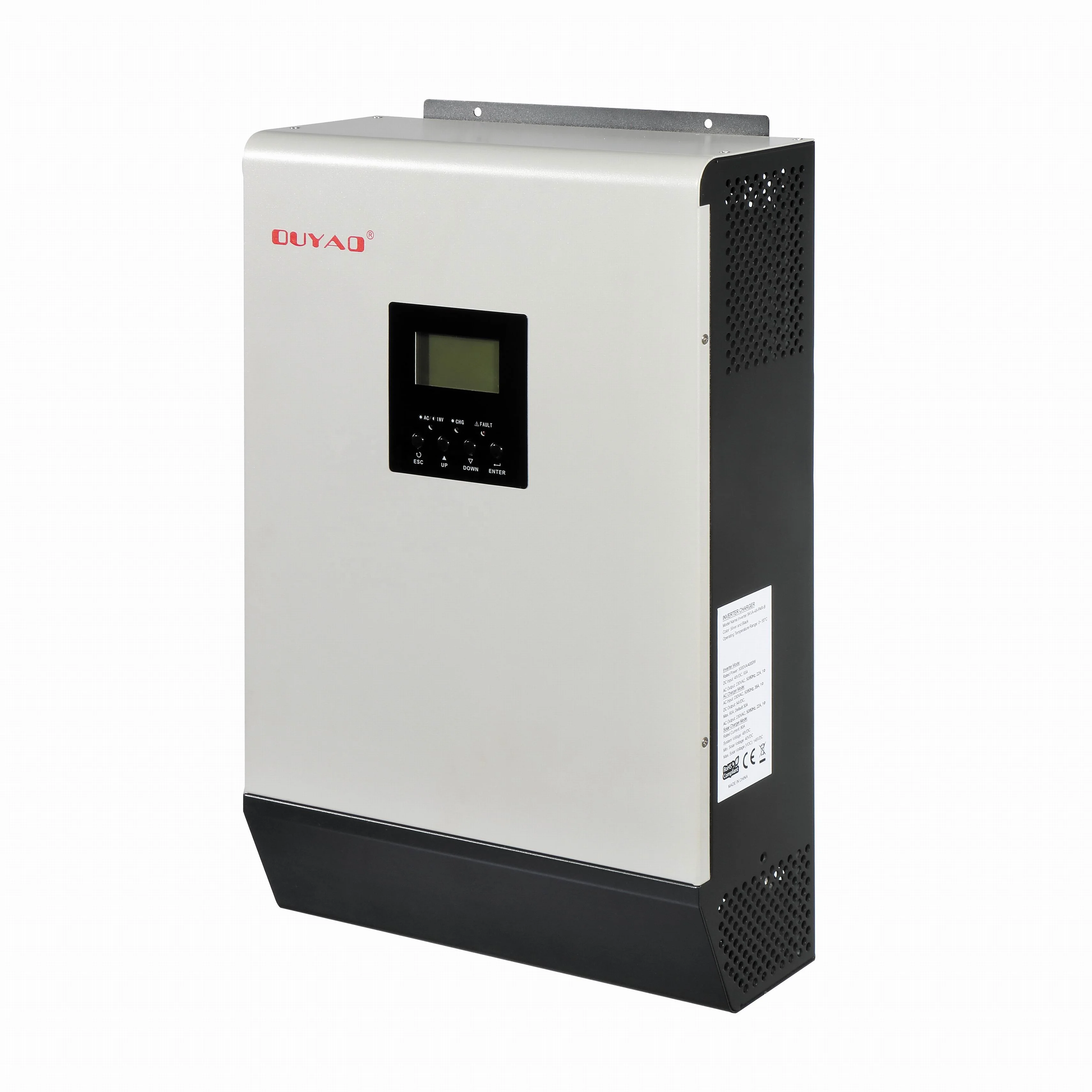

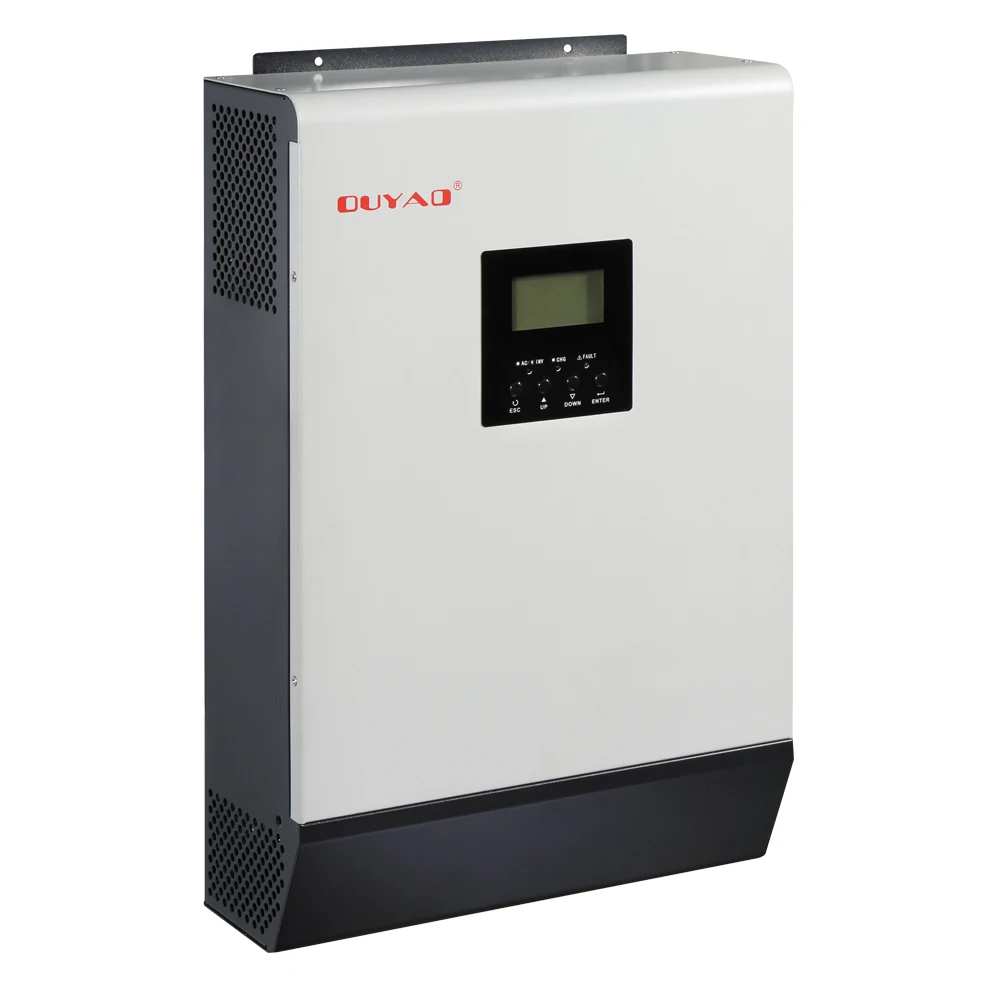

MKS II 5KVA Solar inverter with parallel function hot sale 2020

Product Overview

Description

                MKS II 5KVA  Solar Hybrid Solar Inverter with MPPT 80A



 Description

  This is a multi functional inverter/charger,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size.Its comprehensive LCD display offers.

    User-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority, and acceptable input voltage based on different applications.



Features

  1.High efficiency pure sine wave inverter(PF=1);Wide PV input range(120Vdc-450Vdc) 80A MPPT SCC;

Intelligent 3 stage 80A AC battery charger.

   2.Surges to 2X continuous power for 5 seconds for motor loads.

   3.Intelligent functionality enables utility and solar input prioritization.

   4.Wide utility input range (90V ac-280V ac) for unreliable grid even in the most challlenging environments.

  5.Field serviceable with replacement boards and spare parts.

  6.Monitor,troubleshoot,or communication with USB/RS 232.

  7.System configures quickly into compact,wall-mounted system.

  8.This series inverters can work without batteries when there is the sun.9.Parallel operation with up to 9 units.

Techincal Specifications

Model	MKSII-5K
Rated Power	5000VA/5000W
Parallel Capability	Yes, 9 units
INPUT
Voltage	230VAC
Selecable Voltage Range	170-280 VAC(For Personal Computers);90-280VAC(For Home Apppliances
Frequency	50HZ/60HZ(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230V±5%
Surge Power	10000VA
Efficiency(Peak)	90%
Transfer Time	10ms(For Personal Computers);20ms(For Home Appliances)
Waveform	Pure Sine Wave
BATTERY
Battery voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	66VDC
SOLAR CHARGER&AC CHARGER
Maximum PV Array Power	4500W
MPPT Range@Operating Voltage	120VDC~430VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	80A
Maximum AC Charge Current	80A
Maximum Charge Current	80A
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0℃ - 55℃
Storage Temperature	-15℃ -60℃

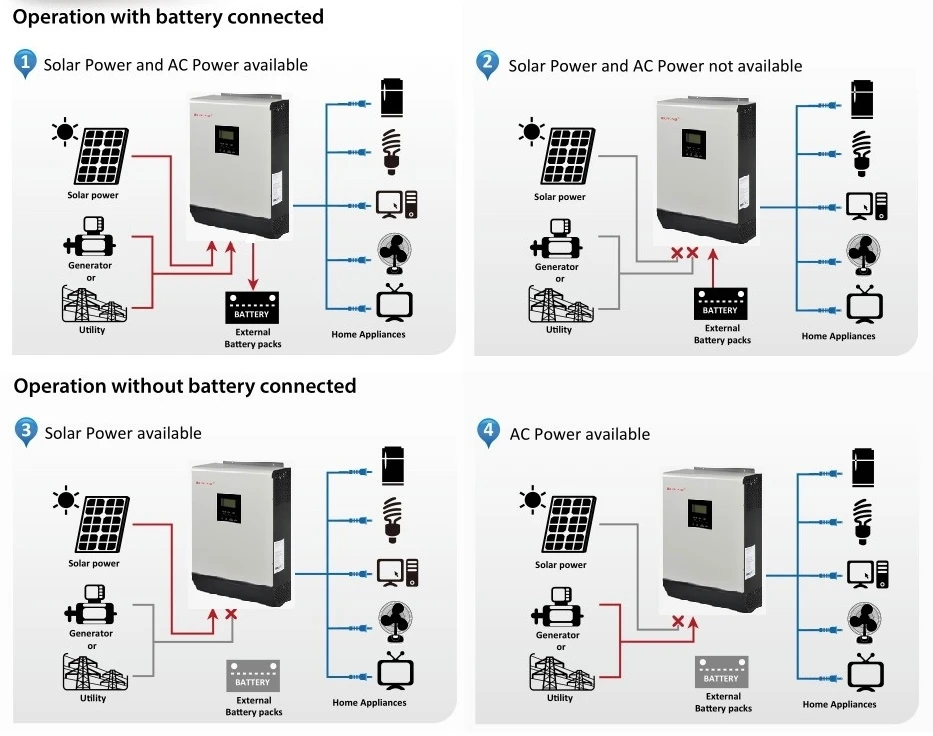

System diagram

Packing

Projects

Factroy preview

Certifications

FAQ

1, Why choose our company?

Our company had set up at 2007, have 11 years experience in solar power system field.

In addition, we use alibaba platform for 11 years as superior supplier.



2, What qualifications and strengths does your company have?

Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark:

This is a national level comprehensive strength certificate).



3,What is your company's technology research and development capabilities?

Our company have a dedicated R&D department with 20 senior technicians.

Our company got the honor from Guangdong province department of science and technology as

“Guangdong province smart wind&solar hybrid power system engineering technology research center”

( remark: This is a provincial-level technical research and development strength certificate)



4,What quality certification system did your products passed ?

Our products all passed ISO9001, CE, IEC,CQC Career Health and Safety Management System certificates.



5,Are you factory or trading company?

We are manufacturer of solar power system since 2007.



6, Do you provide whole system or just some parts of it?

We provide whole set solar power system including solar panel, pv array combiner box, inverter,controller,

battery, pv mounting system, cables and connectors.
