Price:$4,900.00 - $5,400.00

Quantity:


Product Overview

Description


Product Description

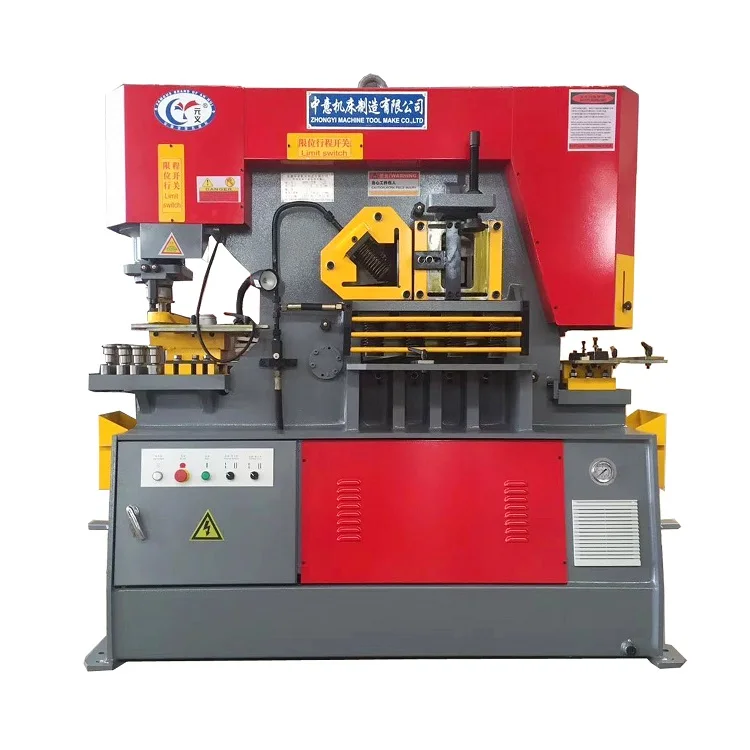

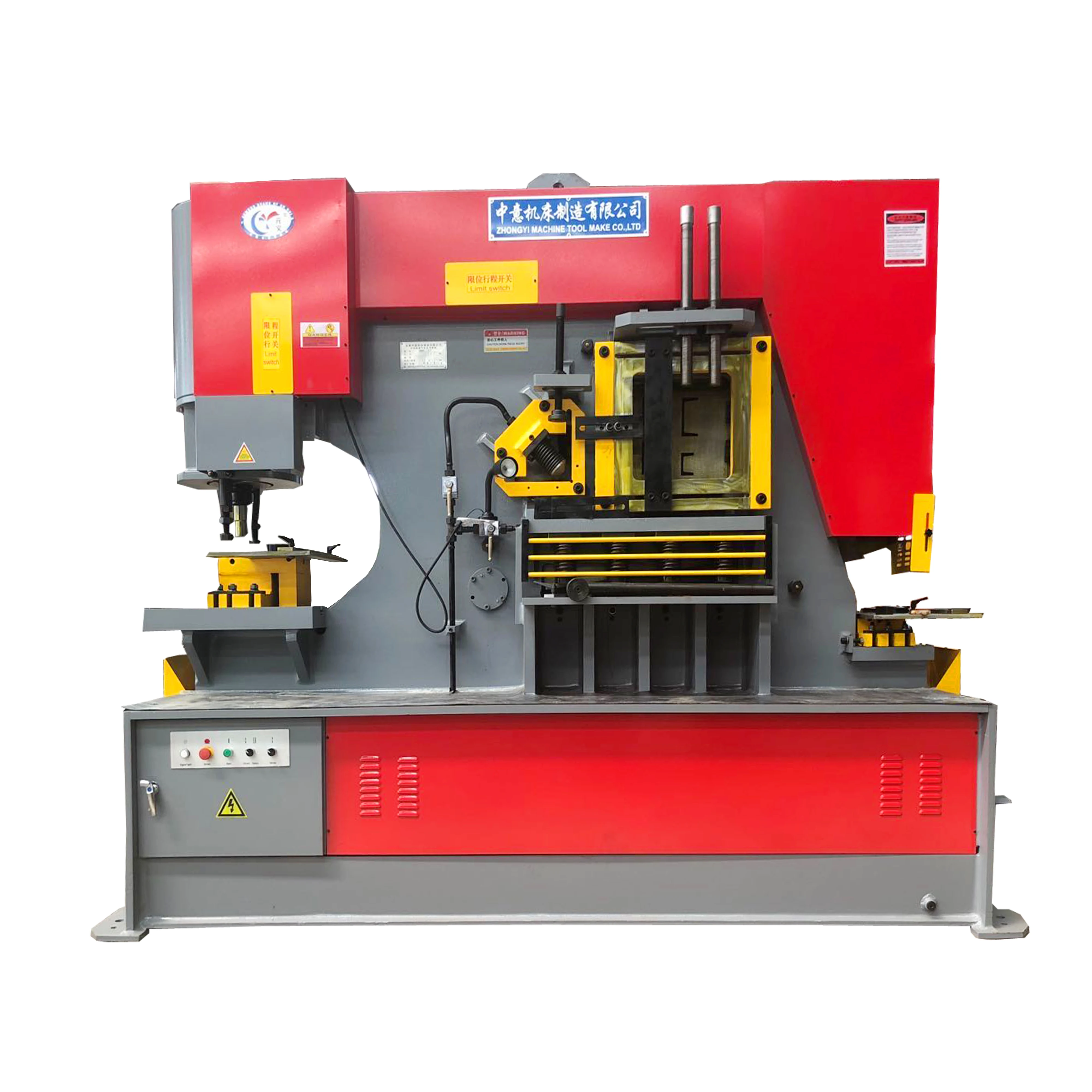

Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System.Hydraulic iron worker can punch,cut,notch and bend for flat bar,square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.
                                Model
Q35Y-16
Punching Pressure (T)
60T
Max. cutting thickness of sheet plates (mm)
16
Material strength (N/mm²)
≤450
Angle of Shear (°)
7º
Flat bar shearing (T×W)(mm)
16×250 8×400
Max. length of cylinder stroke (mm)
80
Trips frequency (times/min)
11-20
Depth of throat (mm)
300
Punch depth (mm)
16
Max. punching diameter (mm)
25
Motor power (KW)
5.5
Overall dimensions (L×W×H)(mm)
1740×810×1830
Weight (kg)
2400


Direction for use
The machine is mainly used for cutting flat bar , profile, punching hole and notching.
It can widely used in Shipyard ,Electric, Bridge, Automobile, Hoisting＆Transportation, Metal Construction and other machinery factories etc.

  • Description of application effect

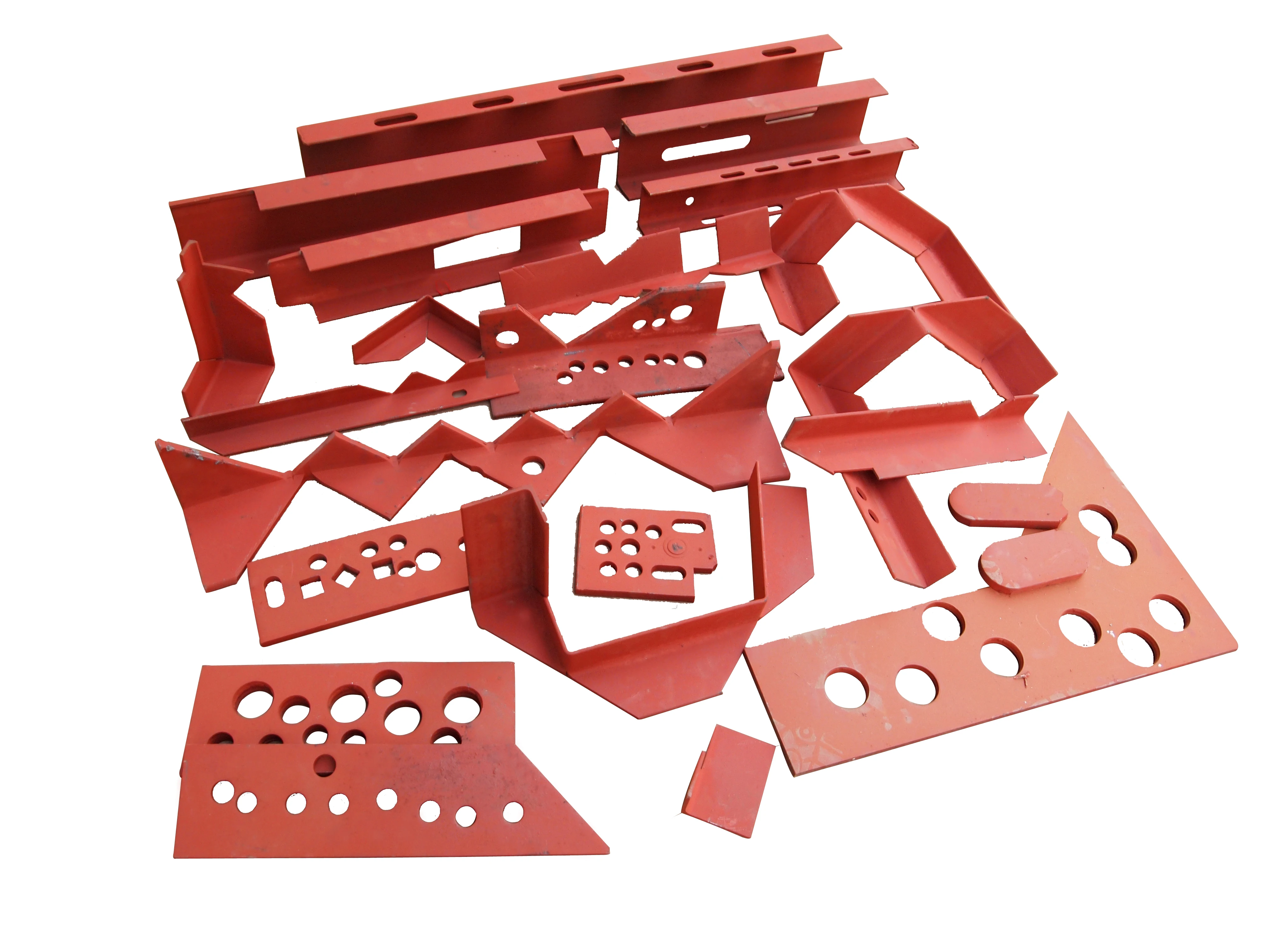

Flat bar cutting ,punching hole and notching work can be performed on the machine within the rated specification .

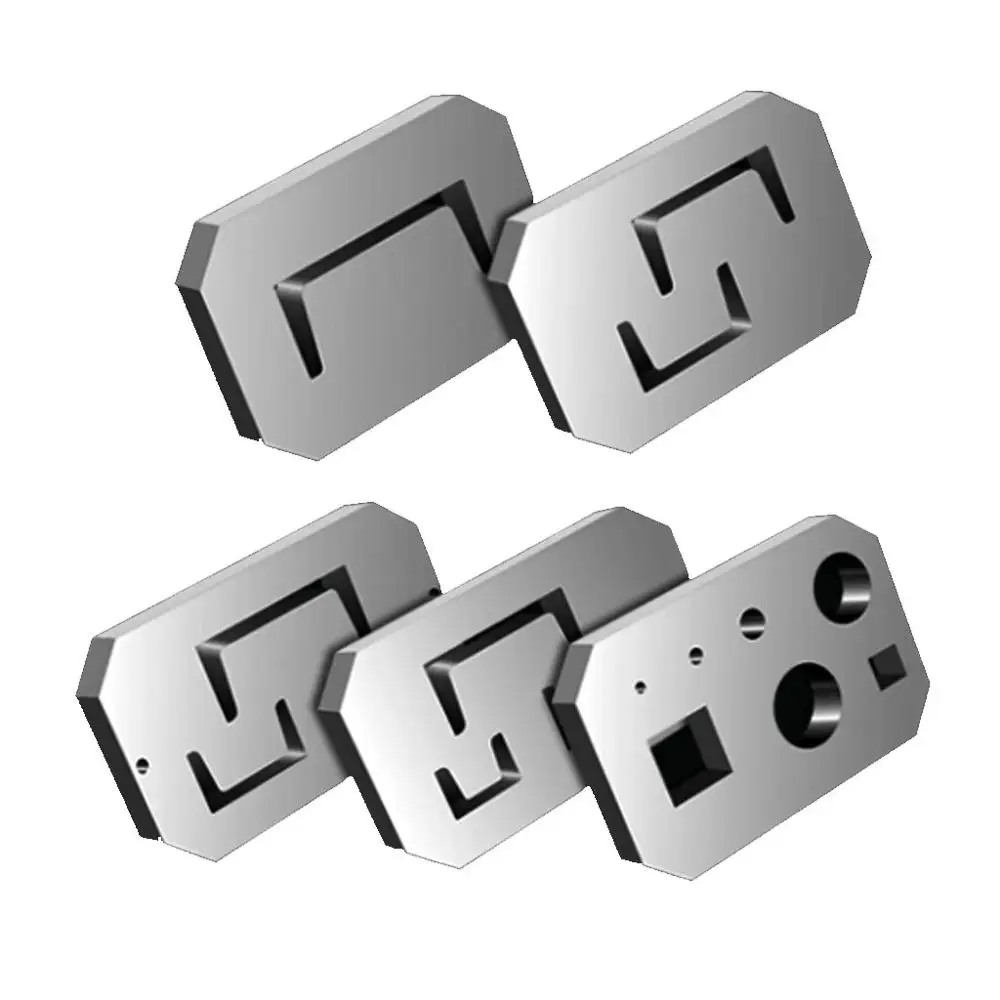

With extra equipment,the machine is able to cut, punch and bend in special shape . The machine adopted hydraulic driving system and has a performance and overload protecting device .
Product Paramenters
Profile
Q35Y-16
Round Bar
45
Square Bar
40×40
Equal Angle
90ºShearing
120×120×12
45ºShearing
50×50×5
T-Bar
90ºShearing
125×125×12
45ºShearing
60×60×8
I-beam
120×74×5
Channel
120×53×5.5
Details Images
Visual safety protection device :
Punching part equipped with a 360 degree visual rotary safety device . Punch more safe .
And also have movable feeder
Electric :
Main electric is Schneider .
Equipped with open door automatic power-off protection device , more safe .
CNC System :
CNC control , can automatic pressing material .
Automatic control switch , control the backgauge .
Multi - station cnc control system.
Automatic Backgauge :
Ball screw automatic backgauge device
Scale positioning , automatic cut .

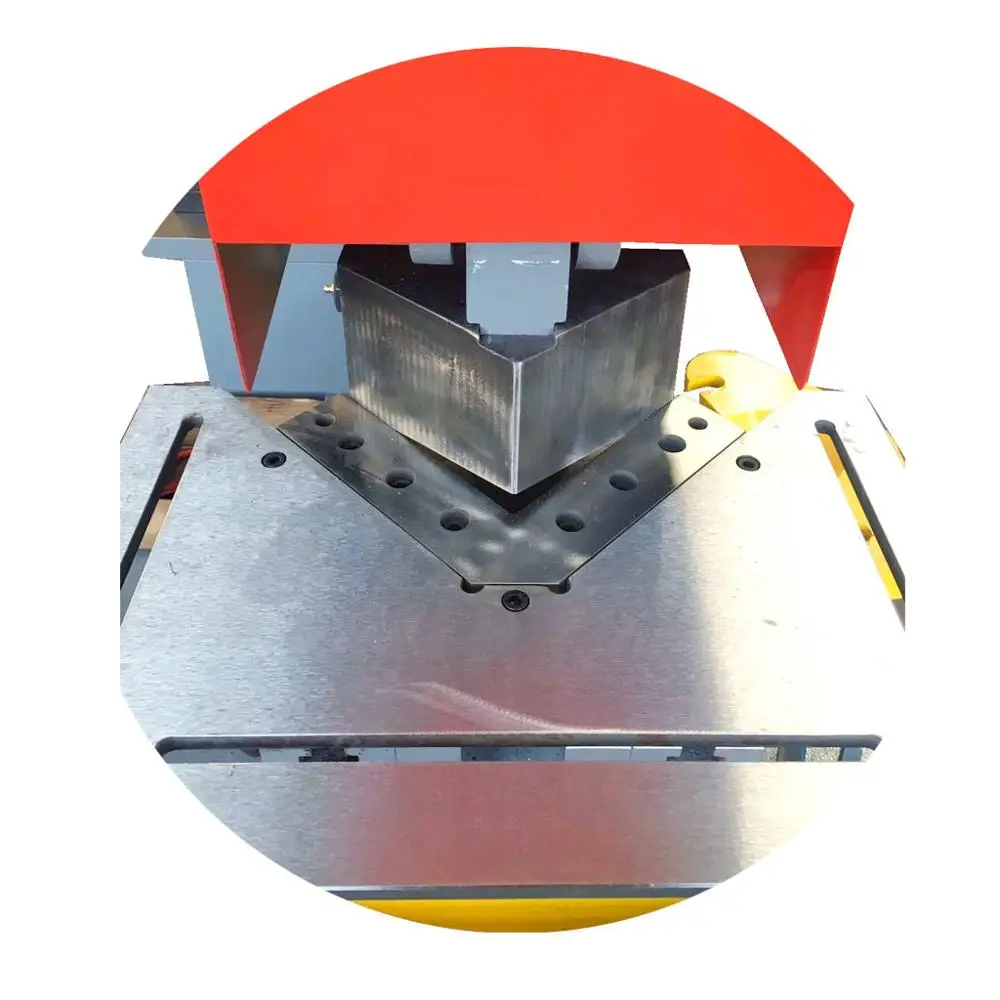

Work table multi-angle engraved positioning , can cut high precision , reduce manual measurement .
Temperature control device :
Visual pressure gauge .
Integral fuel tank and Temperature control fan , can control the oil temperature . Increase working hours, improve work performance.
Packing&Shipping
Packaging Details
The normal package is plastic film packaging or wooden box , we will pack it according to customers special request.
Company Introduction
ZHONGYI Industrial hydraulic iron worker have been designed and built to the highest quality standards in the industry.This profitable machine will serve any grueling fabrication shop for decades to come.
The machine by the European Union CE certification and ISO quality system certification
Our Services & Strength
After-sales service:
Machine is simple, generally, user can understand how to operate. There is operation instruction and disc.
Welcome to our factory to learn how to operate our machine, we will give good training and it's for free.
Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.
Certifications
Why Choose Us
Long History
Our company was founded in 2002,has a history of nearly 20 years.
We have been in a leading position in China's machinery manufacturing industry.
We are the first enterprise in Anhui province to produce hydraulic ironworker machines.
Factory Direct Sale

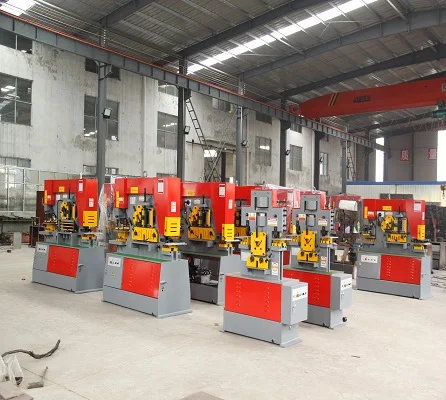

We have a large factory and all the machines are sold directly from the factory. Ensuring the quality of each machine.
In addition,we have a complete after-sales service system.
Good Reputation
Alibaba assessed 12 years Gold Supplier for ironworker.

Best Quality & Best Service with Competitive price.

Inspected by the Inspection Institution of Bureau Veritas Certification.

100% QC inspection Before Shipment.
