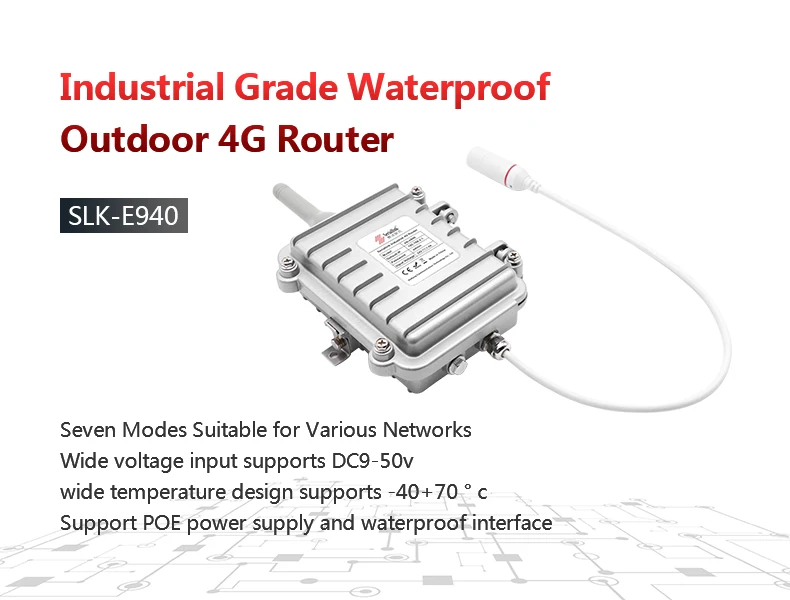

SERIALLINK Industrial Grade Waterproof Outdoor 4G Router with POE power supply

Band

Cellular Bands

Variant For EMEA

/Korea/Thailand

•LTE-TDD: B38/B40/B41

•LTE-FDD: B1/B3/B5/B7/B8/B20

•UMTS/HSPA+: B1/B5/B8

•GSM/GPRS/EDGE: B3/B8

Variant for Australia/New Zealand/South America

•LTE-TDD: B40/B66

•LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28

•UMTS/HSPA+: B1/B2/B5/B8

•GSM/GPRS/EDGE: 850/900/1800/1900MHz

Variant for

China/ European Union

LTE-TDD B38/B39/B40/B41

•LTE-FDDB1/B3/B8

•TD-SCDMA B34/B39

•UMTS/HSDPA/HSPA+ B1/B8

•CDMA 1X/EVDO BC0

•GSM/GPRS/EDGE900/1800 MHz

Variant for North America

•LTE-FDD: B2/B4/B12

•UMTS/HSPA+: B2/B5

Or

•LTE-FDD: B2/B4/B5/B13

Specifications for Data transfer

•LTE CAT4

-Uplink up to 50Mbps

-Downlink up to 150Mbps

•HSPA+

-Uplink up to 5.76Mbps

-Downlink up to 42 Mbps

•UMTS

-Uplink/Downlink up to 384Kbps

•EDGE

-Uplink/Downlink up to 236.8Kbps

•GPRS

-Uplink/Downlink up to 85.6Kbps

Features of the Router

Firewall

Network Address Translation (NAT)

State full Packet Inspection (SPI)

Media

Access Control

CSMA/CA with ACK

VPN Protocol

Supported PPTP,L2TP Client

DHCP services

Build-in DHCP (Dynamic Host Configuration Protocol)

Others

Supported PPP,PPOE,DDNS,ICMP,VRRP etc

Hardware Performance

CPU

32bit/400MHZ

Flash/RAM

16M/64M

OS

Latest LINUX

Interfaces

LAN Port

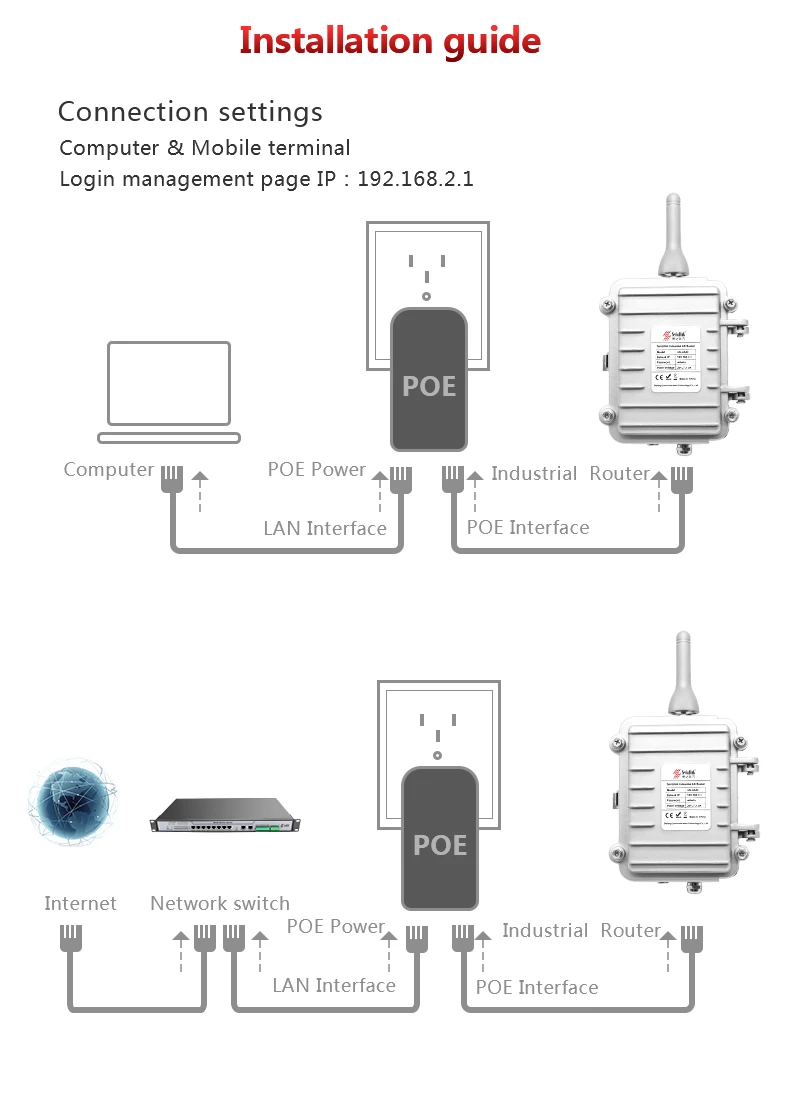

1x 10/100M Ethernet,POE Interface ,supported 9-50VDC

Reset

1x Reset

Antenna

1x 4G Antenna, with Waterproof function

SIM card slot

Supported 1.8/3.3V stander sim card slot

Power

POE adapter

Supply 1x AC110-220V to 24V/1A Power adapter

Power Consumption

Min: 260mA@12VDC

MAX: 500mA@12VDC,Built - in low temperature heating system,

 power consumption will increase by 3-4W

Average:320mA@12VDC

Physical Characteristics

Operating Temperature

Storage temperature: (-45°C to 70°C)

Working temperature:  (-40°C to 70°C),

Built-in low temperature heating system

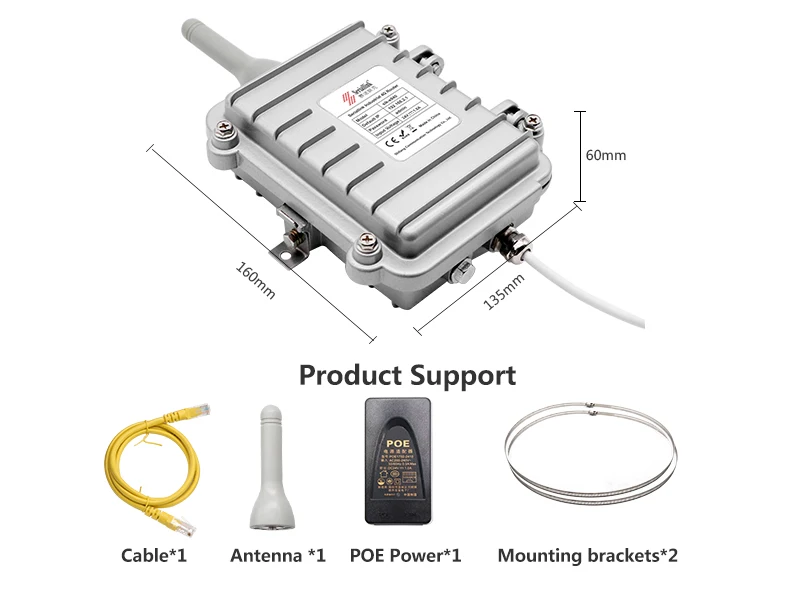

Size

L*S*H: 160mm x135mm x 60mm(outside dimension)

L*S*H: 120mm x90mm x 50mm(inside dimension)

Weight

Net weight:540g

With Packing Weight: 1kg

Ohters

Warranty

1 years

Package contains

SERIALLINK Router,1M Long Cable
,POE Power adapter,
Antenna
,

Clamp installation steel belt, instruction (optional electronic file), certificate of quality
