PVC Pipe Slotting Machine Automatic Pvc Pipe Slotting Machine

Product Overview

Description

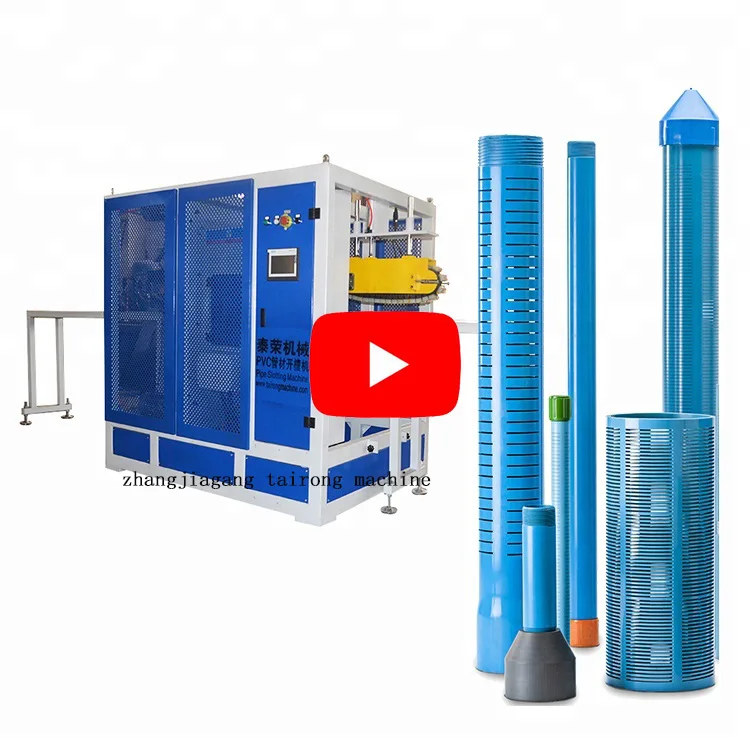

PVC Pipe Slotting Machine Automatic Pvc Pipe Slotting Machine

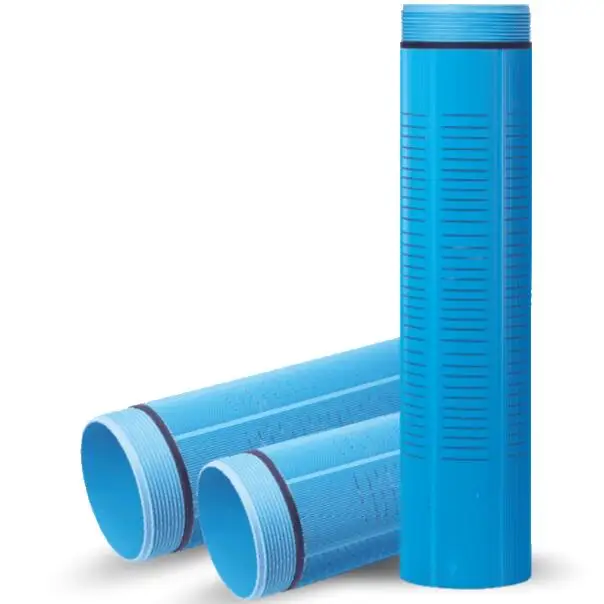

Our factory Tairong Machinery is professional making the PVC pipe slotting machine, threading machine, and the belling machines. we can design the slotting machines according to your pipe diameter, and pipe length. Tairong design and manufacturers high quality automatic slotting machine, threading machine, drilling machines or drilling holes in PVC and HDPE pipe. The pipe processed by these machines is used in water wells, ground water monitoring, dewatering,land fills,recovery wells, and a variety of filtration applications.

Below is some specifications of the PVC pipe slotting machines for your reference:

Tube length 4 meters
20mm slot length adjustable
Slot pitch 3mm
Slot distance 0.3mm
Pipe diameter American standard 11/4 tube
Number of motor units 2
Number of knife sets 2 sets
Number of blades 20
Slotted motor 3kwX2

Equipment safety instructions
     1. The electrical part of the purchased equipment complies with the relevant national standards, and the relevant certifications are in compliance with CE standards. One machine and one gate are safe, safe, reliable, and equipped with emergency stop buttons.
     2. The transmission part of the product is equipped with protective devices to avoid mechanical injury.
     3. The various wastes generated during the mechanical operation of the product are collected in a centralized manner and are not randomly discharged. If they are discharged, they meet the national emission standards.
     4. There are clear safety signs on the dangerous parts of the machine, and safety interlocking devices should be installed as far as possible to avoid serious mechanical accidents.
