For Liter (gallon)-8 bits of ; Total- 8 bits; Price-4 Bits.
Inlet/ Outlet
3/4 & 1
Flow Range
20-60 L/Min,20-120 L/Min
Accuracy
± 0.3%
Working pressure
0.16Mpa
Temperature
-25~+40℃
Note
≤70db
Dimention
60*40*40cm ; 50-75 KG
Features & Benefits:
a. can be used for different media like gasoline, diesel and other oil
b. high accuracy, light weight, compact volume makes it convenient for carrying c. autmatic shut off function when oil transfer finish(oil reaching the nozzle spout hole d. 3 level of flowrate control for oil transfer e. filter on the inlet part prevents impurites when oil transfer

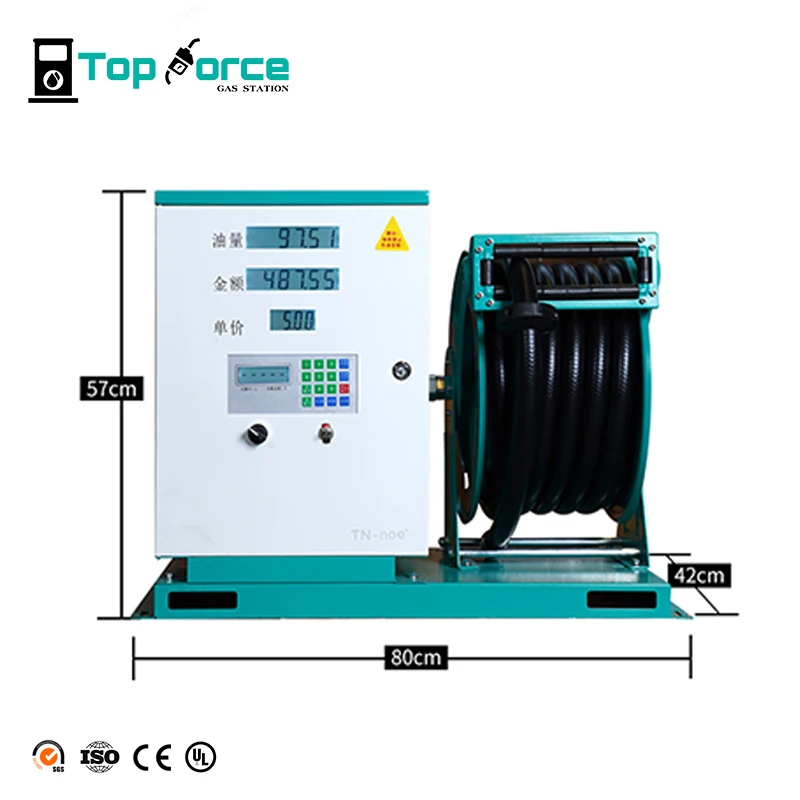

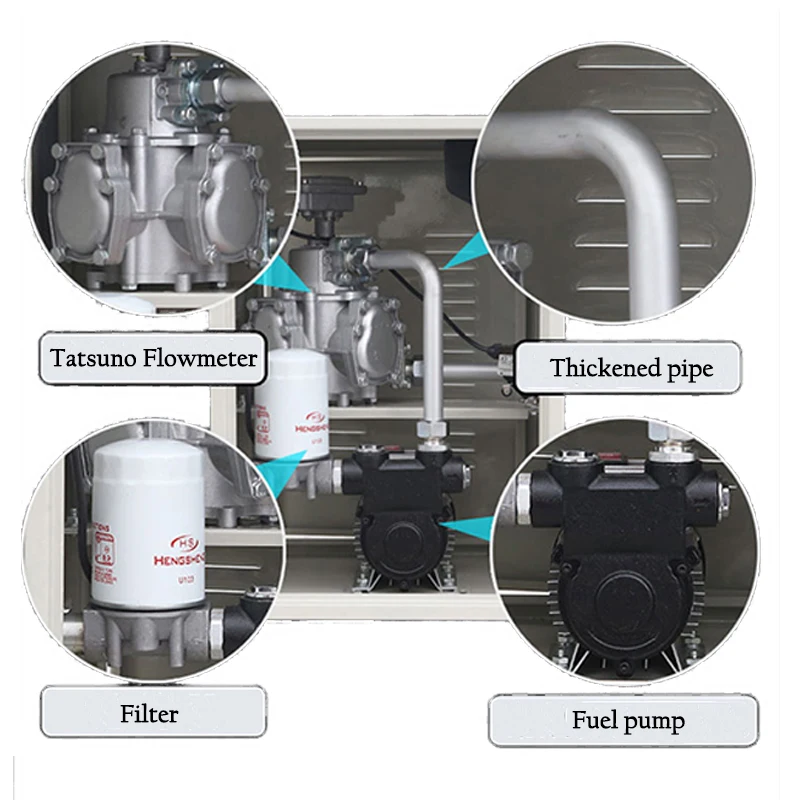

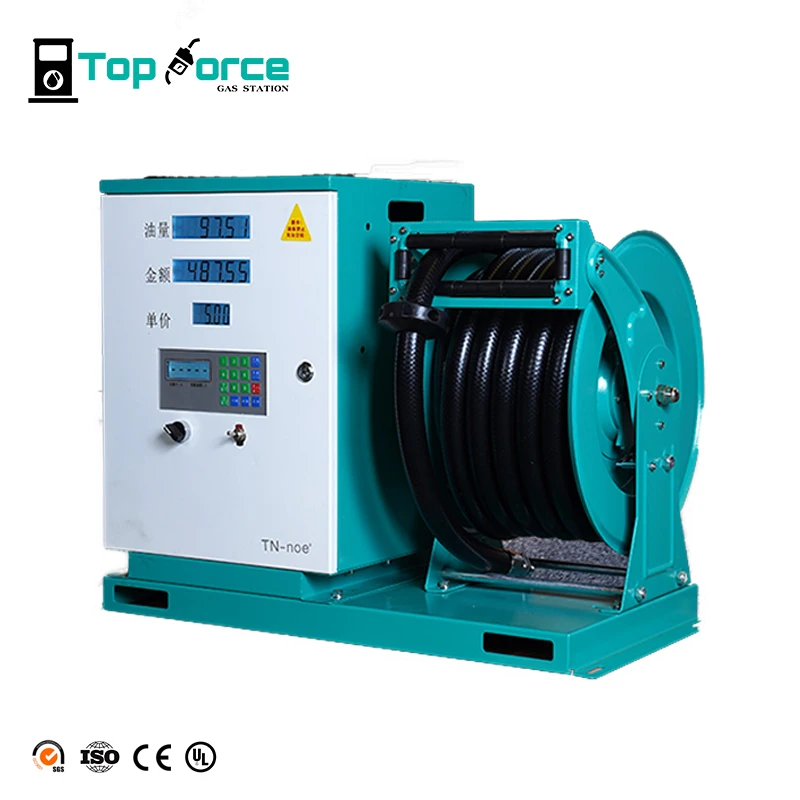

625 tatsuno type fuel dispenser with hose reel * 1" 15m hose reel * 4 m hose with one piece 120 fuel nozzle * 1 Tatsuno Type Flow Meter * 1 Keyboard and display screen on the front * Pulser * Nozzle holder on the side * Sensor * 220 v 12V 24V pump * 664 system,6 digital, 6 digital, 4 digital. or 886 system,8 digital, 8 digital, 6 digital.
Flow Range: 40-120 L/Min Power: 550W Accuracy: 0.3% Ambient Temperature: -25~+55℃ Suction Head: 5m Lift: 20m Medium: diesel, kerosene,gasoline Weight: 95 KG Dimension: 57 X52 X72 cm Motor: big Flow range pump inlet /outlet : 1 inch
Feature: This Digital Fuel Dispenser is a self contained, demountable fuel dispensing unit which has been designed to meet the needs of fuel distributors who’s customers require ‘Accurate Metered’ deliveries of fuel into plant equipment, building sites, mining sites, generators, boats, green houses etc. And when required, it can quickly be mounted any where and deployed for delivery. This system is generally provided by the truck manufacturer to handle hydraulics or other power applications. If it is not fitted in the truck, then it is to be procured from the manufacturer or from the market in accordance of model or make of the truck. The supplied items are to be fitted by any skilled fabricator on the truck chassis in accordance with the enclosed sketch (PTO Mechanism). Electronic Kit Hose Reel fitted in Lockable Box.The Auxiliary Gearbox P.T.O. of the truck, which provides torque for the up to 80LPM Internal Rotary Gear Pump which pumps the fuel to the meter, is controlled by the Electronic Kit which is Installed in the Panel of the Unit. Product is dispensed through the standard 12m x 25mm delivery hose winded on the Self-retractable Hose Reel which terminates with a 1” dispensing AutoShut nozzle and is stowed neatly on a Nozzle Boot fixed in the Unit. The length of the Hose can be changed according to the customer’s requirement.
