Wastewater evaporators price
US $7800

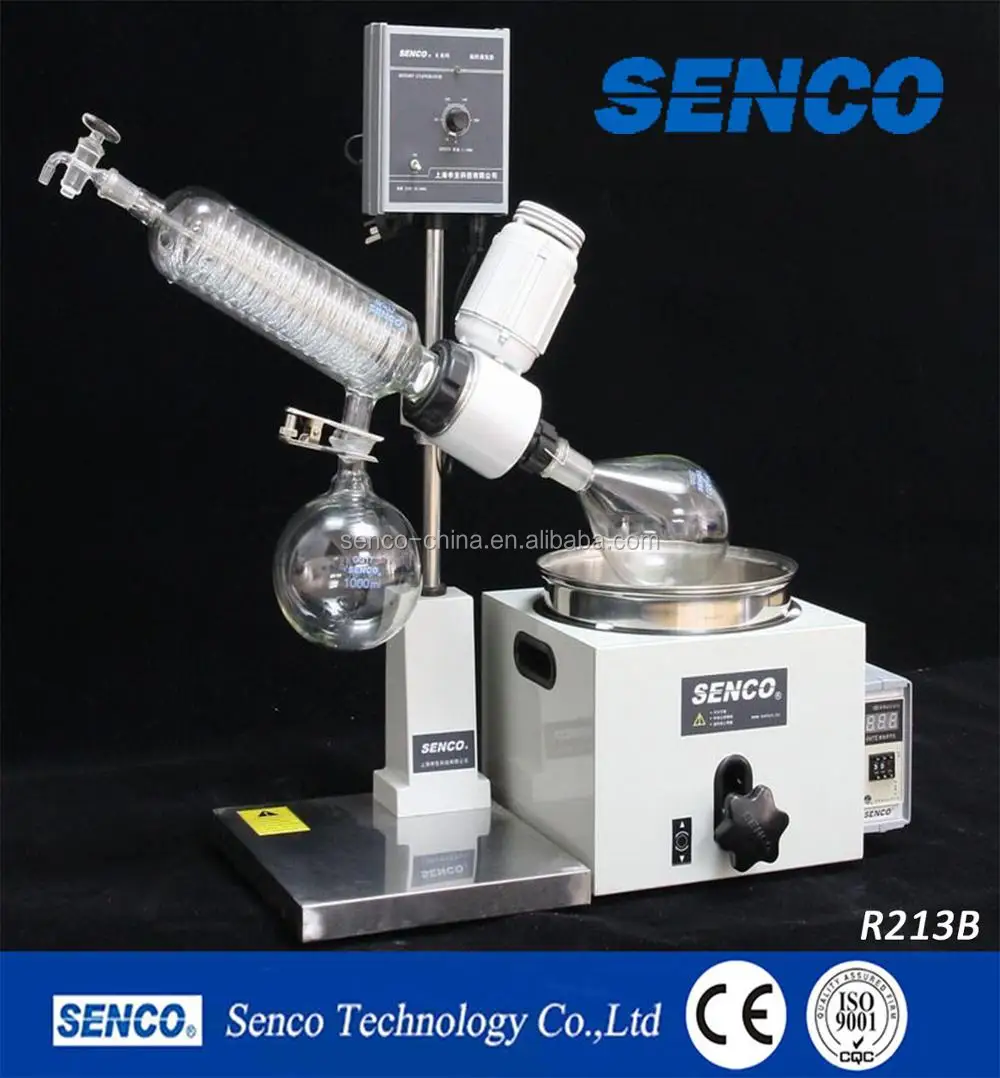

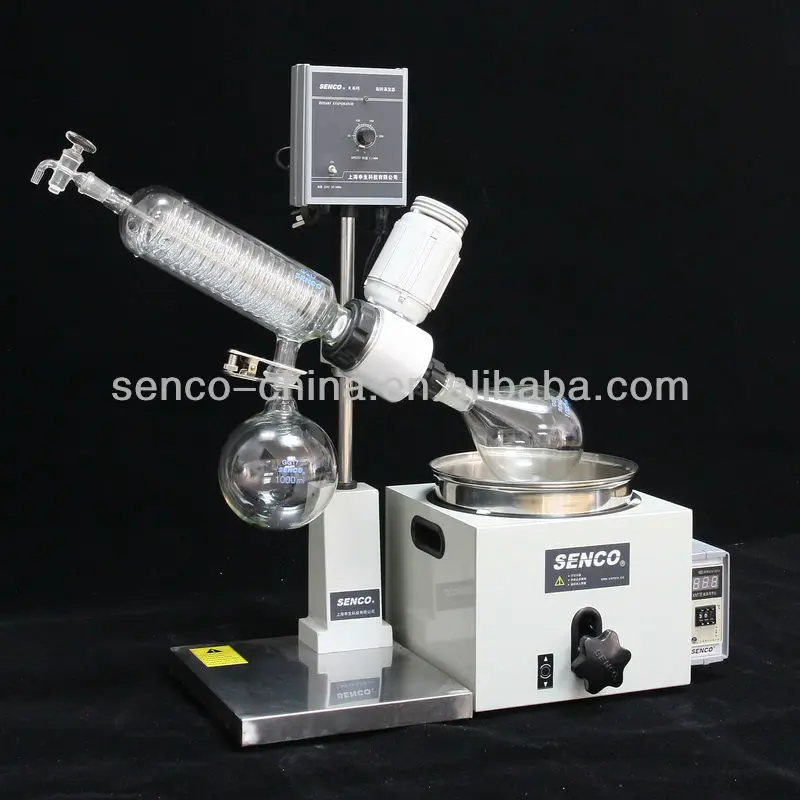

ROTARY EVAPORATOR SENCO (2L with Water Bath)
Evaporating flask's Capacity: 2L
Bath Temp.: 99°C max(water bath)

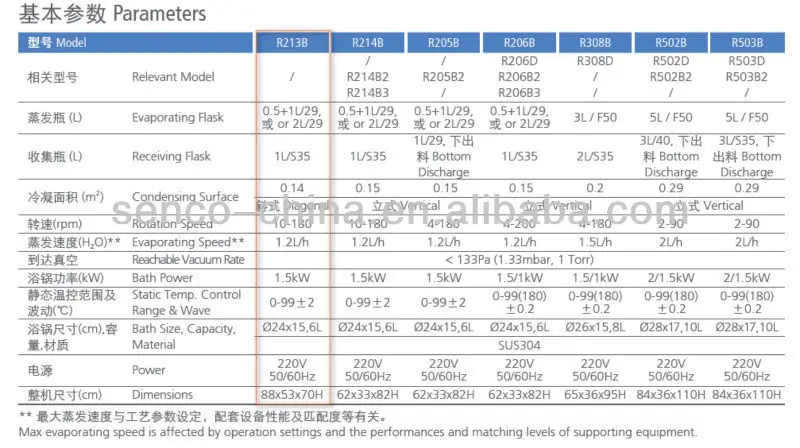

Technical specifications of vacuum rotary evaporator
| Model | R213B | R214B | R205B | R206B | R308B | R502B | R503B |
| Relevant Model | / | R206D | R308D | R502D | R503D | ||
| Evaporating Flask(L) | 0.5+1L/29,(2L/29) | 3L/F50 | 5L/F50 | ||||
| Receiving Flask(L) | 1L/S35 | 1L/29 | 1L/S35 | 2L/S35 | 3L/40 | 3L/S35 | |
| Condensing Surface( | Diagonal 0.14 | Vertical 0.15 | Vertical 0.2 | Vertical 0.29 | |||
| Rotation Speed(rpm) | 10-180 | 4-180 | 4-200 | 4-180 | 2-90 | ||
| Max Evaporating Speed(H2O) | 1.2L/h | 1.5L/h | 2L/h | ||||
| Reachable Vacuum Rate | <133Pa (1.33mbar,1 Torr) | ||||||
| Bath Power(KW) | 1.3kw | 2kw | |||||
| Static Temp.Control Range&Wave(℃) | 0-99±2 | 0-99(180)±0.2 | |||||
| Bath Size,Capacity,Material | φ24x15,6L,SUS304 | φ26x15,8L, SUS304 | φ28x17,10L,SUS304 | ||||
| Power | 220V,1P,50/60Hz | ||||||
| Dimensions(cm) | 88x53x70H | 62X33X82H | 65X36X95H | 84X36X110H | |||

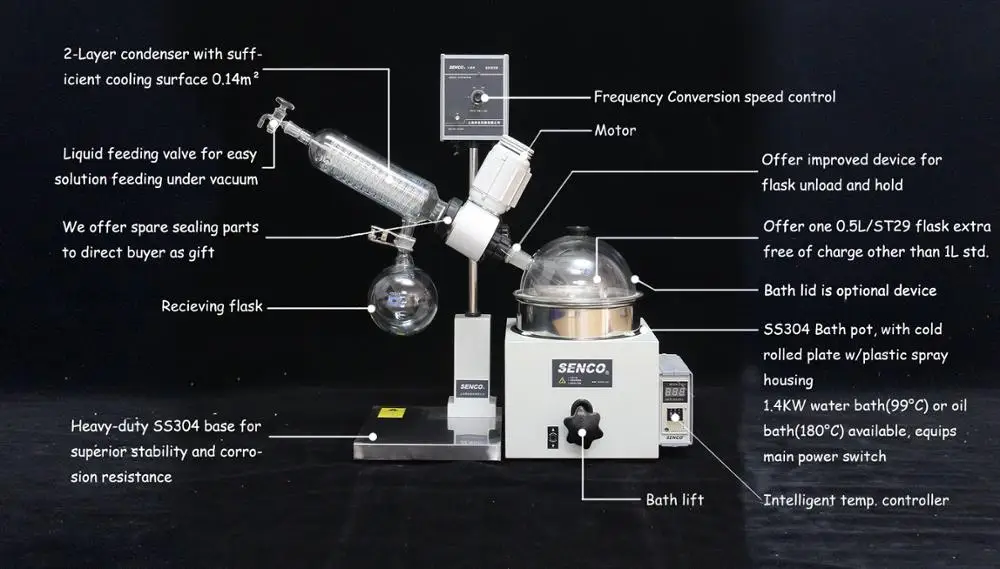

Features:
1. High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr).
2. Sealing parts are made by PTFE and rubber material, whcih can keep a high vacuum space for the whole system.
2. Long lasting sealing performance, majority user do not replace sealing part in one year.
3. Full flange connection which guarantees pressure tightness in static joint connection.
2. Long lasting sealing performance, majority user do not replace sealing part in one year.
3. Full flange connection which guarantees pressure tightness in static joint connection.
Working Principle:
Rotary evaporator is mainly used in concentrate,crystallization,drying,separation and solvent recovery in pharmaceutical,chemical,bio-pharmaceutical industries and others.Its principle is under vacuum conditions,constant heating and constant speed for rotating bottle,the material in the rotating bottle forms a large-area thin film,with efficent evaporation.Solvent vapor passes through efficent glass condenser with cooling and recyle collection,greatly improving the efficiency of evaporation.Concentrated purification for biological products,especially for high temperature easily decomposed.
