14/2 14/3 12/2 AWG Romex NMD90 Copper Conductor Cable NMD90 Building Wire with cUL Certificate for Canada
- Category: Power Cables >>>
- Supplier: Hebei Huatong Wires&cables Group Co. Ltd.
Share on (62437168904):
Product Overview
Description

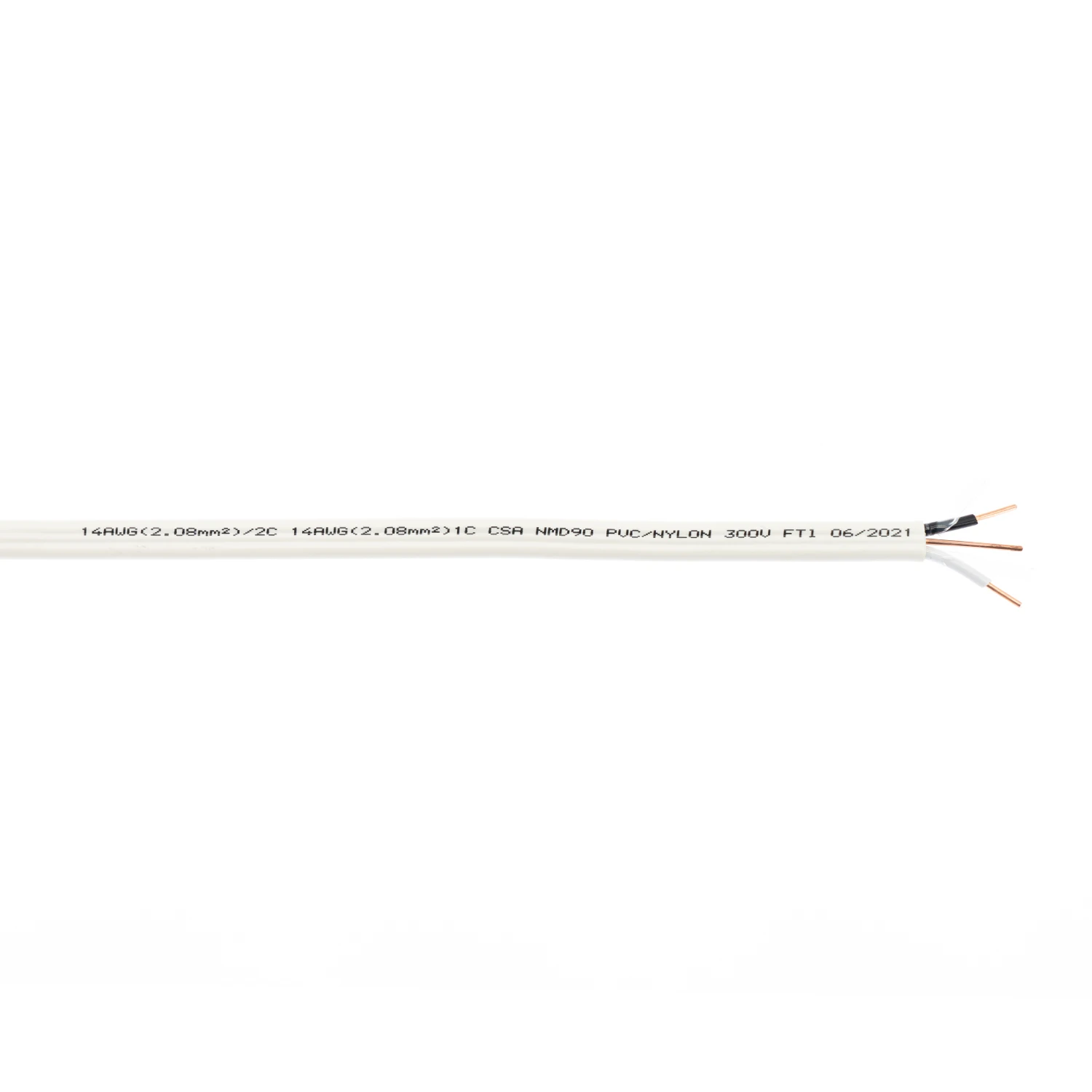

14/2 AWG NMD90 Copper Conductor Cable NMD90 Building Wire with cUL Certificate for Canada
Product Description
Applications
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor
cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for
24 hours prior to installation.
The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further
information related to applications.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor
cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for
24 hours prior to installation.
The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further
information related to applications.
Standards
Type NMD90 cable complies with:
ASTM
CSA C22.2 No. 48 (non-metallic sheathed cable)
Canadian Electrical Code1
ASTM
CSA C22.2 No. 48 (non-metallic sheathed cable)
Canadian Electrical Code1
Specifications
NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without external lubricants, resulting in reduced labour and materials costs.
• COPPER CONDUCTORS
• 300 VOLTS / -25ºC MIN, 90ºC MAX
• COPPER CONDUCTORS
• 300 VOLTS / -25ºC MIN, 90ºC MAX

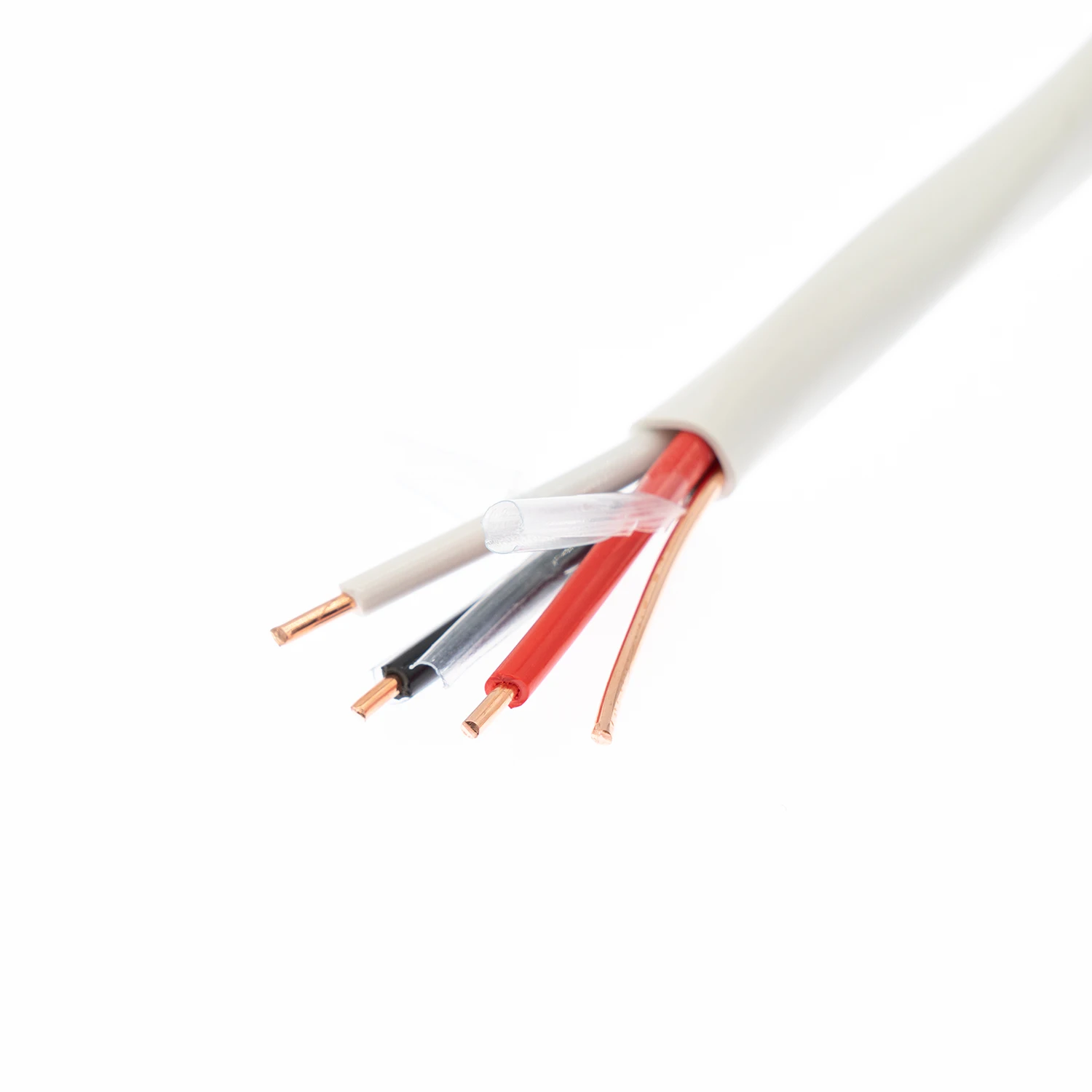

Cable Construction

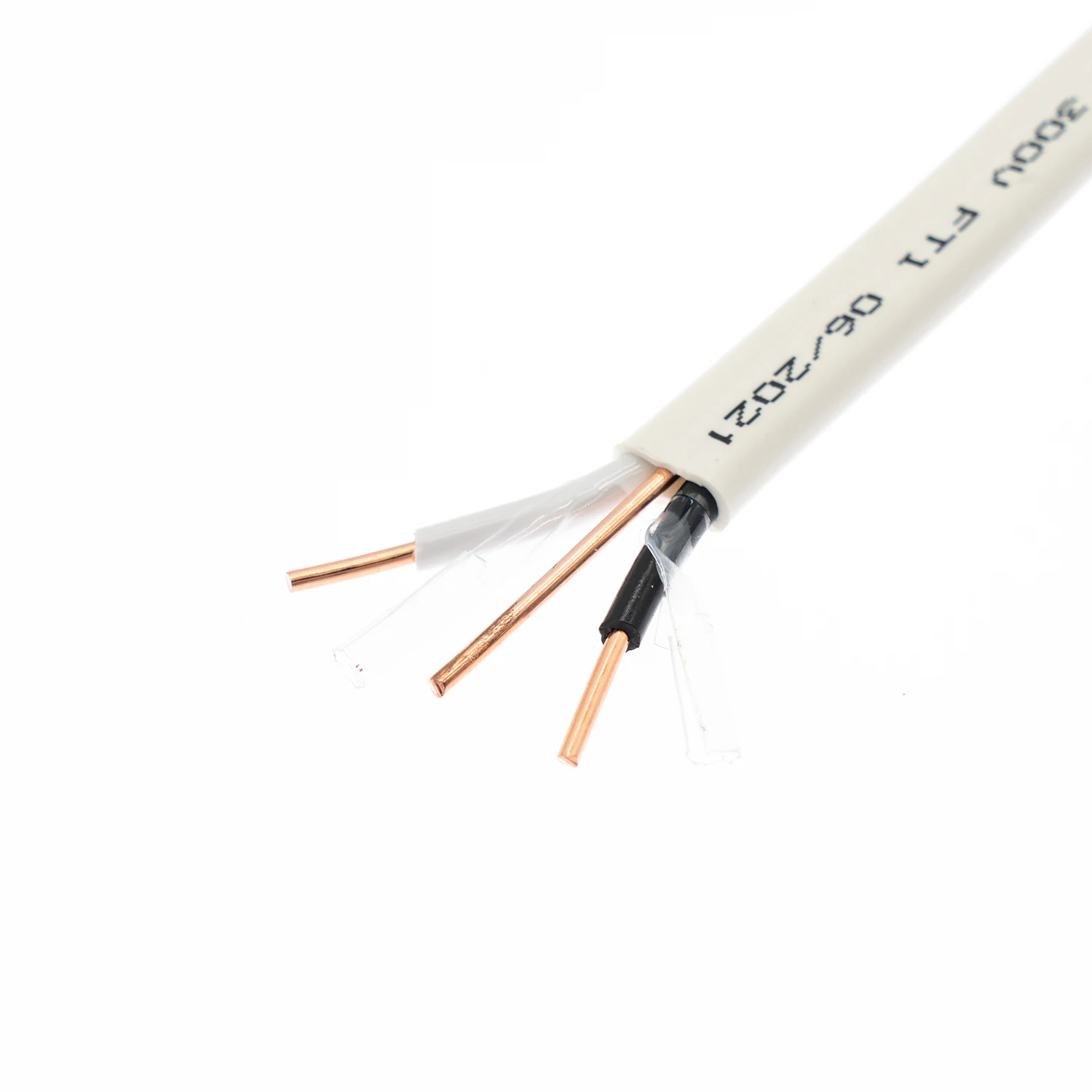

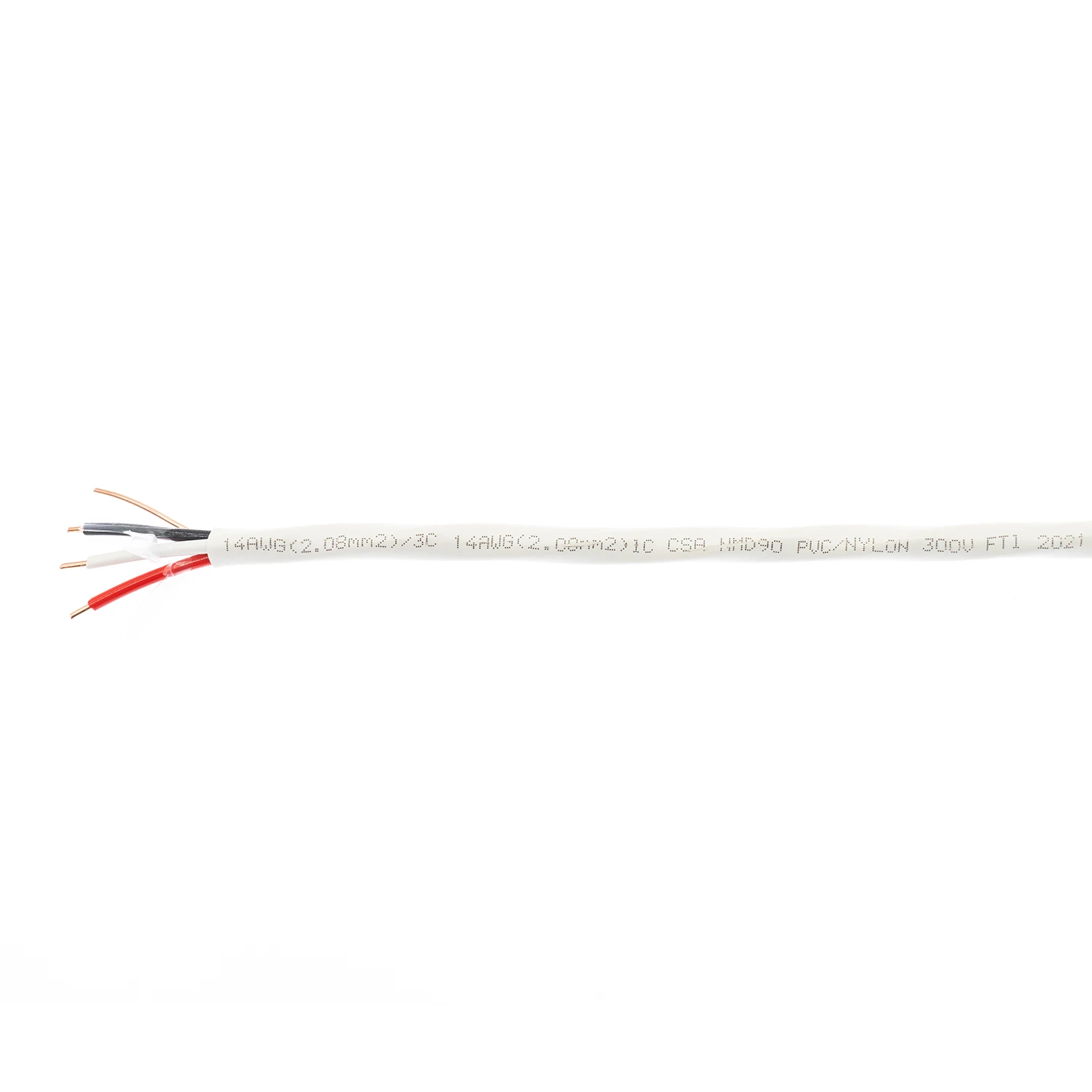

NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is manufactured using annealed
(soft) copper conductors-compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC)
insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.
Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in
the Table below:
(soft) copper conductors-compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC)
insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.
Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in
the Table below:

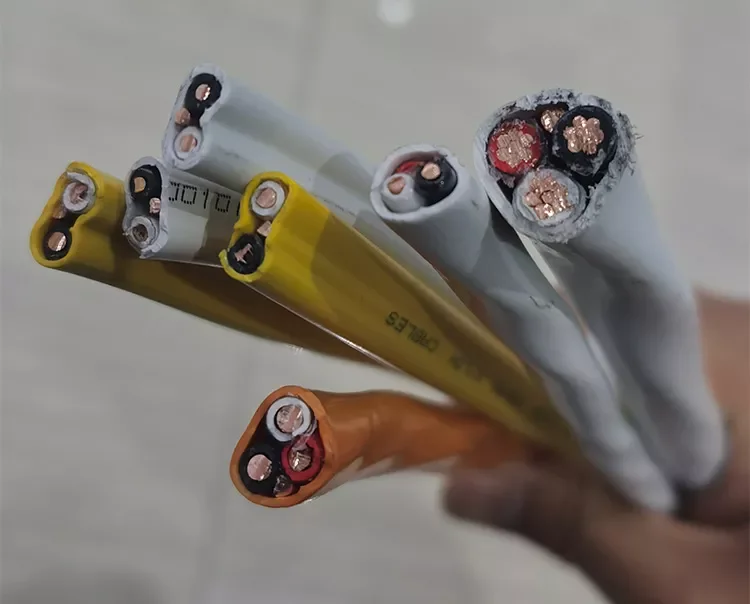

JACKET COLOUR CODE - Typical Application Guide
•WHITE - General Residential Wiring
•RED - 2 Black and Red conductors - 208V-240V Circuits (no neutral)
•ORANGE - No. 10 AWG General Residential Wiring
•YELLOW - No. 12 AWG General Residential Wiring
•BLUE - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter Applications
NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without external
lubricants, resulting in reduced labour and materials costs.
Size(AWG or KCMIL) | No. of Strands | Ground Wire Size(AWG) | Insulation Thickness(in) | |
PVC | Nylon | |||
14/2 G | Solid | 14 | 0.015 | 0.004 |
12/2 G | Solid | 12 | 0.015 | 0.004 |
10/2 G | Solid | 10 | 0.02 | 0.004 |
8/2 G | 7 | 10 | 0.03 | 0.005 |
6/2 G | 7 | 10 | 0.03 | 0.005 |
14/3 G | Solid | 14 | 0.015 | 0.004 |
12/3 G | Solid | 12 | 0.015 | 0.004 |
10/3 G | Solid | 10 | 0.02 | 0.004 |
8/3 G | 7 | 10 | 0.03 | 0.005 |
6/3 G | 7 | 10 | 0.03 | 0.005 |
4/3 G | 7 | 8 | 0.04 | 0.006 |
2/3 G | 7 | 8 | 0.04 | 0.006 |
14/4 G & 14/2-2 G3 | Solid | 14 | 0.015 | 0.004 |
12/4 G & 12/2-2 G3 | Solid | 12 | 0.015 | 0.004 |
10/4 G3 | Solid | 10 | 0.02 | 0.004 |

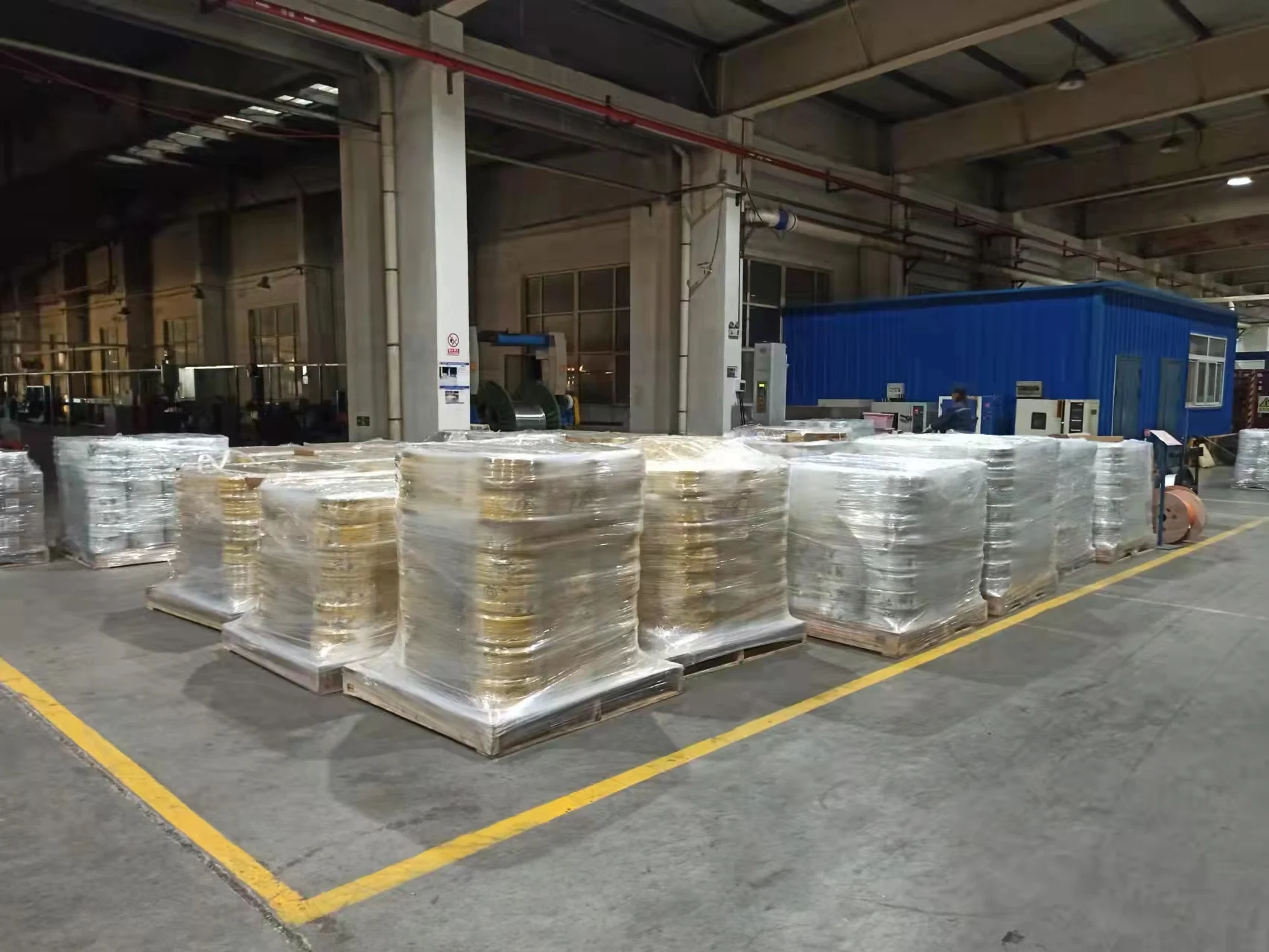

Packaging & Shipping
