Kitchen Smoke Extraction Rangehood Blower 6 Inch 3 Speeds Centrifugal Fan AC 2 Years 220V Food Shop FREE Standing Garment Shops
- Category: Centrifugal Fans >>>
- Supplier: Shanghai Anneng Fan Co. Ltd.
Share on (62437178976):
Product Overview
Description
Type: D2E155-L150-01F

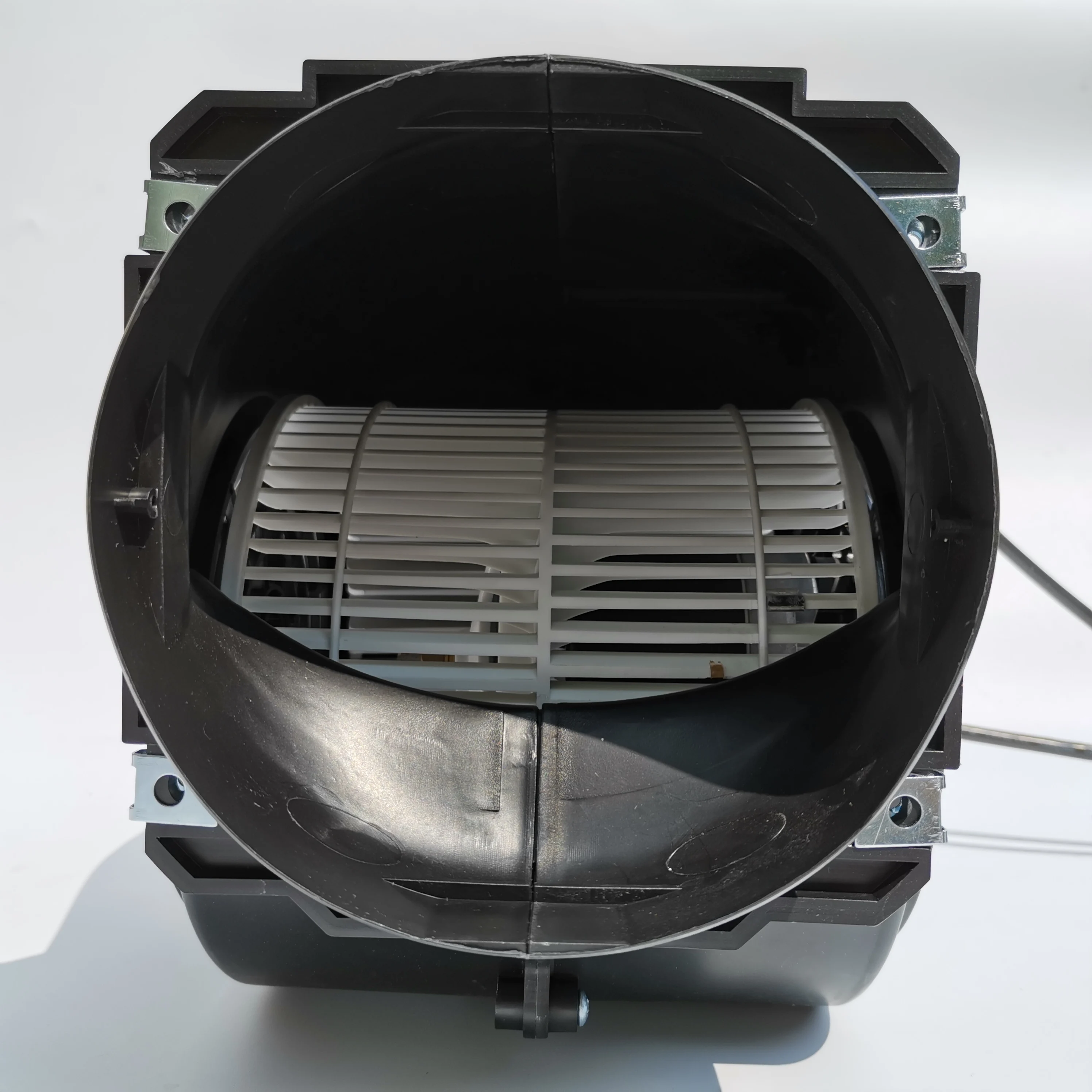

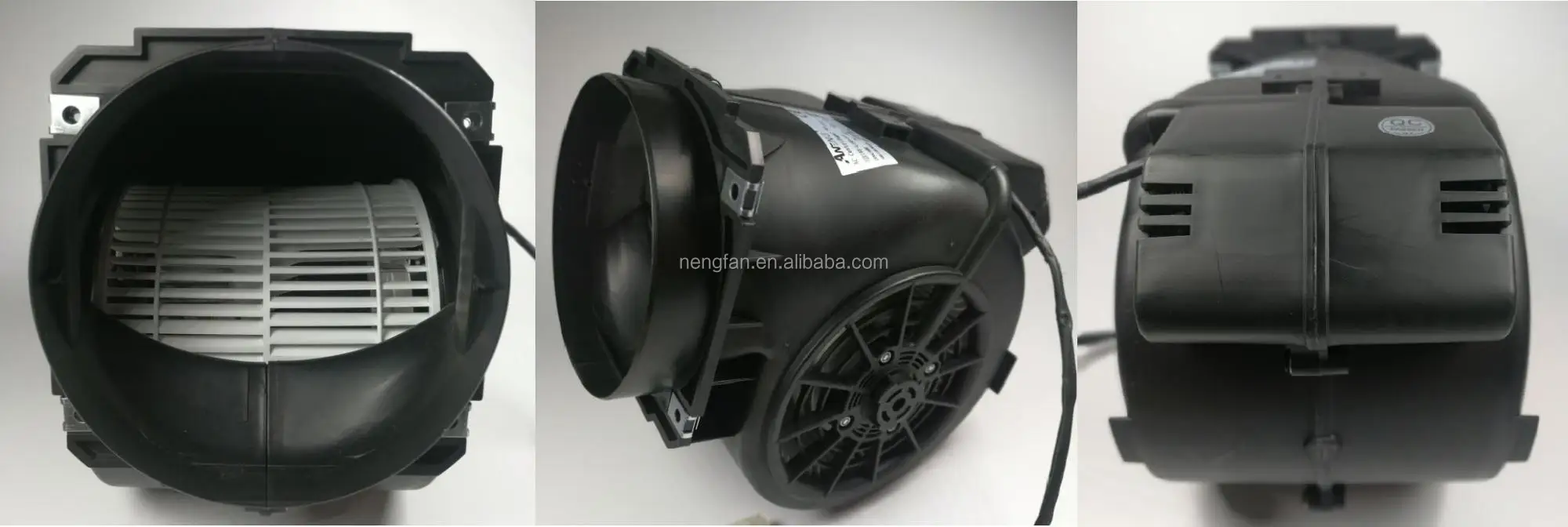

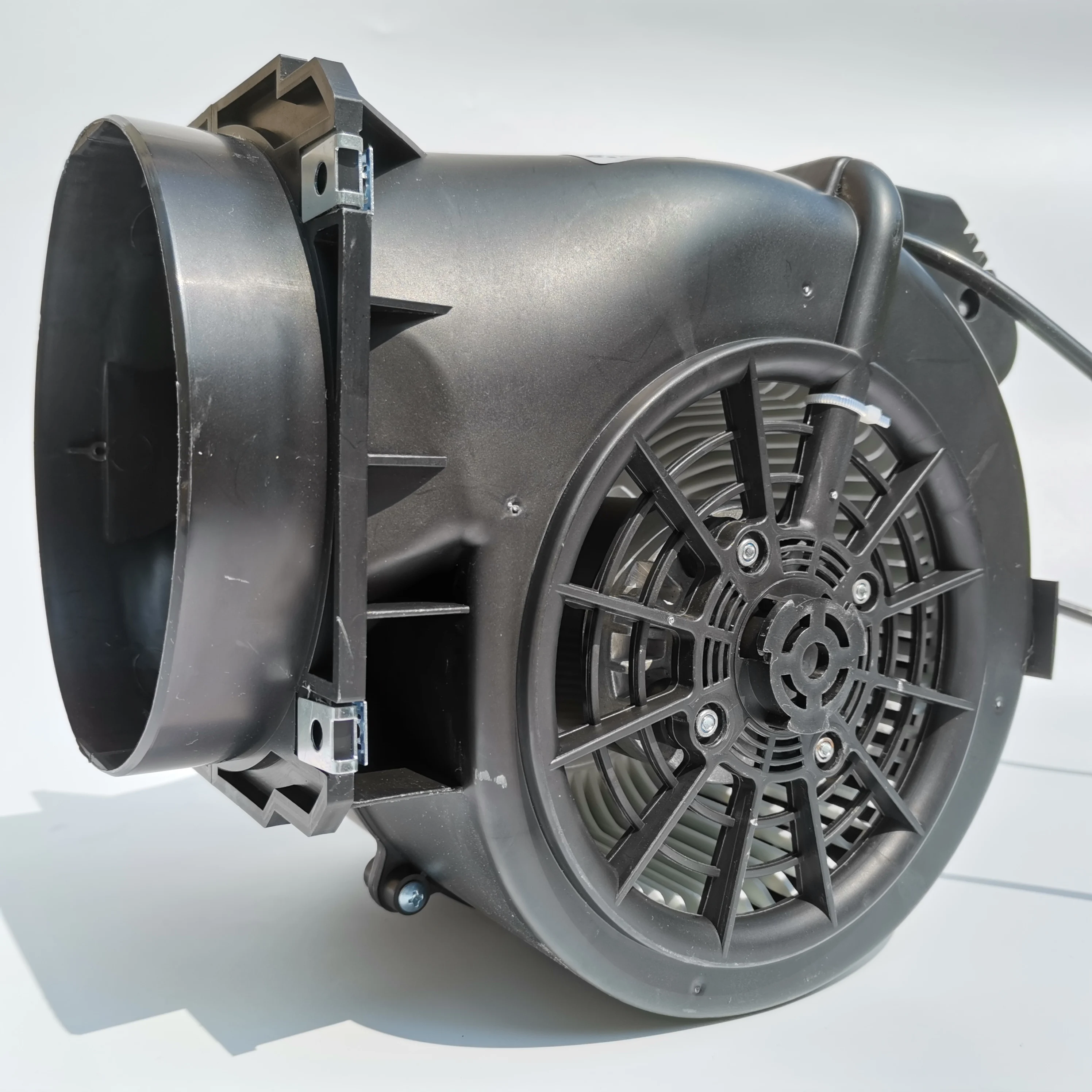

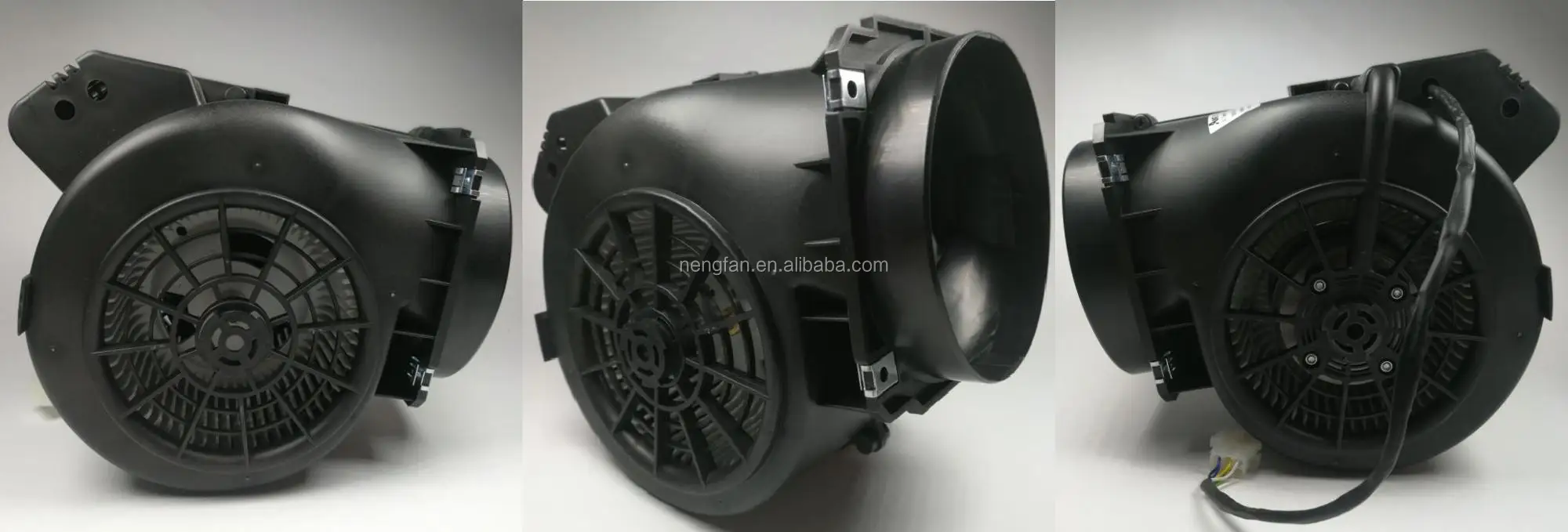

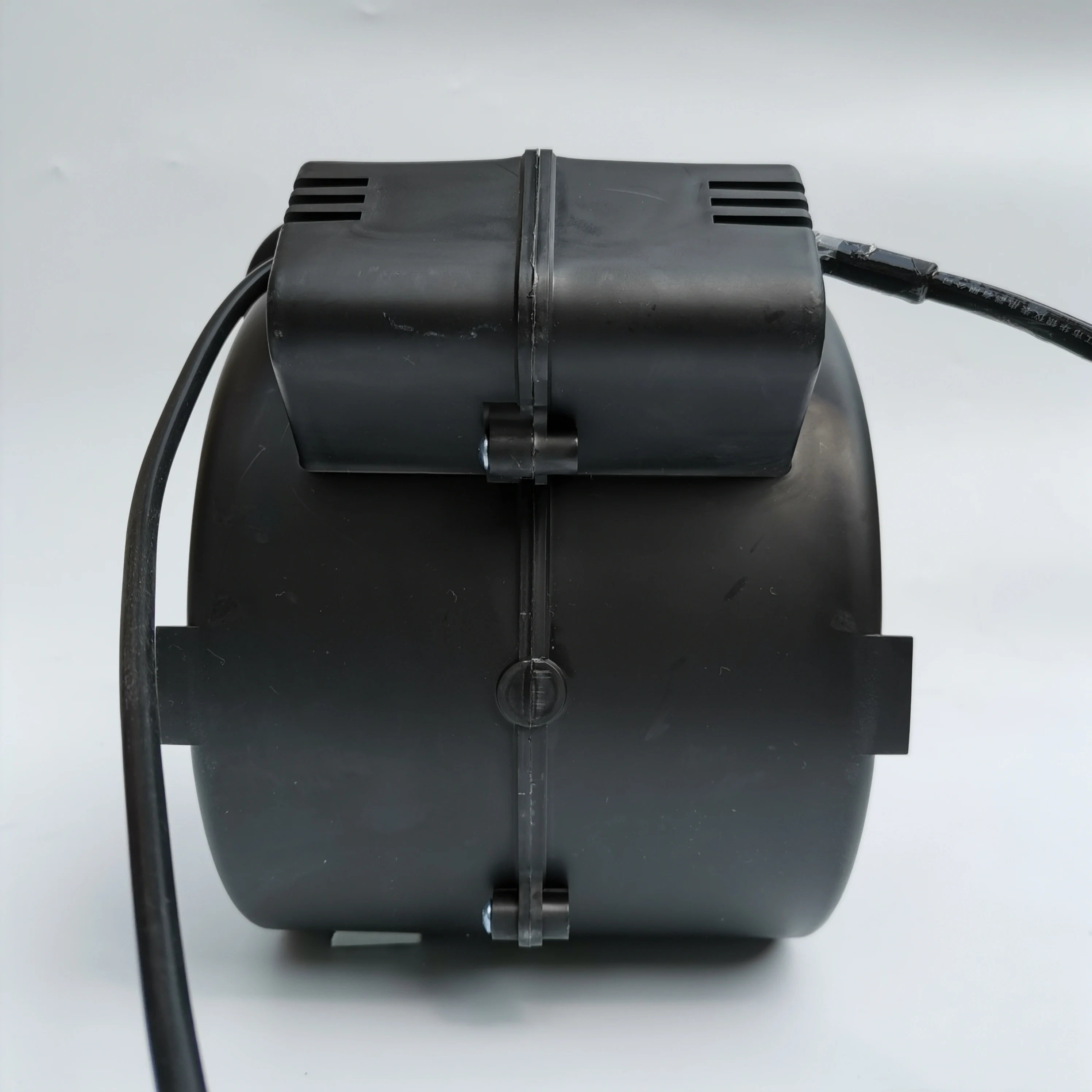

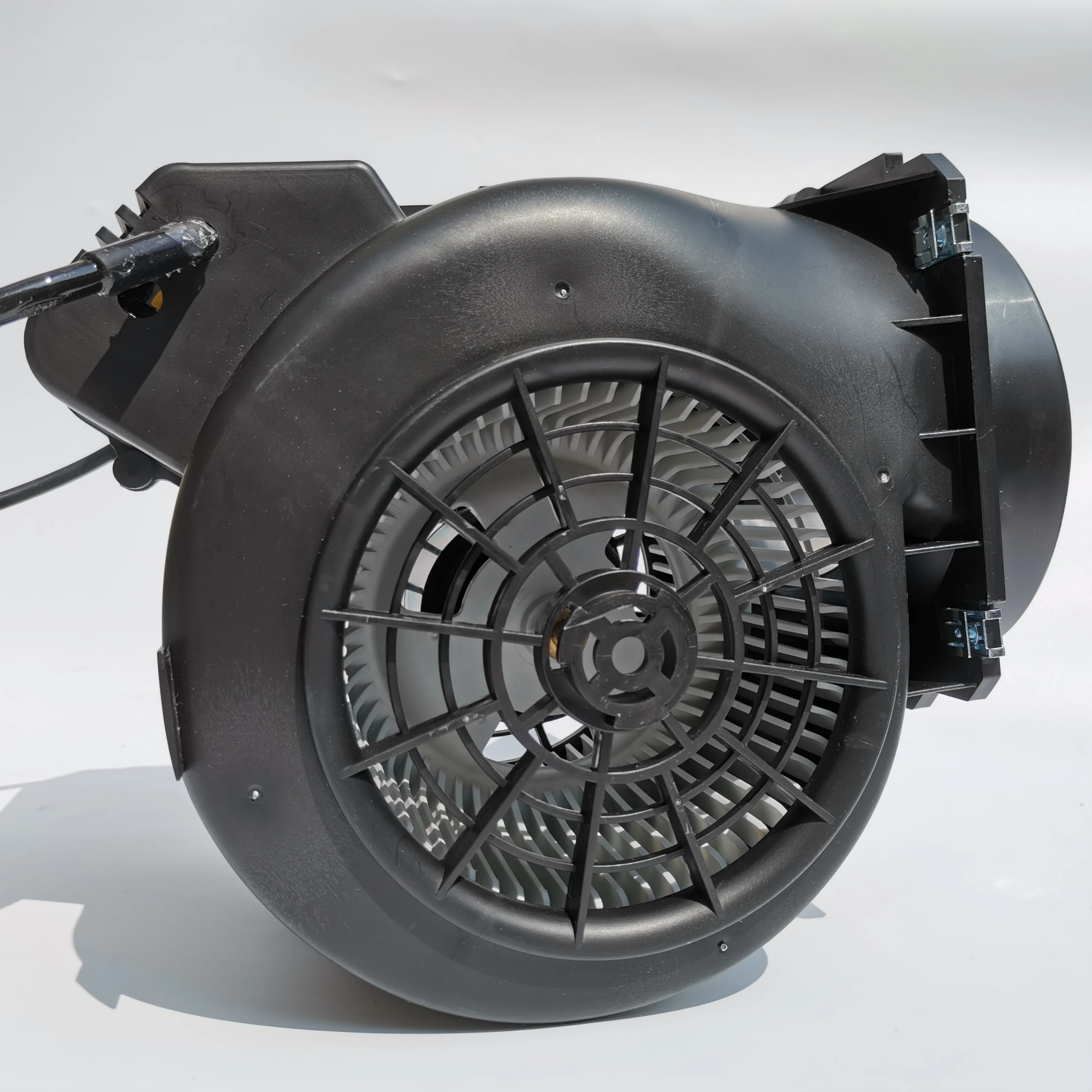

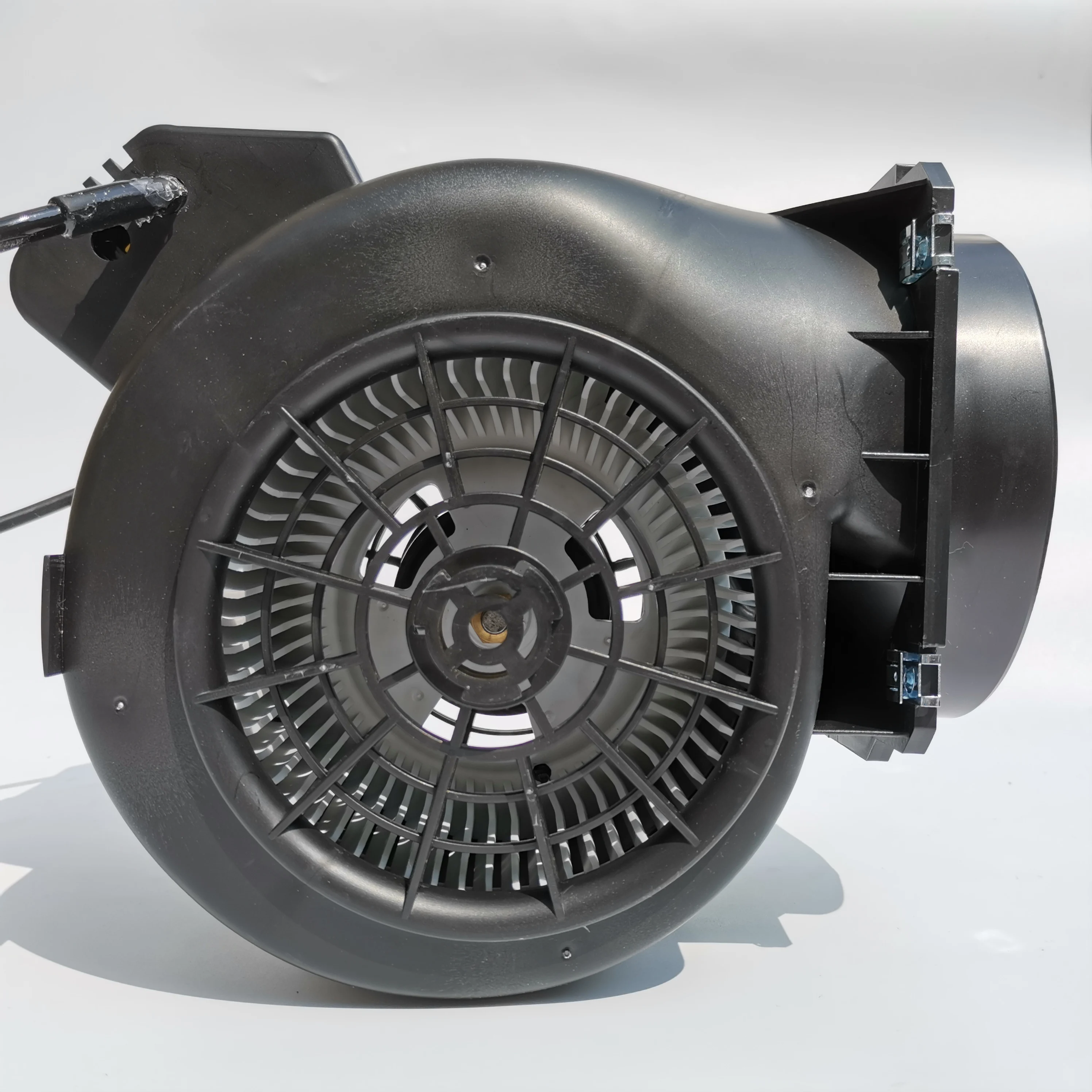

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)
Product Datasheet
| Specification | |||||||
| Model Type: D2E155-L150-01F / Motor Type: 92mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 230 | 50 | 0.33/0.3/0.28 | 170/130/100 | 1500/1200/900 | 465/272/217 | 790/464/370 | 500/470/420 |
| Details Description | |||||||
| Current Leakage | <=3.5mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "F " | ||||||
| Cable Length | 450mm | ||||||
| Bearing | Ball bearing NMB | ||||||
| Net weight | 2.1kg | ||||||
| Number of Blades | / | ||||||
| Type of Protection | IP44 | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||

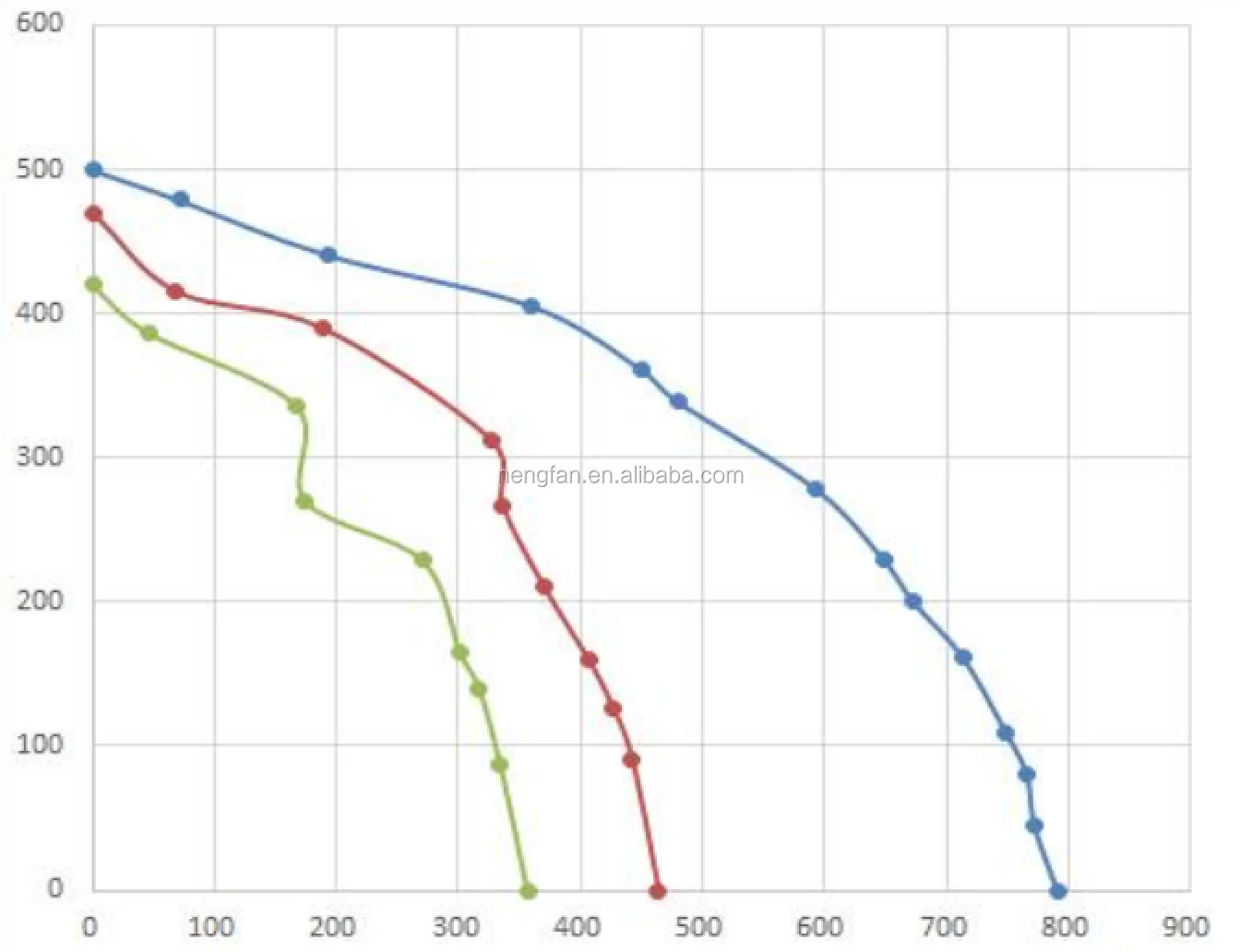

| Characteristic Curves | |||||||
 |
|||||||

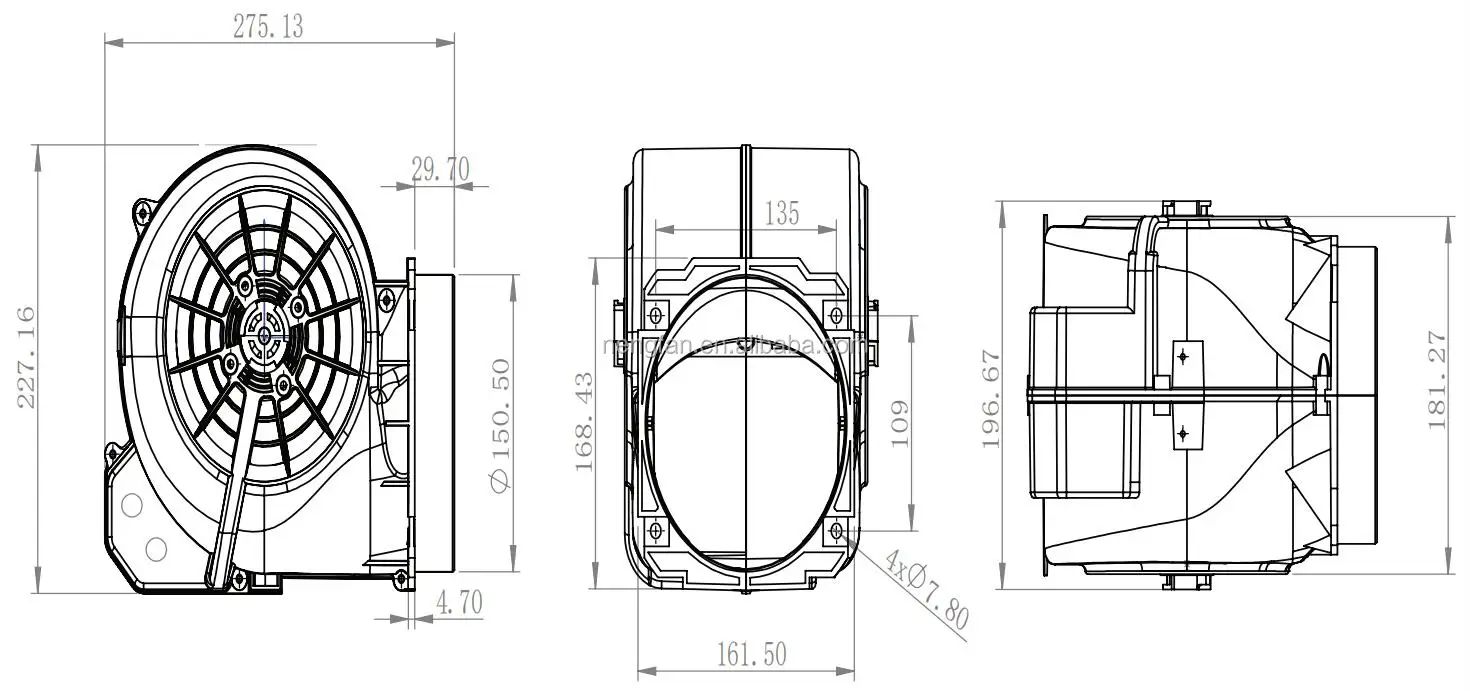

| Drawing | |||||||
|
|
|||||||
Factory Display
Production Line
Packaging
|
1. for Sample, packing individually by foam carton; 28*26*26 2. for Mass, pallet package 112x112x120CM. |
 |
Certifications
 |
Our Guarantees
|
Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
