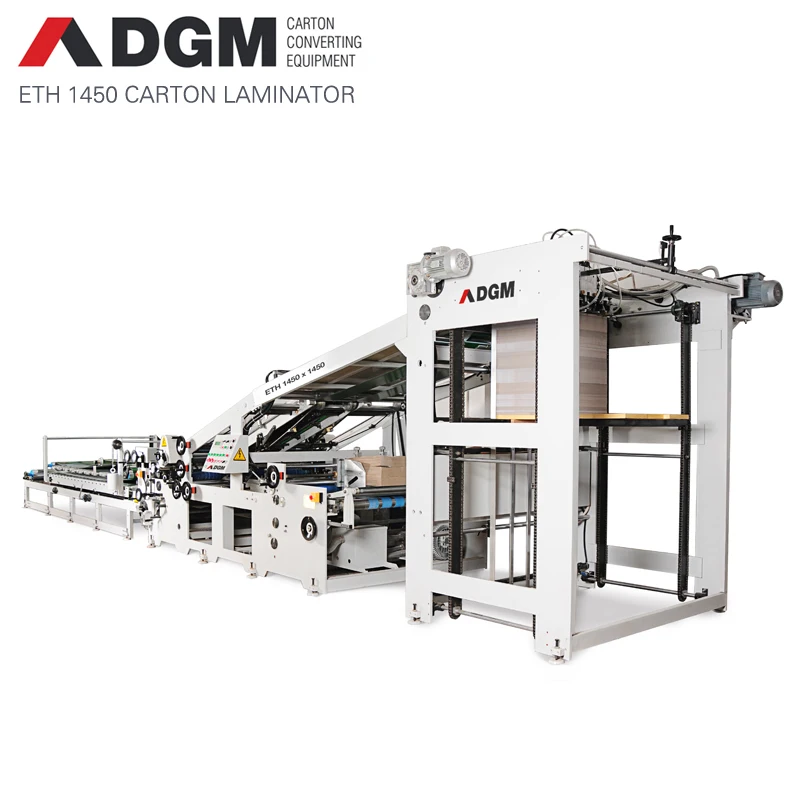

Automatic sheet to sheet carton laminator machine. Easy to operate and quick set-up. Suitable for all packaging industry, display floor stands, sidewalk signs, outdoor displays, poster displays, etc.

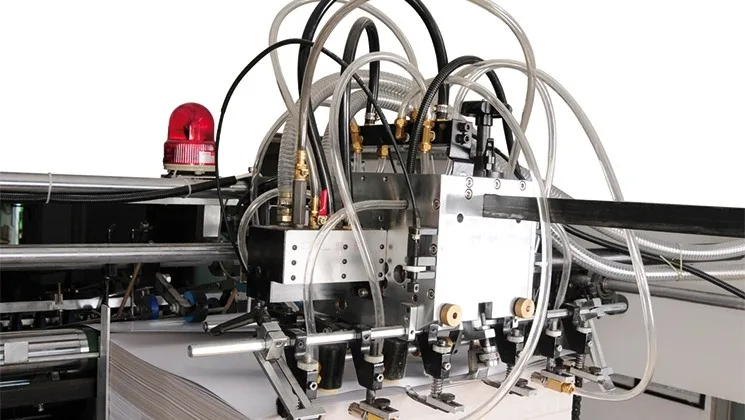

1. Sheet feeder
* Total height 2,600 mm. * Streaming feeding suction head. * Feeder bridge with double sheet detector. * 8 sets of lifting suckers. * 4 sets of joggers and spring type side guide to control and transfer the substrate. * Side guide metering adjustment for flute width setting.

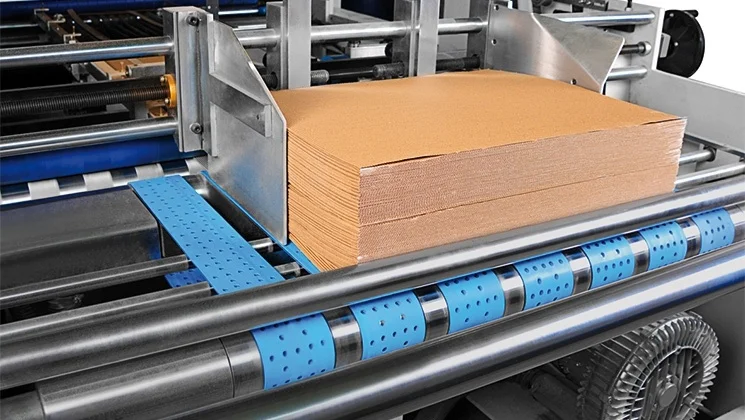

2. Flute feeder
* Friction feeder system by perforated belts and suction (Power 2.2 kW). * Brake system by electromagnetic clutch. * Registration System with micrometer adjustment for excellent register when laminating cardboard with cardboard.
3. Laminating unit
* Main motor power 5.5 kW. * Coater consists of 2 rollers. The glue comes from the top until reach the gap between the application roller and metering roller. * The glue flow that is pumped out is controlled by a sensor. * Washing roller, it is used to remove unwanted glue stains from pressing cylinder, avoiding the flute to stain. * Laminating precision +/- 1.5 mm.
4. Pressure conveyor unit
* Total length 6,000 mm. * Independent motorized (total power 2.2 kW). * Conveyor system with uniform and balanced pressure to ensure optimum quality in any type of work to be processed. * Upper conveyor moves back and forward.
Detailed Images

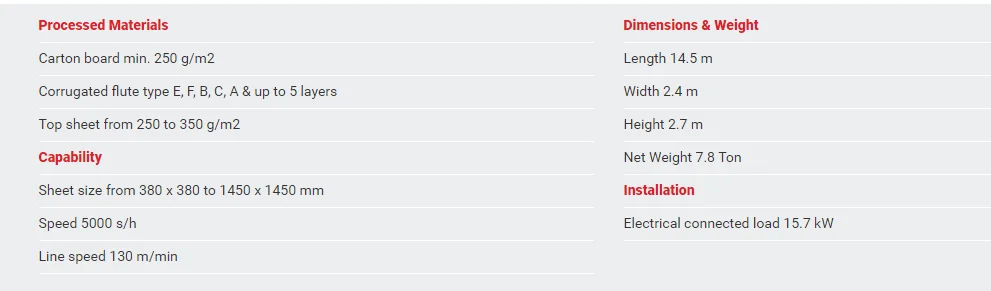

Size Information

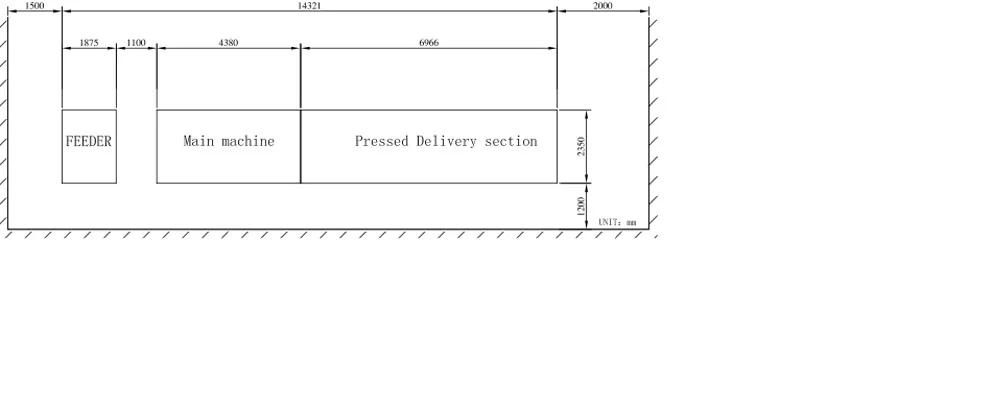

SCHEME
