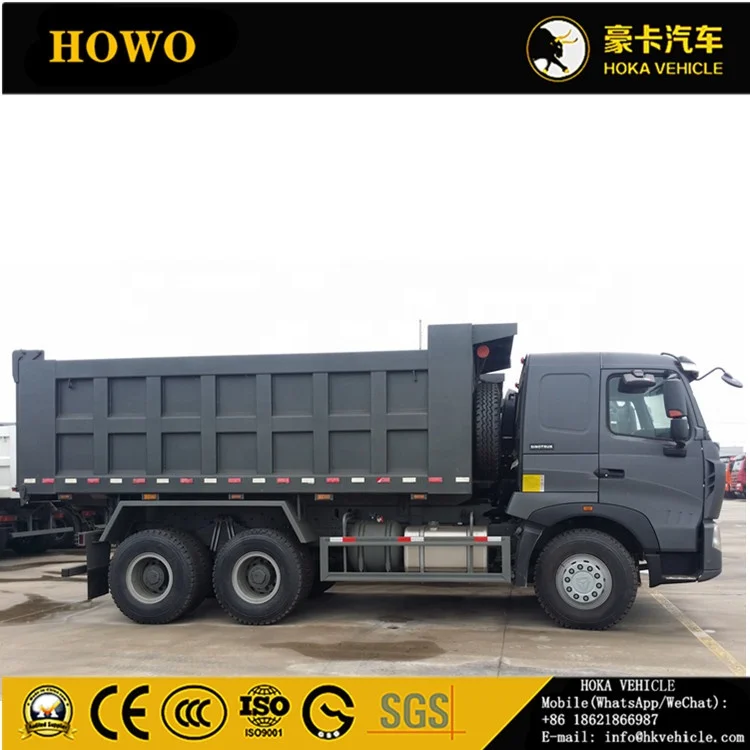

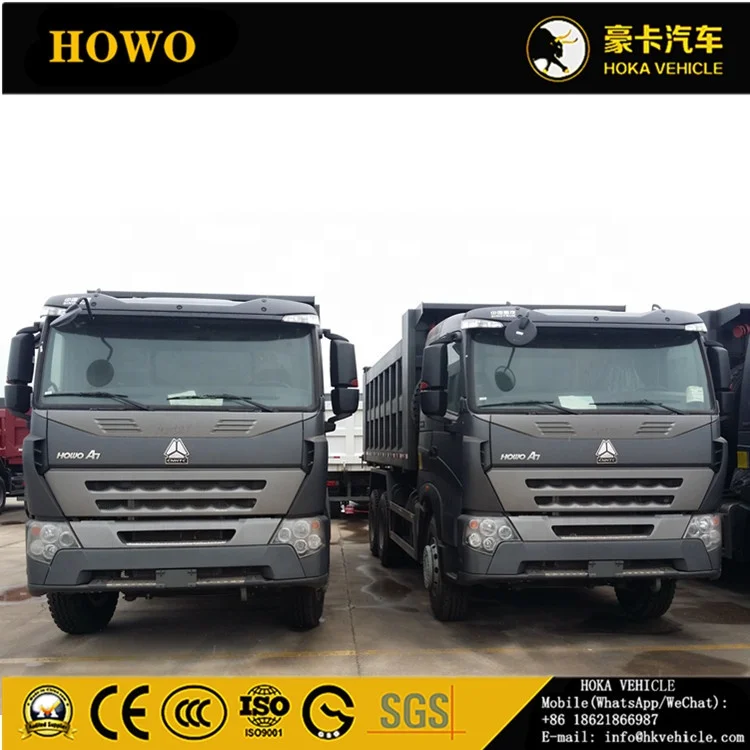

Hot Sale SINOTRUK HOWO A7 6X4 371HP DUMP TRUCK TIPPER DUMPER GREY COLOR ZZ3257N3847N1

Product Overview

Description

SINOTRUK HOWO Dump Truck

With its reliable and stable structure design, high bearing capacity, excellent engine force, highly stable performance, and its frame forged in construction and mining industries with adverse operating environments, it is widely used for the short-range earthwork transportation tasks for mines and construction projects. It is world widely accepted by users from South East Asia, Middle East, Africa, South America countries. Without any question, HOWO dump truck is NO. 1 option for your project.



Model		ZZ3257N3847N1
Cabin		A7-W low floor lengthening cabin, with two seats, one bed, with Air Conditioner
Engine	Make	SINOTRUK
	Model	WD615.47, Euro II emission standard
	Horse Power (Hp/rpm)	371/2200
	Max.Toruqe(Nm/rpm)	1460/1350-1600
	Displacement(L)            L	9.726
	Type	DIESEL, 6-cylinder in-line with water cooling, intercooling and turbo-charging
Transmission		HW19710, 10 speeds forward and 2 speed reverse.
Front Axle		HF9(9T), Steering with double T-cross section beam
Driving Axle		HC16(16T), Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles Ratio: 5.73  Option: 6.72 ratio: 6.833
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		ZF8118, Hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire		12.00R20
Fuel Tank Capacity (L)		300L Diesel Tank
Electrics		Operating voltage: 24V, negative grounded Starter: 24V, 5.4Kw Alternator: 3-phase, 28V, 1500W Batteries: 2x12V, 165Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Kurb Weight (Kg)		12,490
Gross Vehicle Weight (kg)		41,000
Overall Dimension(L*W*H)(mm)		7934×2496×3386
Body Dimension(L*W*H)(mm)		5600*2300*1500
Wheelbase(mm)		3825+1350
Max. Speed (km/h)		75
