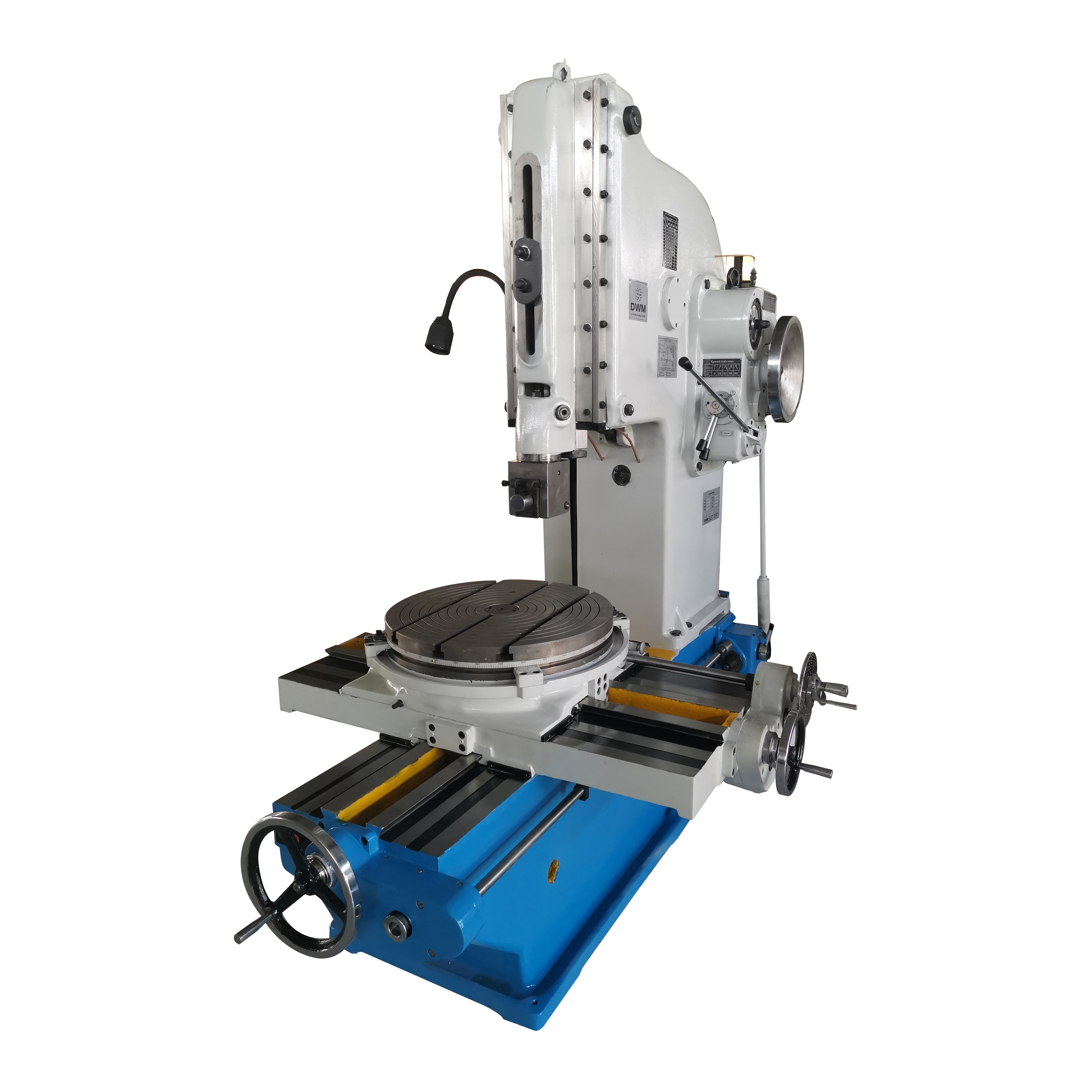

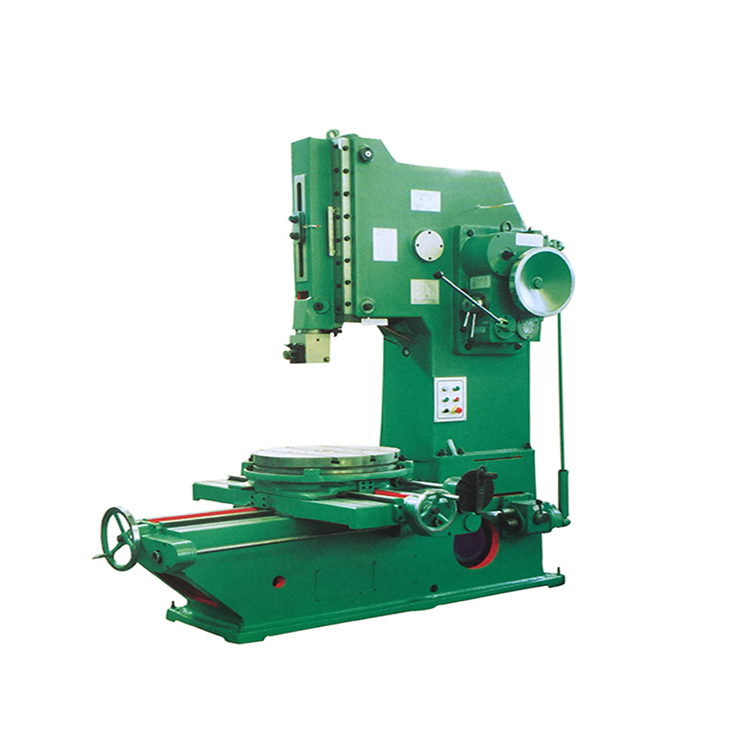

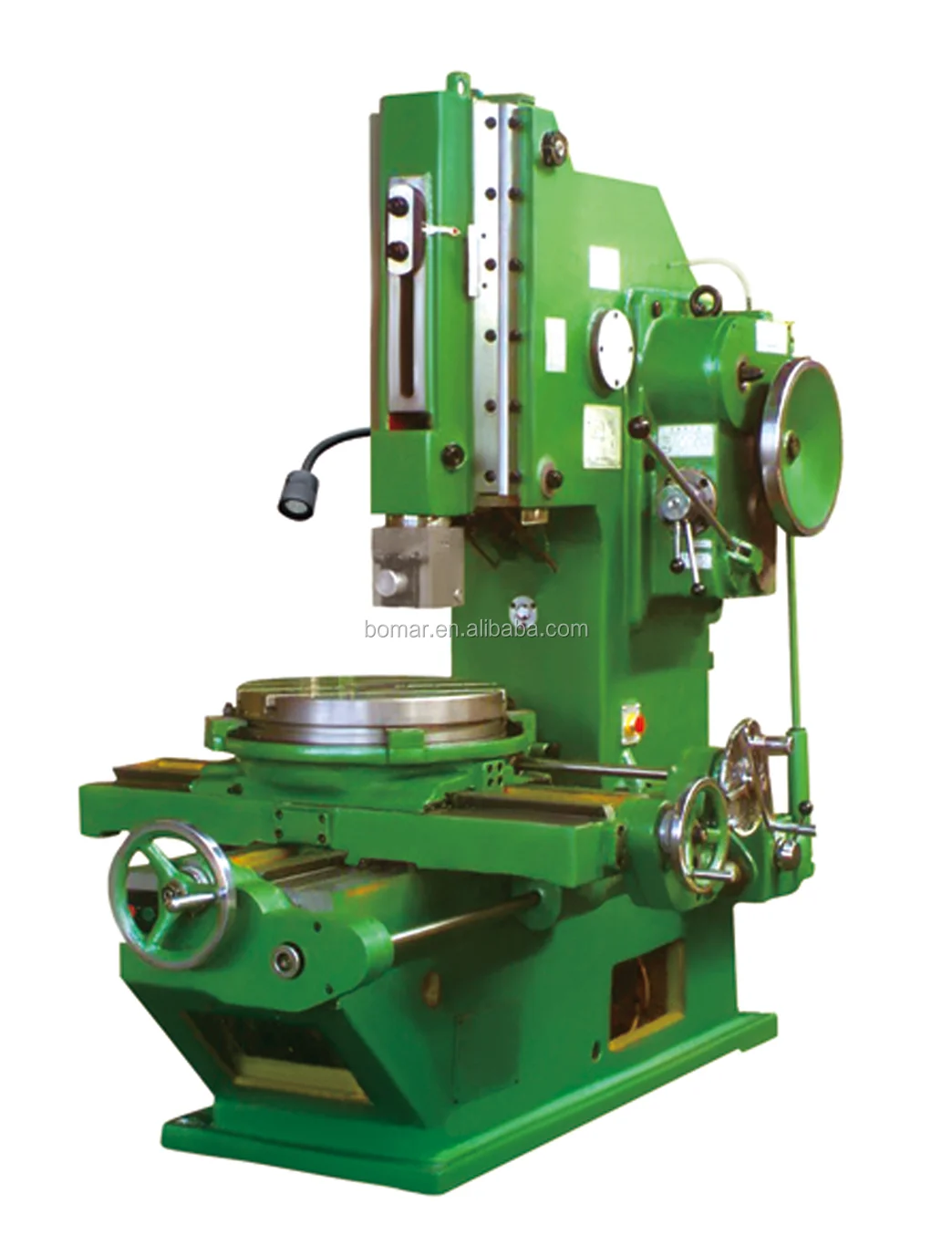

Keyway Vertical Slotting Machine BM5032 BM5020 Vertical Shaper Machine for sale
Vertical slotting machine Main features:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
Application:
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.
Parameter:
Parameter:
Specification
BM5020
BM5032
BM5040
BM5050
BM5063
Max slotting length
200mm
320mm
400mm
500mm
630mm
Max dimensions of workpiece (LxH)
485x200mm
600x320mm
700x320mm
Max weight of workpice
400kg
500kg
500kg
2000kg
2000kg
Table diameter
500mm
630mm
710mm
1000mm
1120mm
Max longitudinal travel of table
500mm
630mm
560/700mm
1000mm
1120mm
Max cross travel of table
500mm
560mm
480/560mm
660mm
800mm
Range of table power feeds (mm)
0.052-0.738
0.052-0.738
0.052-0.783
3,6,9,12,18,36
3,6,9,36
/16,12,24,29
Main motor power
3kw
4kw
5.5kw
7.5kw
10kw
Overall dimensions (LxWxH)
1836x1305
2180x1496
2450x1525
3480x2085
3580x2390
x1995mm
x2245mm
x2535mm
x3307mm
x3660mm

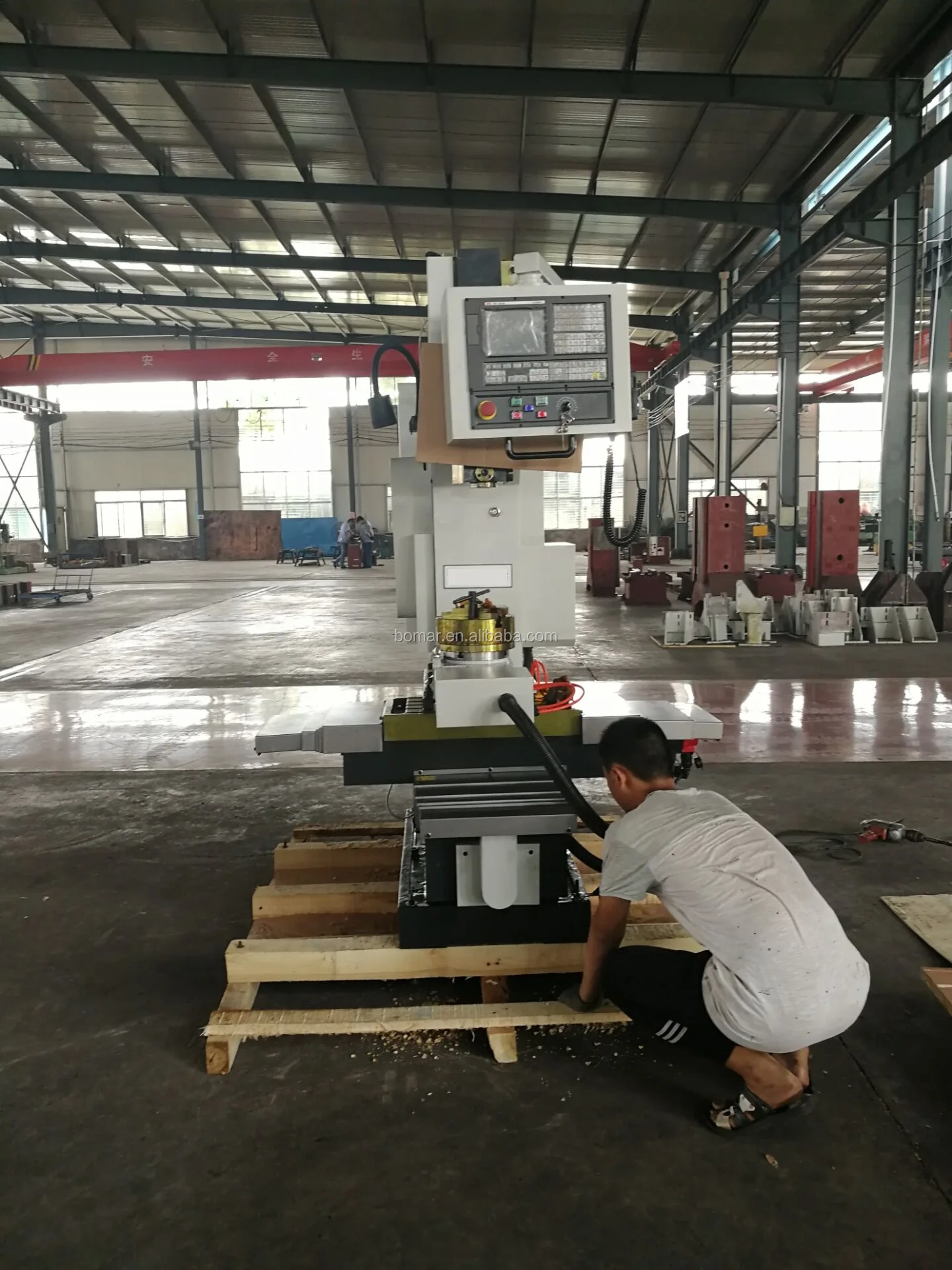

Packaging & Shipping
Use Plywood cases then by container
