PP WPC Plastic PVC hollow sheet Building Board construction formwork extrusion Machine Production Line
- Category: Plastic & Rubber Machinery >>>
- Supplier: Jiangsu Acemien Machinery Co. Ltd.
Share on (62443886519):
Product Overview
Description
Product Description
[ Project Introduction ]
Machine name: Plastic PP Hollow Construction Formwork Making machine
Machine name: Plastic PP Hollow Construction Formwork Making machine
Jiangsu Acemien Machinery Co., Ltd. is the first batch of plastic building materials equipment brand production enterprises, mainly producing plastic extrusion equipment and plastic recycling equipment.
The company has gathered a group of outstanding talents and formed a high-quality scientific research team with Chinese elites and young people as the backbone of science and technology.In the continuous product research and development practice, has accumulated rich product design experience and profound theoretical knowledge.

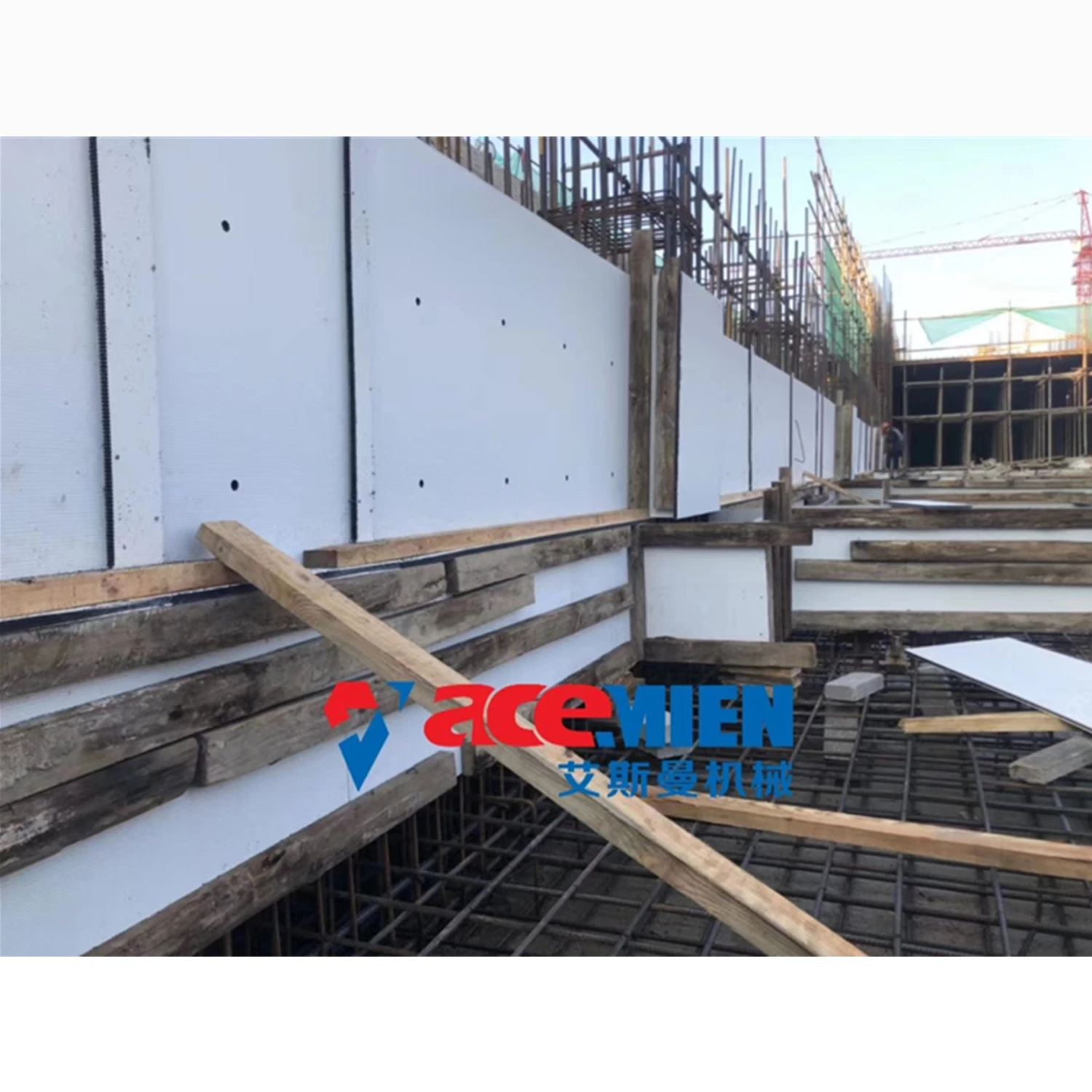

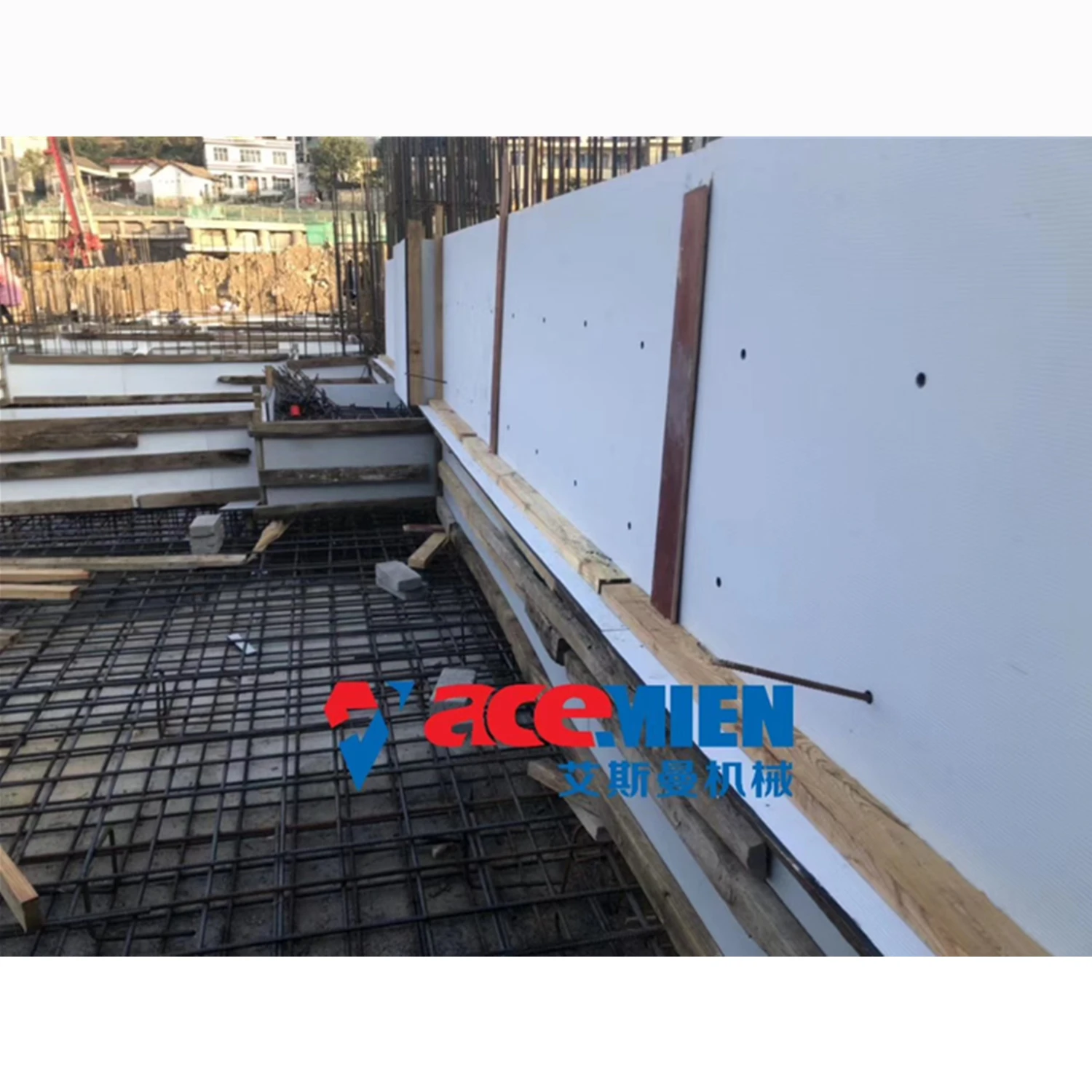

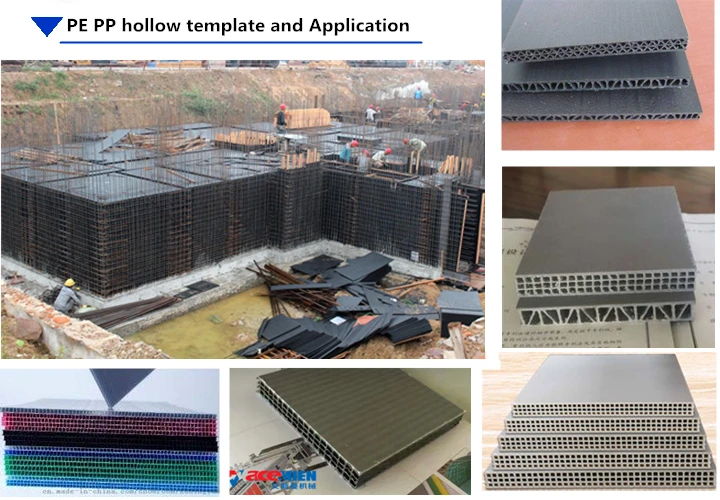

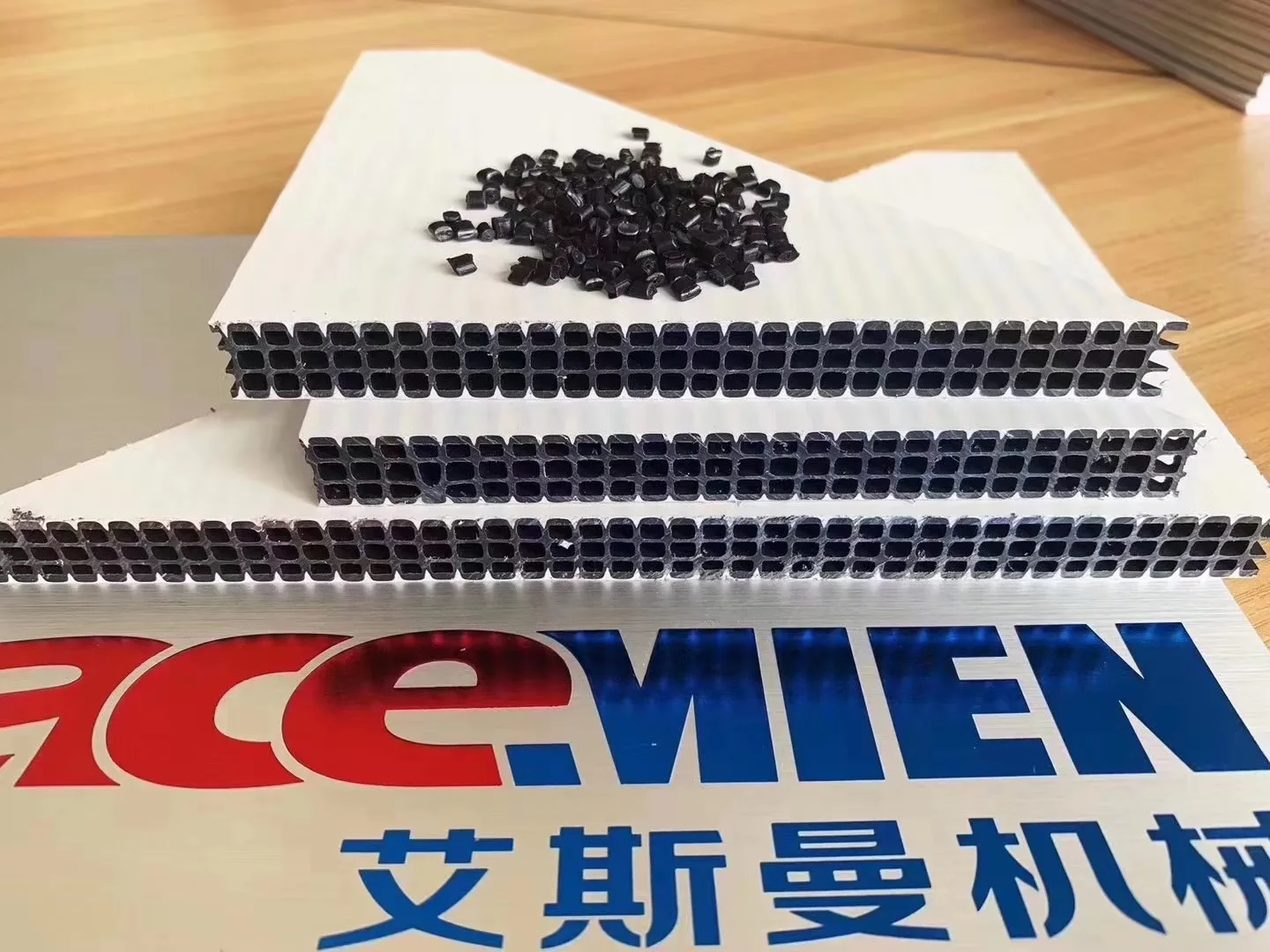

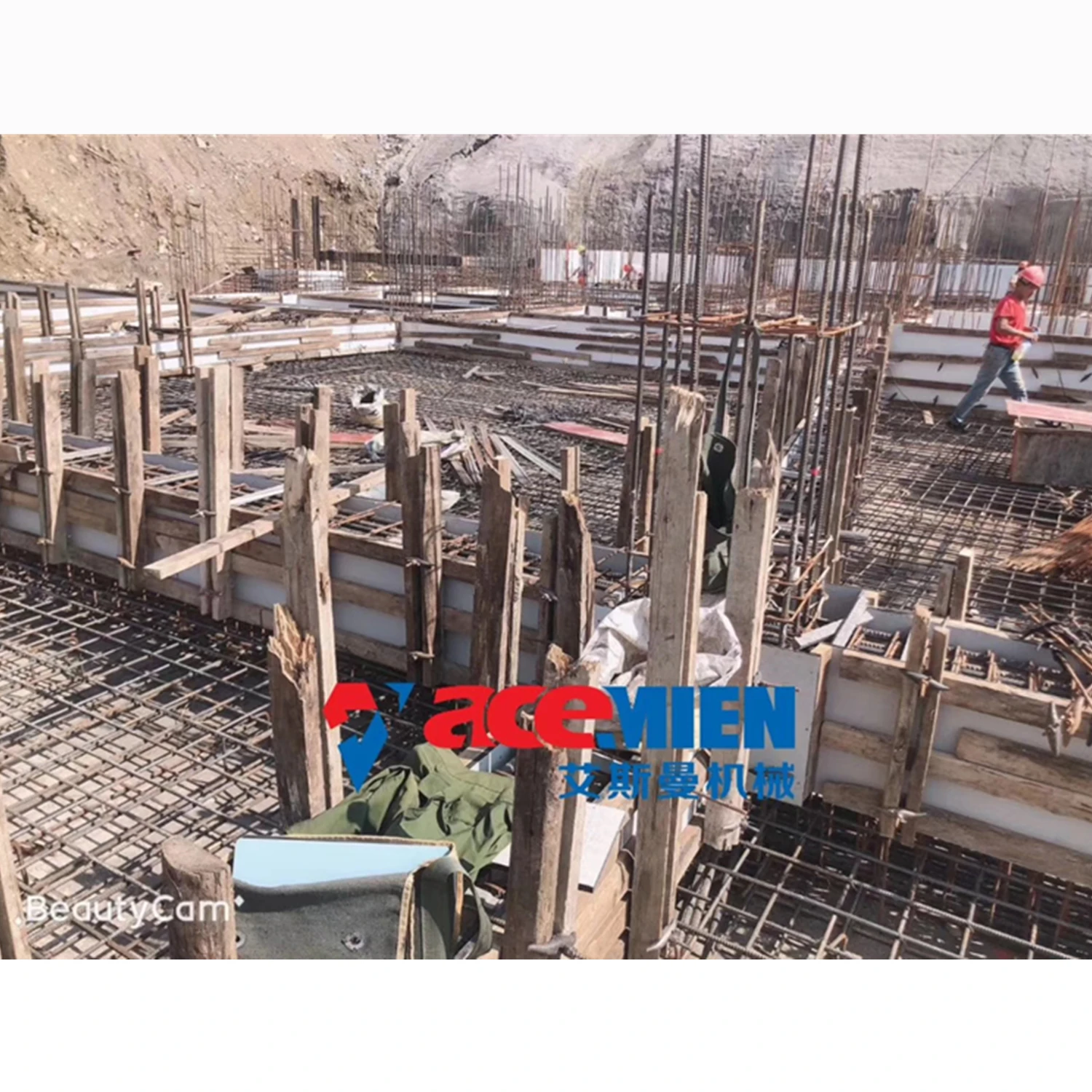

Nowadays, the traditional wooden plastic building template will gradually withdraw from the construction stage, usher in the new plastic hollow building template era, the market is widely used.
Acemien machinery is committed to the research and development of PP construction template production equipment, leading the construction materials of another innovation, the project has been smoothly put into production, and by customers widely acclaimed, welcome customers booking orders!

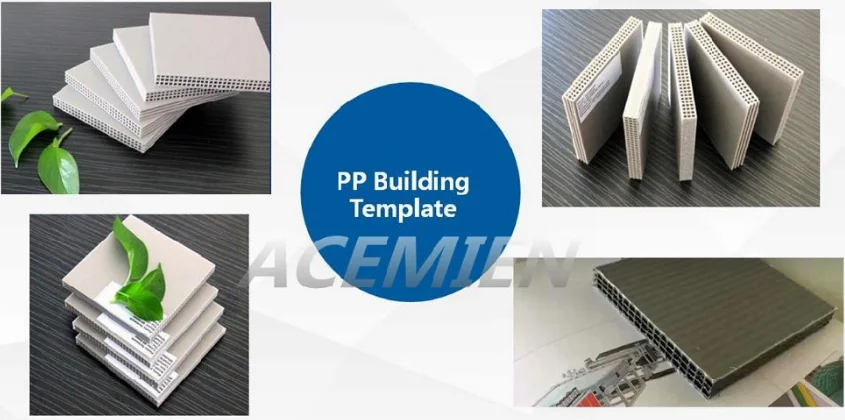

Dimensions of Hollow formwork | ||||
Thickness(mm) | Length*With(mm) | Weight(KG) | ||
15mm | 915*1830 | 14-15 | ||
16mm | 915*1830 | 15-16 | ||
17mm | 915*1830 | 16-17 | ||
18mm | 915*1830 | 17-18 | ||
15mm | 1220*2440 | 24-25 | ||
16mm | 1220*2440 | 26-27 | ||
17mm | 1220*2440 | 27-28 | ||
18mm | 1220*2440 | 29-30 | ||
Performance comparison
N/M | PP hollow formwork | Common plastic formwork | Wooden formwork | Bamboo plywood |
Abrasive resistance | √√√ | √√ | x | x |
Corrosion resistance | √√√ | x | x | x |
Tenacuty | √√√ | √√ | x | x |
shock strength | √√√ | √ | x | x |
After absorbing waster | No deformation | No deformation | Easy to deform | Easy to deform |
Demould | No need mold release agent | No need mold release agent | No need mold release agent | No need mold release agent |
Bending strength | √√√ | x | x | x |
Weight(kg/m2) | 7KG | 15KG | 7.2KG | 7.5KG |
Recycle | √√√ | √√√ | x | x |
Processibility | √√√ | √√ | x | x |
Environmental | √√√ | √√√ | x | x |
Use-cost | low | high | high | high |
Reusable time | >50 | 10-20 | 3-6 | 6-8 |

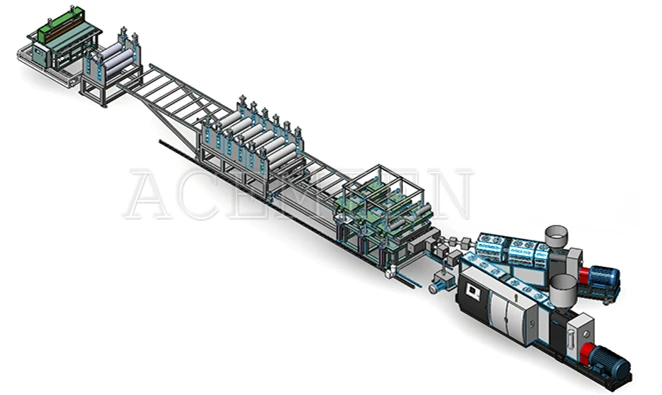

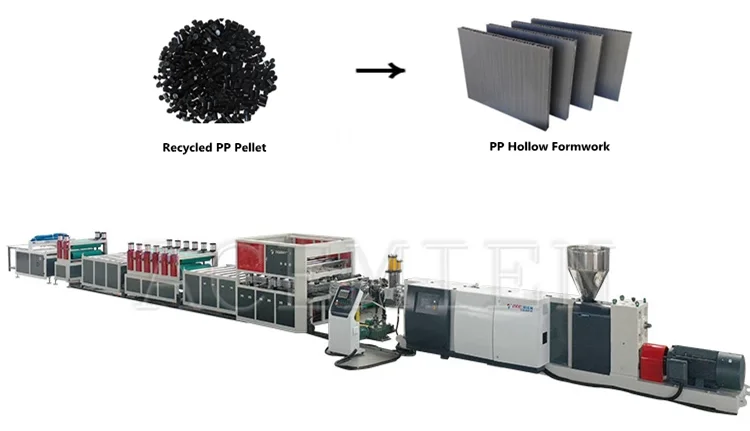

Flow chart of machines
Single Production Line Equipment List | ||||||
No. | Name | Qty. | Remark | |||
1 | Screw loader | 1set | 120 Extruder | |||
2 | Vacuum loader | 1set | 75 Extruder | |||
3 | SJ120/35 single screw extruder | 1set | ||||
4 | SJ75/35 single screw extruder | 1set | ||||
5 | Screen Changer 1 | 1set | 120 Extruder | |||
6 | Screen Changer 2 | 1set | 75 Extruder | |||
7 | Metering Pump 1 | 1set | 120 Extruder | |||
8 | 1000mm Extrusion Mould | 1set | ||||
9 | Distributor for 3 layer | 1set | ||||
10 | Vacuum Calibration Table | 1set | Three pairs of calibration modules | |||
11 | Vacuum System | 1set | ||||
12 | Cooling Bracket | 1set | 3000mm | |||
13 | Haul-off Unit | 1set | High Quality Rubber Roller | |||
14 | Cooling Bracket | 1set | 3000mm | |||
15 | Cutter | 1set | ||||
16 | Stacker | 1set | ||||
Detailed Images
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution.

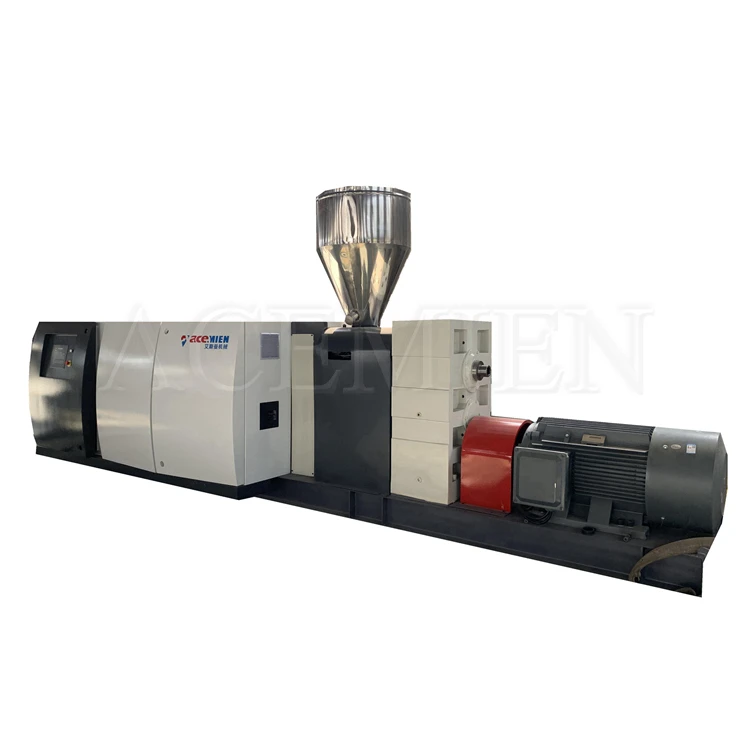

SJ120/35 Single screw extruder
Technical parameters:
a.Main motor : Siemens Brand.
b.Siemens PLC control system
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d.Scew structure : Great plasticzing effect , energe saved 20%
a.Main motor : Siemens Brand.
b.Siemens PLC control system
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d.Scew structure : Great plasticzing effect , energe saved 20%

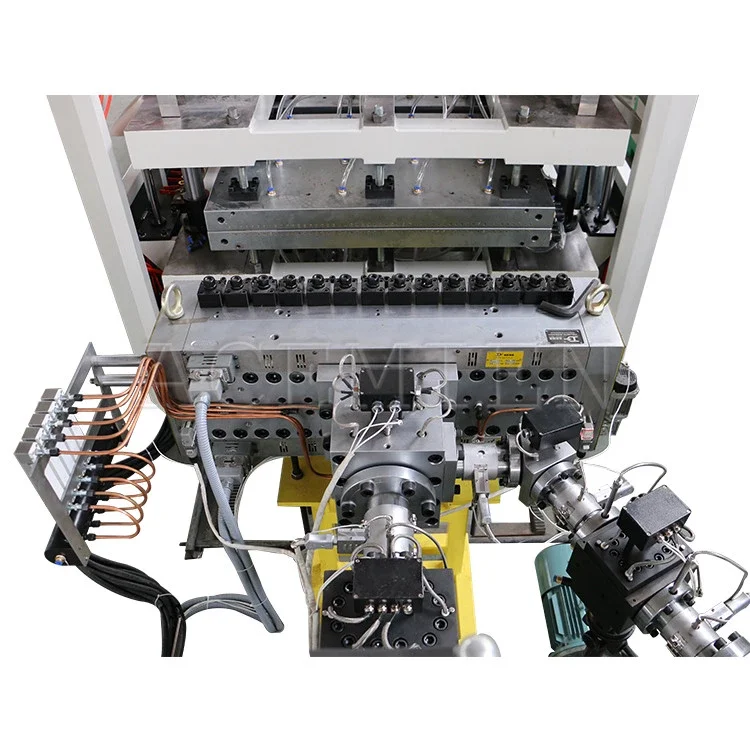

Extruder mould
Technical parameters:
a.Unique die structure for hollow products using core molding optimized flow path through computer simulation to ensure uniform
and stable flow,
b.Independent air flow control system to quickly balance the airflow in a short time to obtain a stable production .
c.Fine polishing of the cavity , lip and flowing channel.
a.Unique die structure for hollow products using core molding optimized flow path through computer simulation to ensure uniform
and stable flow,
b.Independent air flow control system to quickly balance the airflow in a short time to obtain a stable production .
c.Fine polishing of the cavity , lip and flowing channel.

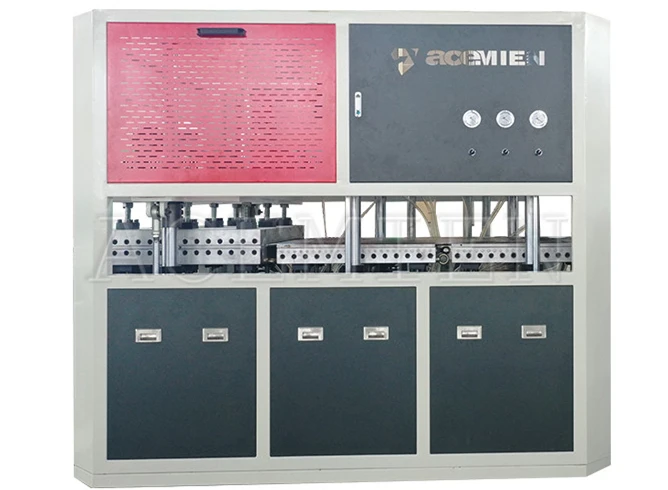

Forming machine
Technical parameters:
a.The module is a one-time die-casting molding ,
b.Module material: LY12 high quality aluminum
c.Advanced machine center, one-time clamping of the module,
d.Four cylinder lift more stable
a.The module is a one-time die-casting molding ,
b.Module material: LY12 high quality aluminum
c.Advanced machine center, one-time clamping of the module,
d.Four cylinder lift more stable

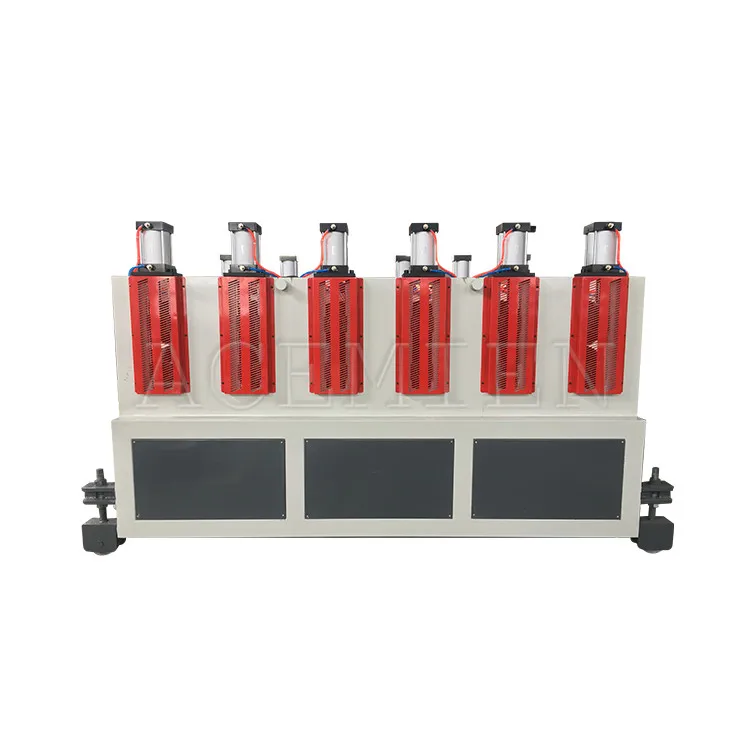

Haul off roller
Technical parameters:
a.High quality rubber on the surface
b.Surface shore hardness 65-70,
c.Roller thicknee is more than 18mm
d.Increase the diameter of shaft heads and bearings ensure stable operation of thick board.
e.Double-row chain drive,forward and backward roller transmission coefficient is consistent .
a.High quality rubber on the surface
b.Surface shore hardness 65-70,
c.Roller thicknee is more than 18mm
d.Increase the diameter of shaft heads and bearings ensure stable operation of thick board.
e.Double-row chain drive,forward and backward roller transmission coefficient is consistent .

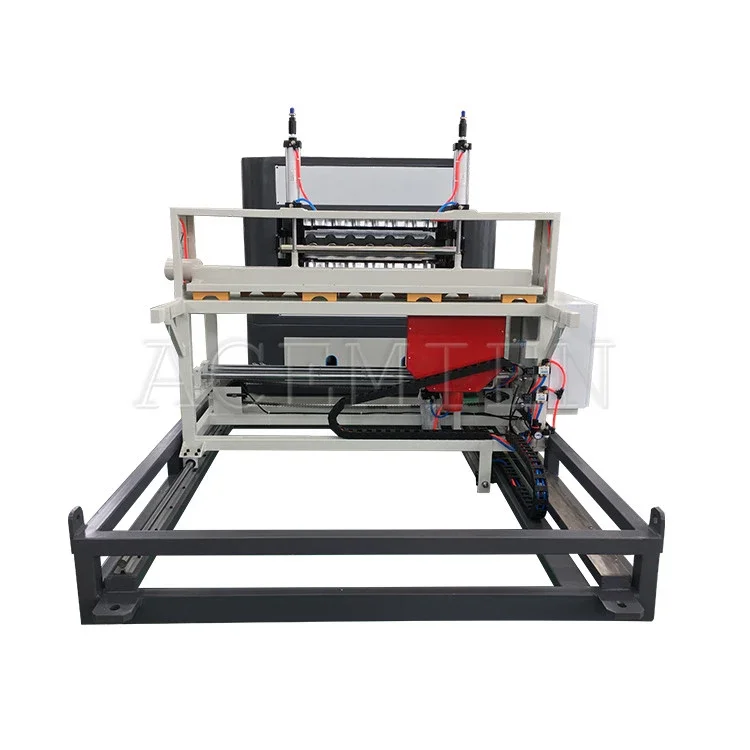

Cross cutter
Technical parameters:
a.Metering way:Meter control for exact cuttingb.Cutting way:Saw cutting
c.Cutting range:10-18mm d.Max. cutting width:1300mm
e.Control system: Length meter signal control, manual and automatic mode of operation
f.Moving way :The frame is driven by a motor on the straight track, and the speed is controlled by a frequency converter
g. Motor power 0.55kw AC h.

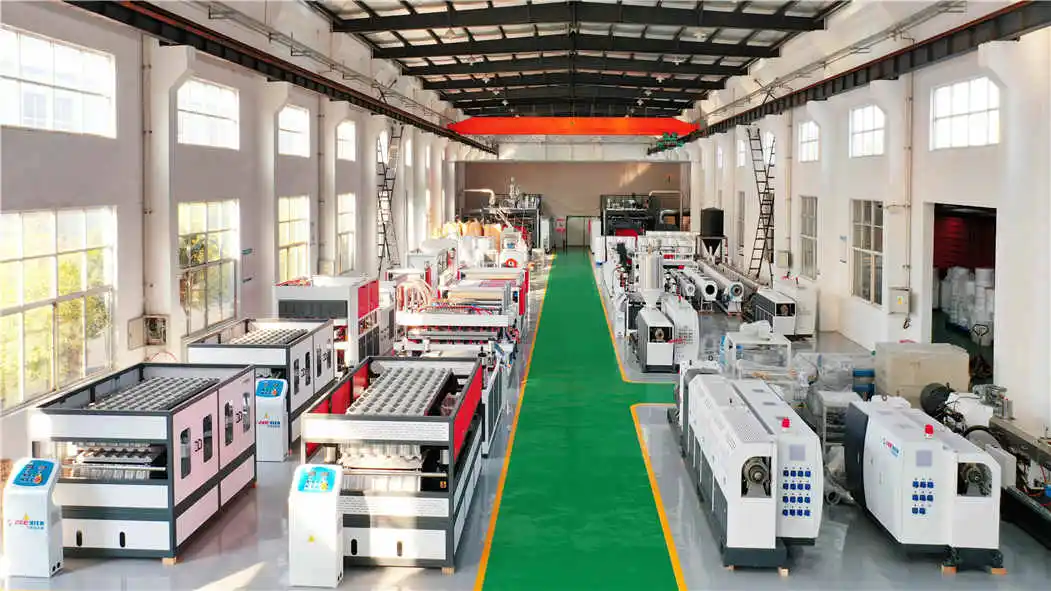

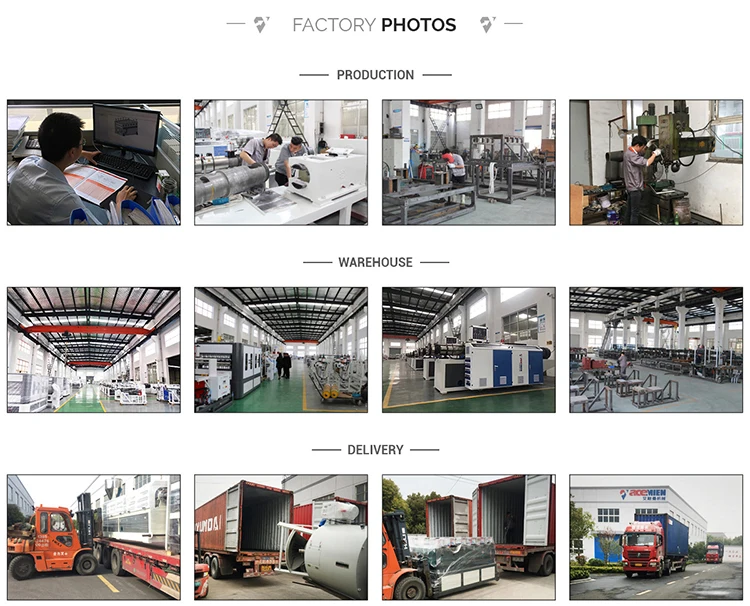

Company Profile
VR
JiangSu Acemien Machinery Co.,ltd is a brand production enterprise which is the first batch of pvc roofing building materials equipment in China,which focuses on plastic extrusion equipment and plastic recycling equipment.
Our company concenttrates on five series equipment , they are Synthetic resin tile and PVC corrugated tile extrusion equipment; Artifical marble sheet and profile extrusion equipment;Plastic recycling and granulation equipment; Conventional extrusion equipment such as Pipe/Profile/Sheet; Auxiliary equipment such as Mixer/Crusher/Pulverize.
Our company concenttrates on five series equipment , they are Synthetic resin tile and PVC corrugated tile extrusion equipment; Artifical marble sheet and profile extrusion equipment;Plastic recycling and granulation equipment; Conventional extrusion equipment such as Pipe/Profile/Sheet; Auxiliary equipment such as Mixer/Crusher/Pulverize.
Packing&Shipping
Packaging - 1 | ||
Size | 800mm(L) * 600mm (W) * 45mm (D) | |
Weight | 0.8 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too higher,we will use moistureproof film for packing or pack it according to customers special request. | |
Packaging - 2 | ||
Size | 25m (L) * 3m (W) * 3m (D) | |
Weight | 10 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too higher,we will use moistureproof film for packing or pack it according to customers special request. | |
After Sales Service
DISCUSSING AND DESIGN
ACEMIEN all senior engineers should discuss and design the better quotations for customers, until the customer is satisfied.
TESTING IN ACEMIEN
ACEMIEN must test all machines to ensure proper operation of equipment before delivery.
INSTALLATION IN CUSTOMER
ACEMIEN will send 1-2 senior engineers to installation machines and teach operation technique in customer factory.
FAQ
1.HOW MANY DAYS TO MAKE MACHINE?
Normally,it is about 60 days to finish all machine when customer order.
2.What is the payment terms?
LC at sight or TT.
3.What is machine packing?
Standard packing
4.What is the guarantee?
12 months OR MORE
5.How to install machine when machine arrive?
Normally,it is about 60 days to finish all machine when customer order.
2.What is the payment terms?
LC at sight or TT.
3.What is machine packing?
Standard packing
4.What is the guarantee?
12 months OR MORE
5.How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine.
6.MOQ
1 set whole production line
