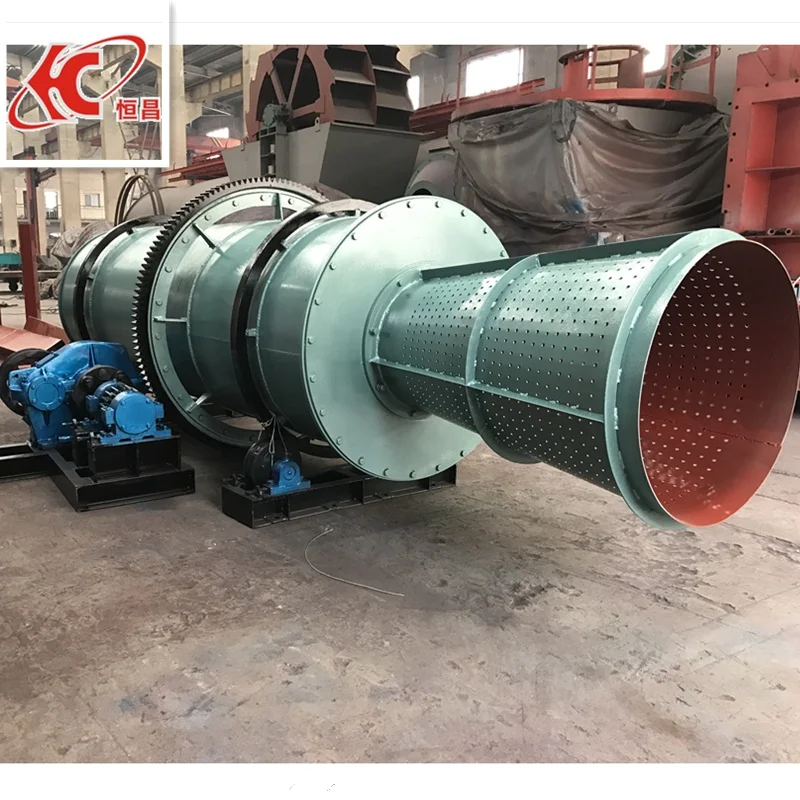

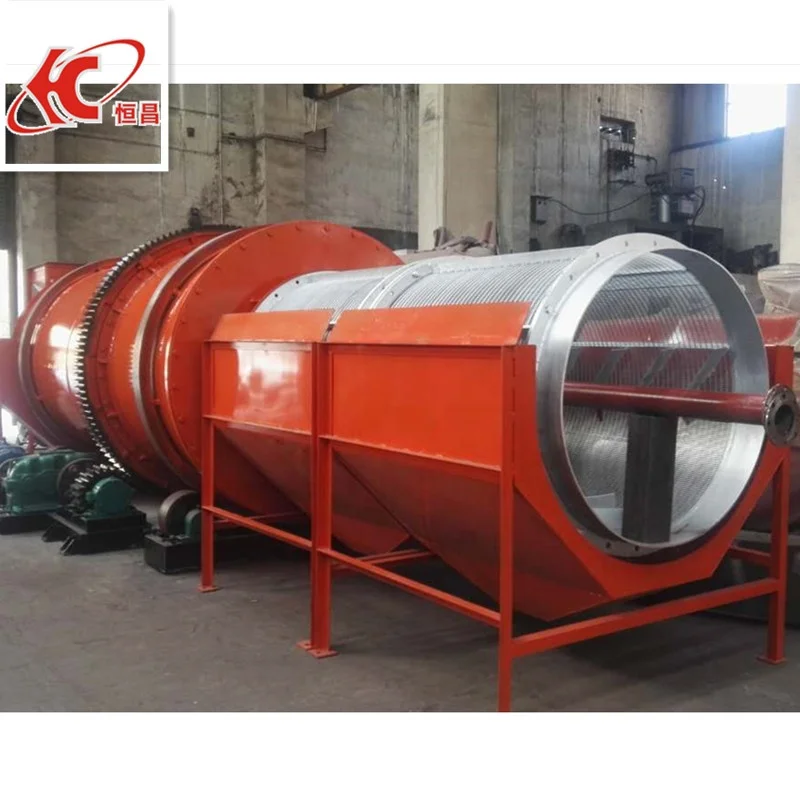

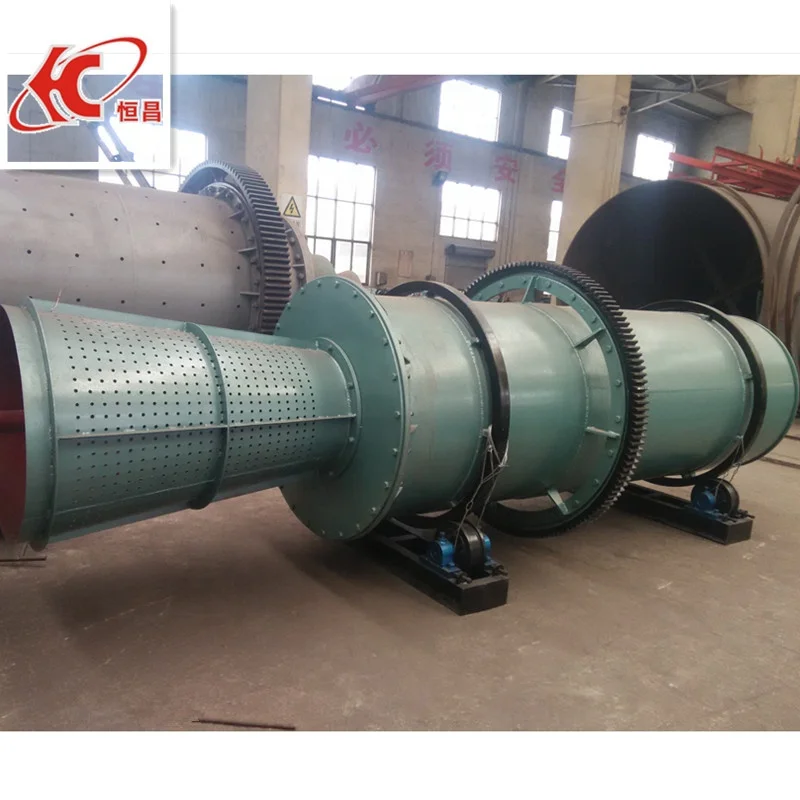

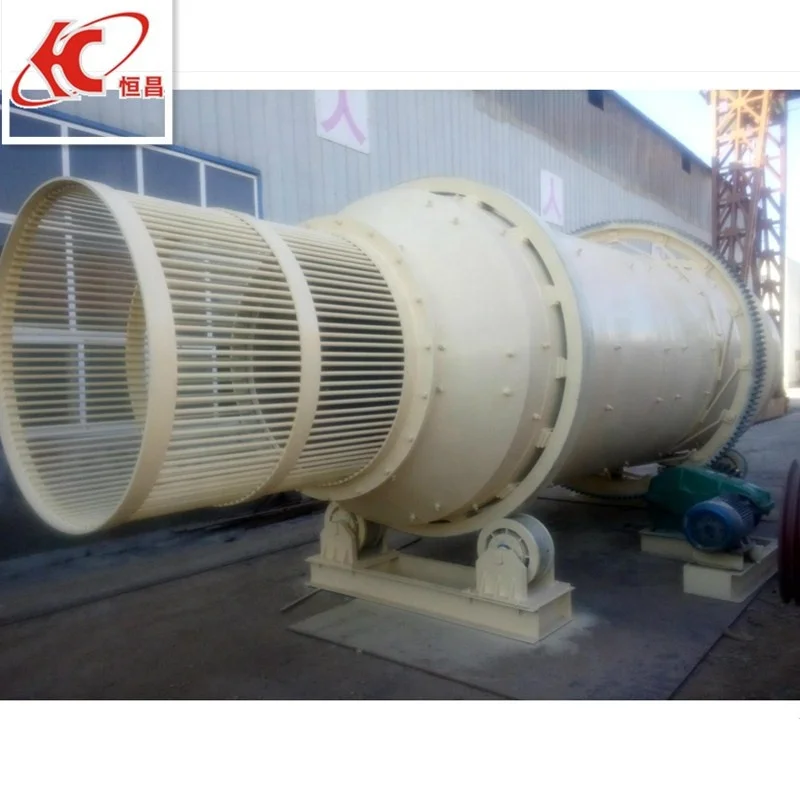

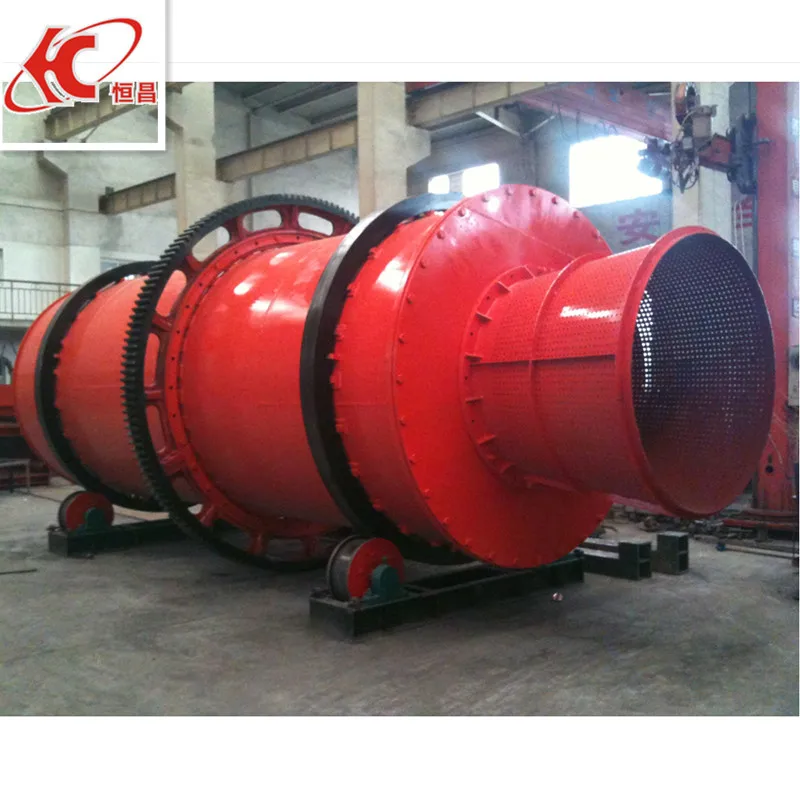

mineral washing machine rotary drum scrubber washer

Product Overview

Description

Model	Drum dimension (mm)	Screen size mm	Rotate speed	feeding size	water consumption	capacity (t/h)	power Kw	weight t
GTX1030	Φ1000×3000	≤20	27.9	≤80	1	40	15	3.8
GTX1230	Φ1200×3000	≤25	27.6	≤100	1.3	70	22	4.7
GTX1430	Φ1400×3000	≤25	27.6	≤100	1.5	80	22	4.9
GTX1545	Φ1500×4500	≤25	21	≤160	1.7	120	30	6.9
GTX2265	Φ2200×6500	≤50	19	≤230	1.8	180	37	15.9

The cleaning cylinder of the rotary drum washing machine equipment is supported by four tugs, the motor drives the reducer, and the large and small gears drive the cleaning cylinder to rotate at a low speed. The raw material containing the mud mass and the stone powder is fed from the feed port, enters the rotating drum, and is cleared.

A wear-resistant rubber lining plate installed at a certain angle in the washing drum is continuously thrown away, and is circulated repeatedly from the feeding end to the discharging end, and is washed by the forward or reverse washing water, and is cleaned. The aggregate is discharged after being dewatered through a discharge end mill sieve. Waste water containing sludge is discharged through a perforated baffle at the discharge or feed end.
