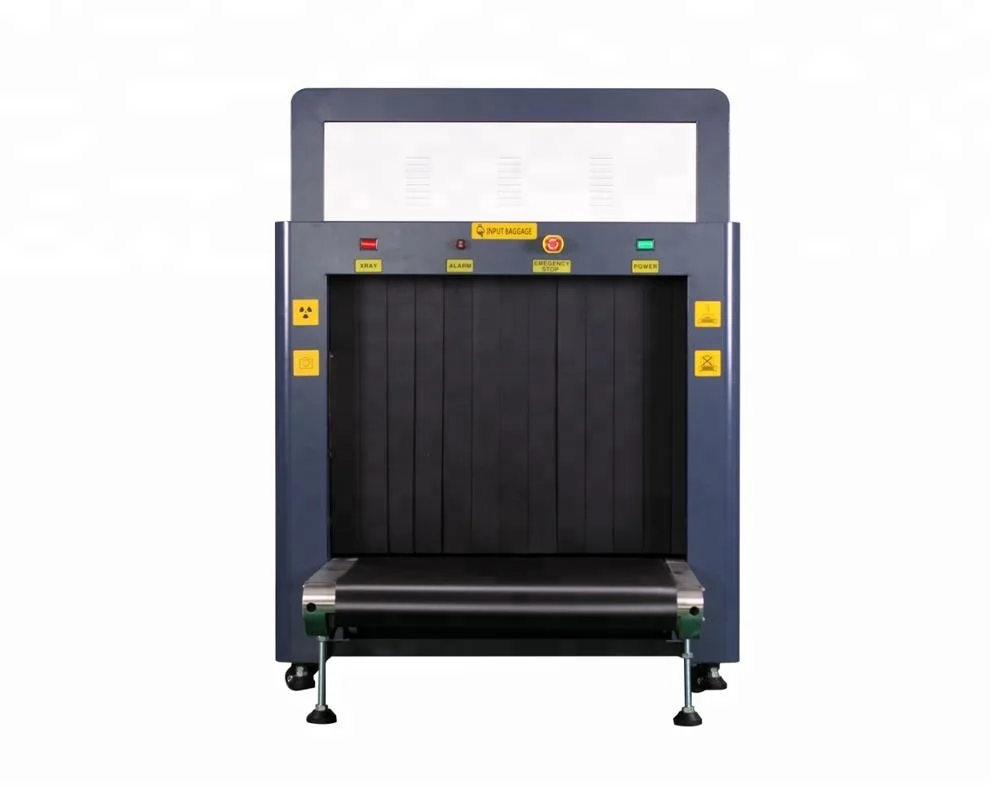

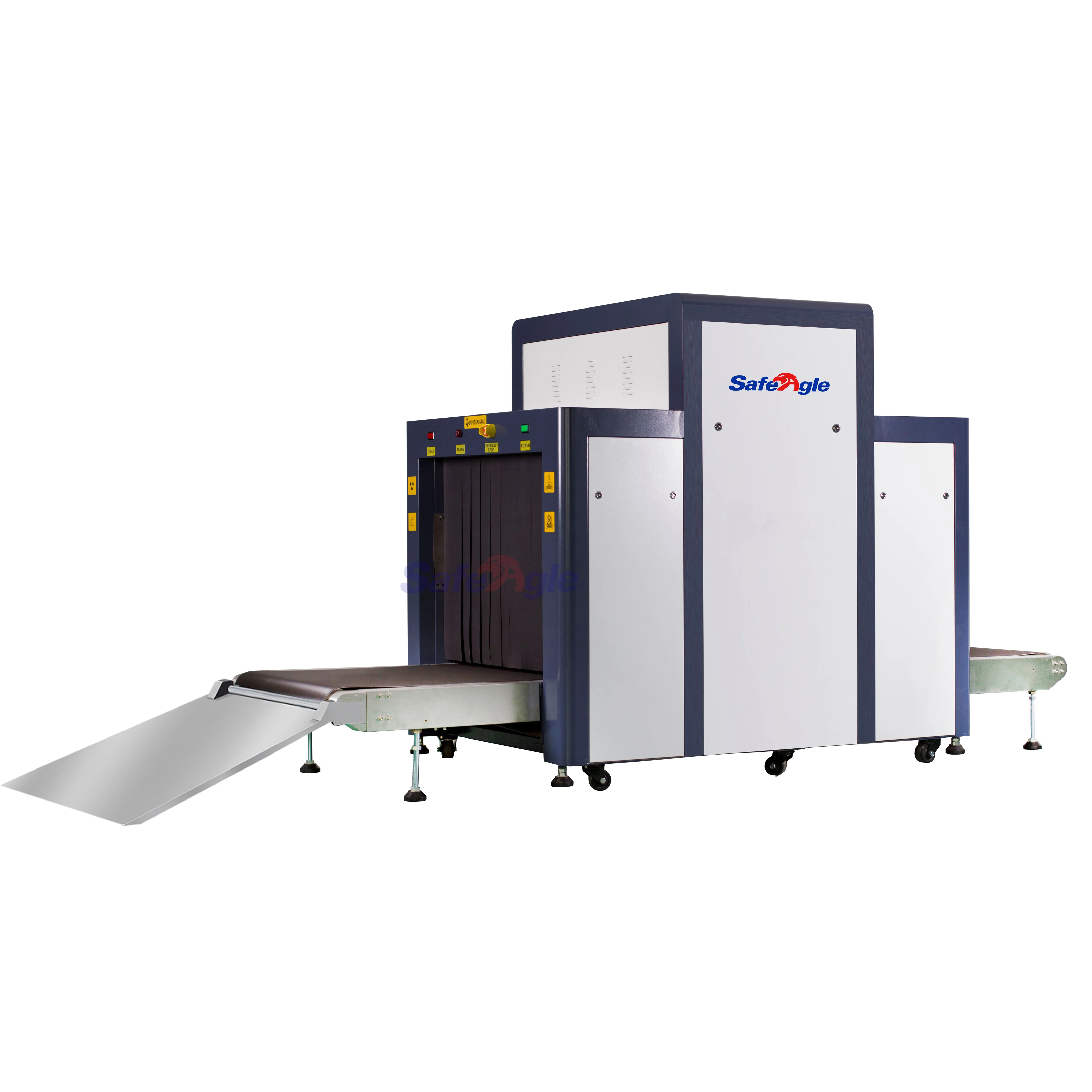

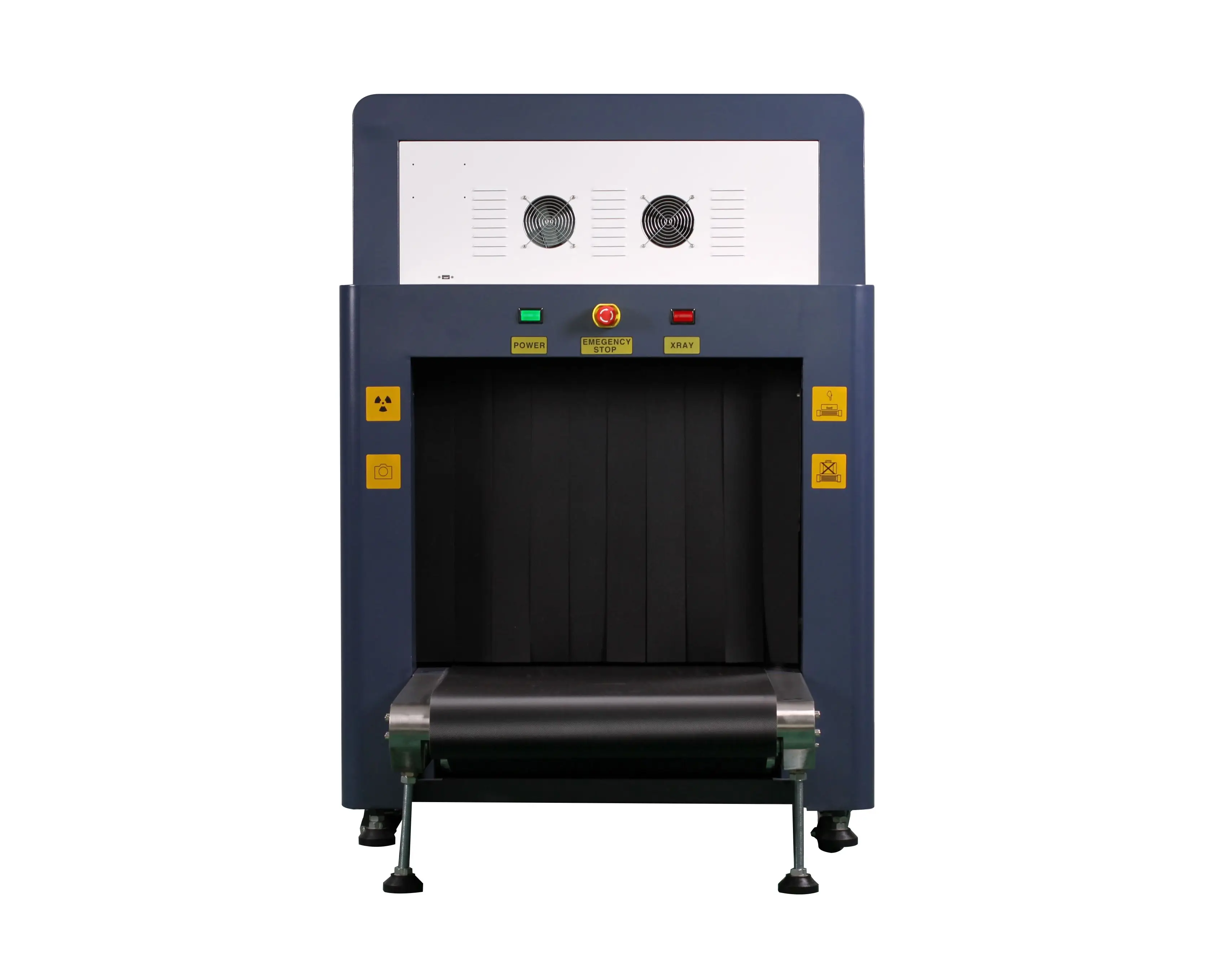

Safeagle Checkpoint Xray Security System Dual Energy X ray Baggage Scanner 10080c
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen Jinjian Era Technology Co. Ltd.
Share on (62445629239):
Product Overview
Description
Product Description
Specification
Safeagle® X-ray Baggage Scanner | ||||||
Tunnel Size | 1005(W)*800(H)mm | Film Safety | Guarantee ISO 1600 (33 DIN) | |||
Belt Speed | 0.22m/s Forward/Reverse | Display Type | 21.5" LCD Color Monitors | |||
Conveyor Load | 250 kg Evenly Distributed | Display Resolution | 1280 x 1024; 24 bit/pixel Color | |||
Voltage | 140KV | Operating Temperature | 0°C - 40°C | |||
Tube Current | 0.6mA | Humidity | Up to 95% Non-Condensing | |||
Cooling | Sealed Di-Electric Oil Bath with Forced Air | Power Requirements | 220VAC±10%, 50 / 60Hz, 10A Max | |||
Duty Cycle | 100% | Memory | 4GB RAM | |||
Beam Direction | Vertically Downward | Storage | 1TB SSD | |||

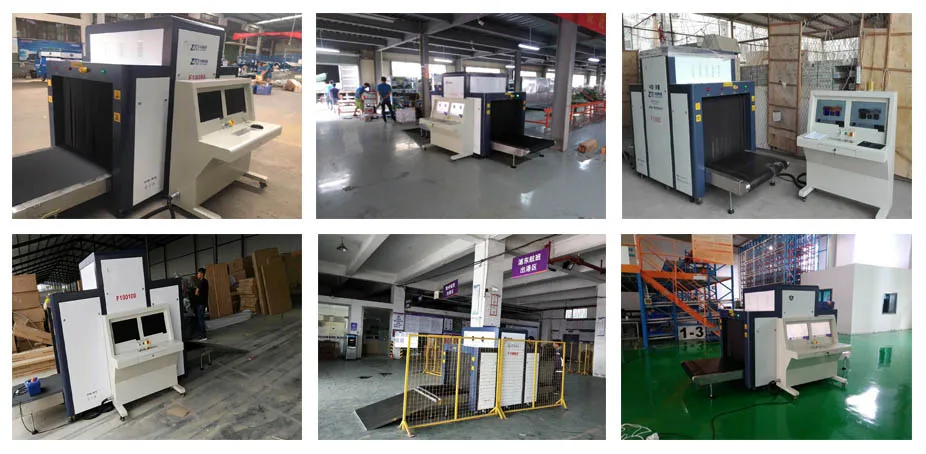

Working Shop
Case Assembly
Electrical Assembly
Aging Testing
Radiation Testing
Software Testing
Packing
Certificate and Radiation Limitation
Radiation Standard
The design of Safeagle system provides radiation leakage attenuation limited to 1.0 μSv/hr(0.1mR/hr) or lower at any accessible point at the distance of 0.1m from the external surface of the system.The dose rate intensity at the workstations of the personnel does not exceed 1.0 μSv/hr. Safeagle baggage X-ray inspection system strictly control the radiation leakage at it's source, theleaded rigid-steel tunnel, double layer leaded leaded curtain
Important Notice
About Accessories and Installation of X-ray Baggage Scanner
1. If order a standard Safeagle X-ray baggage scanner, the packing list will be
1) Scanner machine *1
2) User manual, radiation test report, acceptance certificate *1
3) 21.5 inch display with wireless keyboard and mouse *1
4) 0.7m tunnel landing extension *1
5) Console *1
6) 1.5m electric wire *1 (European/British/American/South Africa/France/Italy/Brazil/Australian standard etc.)
2. If received, you're required to install the scanner quickly with below 4 steps.
1) Take out and installed the monitor, keyorard from the tunnel
2) Install the tunnel landing extension
3) Power on
4) Start the software then test it
* All Safeagle scanner has embedded with wireless LAN for remote control, can do support anytime.
3. One-stop Service
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
