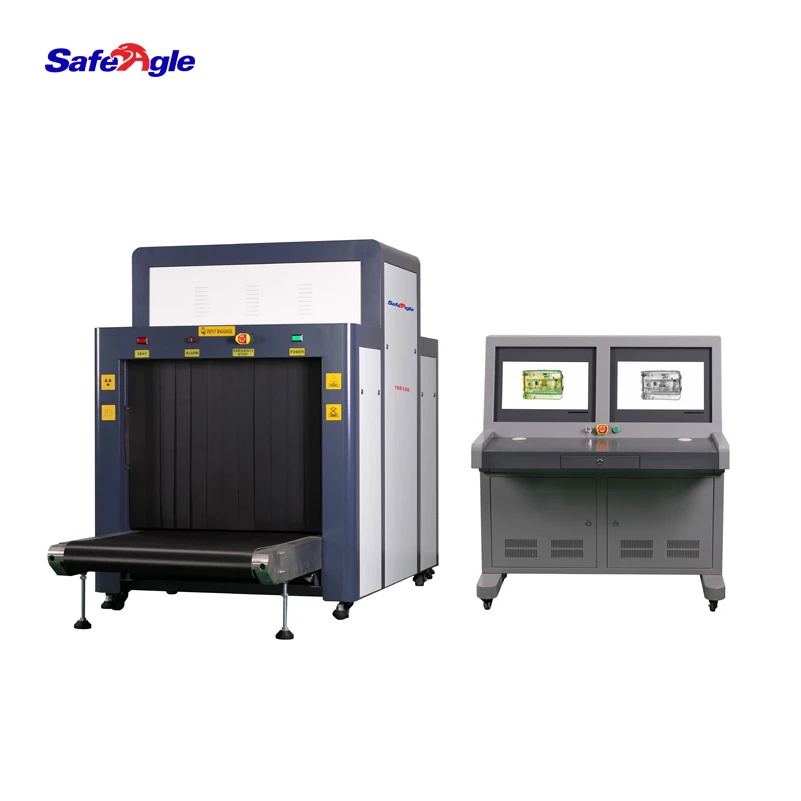

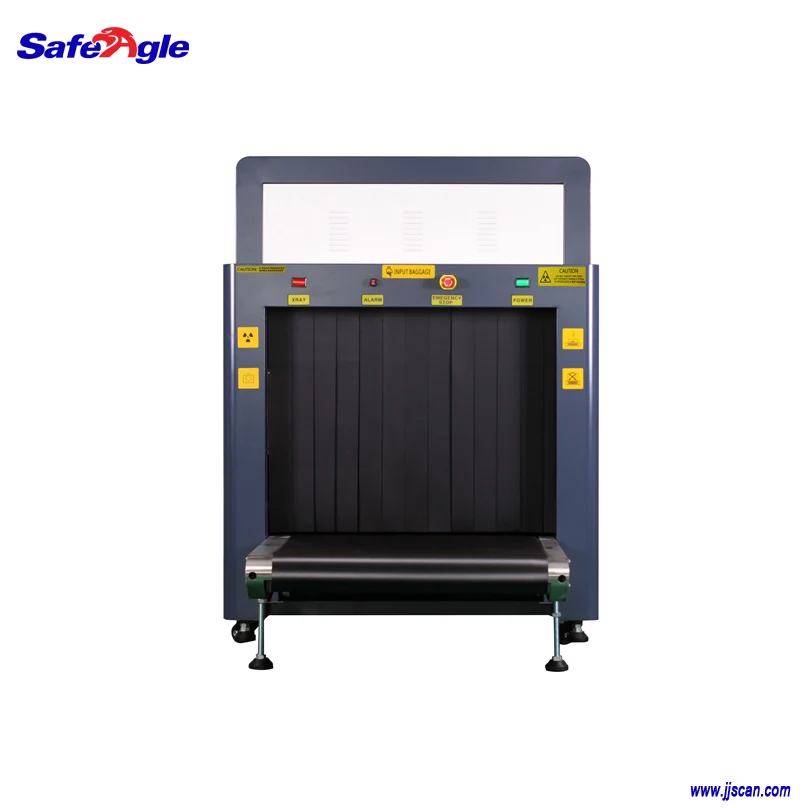

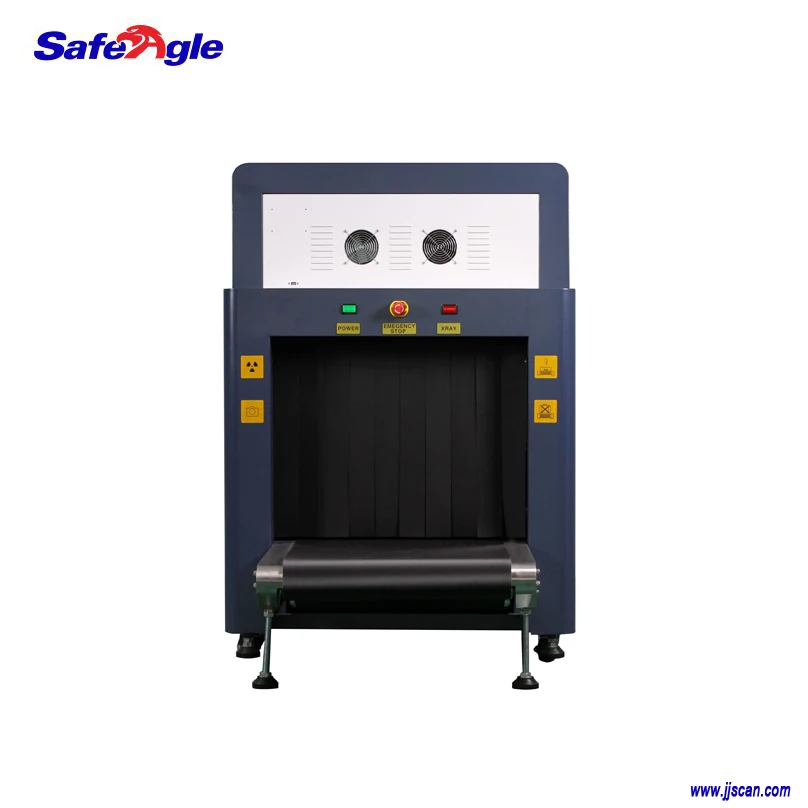

Safeagle 100100 Airport Equipment Products Security Baggage Screening X Ray Machine Scanner
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen Jinjian Era Technology Co. Ltd.
Share on (62445691584):
Product Overview
Description
Product Description

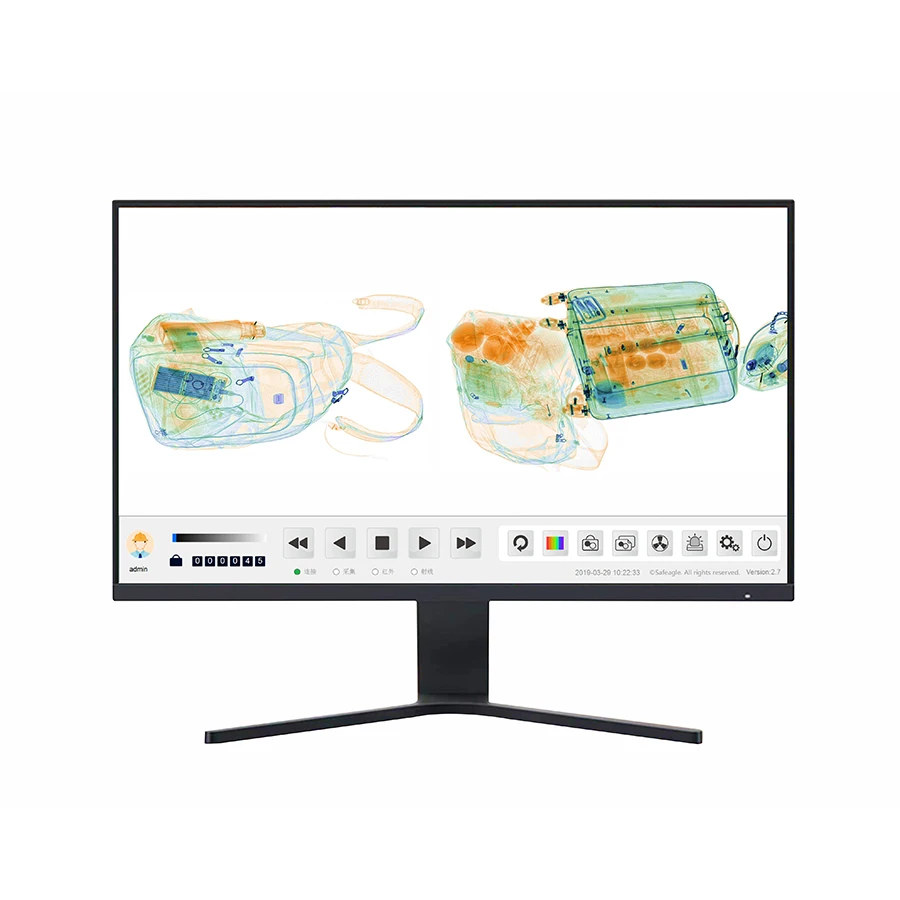

DUAL-ENERGY CLEAR IMAGING & SPLIT-SCREEN TECHNOLOGY
Dual-energy supports to identify then display the objects concealed in bag in the specific color according to their atomic number, the metallics (guns, bullet, knife) can be blue, the organic (plastic, cloth, currency) can be orange. Safeagle scanning screen supports multiple Split-screen and Full-screen options for optimal viewing, operator can customize the color mode of the switchable main screen and auxiliary screen respectively.
Specification
Safeagle® X-ray Baggage Scanner | ||||||
Tunnel Size | 1005(W)*1000(H)mm | Film Safety | Guarantee ISO 1600 (33 DIN) | |||
Belt Speed | 0.22m/s Forward/Reverse | Display Type | 21.5" LCD Color Monitors | |||
Conveyor Load | 250 kg Evenly Distributed | Display Resolution | 1280 x 1024; 24 bit/pixel Color | |||
Voltage | 140KV | Operating Temperature | 0°C - 40°C | |||
Tube Current | 0.6mA | Humidity | Up to 95% Non-Condensing | |||
Cooling | Sealed Di-Electric Oil Bath with Forced Air | Power Requirements | 220VAC±10%, 50 / 60Hz, 10A Max | |||
Duty Cycle | 100% | Memory | 4GB RAM | |||
Beam Direction | Vertically Downward | Storage | 1TB SSD | |||
Important Notice
About Accessories and Installation of X-ray Baggage Scanner
1. If order a standard Safeagle X-ray baggage scanner, the packing list will be
1) Scanner machine *1
2) User manual, radiation test report, acceptance certificate *1
3) 21.5 inch display with wireless keyboard and mouse *1
4) 0.7m tunnel landing extension *1
5) Console *1
6) 1.5m electric wire *1 (European/British/American/South Africa/France/Italy/Brazil/Australian standard etc.)
2. If received, you're required to install the scanner quickly with below 4 steps.
1) Take out and installed the monitor, keyorard from the tunnel
2) Install the tunnel landing extension
3) Power on
4) Start the software then test it
* All Safeagle scanner has embedded with wireless LAN for remote control, can do support anytime.
3. One-stop Service
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
Certificate and Radiation Limitation
Radiation Standard
The design of Safeagle system provides radiation leakage attenuation limited to 1.0 μSv/hr(0.1mR/hr) or lower at any accessible point at the distance of 0.1m from the external surface of the system.The dose rate intensity at the workstations of the personnel does not exceed 1.0 μSv/hr. Safeagle baggage X-ray inspection system strictly control the radiation leakage at it's source, the leaded rigid-steel tunnel, double layer leaded leaded curtain
Packing & Delivery
Our Company
Nowadays, terrorist attack and crime in the world are only increasing, what we offer is the most commonly used security detectors used around the globe to keep it safer. Safeagle is the experienced high-tech manufacturers for the mainstream security equipment in China, our oversea high-end brand "Safeagle" receive high reputation at home and abroad, we mainly specializes in:
