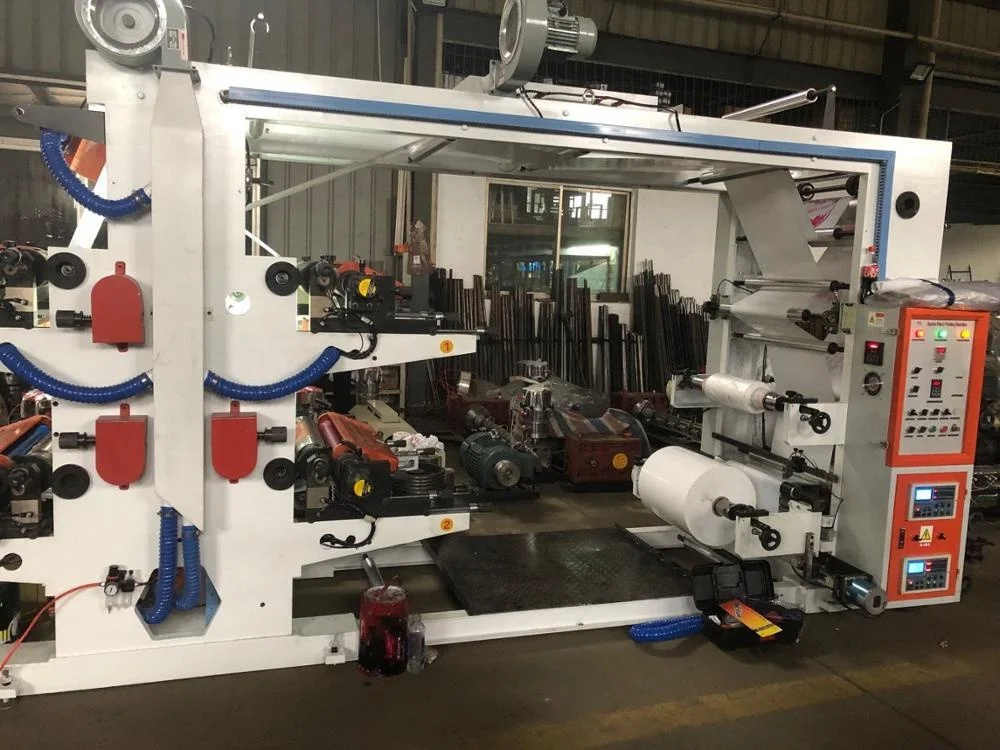

4 Colors Flexo Printing Machine

Product Overview

Description

1-6 Colors Plastic/Paper/Non Woven Flexo  Printing Machine

Feature:

1. It adopts combination type, the printing can be finished on time continuously with single-double-side many colors.

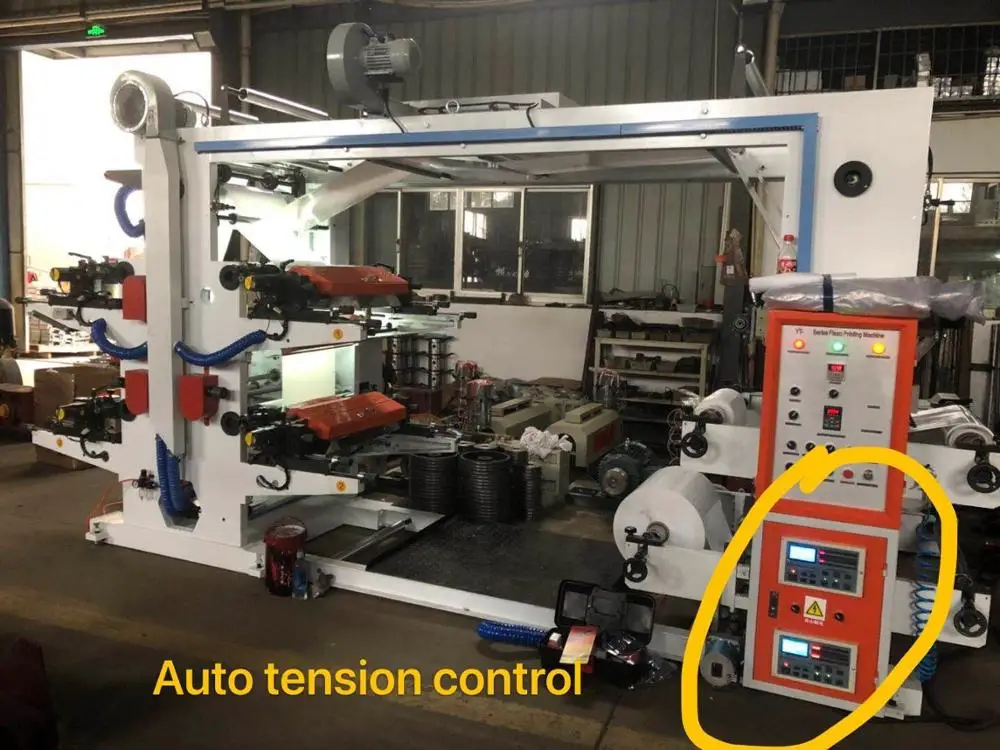

2. Unwinding and rewinding tension magnetic control system.Ink automatic cycle.

3. Far infrared heating with drying system with single drying-channel is available for drying film.

4. Differential gear is adopted with plates free adjusted with 360 degree.

5. Pressure height and parallelism of ink blade are adjustable at will, and it can transversely  reciprocate with main machine too.

6. It adopts turnover doublestation rolling and releasing structure, receiving and replacing material without stopping.



Main Technical Specification

Model of Machine	LHYT-2600	LHYT-4800
Unwind width	600mm	800mm
Color number	2colors	4colors
Unit	2unit	4unit
Width of Printing	560mm	760mm
Speed of Printing	50m/min	50m/min
Version Accuracy	±0.25mm	±0.25mm
Length of Printing	200-1000mm	200-1000mm
Unwind diameter	600mm	600mm
Pressure	0.6Mpa	0.6Mpa
Fan power	0.19kw/unit	0.19kw/unit
Heating power	7kw	11kw
Total Power	12kw	18kw
Dimensions	3500×2000×2000mm	5200×2000×2000mm
