At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
Charging Current
30A
Max.Charging Current
60A
Standard Discharging
Discharging Current
30A
Max. Continuous Current
60A
Max.Pulse Current
120A(<3S）
Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N60,4S10P
Casing
Plastic

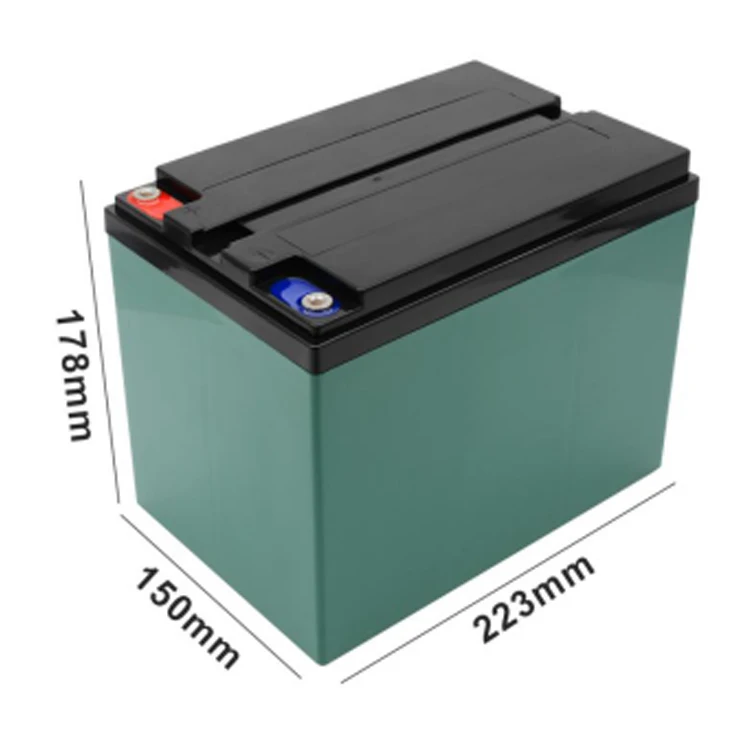

Dimension(L*W*H*TH)
223*150*178*178
Weight
Approx. 6.8Kg
Terminal
M6

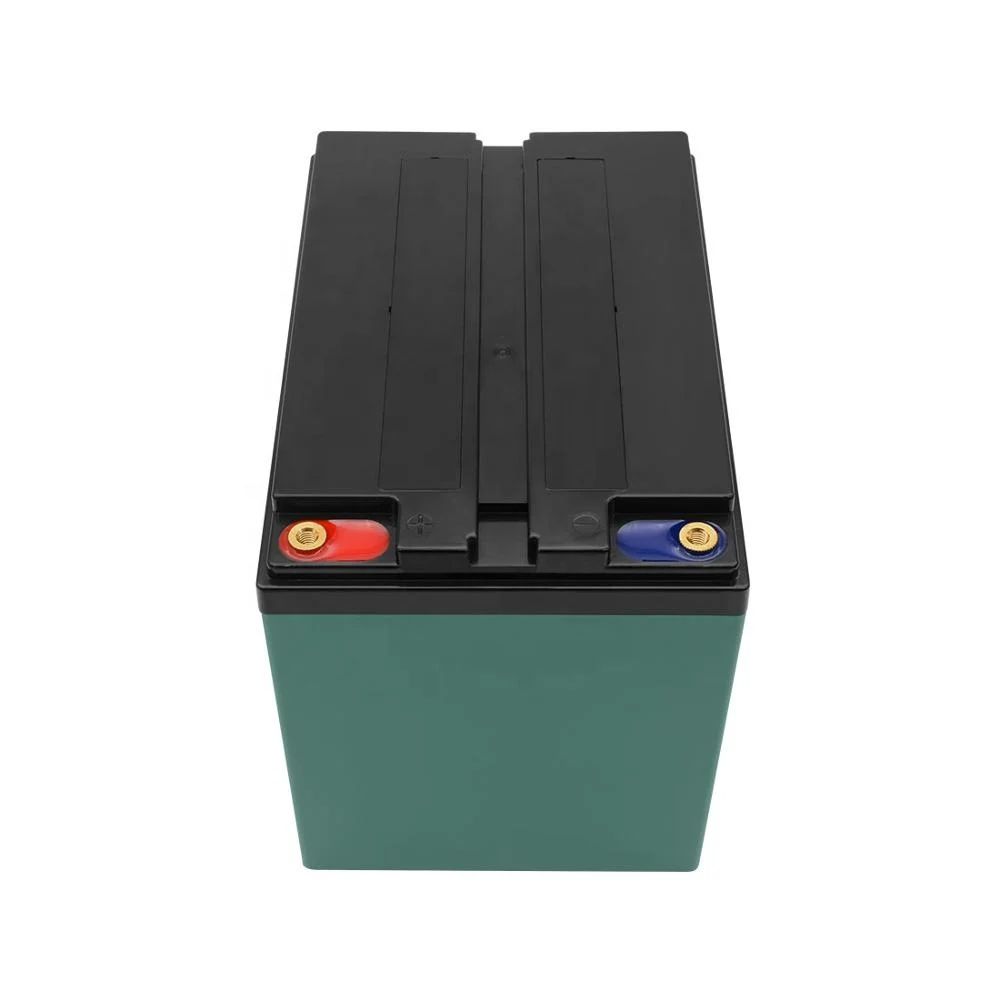

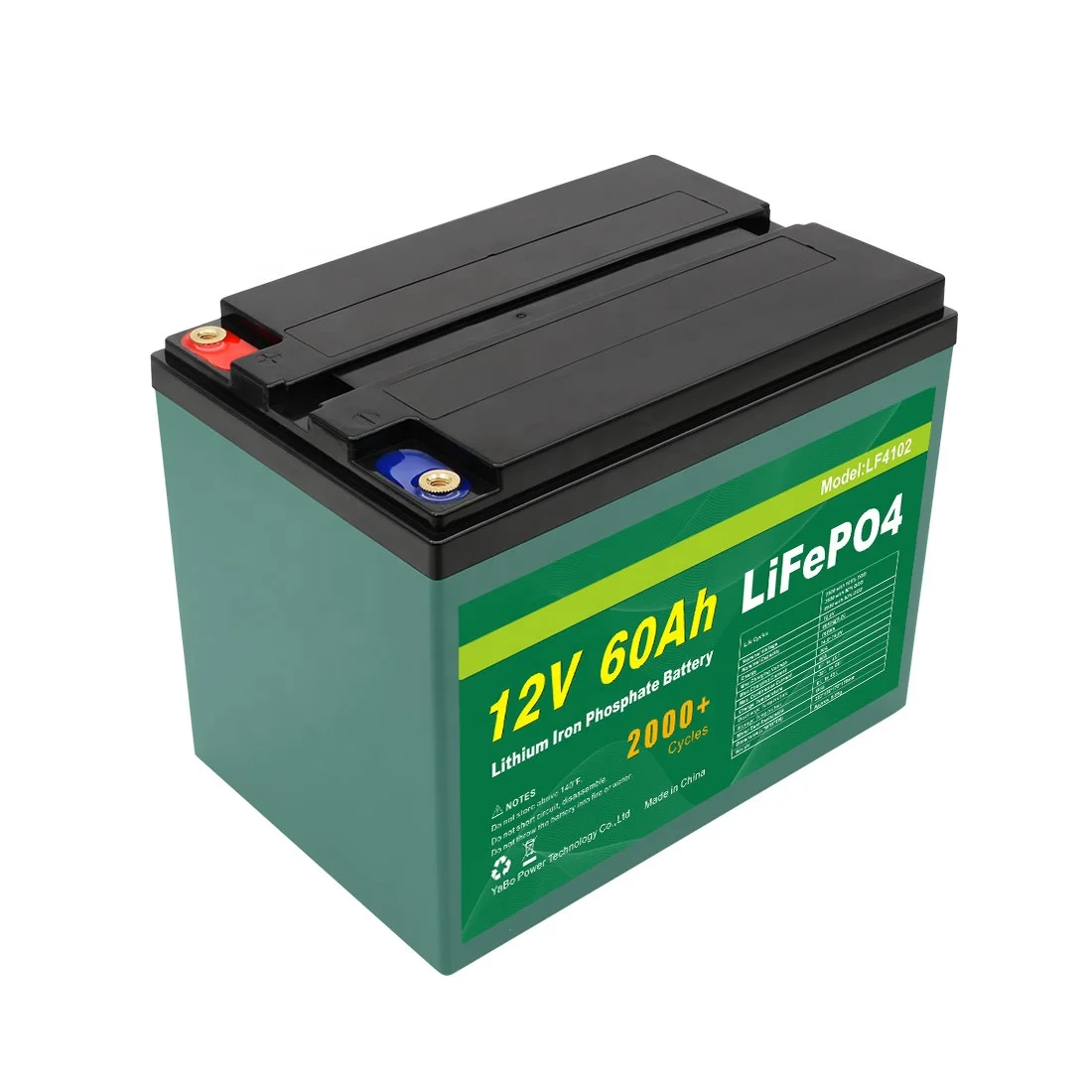

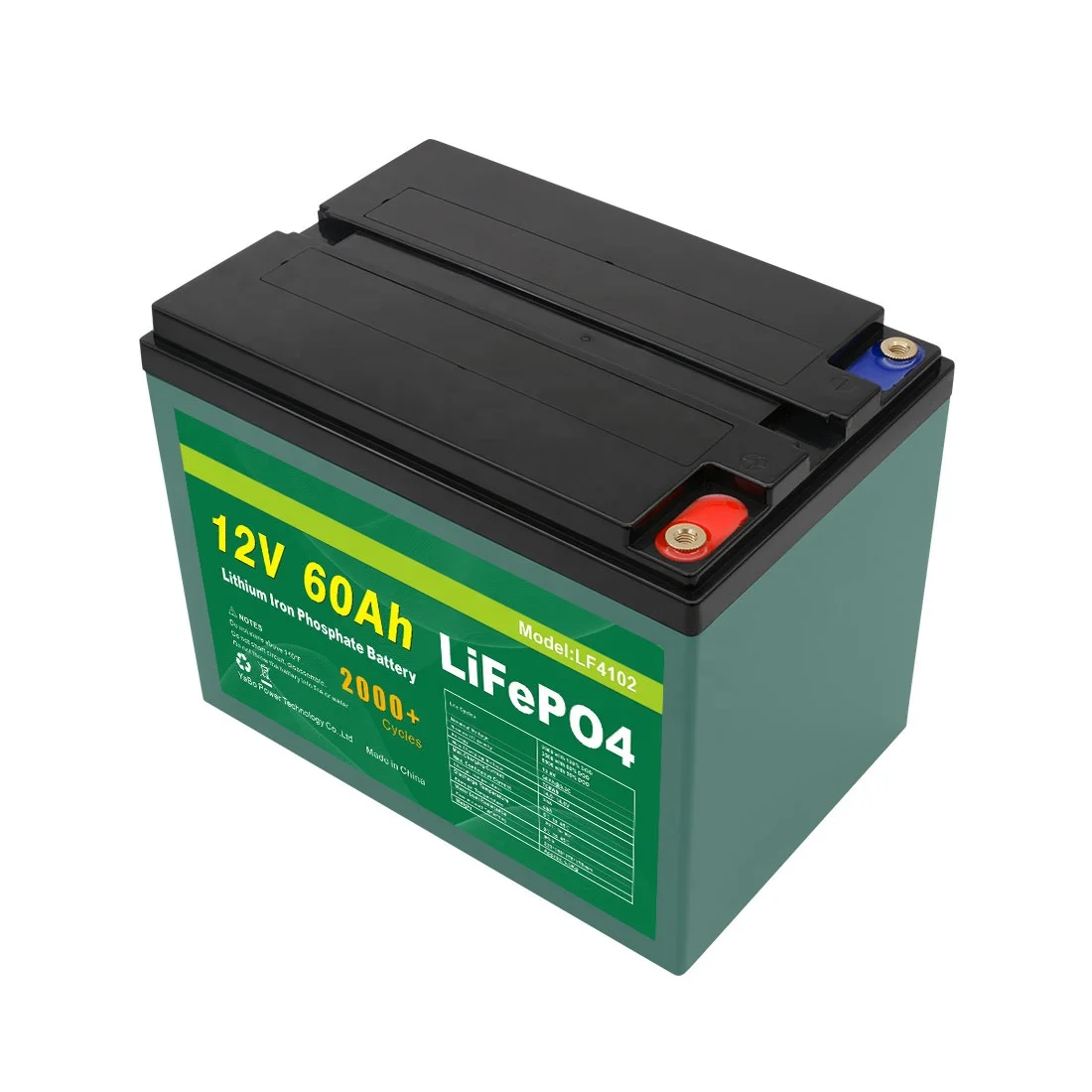

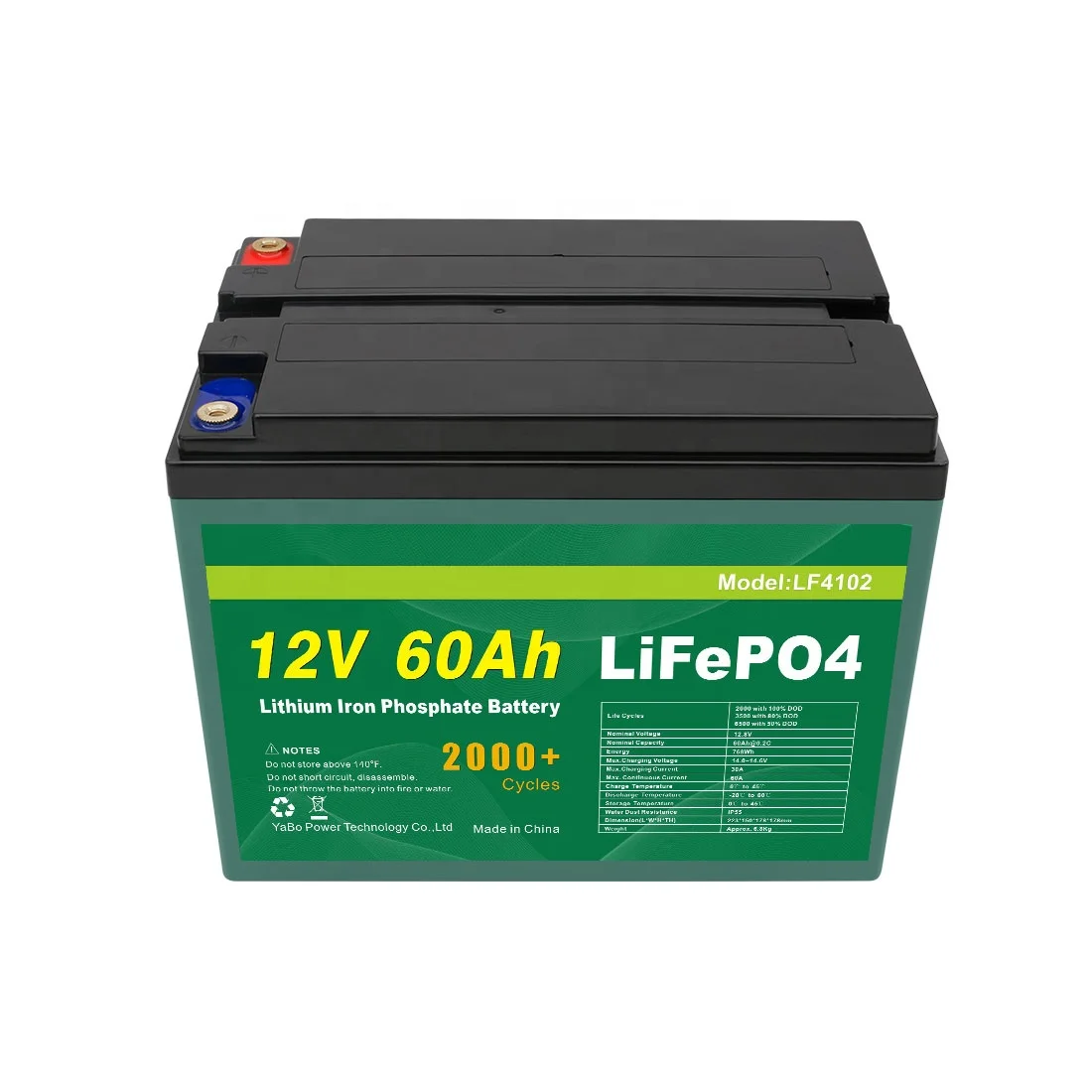

Details Images
Chart
Our Advantages
Features:
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
NOTES:
Do not use the 12V lithium battery pack in places with high humidity or where it may be exposed to wet. Do not modify or disassemble the power bank. Do not throw the 12V power bank into fire or water. Do not reverse the polarity of the battery pack.
Application
* UPS * Solar &Wind Power System * Golf Cart * Electric Vehicle , E-bike, E-rickshaw etc. * Lighting * Wheelchairs and scooters

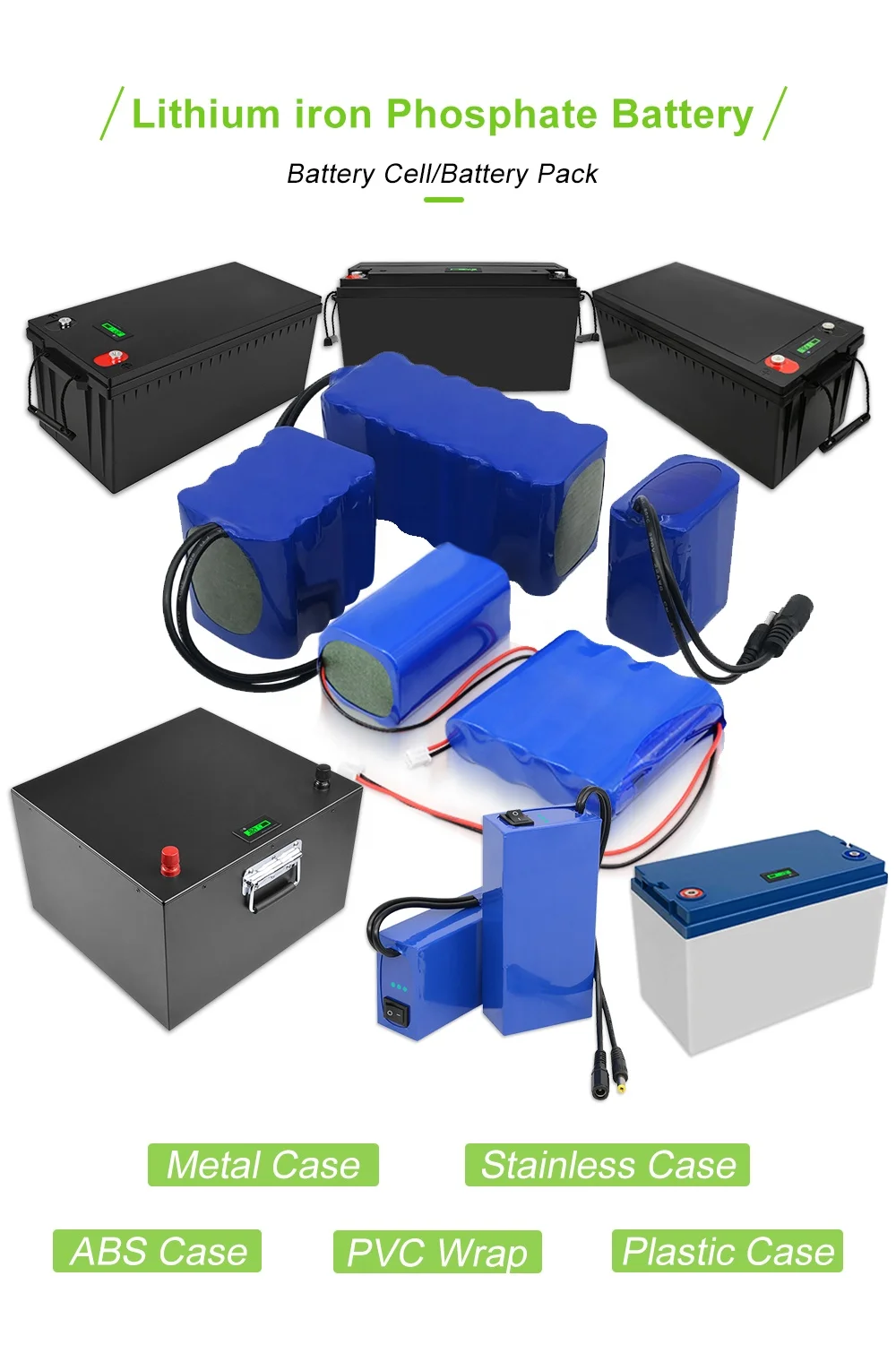

Recommend Products
Company Profile
Certifications
Product packaging
FAQ
Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have? A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
