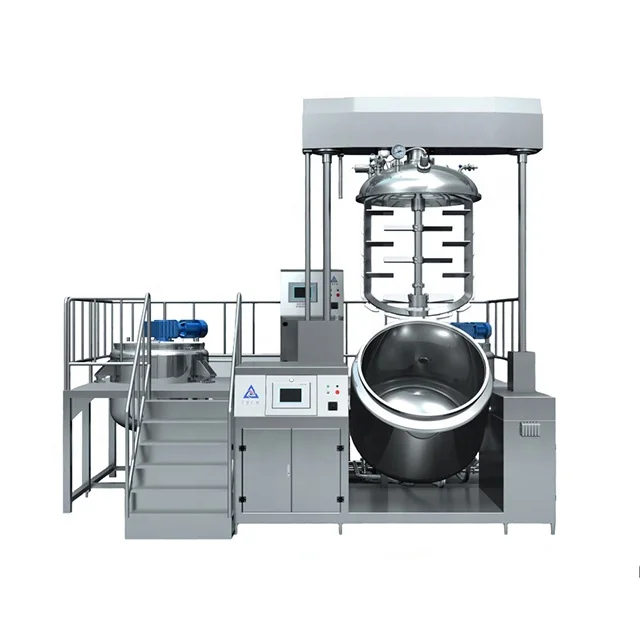

The designing of TFZRJ-750L Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc.
The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.
Capacity:
750L
Materials:
SUS316L and SUS304
High shear homogenizer:
3500rpm
Agitator:
0-60rpm
Jacket:
Double layer
Vessel Lid
Hydraulic lifting

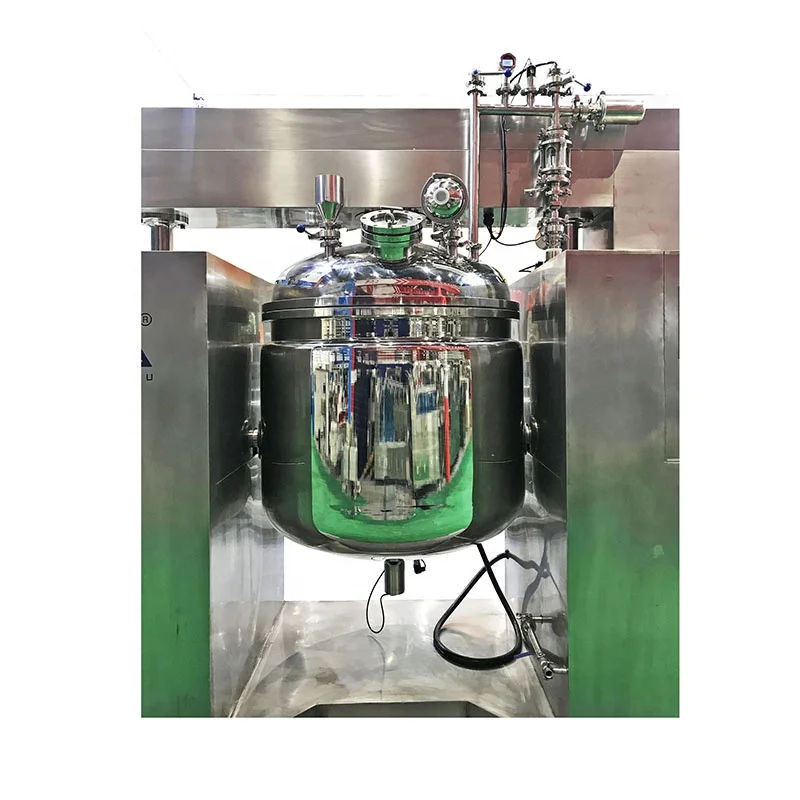

Emulsifying Mixer Pot
Material: SUS316L stainless steel, electrical heating and water-cooling.Structure: 3-layer, upper and down closure heads. The upper closure head joints with tank body by flange, and the down closure head joints with tank body directly. The inner layer of the tank body is made of SUS316L stainless steel with thickness of 4mm, and interior surface is polished by 300 MESH (sanitary level). The middle layer of tank body is made of SUS304 stainless steel with thickness of 3mm, with max working pressure of 0.09MPa.; The external layer of tank body is made of SUS304 stainless steel with thickness of 2mm, and surface is polished by 300 MESH (sanitary level). All the welding joints should be polished after ground. The transition of junction will adopt the forms of arc-flanging type. The thermal insulating layer adopts PU polyurethane foaming process.
Electric control system (PLC control)
3.5.1 PLC is S7-200 series from Siemens, Germany 3.5.2 Touch screen is Smart-1000 10.4” from Siemens Company 3.5.3 Mixing speed can be adjusted and displayed on the touch screen, as well as temperature display of each pot, high and low temperature limitation setting, controlling of automatic valve, setting of Emulsifying time and slow speed emulsifying mixing time, Controlling function of hydraulic lifting system etc., all these functions can be operated through touch screen. Electric elements: From Siemens Transducer: From Panasonic Button/switch: From FUJI Japan Temperature sensors are high quality from well-known domestic companies.
Size Information
Size Chart of This Design
Capacity
500L
750L
1000L
1500L
2000L
Related Products
Packing&Shipping
Packing in wooden framed box
After Sales Service
Company Introduction
Zhejiang TIANFU Technology Co.,Ltd. (old name was Wenzhou TIANFU Machinery Co.,Ltd.) is a high-tech enterprise that founded in 2001 with registered capital of 35.18 million Yuan (about $5.1million). We are specialized in R&D, manufacturing and selling of equipment for pharmaceutical and daily chemical industries. Also, we got the Manufacture license of special equipment for pressure vessels, also the License for Installation, Alteration, Repair & Maintenance for special equipment of pressure pipelines. TIANFU certified by the ISO9001 Quality Management System and established The Enterprise Technology Research and Development Center of Wenzhou City.
Our Services & Strength
Best quality and aftersales service
FAQ
Where's our factory?Tianfu Technology is located in Wenzhou, China How's TIANFU? One of the largest emulsifying machine manufacturer of China Which industries our machines used for? Cosmetics, Pharmaceuticals, Daily chemicals, Food & Beverage etc.. Used for cream and ointment emulsification, liquid and oil mixing, body lotion, shampoo, conditioner, liquid detergent, liquid soap manufacturing etc.
