High Quality Black Compression F connector RG6 Coaxial Cable
US $13.99-$75.20
Changbao pass test ETL CMR riser rated 1000ft 305m roll communication cables lan ethernet network utp cable lan cable cat6
- Category: Communication Cables >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (62454967343):
Product Overview
Description
Product Description

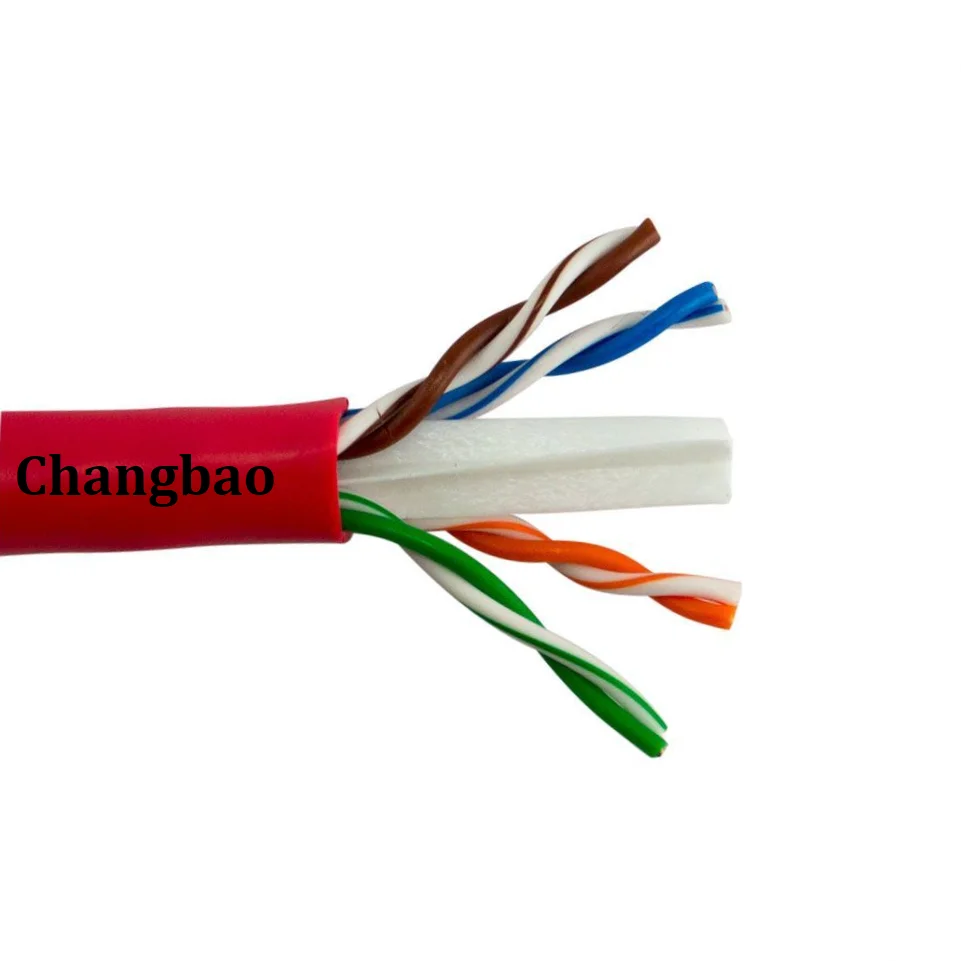

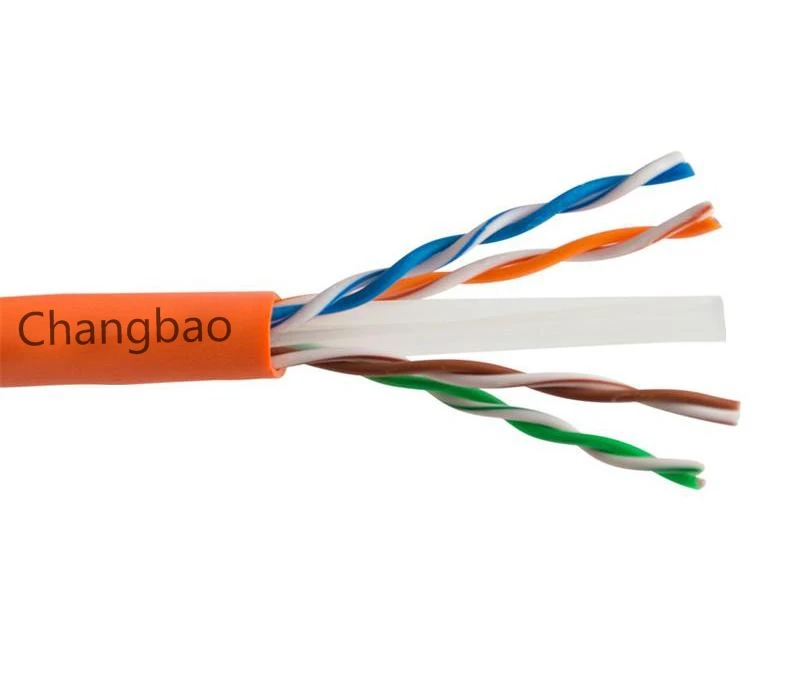

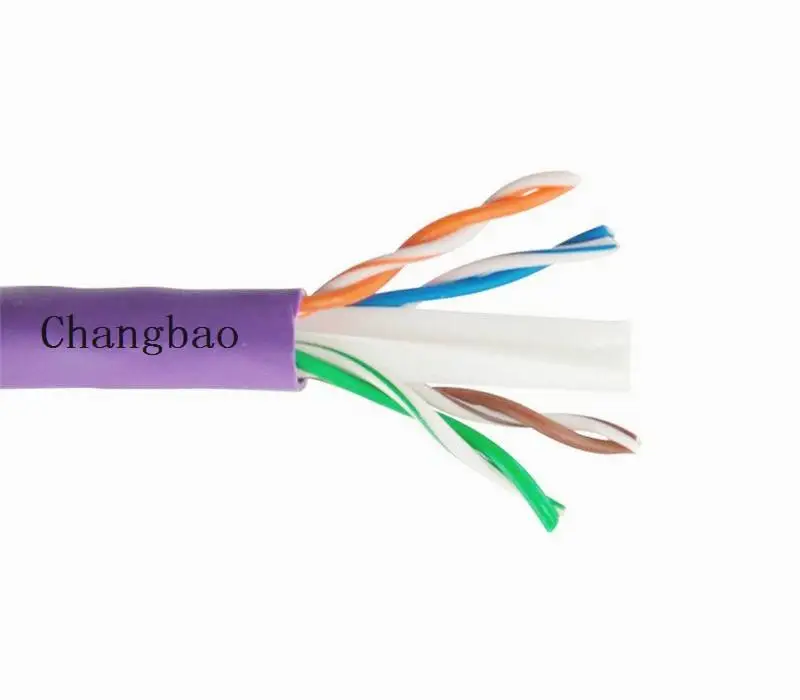

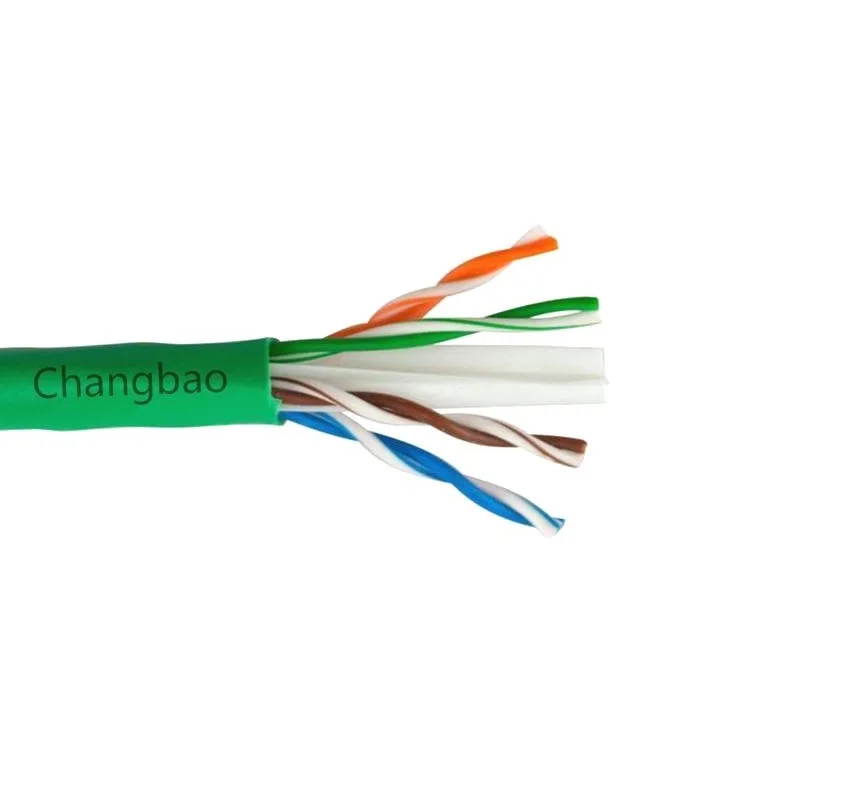

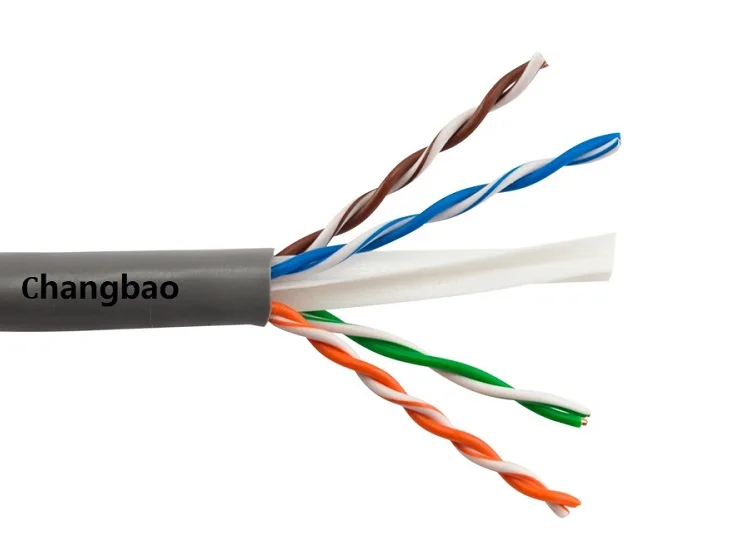

Changbao pass test lan network ethernet utp cat 6 cable
Cat6 UTP Twisted Pair Cable
Pass Test High Performance Computer Networking Cable
Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
Digital Communication Applications of up to 550MHz Bandwidth
Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
Tangle Free Reelex and Colorful Easy Pull Box Packing with No Extra Charge
Small MOQ : 5 Boxes only . (305m/box)
CE / ISO / RoHS Approved, PVC Jacket Use Indoors
Jacket In Any Color As Required
Customized Jacket Prints and Private Label
Conductor | Material | Solid Bare Copper |
Size | 23AWG X 4P | |
Insulation | Material | HDPE |
Diameter | 1.01±0.01mm | |
Colors | Blue-White/Blue | |
Orange-White/Orange | ||
Green-White/Green | ||
Brown-White/Brown | ||
Filler | Filler | PE |
Jacket | Material | PVC |
Diameter | 6.0±0.10mm | |
Colors | Per request | |
Rip Cord | Nylon |
Rating | 75℃ 30V | ||||
Conductor Resistance | Max 78.8ohm/km at 20℃ | ||||
Dielectric Strength | Min AC1.5KV | ||||
Spark Test | 5.0KV | ||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | ||||
Insulation | Unaged | Tensile Strength | 16.5 Mpa | ||
Elongation | 500% | ||||
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) | |||
Elongation | 250%(100℃ 168h) | ||||
Jacket | Unaged | Tensile Strength | 13.8 Mpa | ||
Elongation | 150% | ||||
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | |||
Elongation | 80%(100℃ 168h) | ||||
Cold Bend Test | -20℃ 4hours No Cracking | ||||
DC Resistance Unbalance | Max 5% | ||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | ||||
Characteristic Impedance | 1~500MHZ 100±15OHM | ||||
Propagation Delay | 500MHZ Max 536ns/100m | ||||
Delay Skew | 1~500MHZ Max 40ns/100m | ||||
Company Profile
CHANG BAO TECHNOLOGY CO., LTD,established in 2001, is a professional manufacturer engaged in the research, development, production, sale of Communication cables, Speaker & Audio cables, Security & Alarm cables, Telephone cables, Control & Automation cables, series of Composite cables and Electronic wires, etc.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
Certifications
Packing & Delivery
305m(1000ft)/ Easy Pull Box
