Low price professional roller magnet with fast delivery
product presention

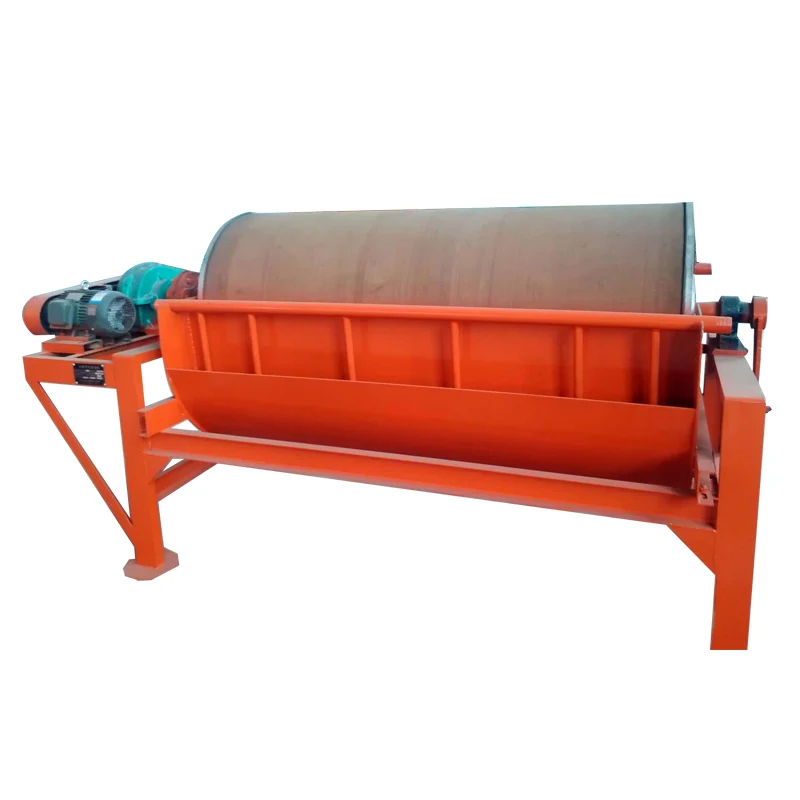

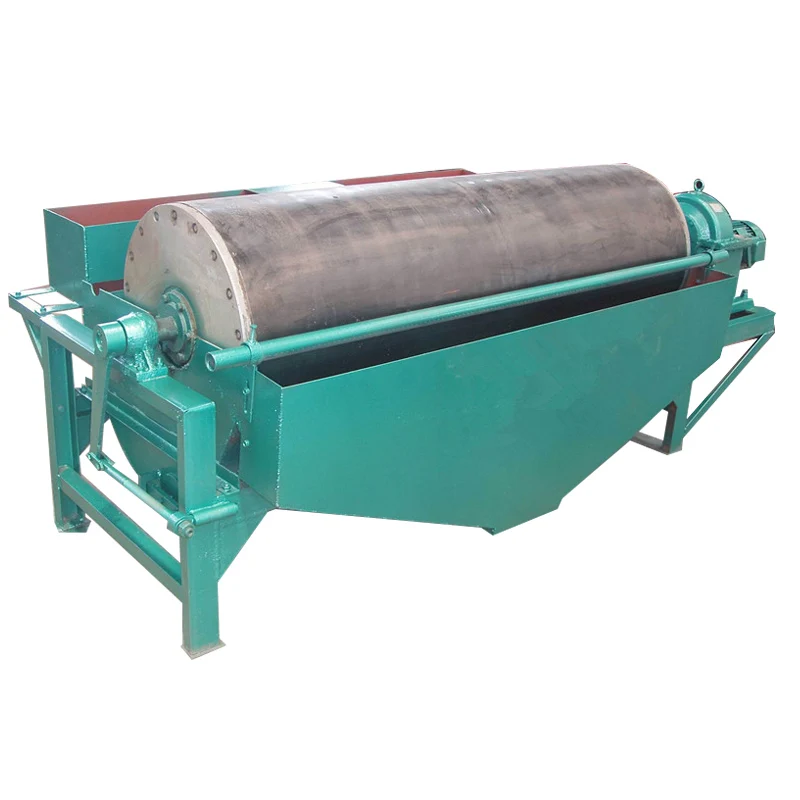

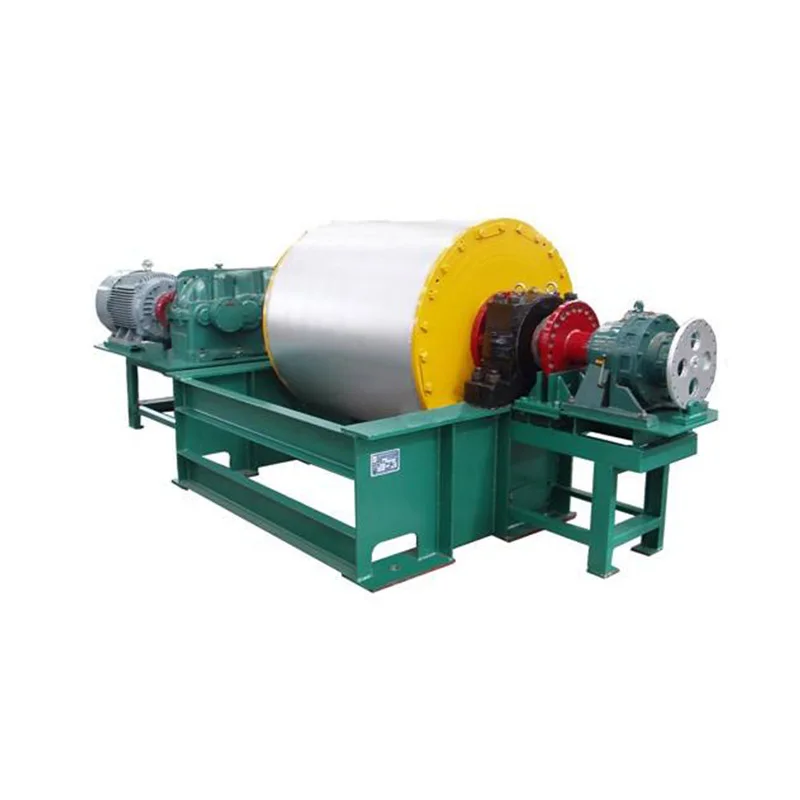

CTB wet semi-countercurrent magnetic separator is suitable for cleaning and cleaning of strong magnetic materials with particle size below 0.5mm for wet separation of ores, especially for the selection of minerals with particle size of 0.15~0mm. Or remove the strong magnetic minerals mixed from non-magnetic minerals. CTB wet semi-countercurrent magnetic separator can obtain high quality iron concentrate and good recovery rate, so semi-countercurrent magnetic separator has been widely used in production practice. This machine can continuously feed and discharge, the magnetic field intensity is large, the magnetic field gradient is high, and has high processing ability. Can be multiple series and parallel connection, to achieve multiple cleaning and selection. The principle is that when the pulp enters the magnetic field area, the strong magnetic minerals are adsorbed on the surface of the cylinder, the weak magnetic and non-magnetic minerals are washed and discharged by the flow, while the magnetic minerals adsorbed on the cylinder surface rotate with the cylinder, are brought out of the magnetic field area, washed into the concentrate trough with flushing water, and the separation operation is completed.
Main technical param
model
Cylinder size
Magnetic induction intensity on the surface of cylinder GS
handling capacity
power
Cylinder speed
Total machine weight
KW
r/min
kg
Tube diameter * cylinder length
Sweep selection average
Maximum magnetic induction intensity
Dry ore quantity
Pulp quantity
mm
T/h
M3/h
CTB-44
400*400
1000-4500
2000-7000
1-2
3
1.1
45
350
CTB-46
400*600
1-3
5
1.1
45
600
CTB-66
600*600
5-10
16
1.1
40
705
CTB-69
600*900
8-15
24
1.1
40
830
CTB-612
600*1200
10-20
1
2.2
40
960
CTB-618
600*1800
15-30
48
2.2
40
1340
CTB-712
750*1200
15-30
48
3
35
1500
CTB-718
750*1800
20-45
72
3
35
2100
CTB-918
900*1800
25-55
90
4
28
2900
CTB-924
900*2400
35-70
110
4
28
3500
CTB-1018
1050*1800
40-75
120
5.5
22
4000
CTB-1021
1050*2100
45-88
140
5.5
22
4500
CTB-1024
1050*2400
52-100
160
5.5
22
5000
CTB-1030
1050*3000
65-125
200
7.5
22
6200
CTB-1218
1200*1800
47-90
140
5.5
19
5800
CTB-1224
1200*2400
82-120
192
7.5
19
6200
CTB-1230
1200*3000
80-150
240
7.5
19
7200
CTB-1530
1500*3000
90-170
270
11
14
8100
CTB-1540
1500*4000
115-220
350
11
14
9300
NOTE:1.According to the installation orientation, there are two kinds of structures: left and right.
2.The magnetic induction intensity on the surface of the cylinder is determined according to the different requirements of iron content in different minerals.The magnetic field intensity range from 1000GS to 7000GS can be fabricated.
