Processor Type | Intel Xeon Scalable |
Processor family | Intel Xeon Scalable Family processors Choice of Generation 1 or 2: Series 8100/8200 Series 6100/6200 Series 5100/5200 |
Processor Name | 2 or 4 selectable: Intel Xeon Scalable 8100/8200 series Intel Xeon Scalable 6100/6200 series Intel Xeon Scalable 5100/5200 series All processors must match. |
Processor number | 2 or 4 |
Processor core available | 28 26 24 22 20 18 16 14 12 10 8 6 or 4 cores per processor |
Processor cache | Up to 38.5 Mb |
Processor speed | 3.6 GHz 3.5 GHz 3.4 GHz 3.2 GHz 3.0 GHz 2.7 GHz 2.6 GHz 2.5 GHz 2.4 GHz 2.3 GHz 2.1 GHz or 2.0 GHz |

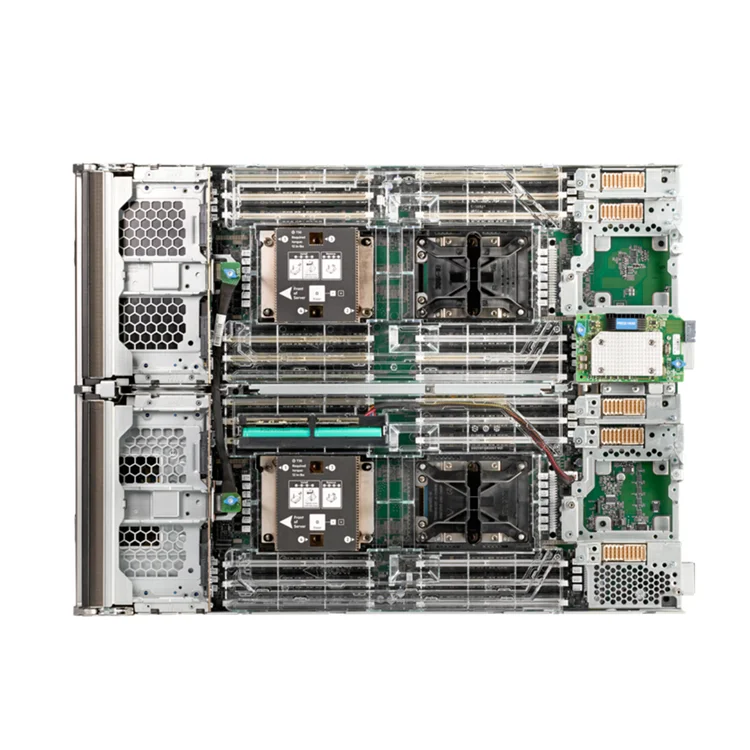

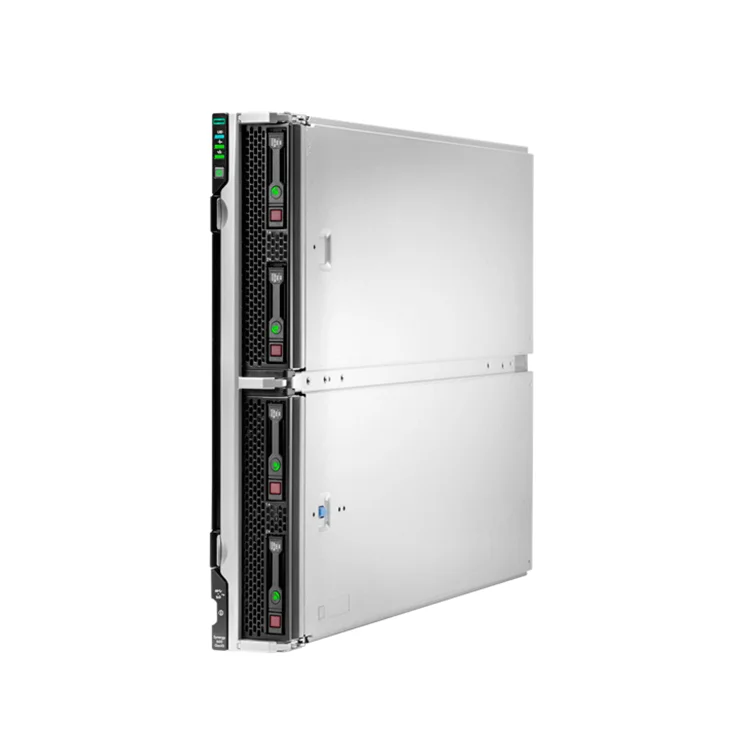

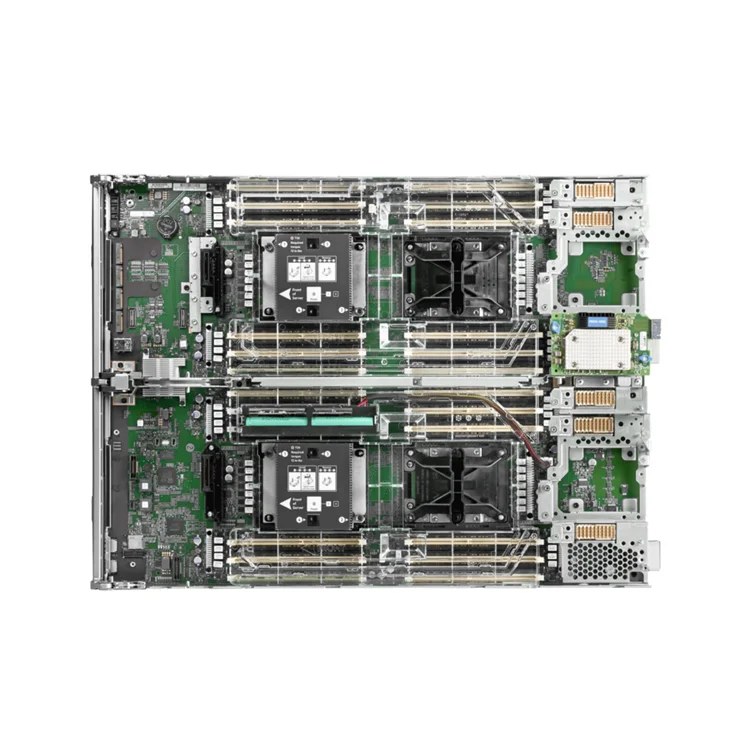

Compute nodes | HPE Synergy 660 Gen10 Compute Modules |
Form factor (fully configured) | 10 U full height, single-wide |
Power supply type | (6) Frame-based |
Expansion slots | (6) 3x 16 PCIe 3.0 Slots for Mezzanine Options (for detail descriptions reference the QuickSpecs) |
Maximum memory | 6 TB with 128 GB DIMMs in 48 DIMM slots |
Infrastructure management | HPE Synergy Composer powered by HPE OneView 3.1 and iLO Advanced (standard) with all Synergy solutions |
Memory slots | 48 DIMM slots Maximum |
Memory type | HPE DDR4-2666 SmartMemory(Gen1) or HPE DDR4-2933 SmartMemory(Gen2) available |
Memory protection features | Advanced ECC Memory Mirroring Mode Memory Online Spare Mode |
Security | TPM and iLO5 Root of Trust |
Drive description | Optional: 0 to 4 SFF SAS/SATA/NVMe SSDs AND/OR up to 8 uFF Flash AND/OR up to 4 internal M.2 drives |
System fan features | (6) Frame-based |
