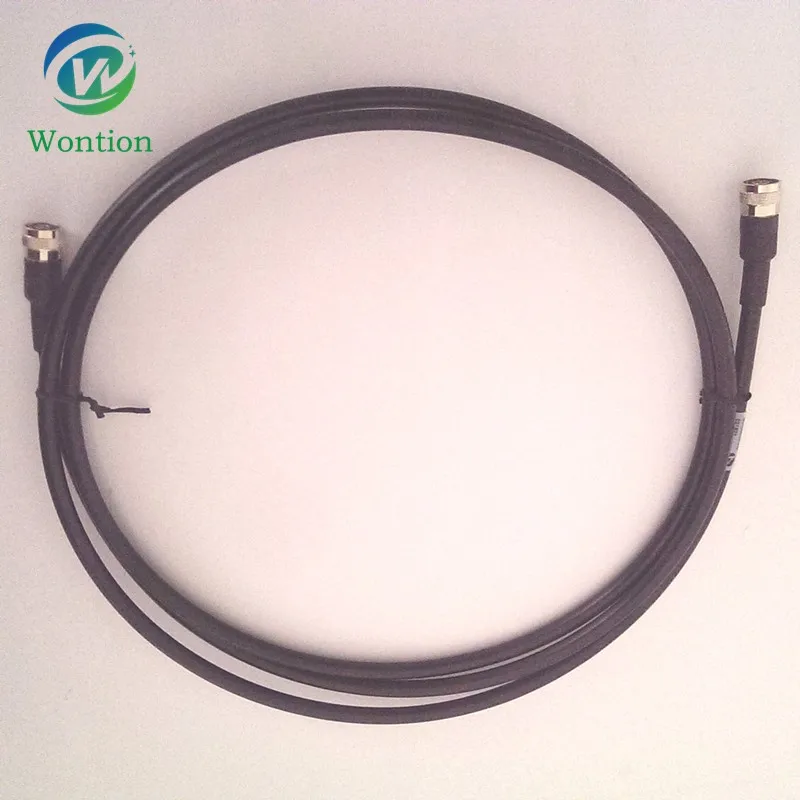

4.3 10 feeder jumper cable,coaxial jumper cable,communication jumper cable

Product Overview

Description

4.3-10 feeder jumper cable,coaxial jumper cable, communication jumper cable



1. 4.3-10 male jumper cable for 1/2" flexible cable:

It is used for transmitting and receiving as the main feeder or sub-feeder in mobile communication systerm. It can also be used in other elictronic decives to transmitting high-frequency signal as low-loss transmission line.





2.Parameters:

4.3-10 Male Jumper cable for 1/2" Flexible
Cable Type	WX-Juper1//2-DINM-4.3/10
Jumper Length	Customized according to demand
Inner Conductor	Copper-Clad Aluminum Wire(Diameter 4.80 mm)
Dielectric	Physical Foam Polyethylene(Diameter 12.30mm)
Outer Conductor	Corrugated Copper Tube(Diameter 13.80mm)
Jacket	Black PE (Diameter 15.70mm)
ConnectorA,B	DIN Type Straight male/DIN type Straight male
Inner Conductor Pin	Brass/Silver Plating
Body&Outer Conductor	Brass/Trimetal Plating
Insulator	PTFE
Gasket	Silicon Rubber
Characteristics Impedance	50 Ohm
Frequency Range	DC~7.5GHz
Insulation Resistance	≥5000MΩ
@DC~3.0GHz	≤0.15*L+0.2dB
@DC~2.5GHz	≤1.10
@2.5~3.0GHz	≤1.15
PIM3	≤-155dBc
Temperature Range	-40°C to +85°C

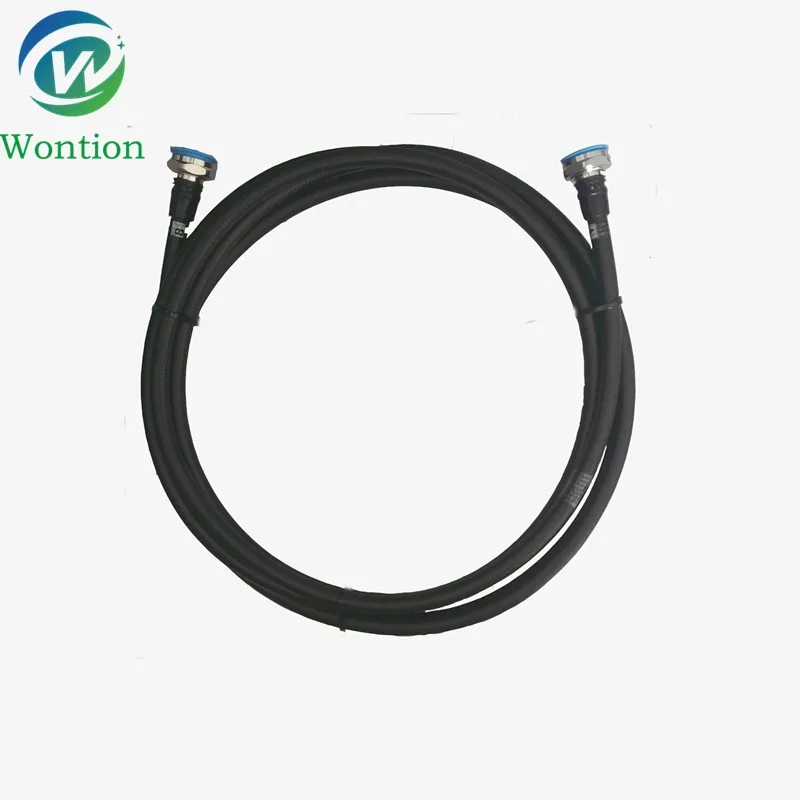

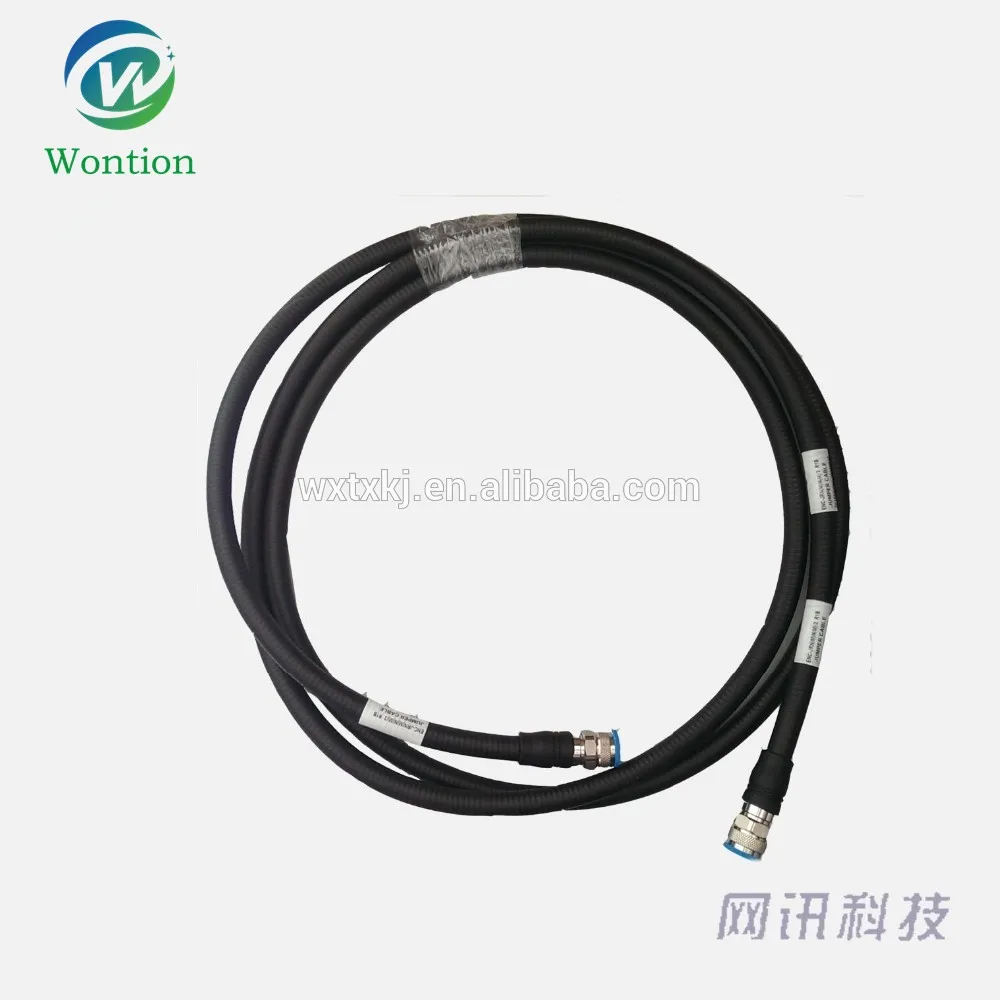

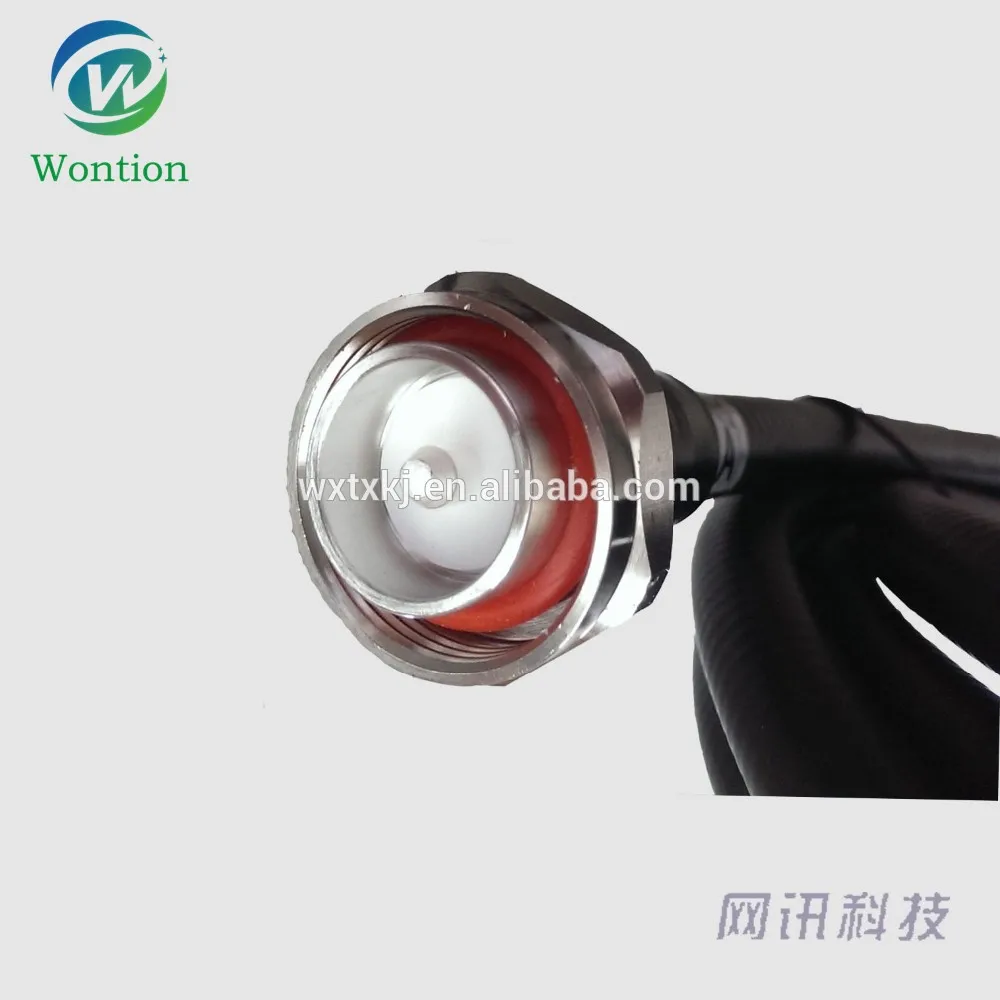

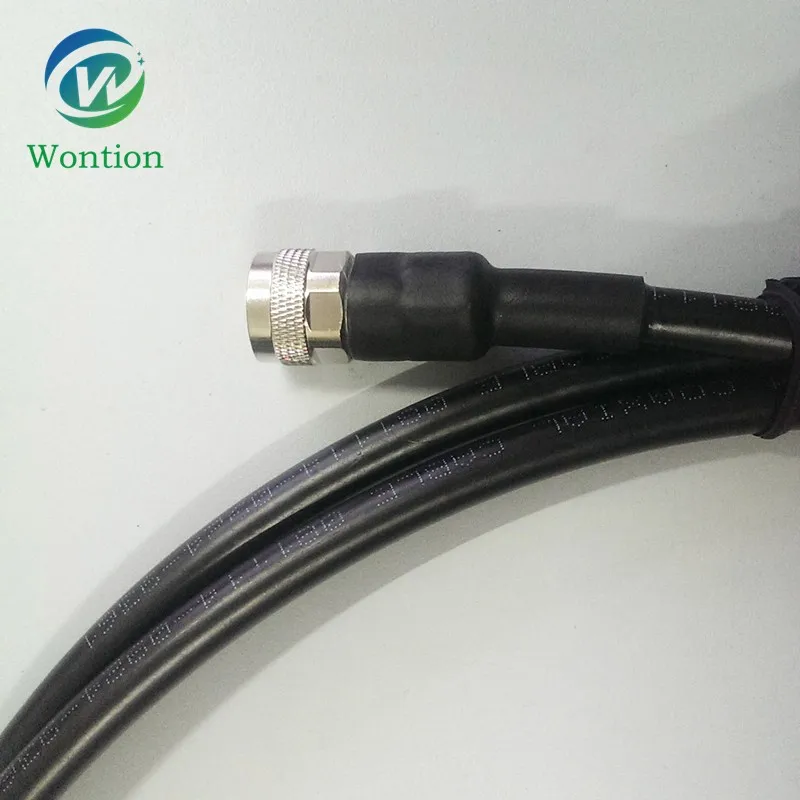

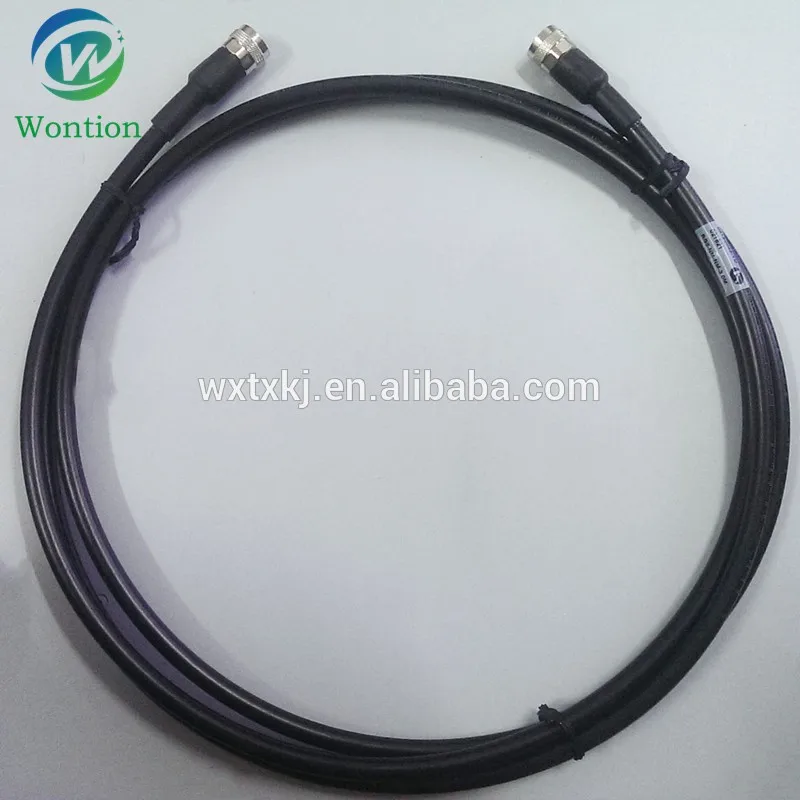

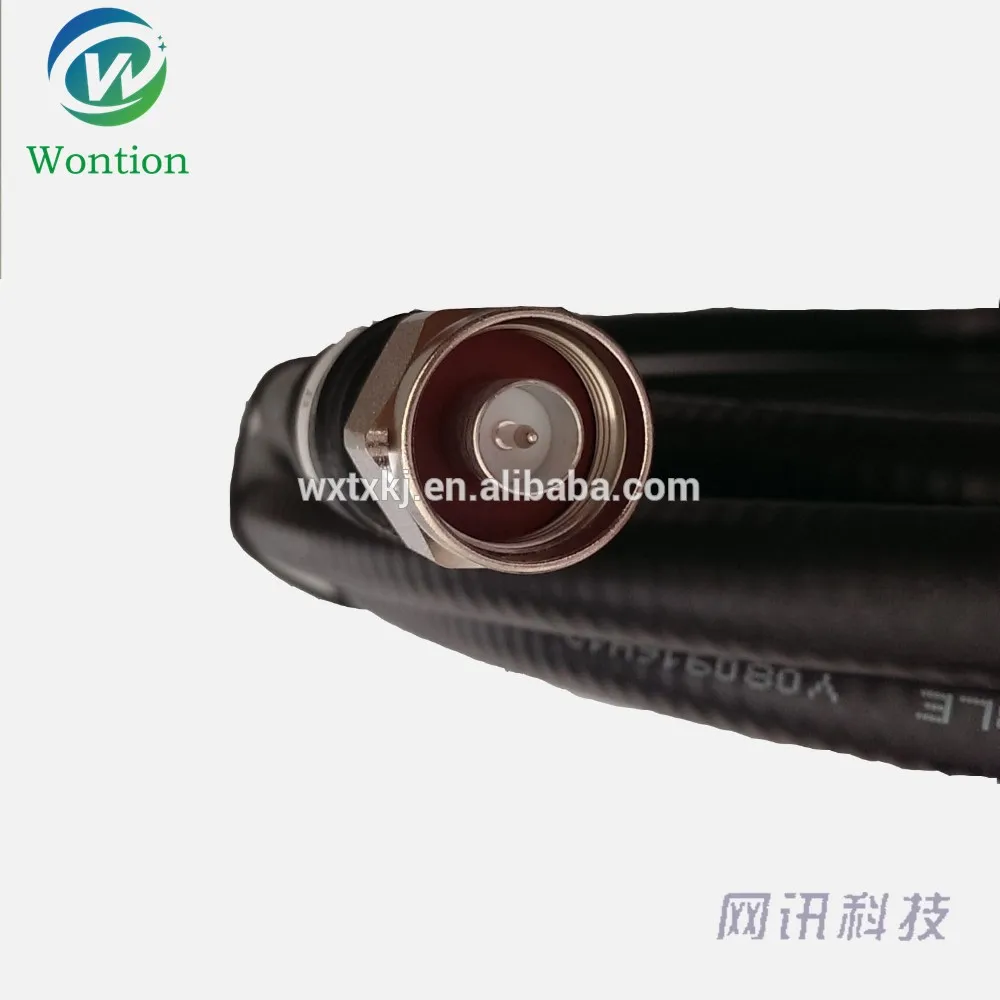

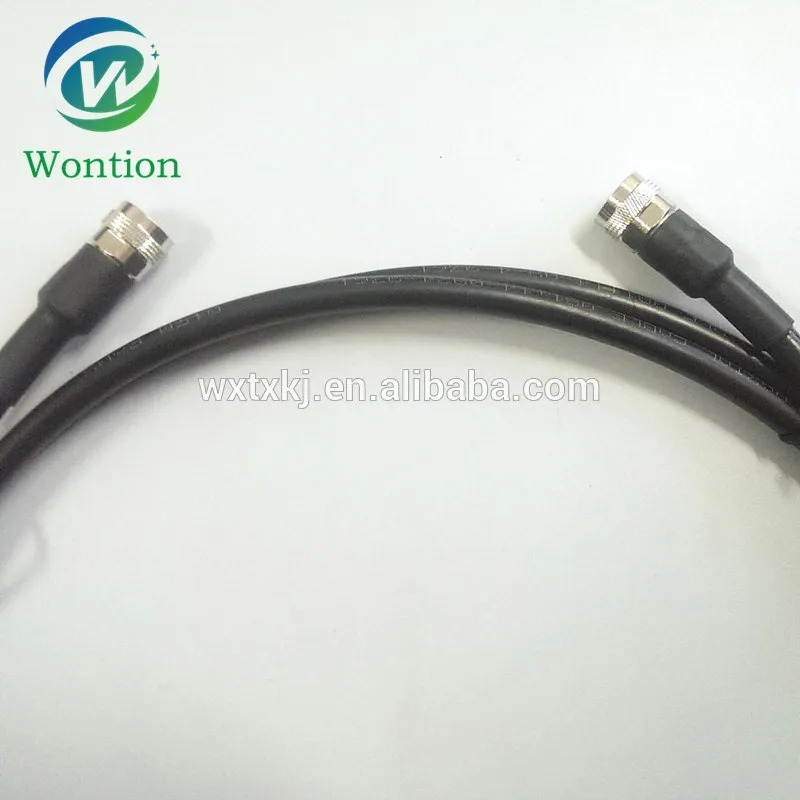

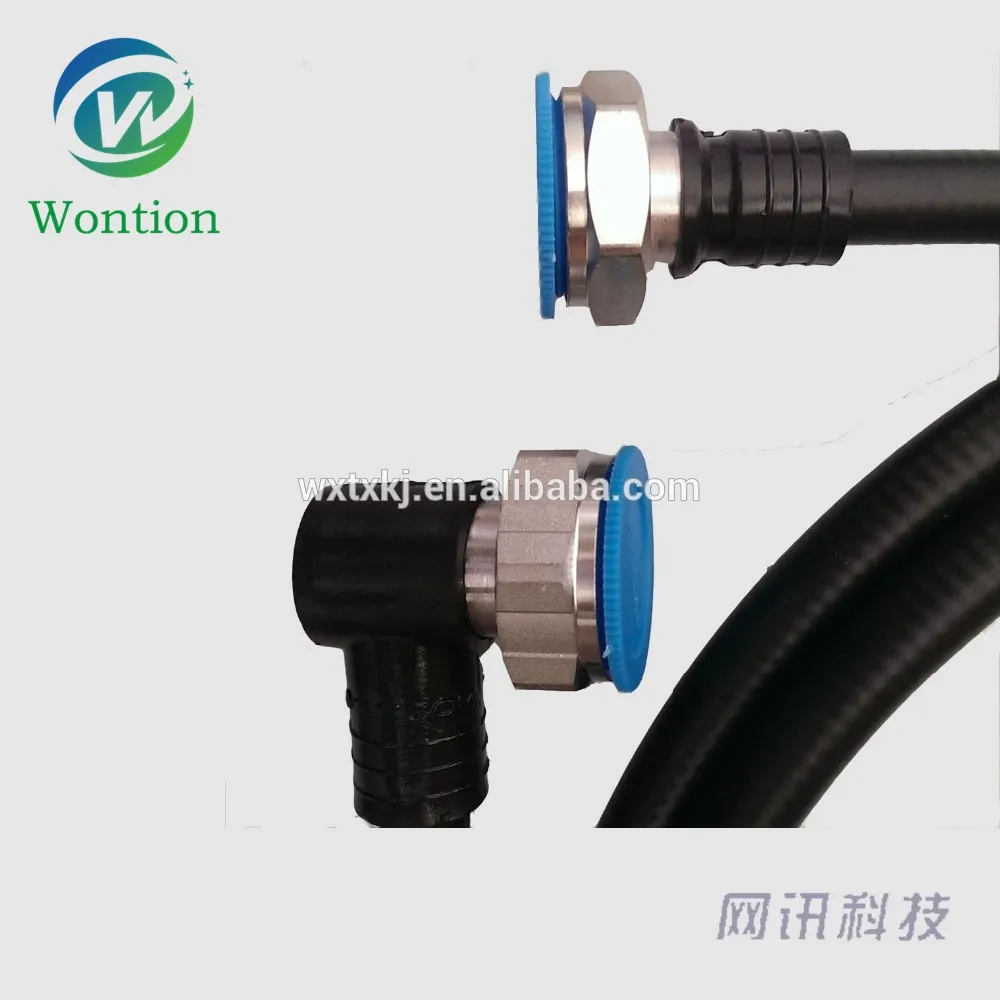

3.Pictures:

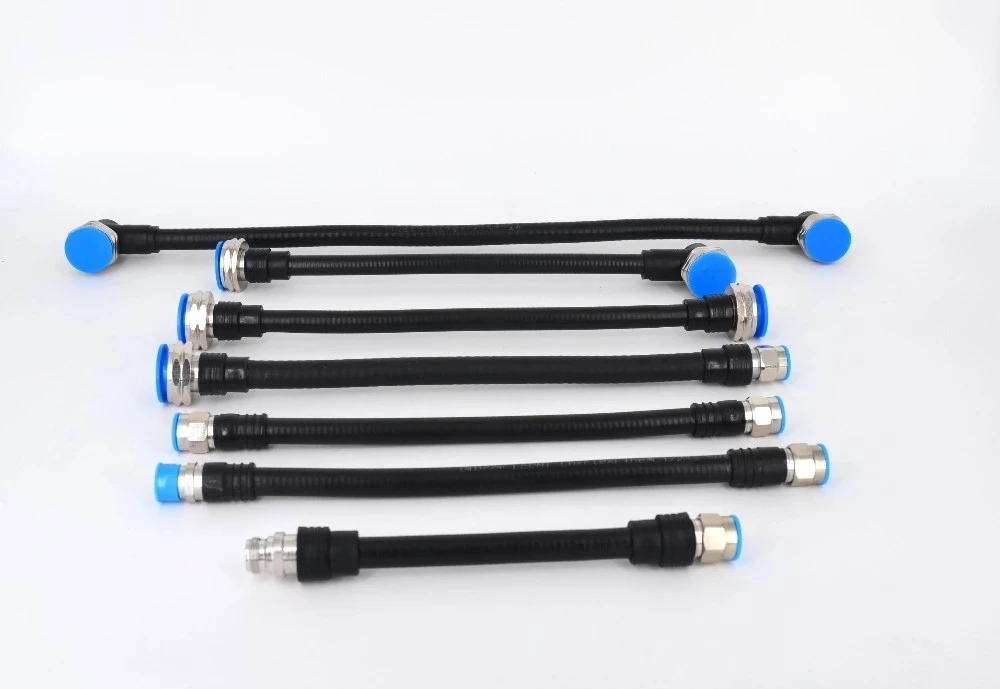

4.Products series:
