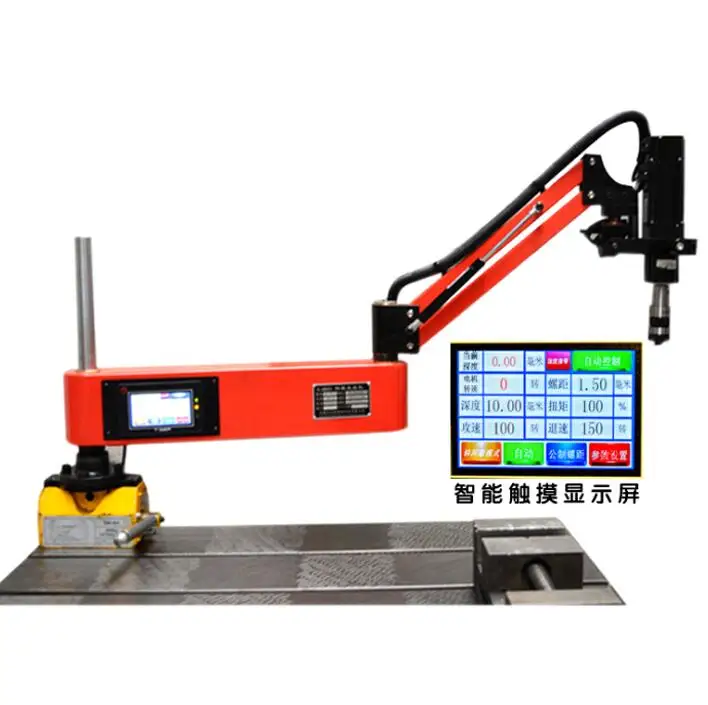

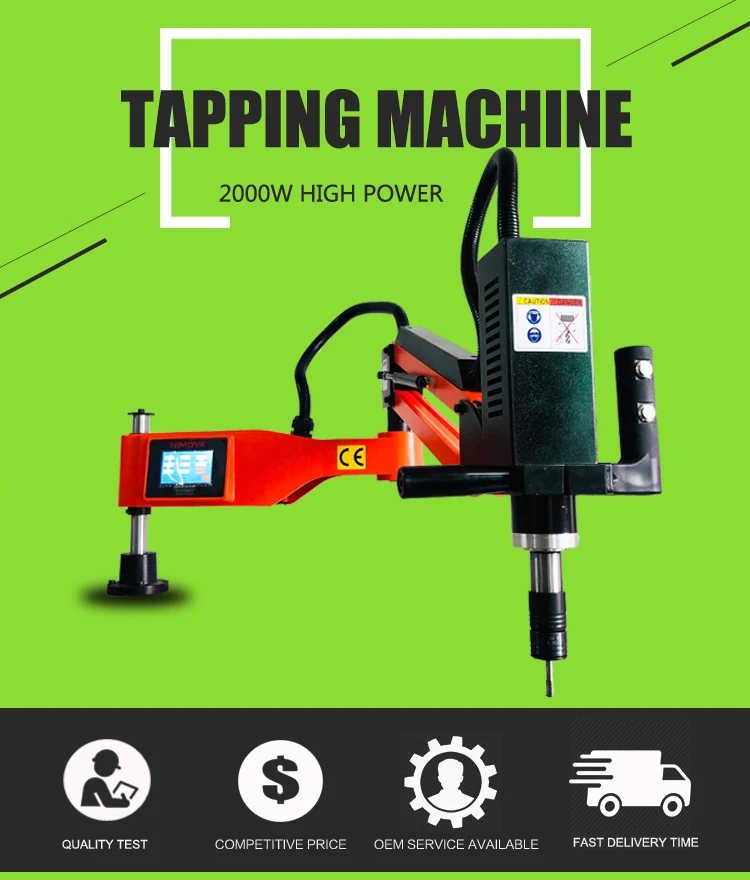

Newest M24 cnc servo pipe drilling automatic tapping machine

Product Overview

Description

Tapping Machine Parameters

Model	DS-08-1100	DS-12-1100	DS-16-1100	DS-20-1100	DS-24-1500	DS-30-1500	DS-36-1500	DS-42-1500
For Tap:	M3-M8	M3-M12	M3-M16	M3-M20	M6-M24	M6-M30	M10-M36	M10-M42
Work Range:	1100mm				1200mm
Electric Motor:	800W				1200W		2000W
Speed:	0-1000rpm	0-500rpm	0-312rpm	0-200rpm	0-250rpm	0-200rpm	0-120rpm	0-75rpm
Speed ratio:	PLE60-05	PLE60-10	PLE60-16	PLE60-25	PLE80-20	PLE80-25	PLE80-40	PLE80-64
Operating system:	CNC Digital Display Touch Screen System
Voltage:	220v single-PHASE
Weight:	30kg				45kg			50kg
Packing method:	wood box
Packing dimensions:	650mmx600mmx180mm				820mmx650mmx200mm
Standard Accessories:	Electric Tapping Spindle
	Rocker Arm
	A torsion Wire Tapping Collet
	CNC Digital Display Touch Screen System
Spare parts:	90°and Various Degree Tapping Device
	Work Table
	Magnetic chuck

MORE DETAILS

- 30-50kg Lightweight tapping machine that can be easily relocated.

- 12 months wanrranty for whole machine, 36 months for motor part

- High power motor for more stable function
- High speed, Wide range of adjustments of tapping speed.
- Quick change chuck - 3-5s. Reducing operation time and increasing productivity.
- Minimum noise, vibration and electricity consumption

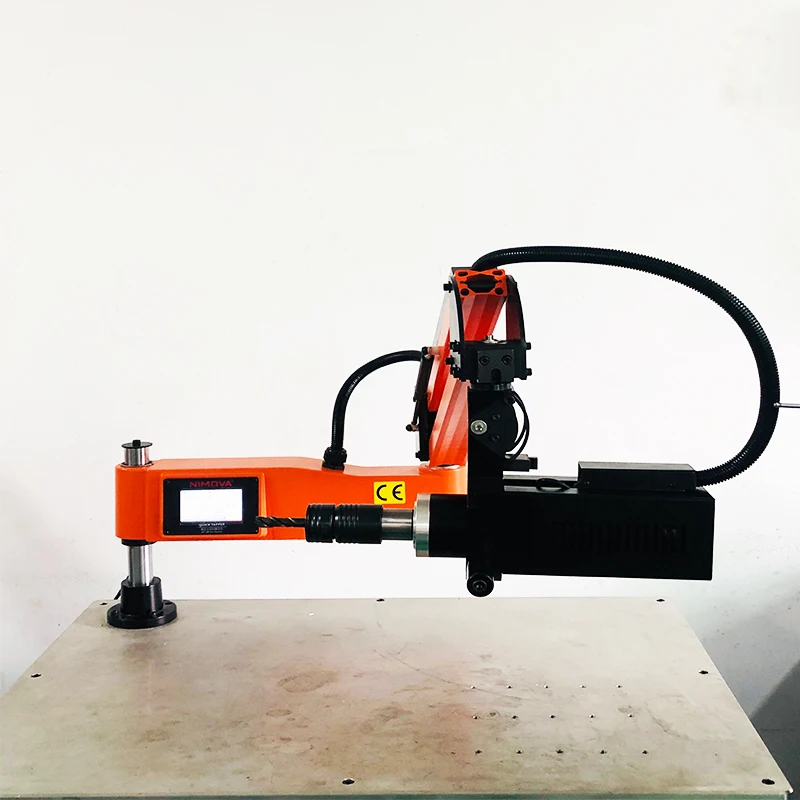

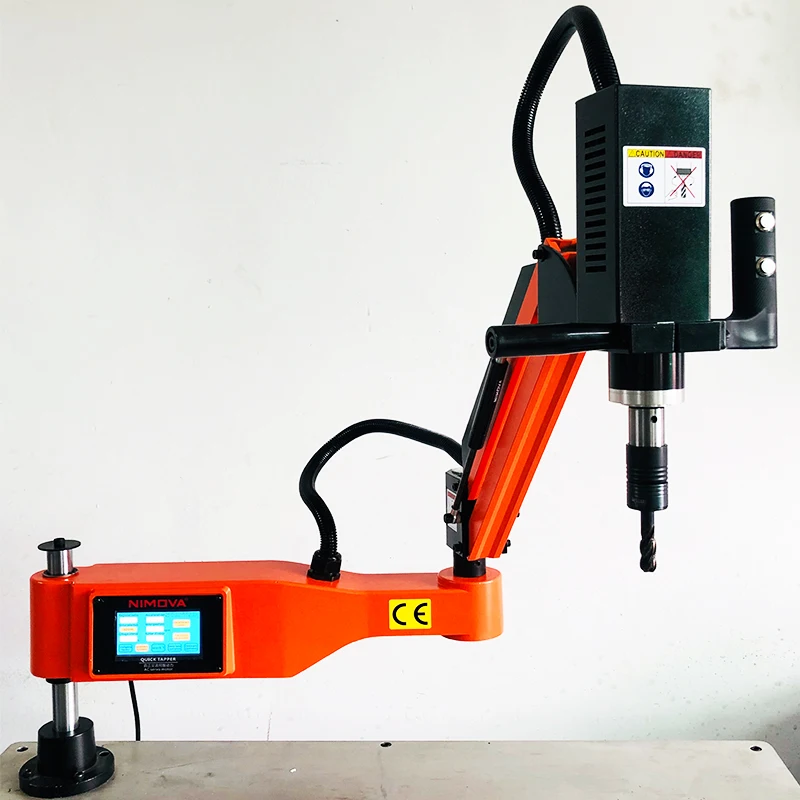

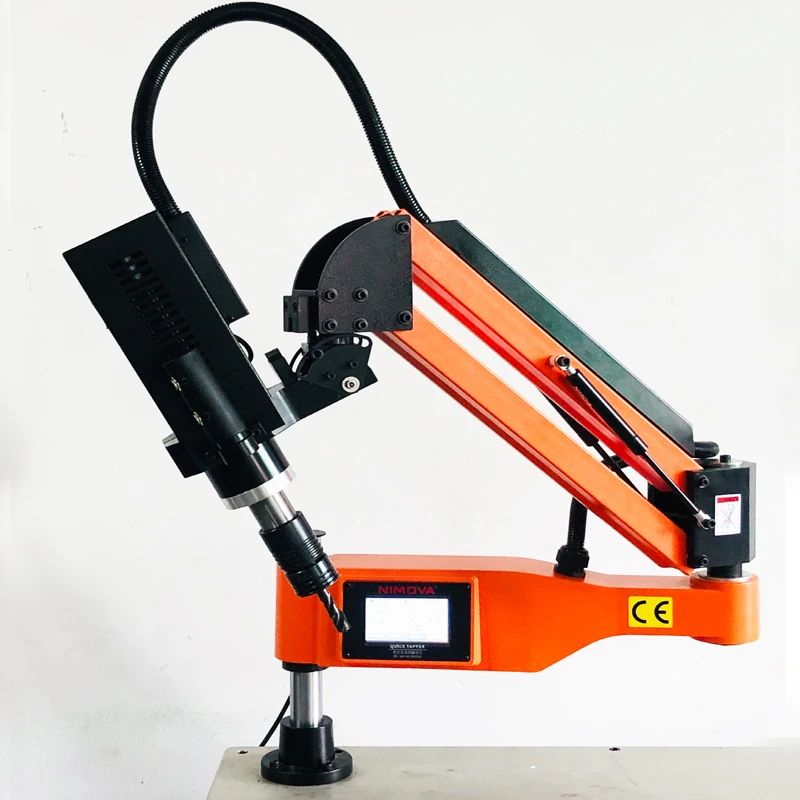

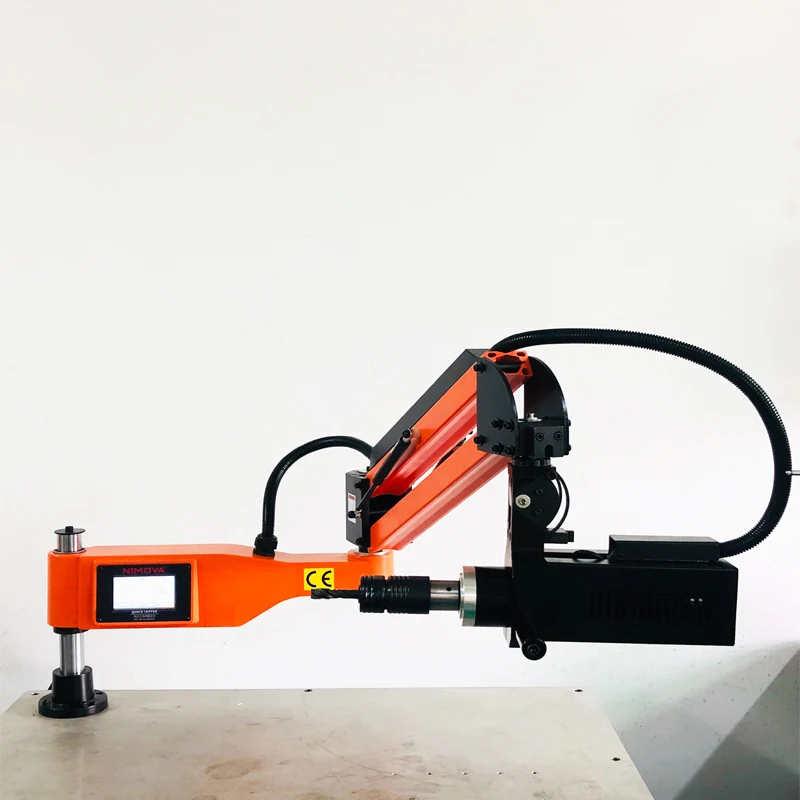

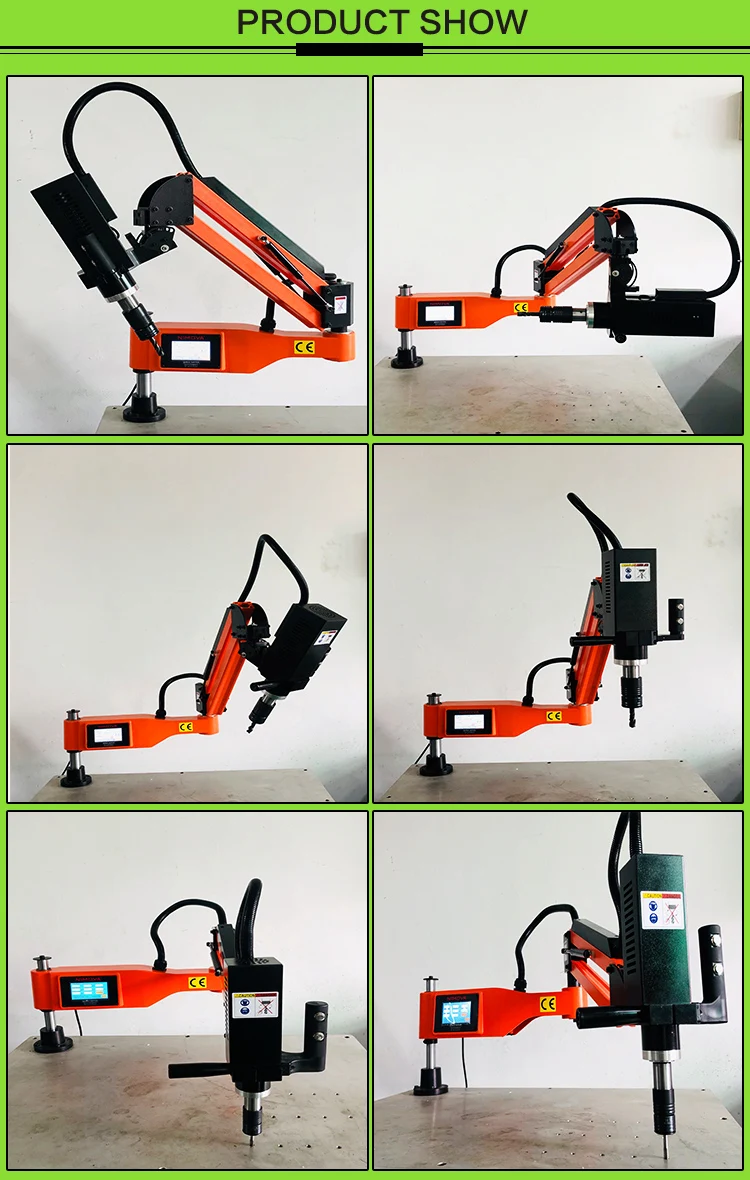

More Tapping Machine Pictures

About Double Spring Machinery

Packing and Shipping

Package Detail:

1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.



FAQ

1. What about lead time?

For standard machines, it will be 3-5-15 working days after payment

For customized machines, it will be 10 to 15 working days after payment.



2. What is your warranty time?
12 months wanrranty for whole machine, 36 months for motor part

within warranty period ,we will offer free part and maintain video, or can teach you face-to-face.

If machine have serious quality problem, you can return the machine.



3. Can i use my own logo?

Yes, sure. Please send us picture or logo in PDF/PSD etc format.



4. Own shipper to deliver is ok?

Yes, please ask your shipper to contact us first because we need to double check the local fee.
