Product Overview

Description



WELCOME








Features:
This machine is used to process planes,model surfaces,key seating ect,is most suitable for the single-piece or small batch production

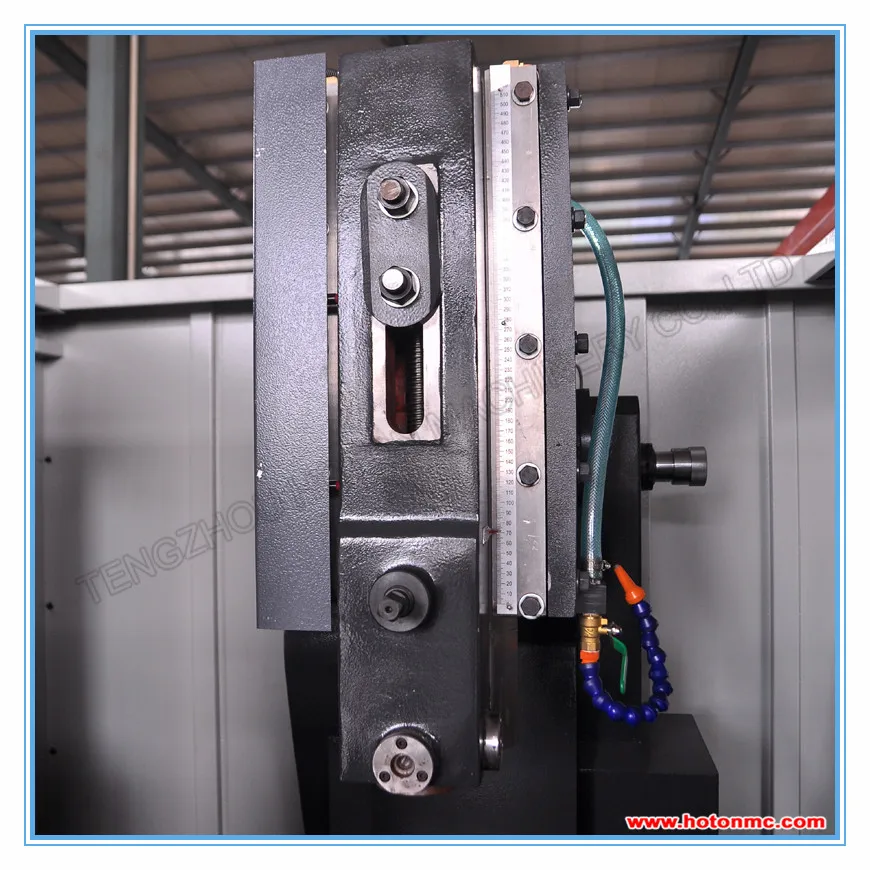

The main transmission is to change the crank gear's rotary motion into the reciprocating motion of the ram.

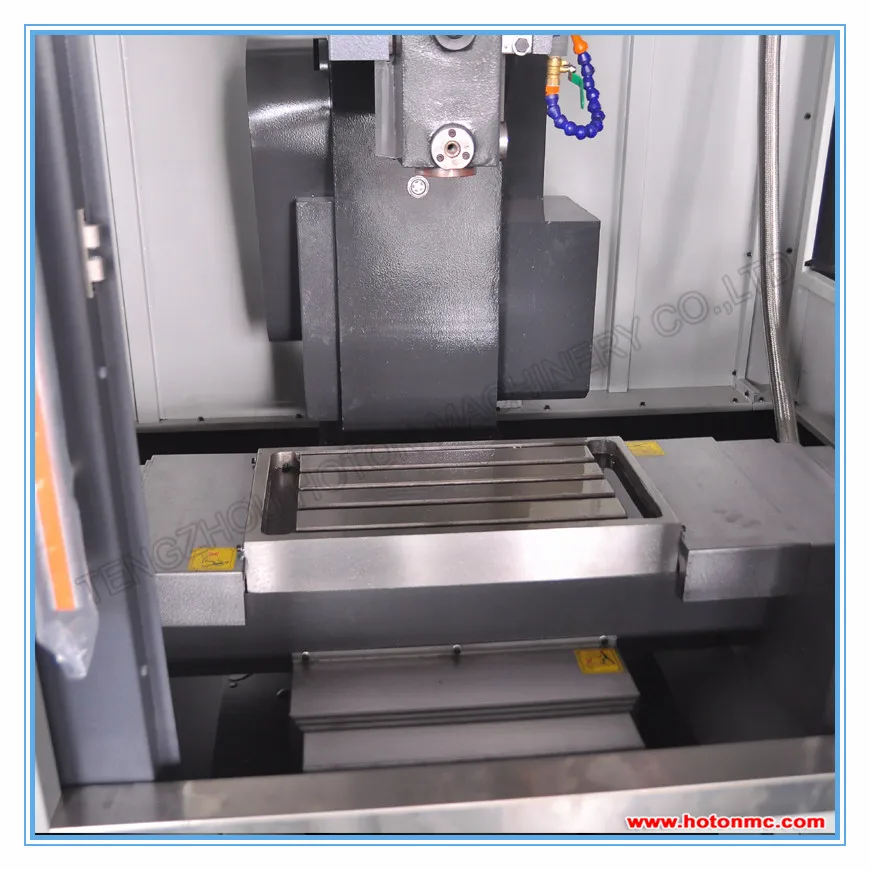

Worktable can be vertical, horizontal and rotary moving, maual or automatic and fast moving.The feed will stopped automatically when worktable is meet trouble or achieve limit.
The start and stop adopt electromagnetism clutch, realize centralized control.
Angle dividing device for table roatry dividing, do machining as required angle.
This machine is well designed as standard,universalization,serialization,automation.Good appearance and convenient maintenance.
Automatic lubrication,easy adjustment

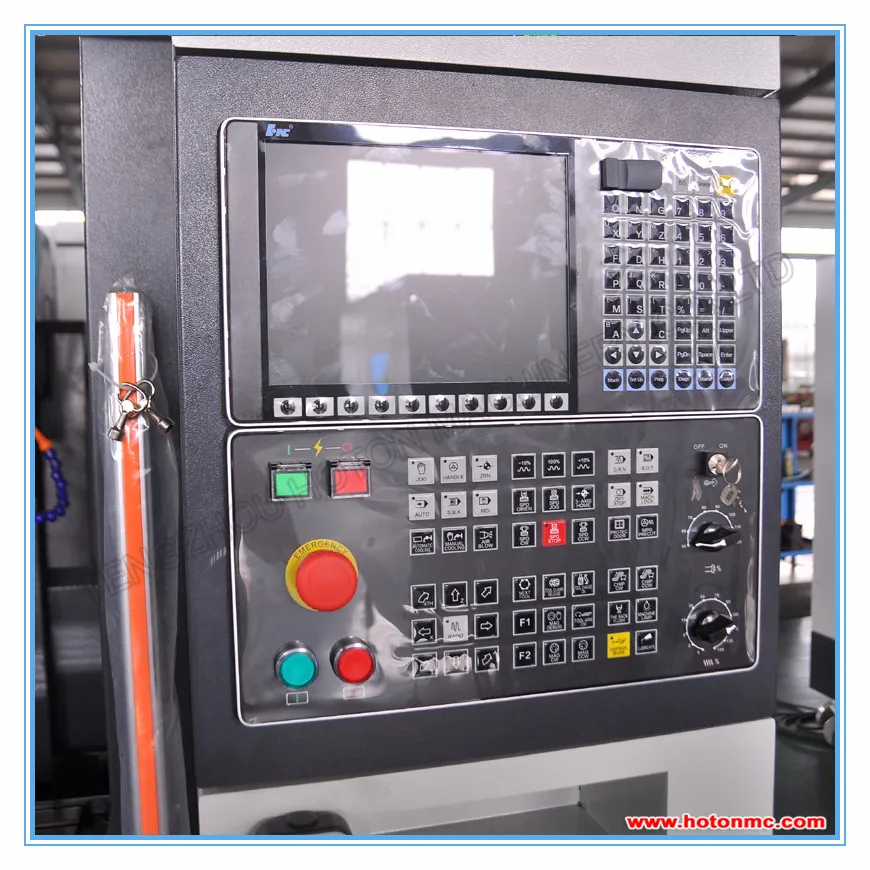

The electric equipment is fixed in the bed at the back of lower bed. it is safe because of the concentrated push buttons in the upper bed.



Model
Unit
BK5010
BK5018
Ram maximum slotting length
mm
120
180
Ram stroke adjustment
mm
60
80
Ram per minute motion data
N/min
60-320
46/60/90
Work table size
mm
600x500
600X320
Table travel (X,Y)
mm
300(x)
460X320
The knife head supporting hole axis to distance of upright column for arm
mm
-
400
The knife head supporting hole end to
table working distance
mm
240-720
480
X to the motor torque
N.M
6
6
Y to the motor torque
N.M
3.5
6
Fast moving
X(m/min)
Y(m/min)
5
5
5
Ball screw X
/
FFZD3205-3/P4
FFZD3205-3/P4
Ball screw Y
/
FFZD3205-3/P4
FFZD3205-3/P4
The main motor power
Kw
1.5kw
1.5/2/2.2
Machine weight
kg
1500
1500
Dimension LxWxH
mm
2000x1800x1950
-
