LDHB China Best Sand Washer Manufacturer Double Spiral Sand Washing Machine
- Category: Sand Washer >>>
- Supplier: Luoyang Longding Environmental Technology Co. Ltd.
Share on (62464375901):
Product Overview
Description
Product Description
Spiral sand washing and recycling machine

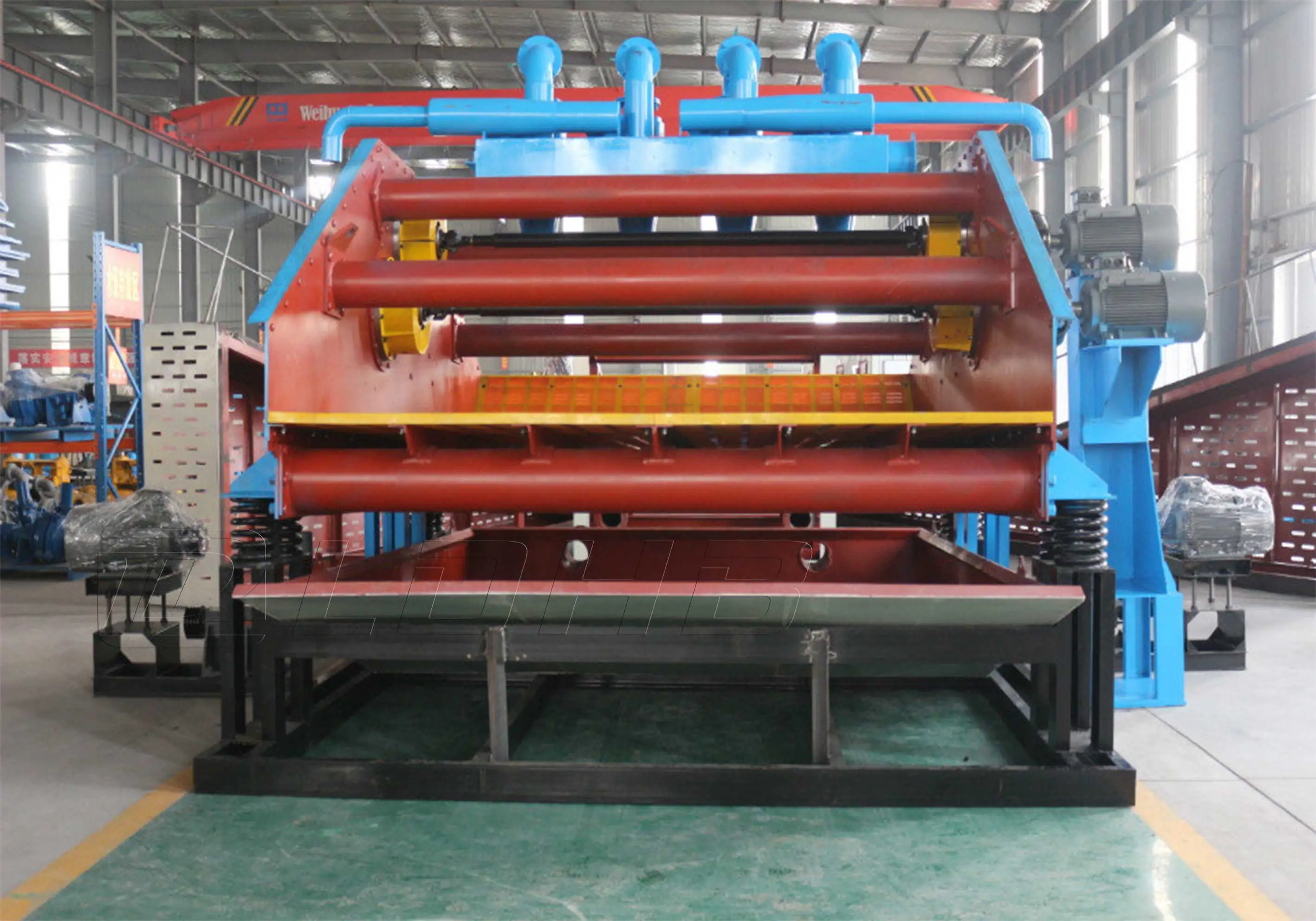

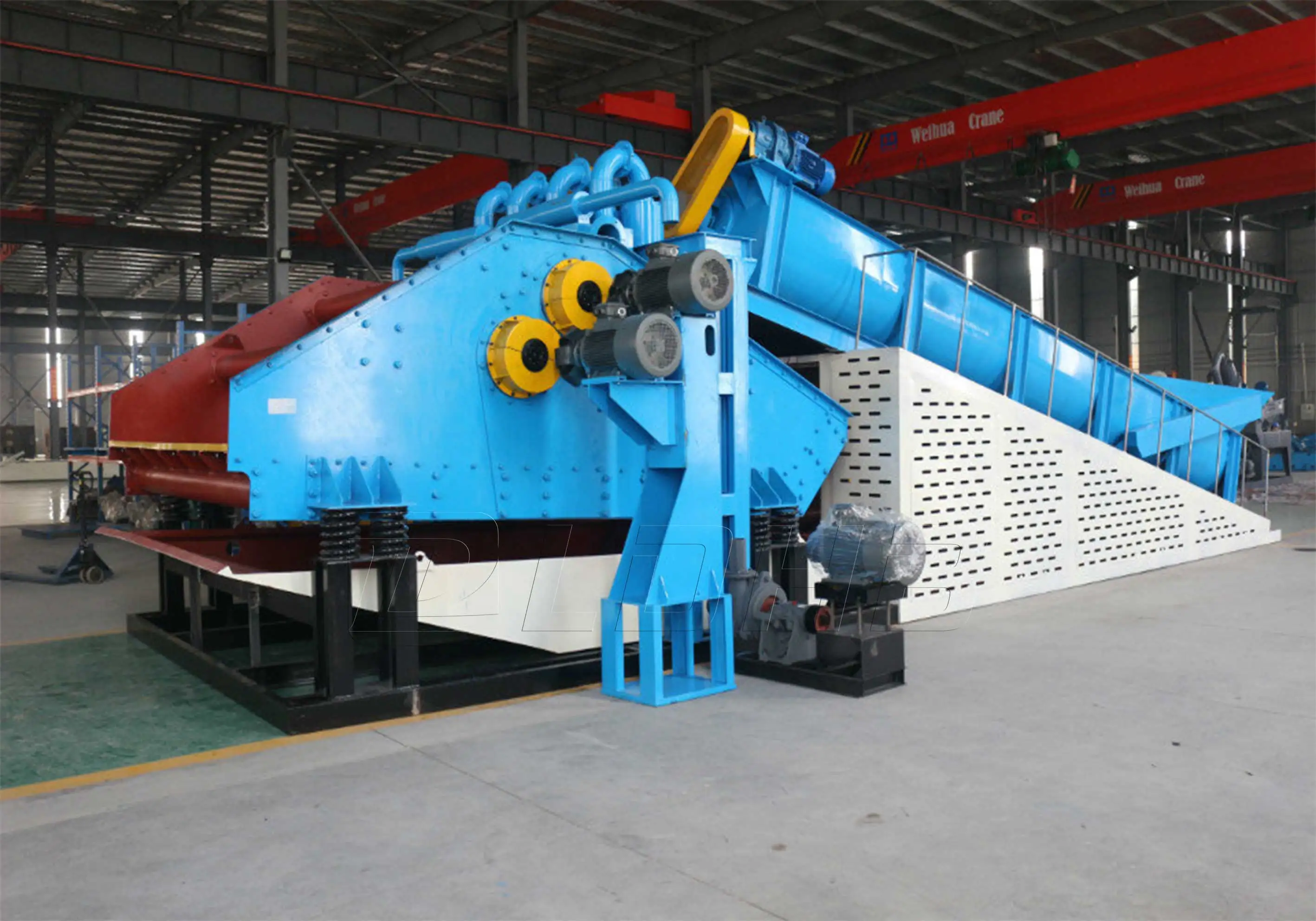

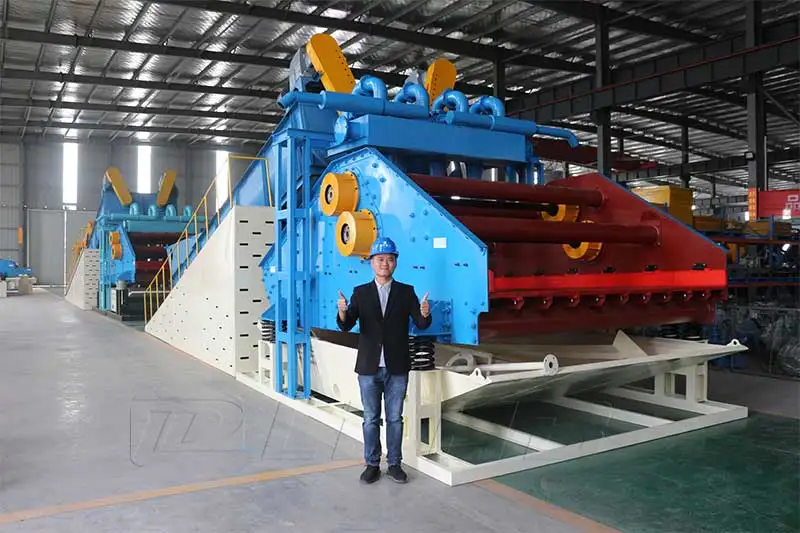

The spiral sand washing machine consists of spiral sand washing device, overflow device, water reverse device, separation and recovery device, water storage tank, slurry pump, elrctro motor, reducer and so on.
LDHB IS THE NO.1 SAND WASHING MACHINE MANUFACTURER IN CHINA !
LDHB WILL PROVIDE YOU
WITH THE BEST QUALITY PRODUCTS AND THE MOST SATISFACTORY SERVICE !
Working Principle

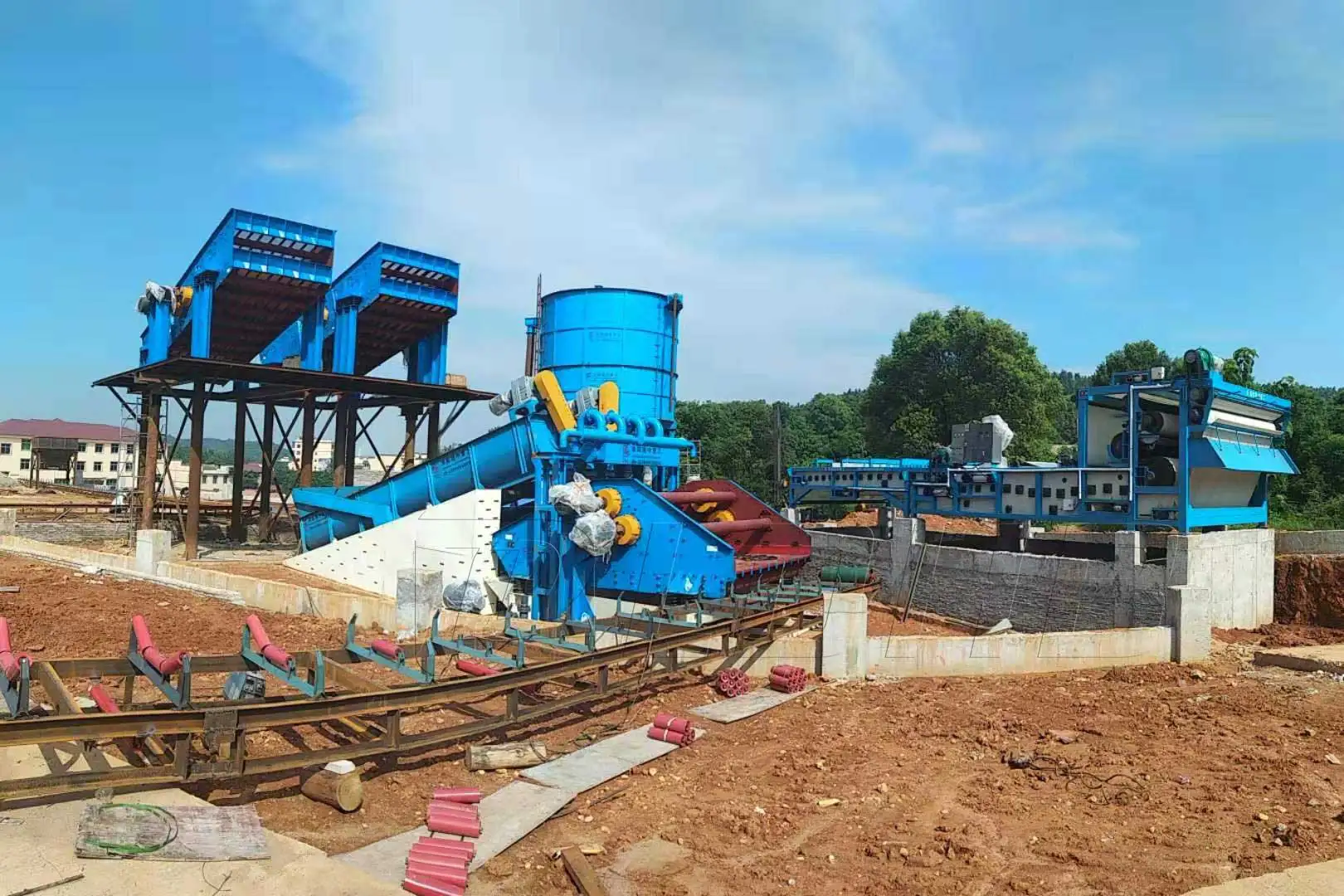

When the spiral sand washing machine is working, the crushing and grading materials are first passed through the conveyor belt to the double spiral sand washing device. After the grading and cleaning, the qualified material is dehydrated into the dewatering device, and the remaining waste water that after cleaning by the spiral sand washing device (containing a part of qualified material) is passed through the overflow device and get into the water reservoir device, then the waste water is pumped into the separation recovery device by slurry pump, material is concentrated under the action of centrifugal force, and the concentrated material get into the dehydrating device for dewatering.
Model | Diameter of screw (mm) | Sieve plate size (mm) | Productivity (m³) | Cyclone size (mm) | Power (kw) | Weight (kg) | Overall Dimension (L*W*H) (mm) |
LX09-65-1530 | 920 | 1500*3000 | 50-80 | 300*2 | 47 | 8480 | 11490*5560*3960 |
LX09-75-1836D | 920 | 1800*3600 | 60-100 | 350*2 | 56 | 10140 | 11920*5560*4080 |
2LX09-100-2442J | 920 | 2400*4200 | 150-180 | 250*4 | 81 | 16950 | 12630*6450*3860 |
2LX-09-100-2448J | 920 | 2400*4800 | 150-180 | 350*2 | 81 | 17250 | 13110*6450*4150 |
LX-11-75-1836D | 1120 | 1800*3600 | 100-150 | 350*2 | 63.5 | 11440 | 12230*5860*4250 |
LX11-75-1836J | 1120 | 1800*3600 | 100-150 | 350*2 | 70.5 | 11750 | 12230*5860*4250 |
LX11-75-1842D | 1120 | 1800*4200 | 100-150 | 350*2 | 63.5 | 12300 | 12830*5860*4250 |
LX11-100-1842J | 1120 | 1800*4200 | 100-150 | 250*4 | 77.5 | 12550 | 12830*5860*4250 |
LX-11-100-1848J | 1120 | 1800*4800 | 100-150 | 250*4 | 77.5 | 12550 | 12830*5860*4250 |
2LX11-120-3048J | 1120 | 3000*4800 | 200-250 | 300*4 | 120 | 27520 | 13560*7860*4300 |
Main Features
1. Use vibration exciter to provide seismic source, with large excitation force and high output. The output can reach more than 300 tons per hour, and can realize continuous operation.
2. Integrated structure, sieving and cleaning are combined, easy to produce and process, short production cycle, small footprint, large processing capacity.
3. The slurry pump and the cyclone are connected together to form a backflow of the water body, which saves the water body consumption and can be better cleaned and screened.
Packing & Delivery
Packaging | ||
Model | LX11-75-1836J | |
Size | 12230(L) * 5860 (W) * 4250 (H) | |
Weight | 11750KG | |
Packaging details | The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request. | |
Packaging | ||
Model | 2LX09--100-2448J | |
Size | 13110 (L) * 6450 (W) * 4150 (H) | |
Weight | 17250KG | |
Packaging details | ||
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
