SINOWAY SWORT1000R mining dump truck 90 ton mining rigid dump truck with factory price
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (62466017081):
Product Overview
Description
Product Description
Mining Rock truck is specifically used on a mine or quarrying site. They are not driven on publicroads, except for extreme instances.
The toughest mining conditions require the top mining dump trucks for mineral haulage. The range of Sinoway rigid mining dump trucks with payload ranging from 20 ton to 100 ton, meets the demand requirements of most mining, quarrying, and heavy construction applications.
Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.
Main Advantages
Heavy duty Cummins engine with rich power.
ALLISON, automatic electronic control,integral torque converter and planetary gearing,6 forward & 2 reverse.
Independent hydrostatic steering with closed-centre steering valve accumulator and pressure compensating piston pump.
Self contained variable rate, nitrogen/oil cylinder, independent front and rear suspension.
Hoist system is dual two stage double acting cylinder mounted between the frame rails.
Full box section frame with integral front bumper and closed loop crossmember, crossmember and rear torque tube and tail seat connections with frame rails adopting high strengh alloy castings.
Heavy duty axle with single reduction spiral bevel gear differential, full floating axle shafts, planetary reduction at each wheel. Cab is with all steel construction, adjustable seat, fully thermal and noise insulated, instrumental panel with gauges, warning and indicator lamps, automotive safety glass all round.
The toughest mining conditions require the top mining dump trucks for mineral haulage. The range of Sinoway rigid mining dump trucks with payload ranging from 20 ton to 100 ton, meets the demand requirements of most mining, quarrying, and heavy construction applications.
Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.
Main Advantages
Heavy duty Cummins engine with rich power.
ALLISON, automatic electronic control,integral torque converter and planetary gearing,6 forward & 2 reverse.
Independent hydrostatic steering with closed-centre steering valve accumulator and pressure compensating piston pump.
Self contained variable rate, nitrogen/oil cylinder, independent front and rear suspension.
Hoist system is dual two stage double acting cylinder mounted between the frame rails.
Full box section frame with integral front bumper and closed loop crossmember, crossmember and rear torque tube and tail seat connections with frame rails adopting high strengh alloy castings.
Heavy duty axle with single reduction spiral bevel gear differential, full floating axle shafts, planetary reduction at each wheel. Cab is with all steel construction, adjustable seat, fully thermal and noise insulated, instrumental panel with gauges, warning and indicator lamps, automotive safety glass all round.

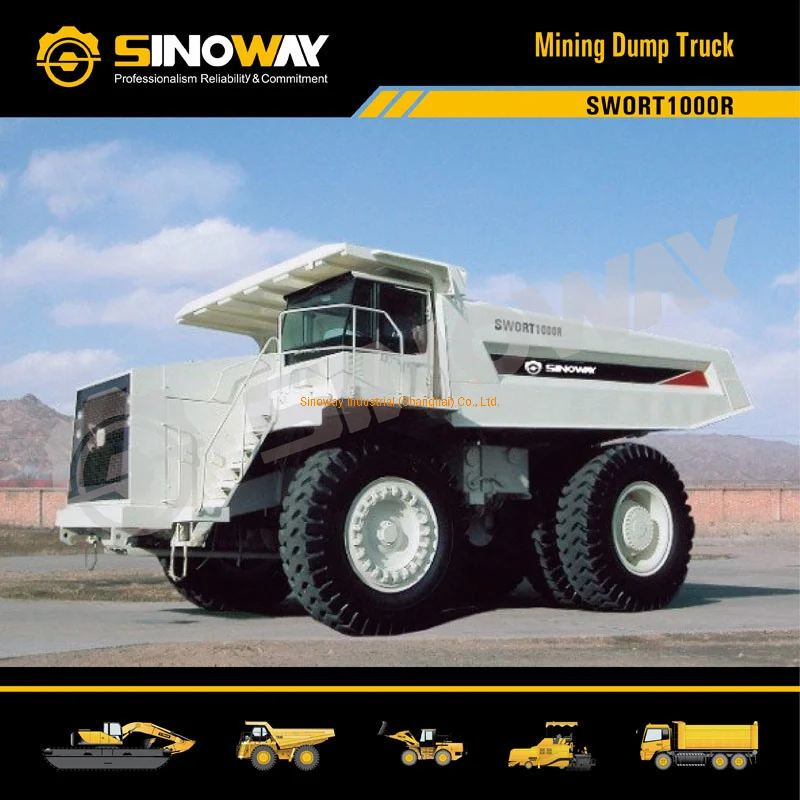

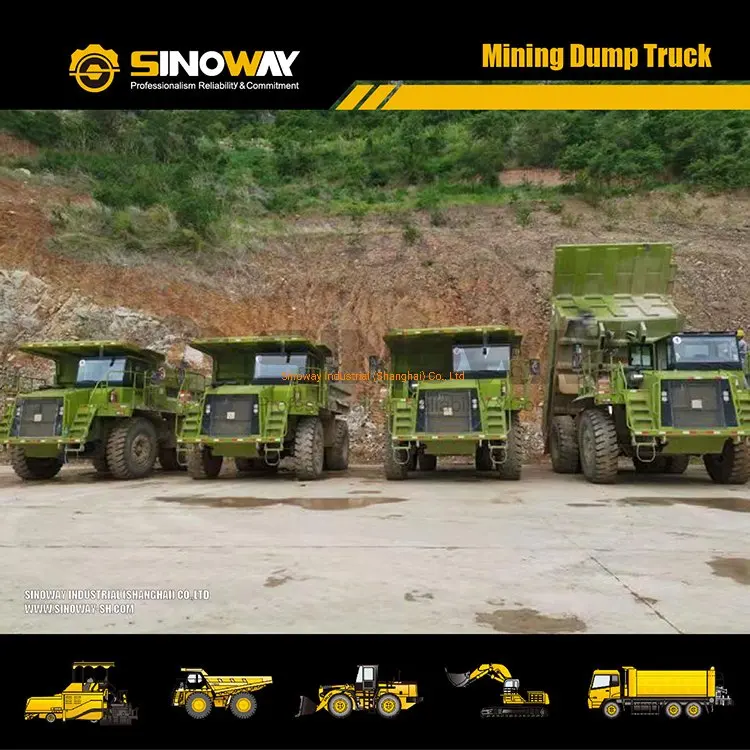

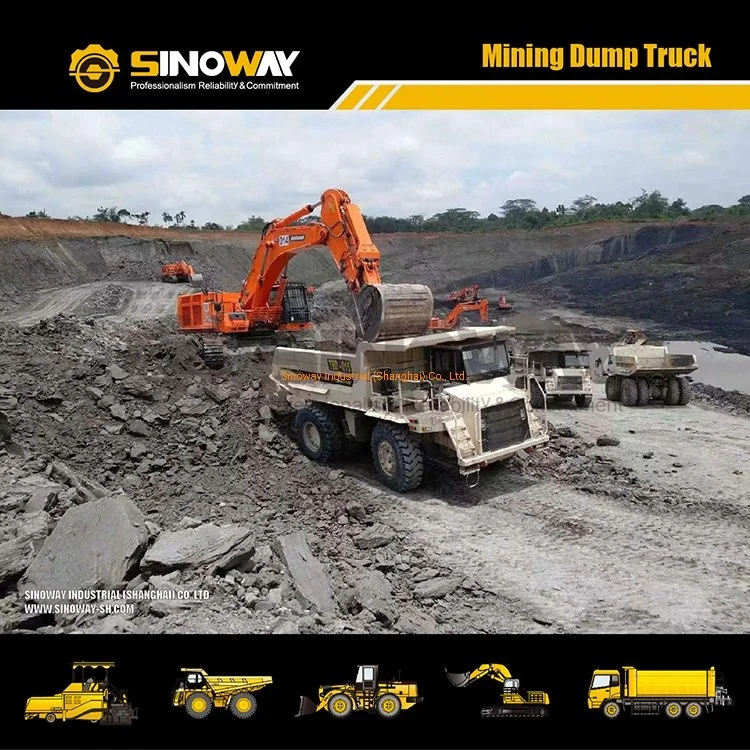

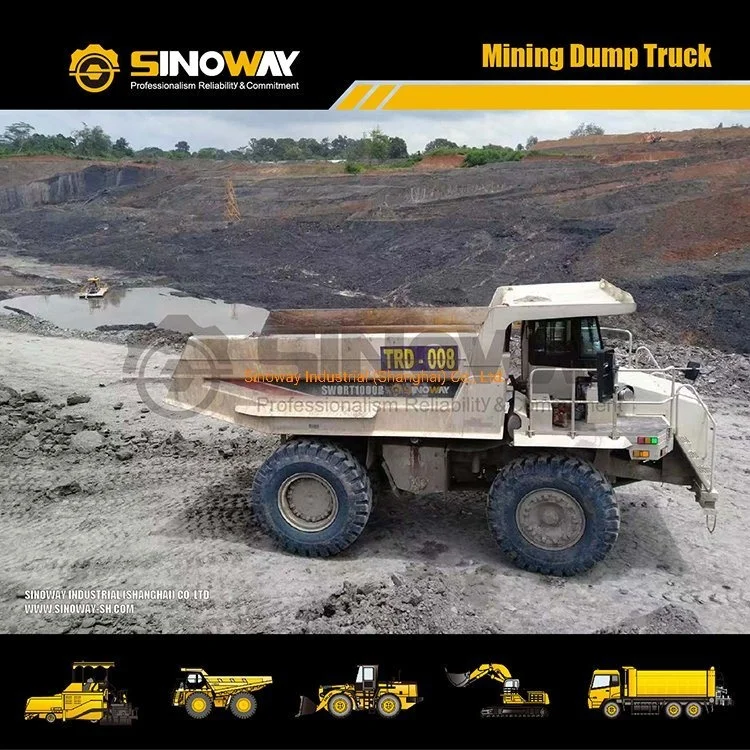

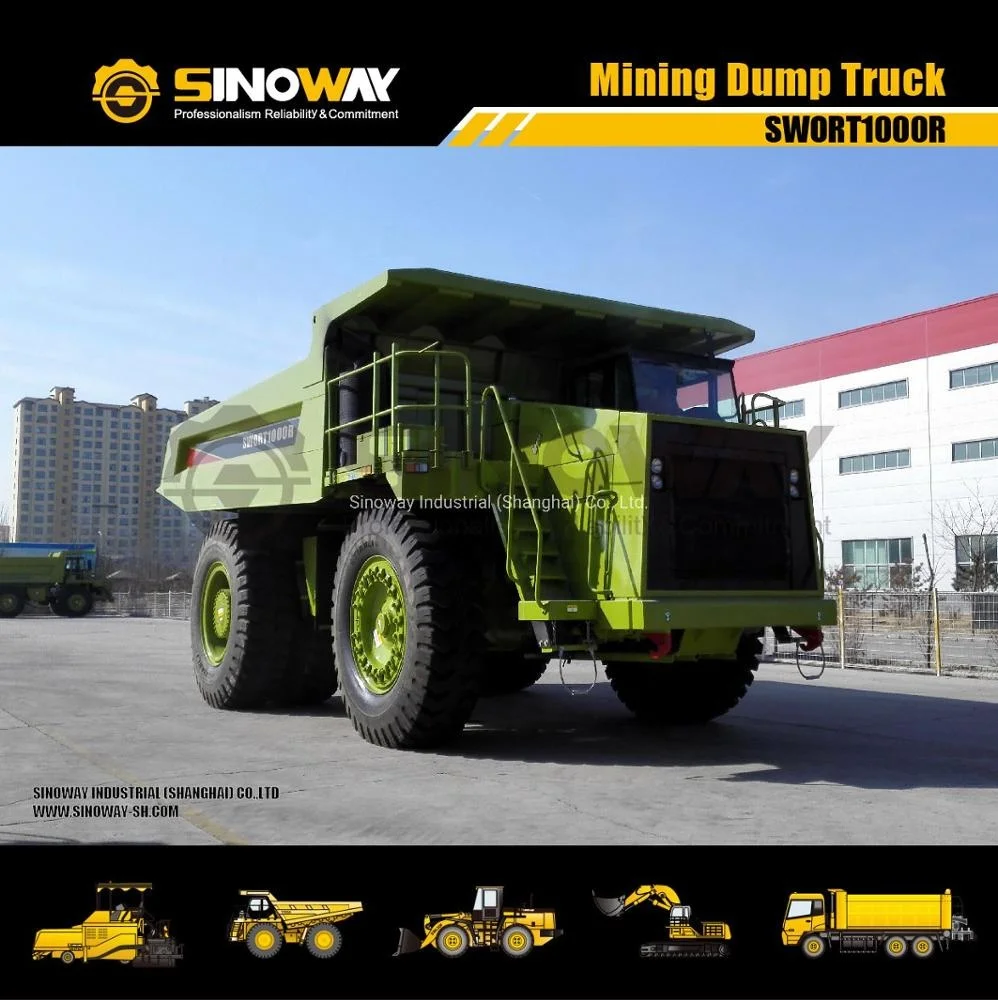

Machine Show
Product Paramenters
Engine | ||
Model | Cummins QSM11 | |
Type | 6 cylinder,water-cooled,turbocharged electronic injection | |
Rated power | 783KW | |
Rated speed | 2100rpm | |
Main technical specification | ||
N.V.W | 68620kg | |
Payload capacity | 91000kg | |
G.V.W | 160000kg | |
Max. travelling speed | 47.6km/h | |
Overall size(L×W×H) | 10820×5150×4575mm | |
Wheel base | 4570mm | |
Min.turning diameter | 21.2m | |
Tire size | 27.00R49 Radial | |
Dump Body | ||
Struck (SAE) | 41.6m³ | |
Heaped 2:1 (SAE) | 57 m³ | |
