Китайский автогрейдер 130hp мощный двигатель мини грейдер для
- Category: Motor Graders >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (62469391633):
Product Overview
Description
Product Features
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.

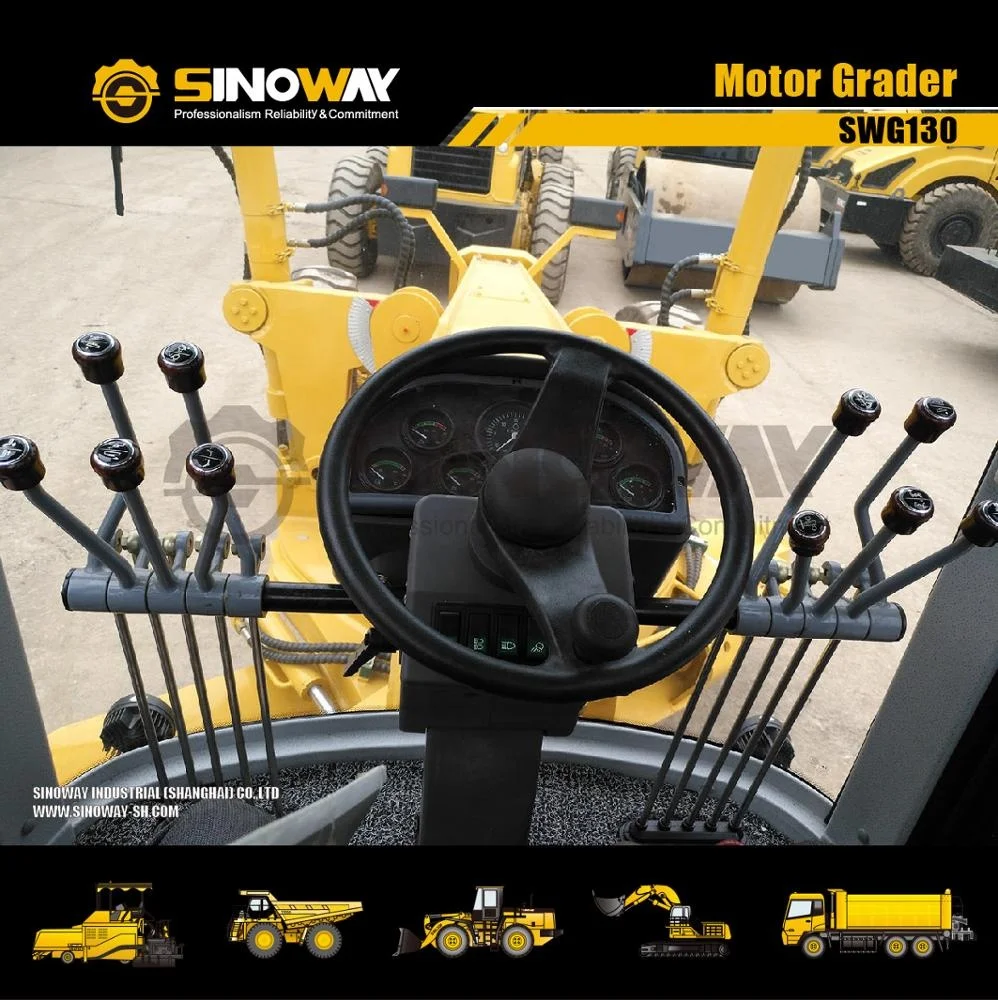

The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
Front dozer and five shank ripper as optional.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
Front dozer and five shank ripper as optional.

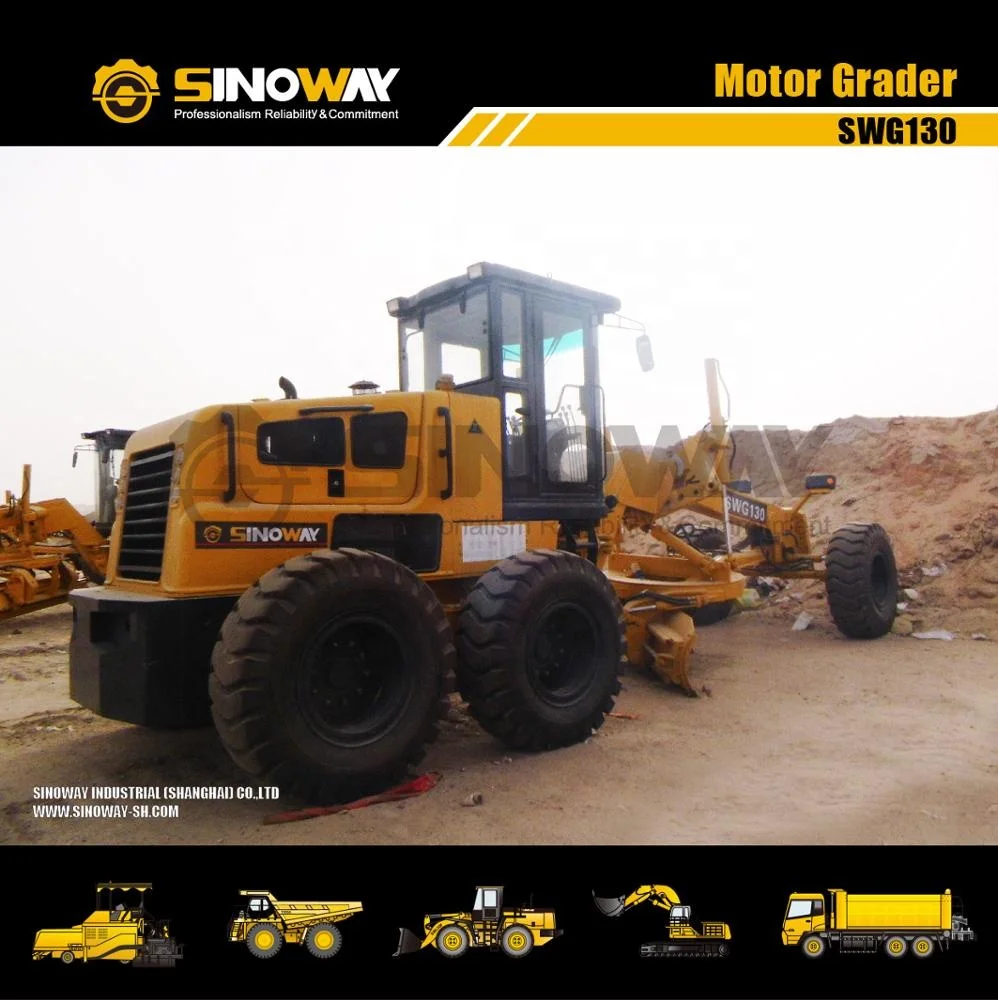

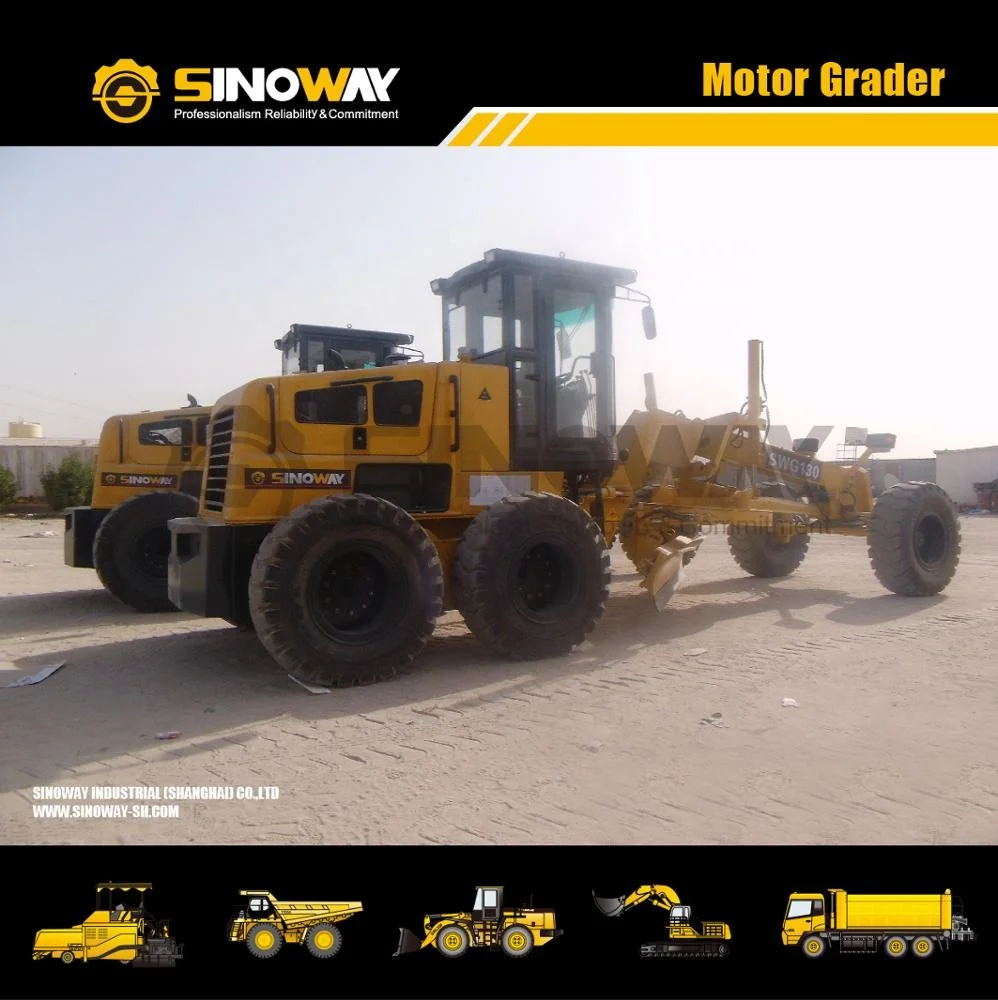

Product Show
Product Paramenters
Engine | |
Model | 6BT5.9 |
Type | Six-cylinder, water cooled, turbocharged, mechanical injection |
Rated power | 100KW |
Main Technical Specification | |
Operating weight | 10650kg |
Max. Tractive force | 50.4KN |
Blade dimension(W x H) | 3355mm x 570mm |
Blade cycling | 360° |
Ground penetration | 420mm |
Max. Bank cutting angle(L/R) | 90°/90° |
Travelling | |
Travelling speed: | F6: 4.6km/h; 7.2km/h; 11.8km/h; 28.3km/h;44.1km/h |
R3: 4.6km/h; 11.8km/h; 28.3km/h | |
Grade-ability | 20% |
Min. Turning radius | 6700mm |
Dimension | |
Overall size (L x W x H) | 7800mm x 2400mm x 3245mm |
Wheel base | 5468mm |
Tread(F/R) | 1860mm/2100mm |
Ground clearance | 360mm |
Tyre size | 16/70-20 |
Service Capacities | |
Fuel tank | 150L |
Hydraulic oil tank | 90L |
