TV6 китайский центр сверления и нарезания резьбы с ЧПУ
- Category: Machine Tool Equipment >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (62472367986):
Product Overview
Description
Product Description
Product Application
the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. the inner metallographic structure is very steady. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis. the basic parts have high steel nature by collocating with the reinforcing rib. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
Product main technical specifications:
the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. the inner metallographic structure is very steady. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis. the basic parts have high steel nature by collocating with the reinforcing rib. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
Product main technical specifications:

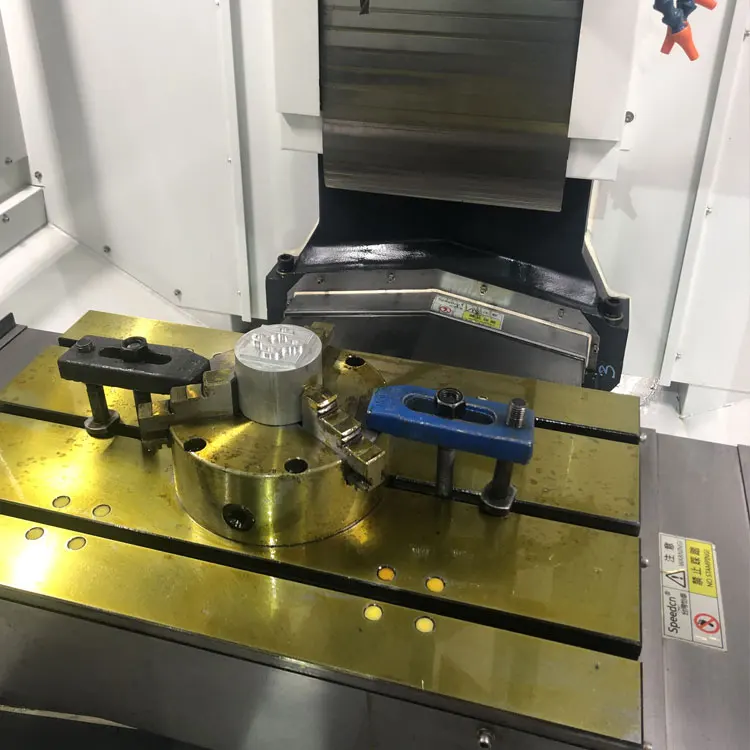

Size of Worktable | 700 x 420 mm |
Travel of X, Y, Z Axis | 600 x 400 x 350 mm |
Distance from spindle to worktable | 135 - 635 mm |
T slot(number-width-pitch) | 3*14*125mm |
Distance from the center of the spindle to the column | 420mm |

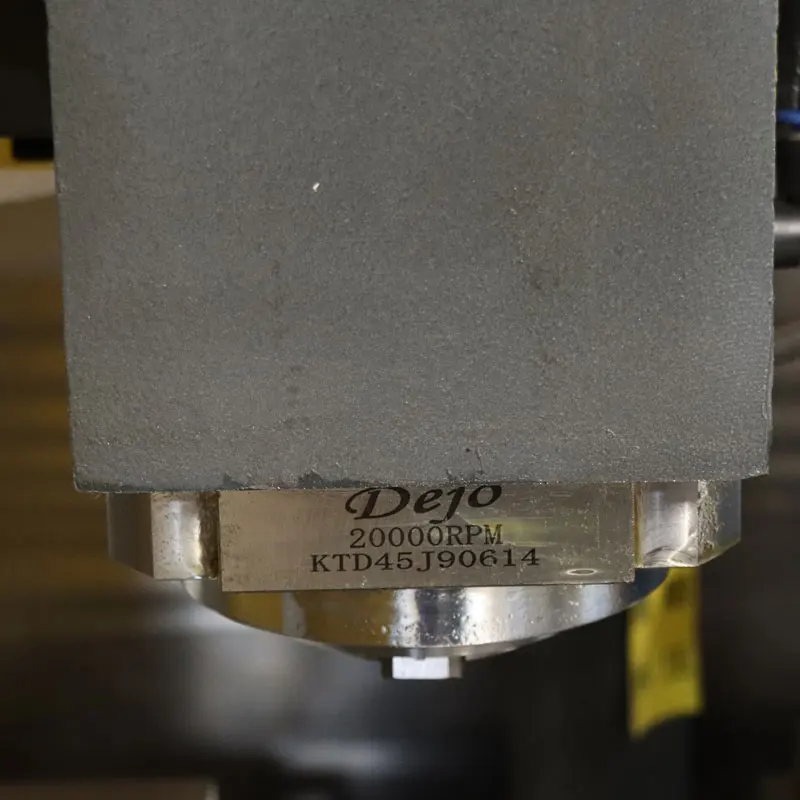

Speed of Spindle | 15000/2000/2500rpm |
Spindle forms | Direct-type |
Range of cutting feed speed | 5-15000 |
Position Accuracy (X/Y/Z Axis) | 0.005 / 300mm |
Re-position Accuracy (X/Y/Z Axis) | 0.003/300 mm |

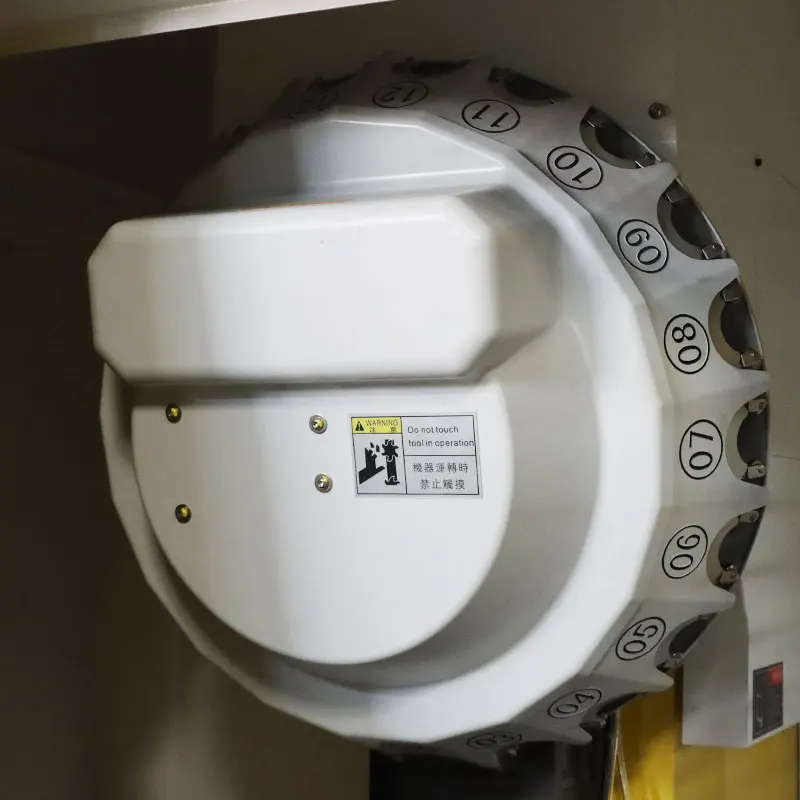

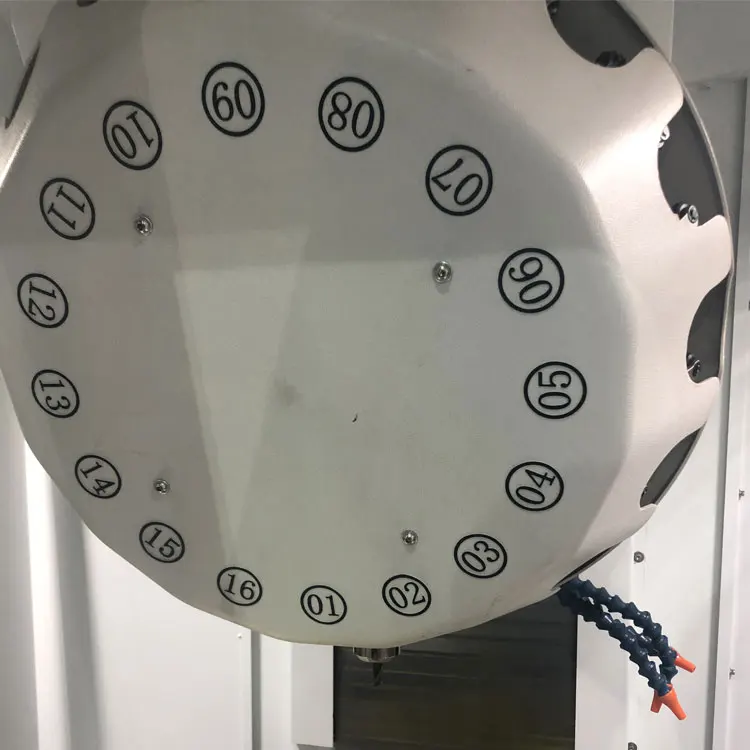

Tool Magazine | 21T Disk Type |
Maximum tool length | 250mm |
Maximum tool weight | 3kg |
Tool change time | 1.6sec |
Required pressure | 0.015m³/min |
Spindle | 5.5 Kw 16T Disk Type Tool Changer |
Max. Workpiece Weight | 300 Kg |
Total Power | 18 Kw |
Size of Machine | 2300 x 2200 x 2200 mm |
Machine Weight | 2100/2500 Kg |
Power Supply | 380V / 50Hz |
CNC Controller | Mitsubishi m80 |
Guide and Ball Screw | Linear guides, C3 high precision level ball screws |
Standard accessories:
Turret tool magezine Automatic lubrication system
Cooling system Full splash guard

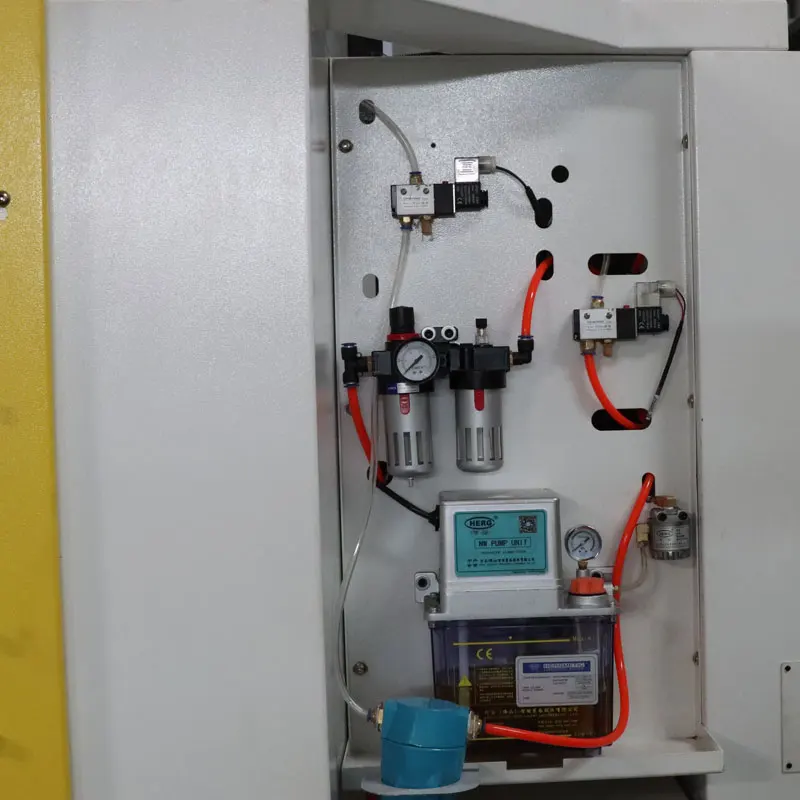

Pneumatic system Stainless syeel protection draw plate
Lighting system System:SIEMENS GSK FANUC (optional)
Three-color alarm lamp Fixed bolt
Optional accessories:
Air condition Cool-heat exchanger
Workpiece inspection Tool detection
Forth axis
Raoid feed speed:48/48/48 m/min
Turret tool magezine Automatic lubrication system
Cooling system Full splash guard
Pneumatic system Stainless syeel protection draw plate
Lighting system System:SIEMENS GSK FANUC (optional)
Three-color alarm lamp Fixed bolt
Optional accessories:
Air condition Cool-heat exchanger
Workpiece inspection Tool detection
Forth axis
Raoid feed speed:48/48/48 m/min
