R1234yf AC Recovery Recharge Machine & Made in Korea

Product Overview

Description

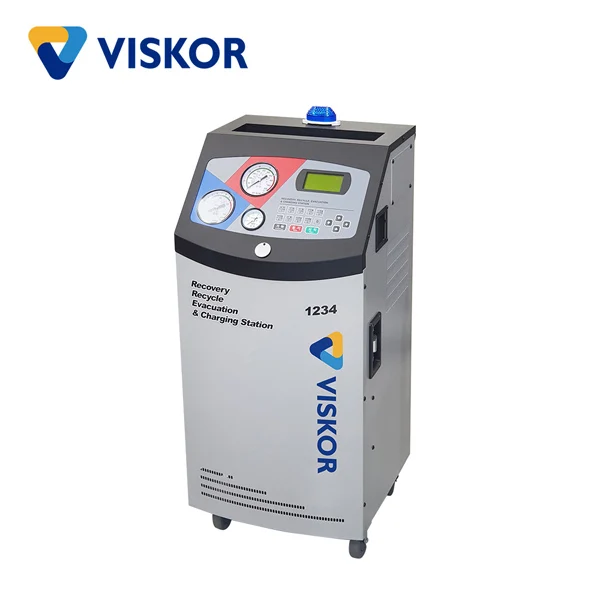

VAC-1500YF /R1234yf AC Service Machine

VISKOR VAC-1500YF delivers reliable workshop service and supports a healthy environment. The technologically advanced machine ensures easy, time-saving and precise service on modern R-1234yf air conditioning systems.

VAC-1500YF automatically controls every phase of maintenance, including oil and refrigerant recovery, recycling and refilling. However the manual mode allows the user to control all functions.

The powerful vacuum pump of VAC-1500 assures quick and effective evacuation of the system. It comes with equipped with a database to provide the necessary oil and refrigerant quantities for the vehicle’s air conditioner.



Features

• Fully automatic service process or single service process selectable
• Support vehicle specifications through USB port
• High quality visual pressure gauges
• Advanced LCD display
• High-temperature high-pressure recovery compressor
• Powerful flushing program
• Auto discharge of Non-condensable gas
• Self diagnosis
• Visual & Audible alarm when service is completed.
• Optional printer for capturing and retaining vehicle service data
• Available for Hybrid cars

Specifications

Description	R-1234yf A/C Recovery & Recharging machine
Model	VAC-1500YF
Refrigerant	R-1234yf
Tank capacity	20L
Vacuum pump	5.5CFM / 60Hz
Recovery speed	400g/min
Charging speed	2,000g/min  ± 2%
Recovery efficiency	95% - 99%
Service time	5min(500g)  - Excluding vacuum time
Port access	USB
Controller	Microprocessor
Filter	33sq,In

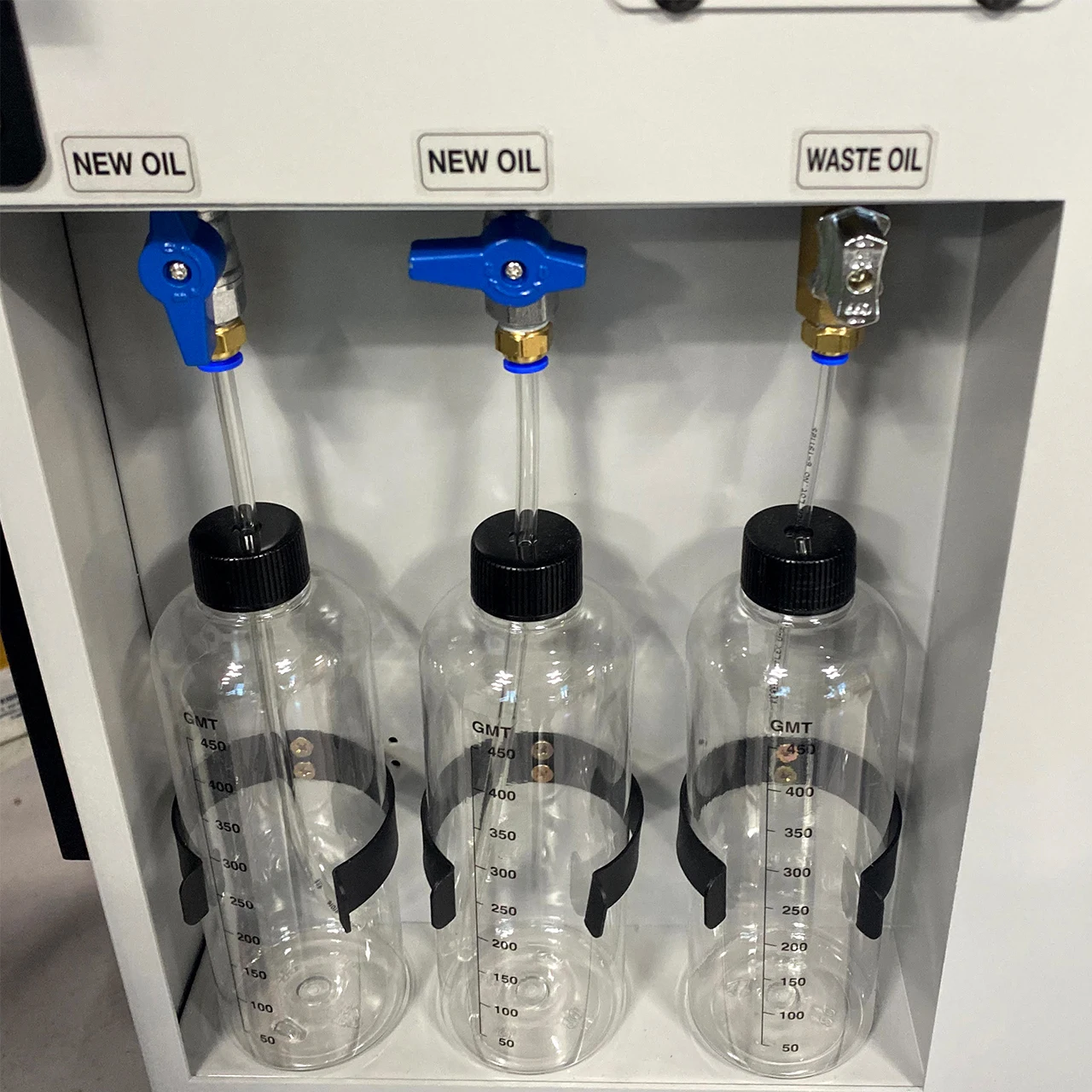

Oil bottle	3 oil bottles
Sensor, S/W	Pressure sensor, Loadcell
Load cell	10g/ 100kg
Display	Graphics LCD
Compressor	AC220V, 1/3HP
Pressure gauge	100mm x 2ea, 60mm x 1ea
Solenoid valve	High pressure refrigerant
Operation temperature	10°C- 45°C
Dimension	510 x 630 x 1,100 mm
Power	AC220V, 50/60Hz
Weight	95kg
Options	Printer, Compression test, Refrigerant identifier
