Fixed boom hydraulic hammer rock breaker system

Product Overview

Description

Fixed boom hydraulic hammer rock breaker system



Description

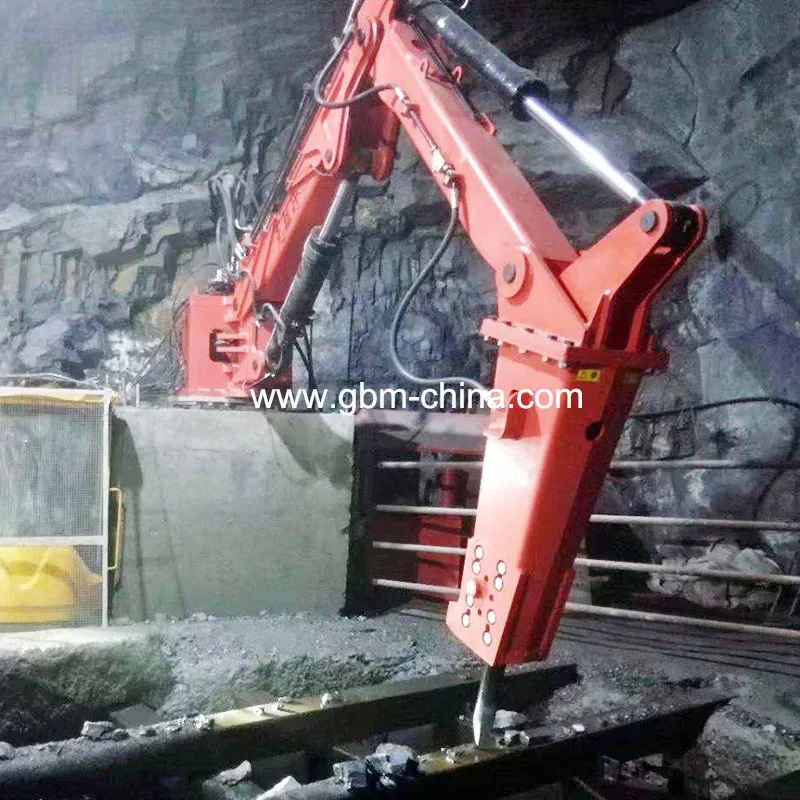

fixed rock station is placed at the grid screen to clean up the blockage. The longest distance is 9 meters, the vertical crushing distance is 7.1 meters, the system pressure is 25MPa, the motor power is 47KW. It is driven by motor and hydraulic.

It is equipped with high-efficiency hydraulic hammer. The whole machine wireless remote control. The oil level, oil temperature, filter element blockage are controlled, and there is an alarm indication.

The main hydraulic components of the system, such as hydraulic proportional multi-way valves, pilot control valves, balancing valves, etc., are famous brands with good quality.

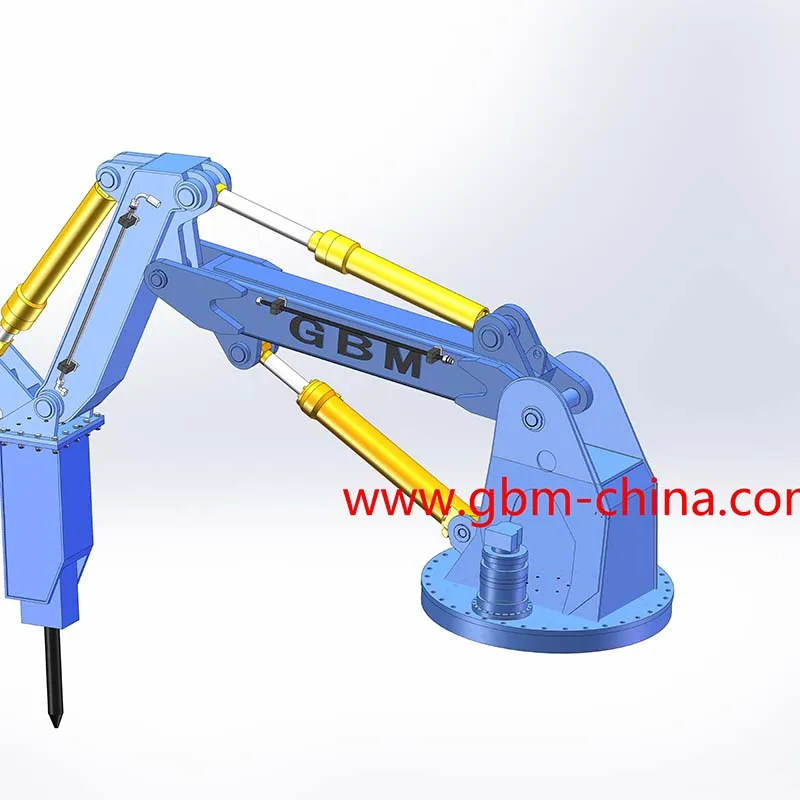

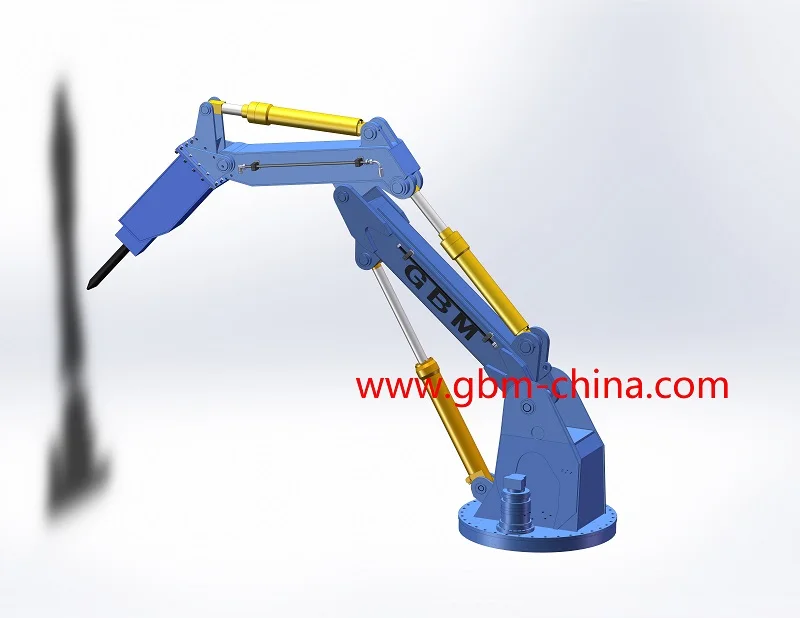

Drawing





Parameter



Specification	Model	Nominal working radius(m)	Maximum working radius(m)	Maximum Vertical height(m)	Swivel angle(°)
Light type	GRKB20	2	3.3	2	320,360
	GRKB30	2.82	4.3	2.95	320,360
	GRKB40	3.2	4.55	2.51	320,360
	GRKB41	3.85	7.82	4.22	320,360
Medium type	GRKB42	4.15	6.1	4.23	180,360
	GRKB44	5.75	7.13	5.7	180,360
	GRKB45	5.41	7.35	5.9	320,360
Heavy type	GRKB52	5.42	7.82	5.3	320,360
	GRKB53	5.95	7.85	4.9	180,360
	GRKB60	6.43	8.76	6.4	180,360
	GRKB75	7.7	9.1	6.82	180,360
	GRKB90	8.82	10.9	7.75	180,360
	GRKB110	10	12.5	9	180,360
	GRKB122	12.3	15	9.1	320,360

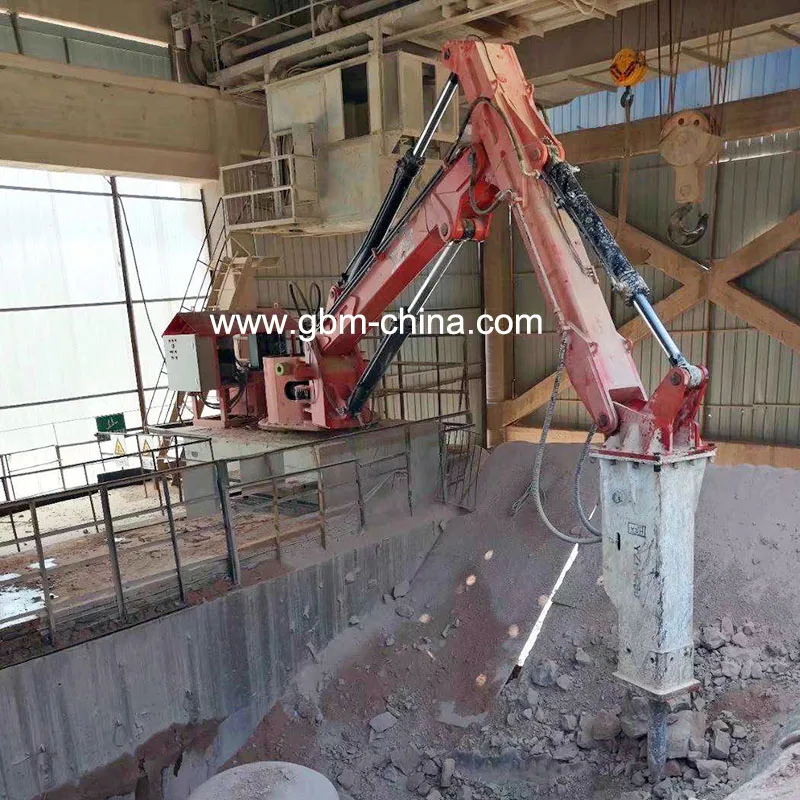

Pictures













About us



The price listed is for reference, customized products please consult with GBM sales team.

GBM supplies different kinds of products. High quality and favorable price.
We're pleased to get your Inquiry and we will feedback ASAP.
We stick to the principle "Quality First, Service First, Continuous Improvement and Customer Satisfaction" and aim at "Zero Defect Zero Complaint".
To perfect our service, we provide products with good quality at reasonable price.

Our Service
Being a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.

FAQ
 ORDER INTRODUCTION:
Pls kindly send us your detailed specifications as follow if you are interested in our rock breakers
1. What's the working condition of the rock breaker system (limitation on the field)?
2. What's the working temperature and location altitude?
3. Will an operation cabin be needed ?
We will offer you the best suitable solution with best price and quality.
These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!
