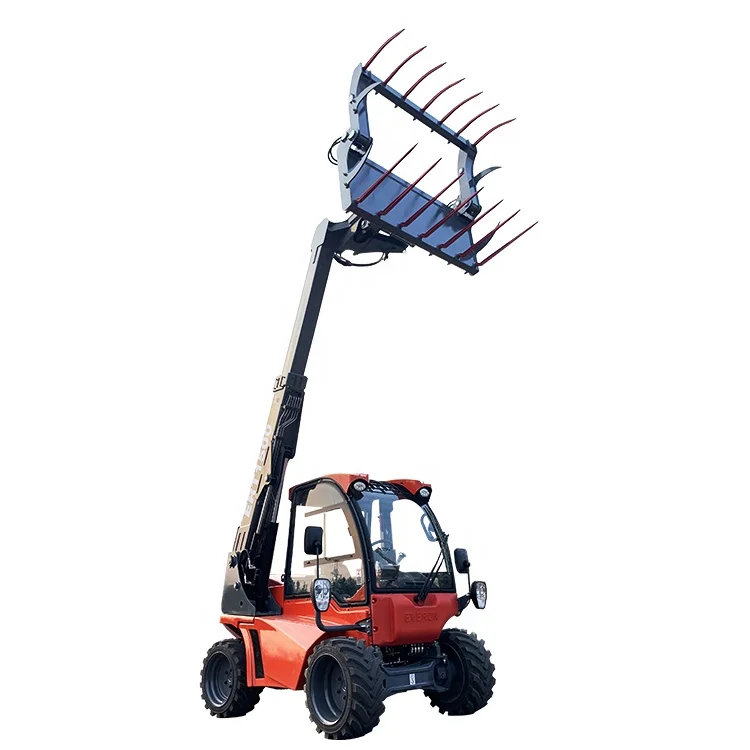

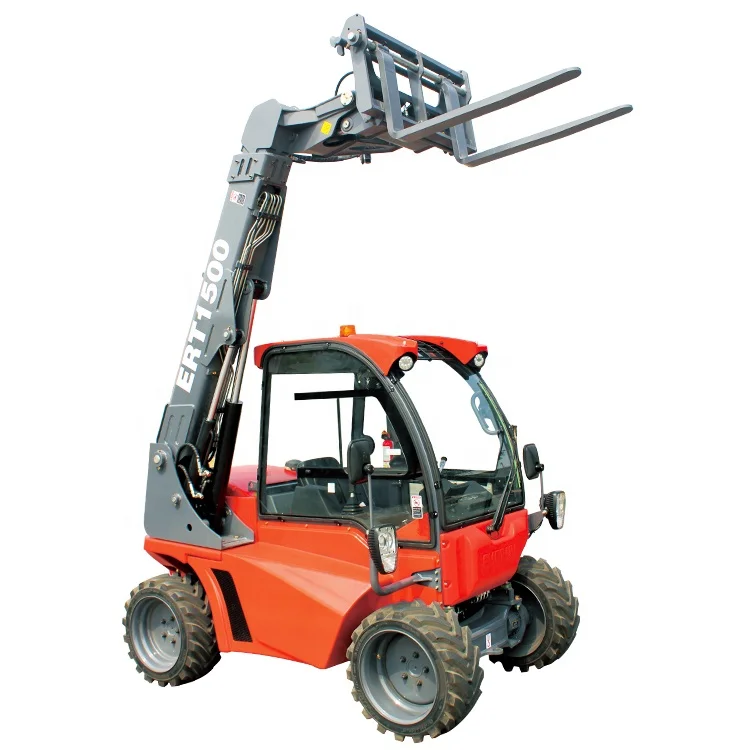

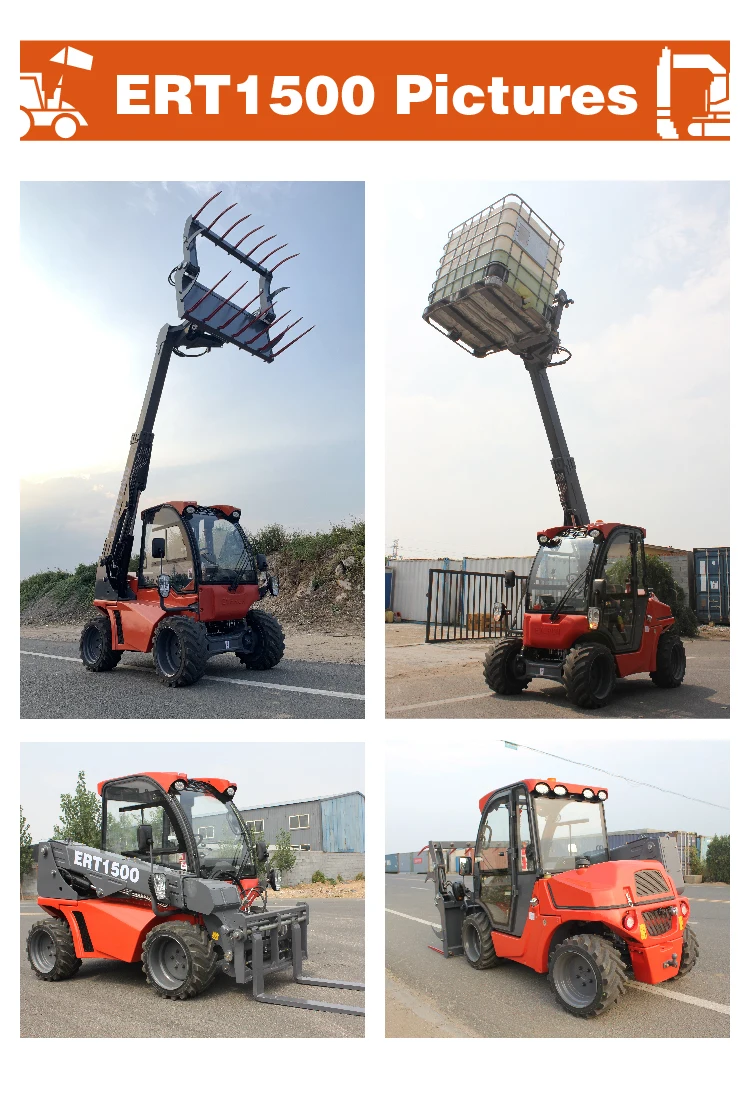

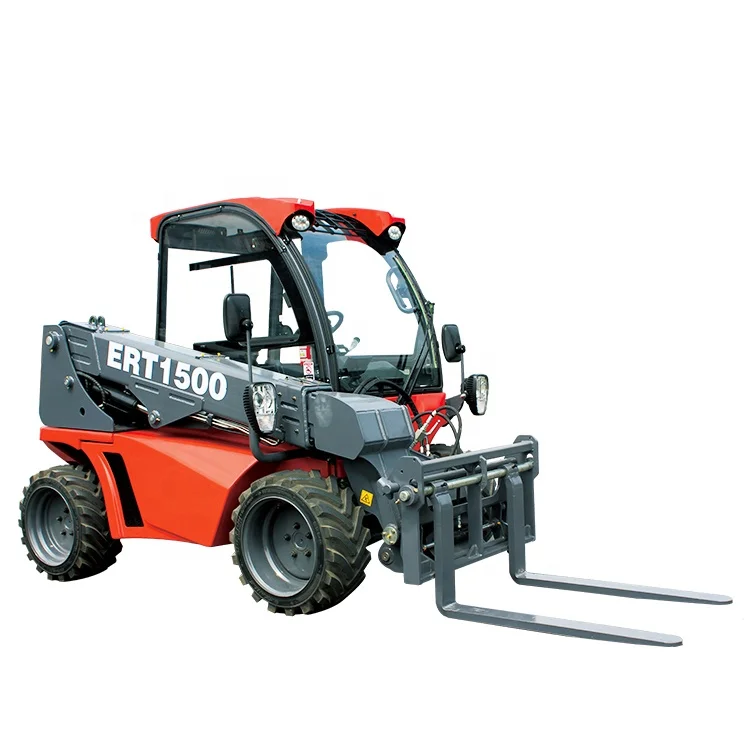

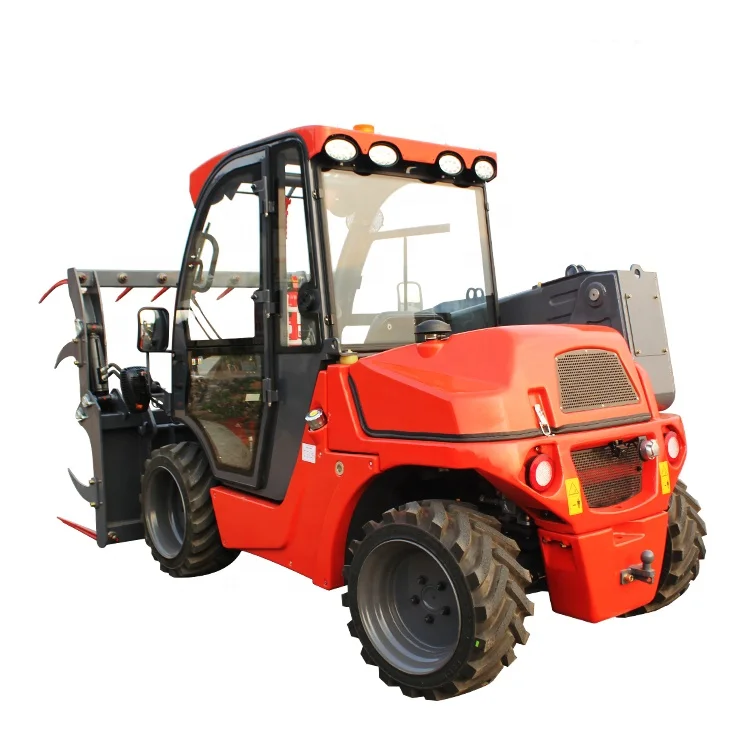

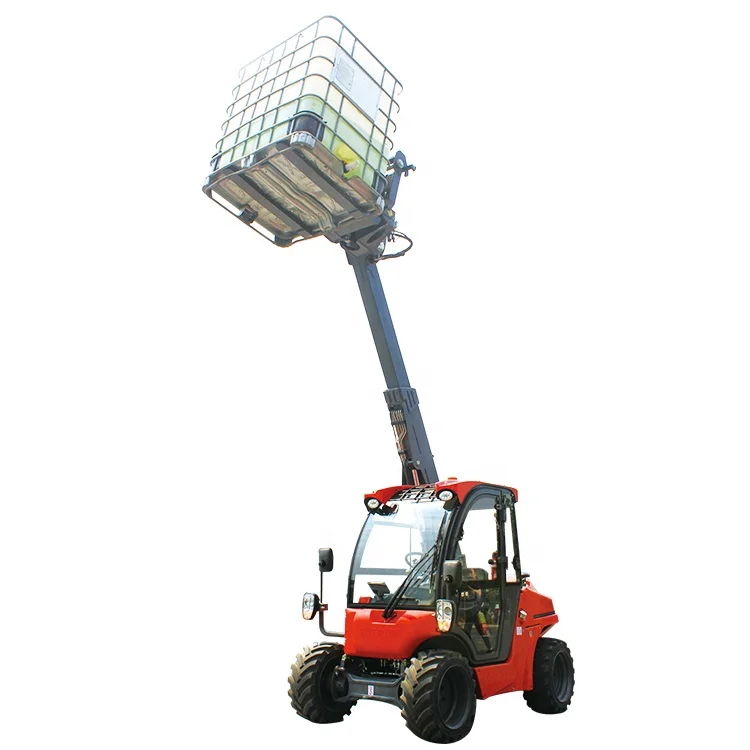

Everun ERT1500 4x4 Wheels Telescopic Forklift Rough Terrain Medium Telehandler with 1350Kgs Capacity

1.0 Engine Details

  (1) Model:

Imported 403D-15

  (2) Engine Type:

In-line arrangement,water-cooled,three-cycle diesel engine

  (3) Rated Power:

20.9/24.6KW

  (4) Rated Speed:

2200/2800 r/min(rpm)

  (5) Fuel Consumption ration in

    Standard working condition:

230g/kw.H

2.0 Transmission System

Hydraulic motor+ drive shaft

3.0 Bucket

  (1) Bucket capacity:

0.3 m3

  (2) Bucket Width:

1588mm

  (3) Bucket type:

standard

  (4) Rated load:

1350kg including attachment

 (5)Machine weight

2800kg

4.0 Overall Dimensions

  (1) Overall length(bucket on ground)

3350mm

  (2) Overall Height

1955mm

  (3) Overall width

1588mm

 (4)Max. lifting Height

4010mm

5.0 Operating Specifications

  (1) Steering system:

Rear axle with hydraulic power steering

  (2) Min.turning radius:

3480mm

  (3) Driving system:

Hydraulic motor,four wheel drive.

 (4) Other

Quick coupling system ;   Joystick;   Self levering

6.0 Brake System

  (1) Service Brake

two or four wheel hydraulic spread-shoed brake

  (2) Parking Brake

Hand operated

7.0 Tyre

   (1)Model

26X12-16.5

   (2)Width

275mm

   (3)Diameter

658mm

8.0 Wheelbase

1700mm

9.0 Track:

1150mm

10.0System Pressure

Work system:21Mpa; 28L/min  Driving system:35Mpa 46L/min
