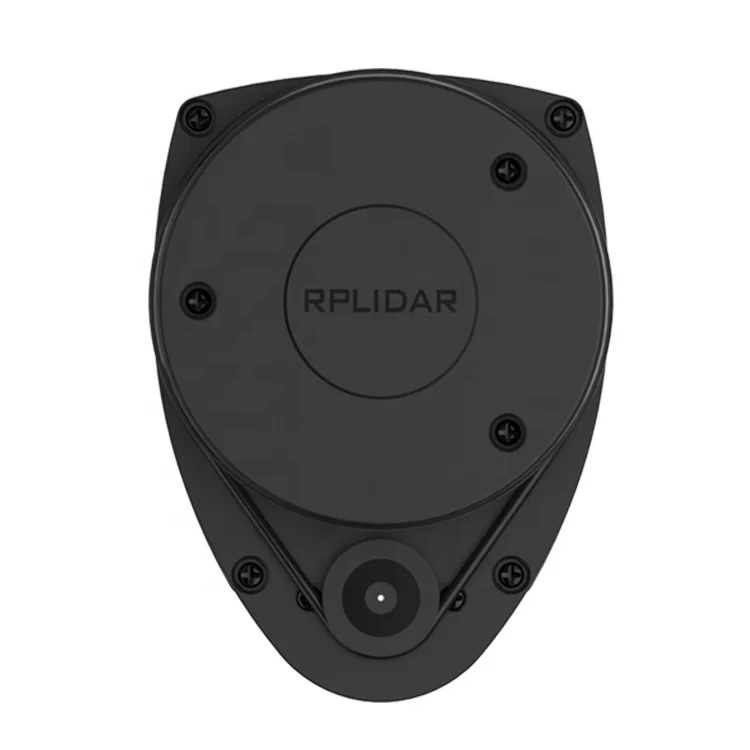

Lidar Scanner Environment 3D Remodeling Laser Sensor Low Cost 360 Degree 2D RPLIDAR A1M8 12meters Radius Position Sensor
- Category: Other Sensors old >>>
- Supplier: Changzhou Mingren Three Dimensions Technology Co. LTD
Share on (62486290334):
Product Overview
Description

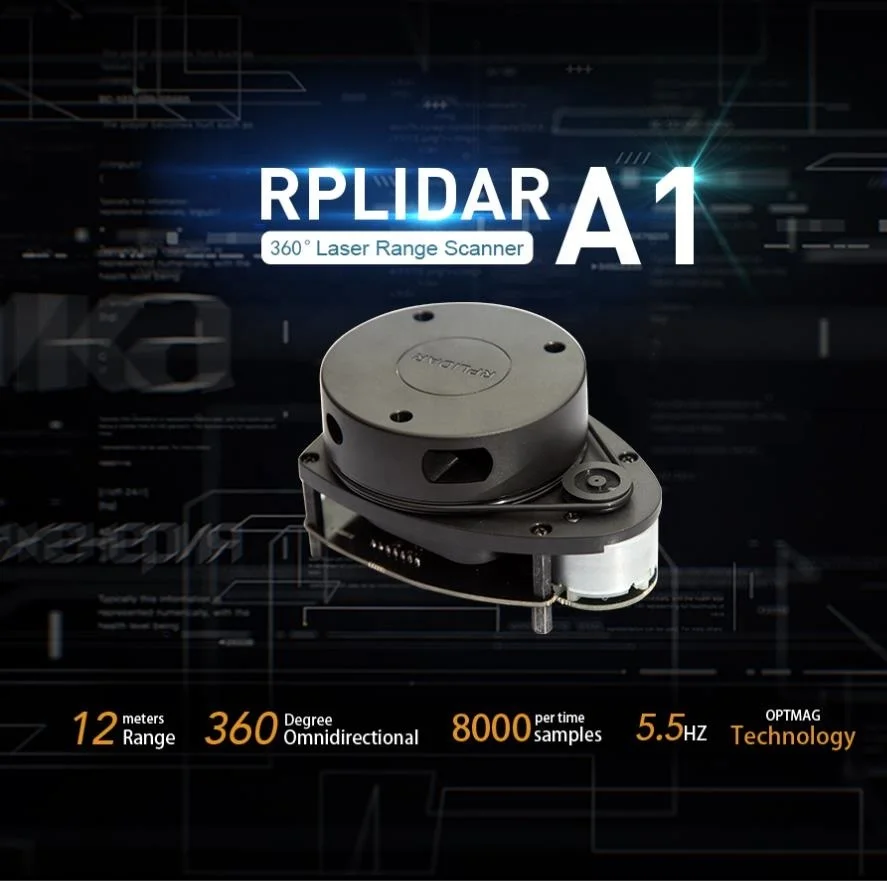

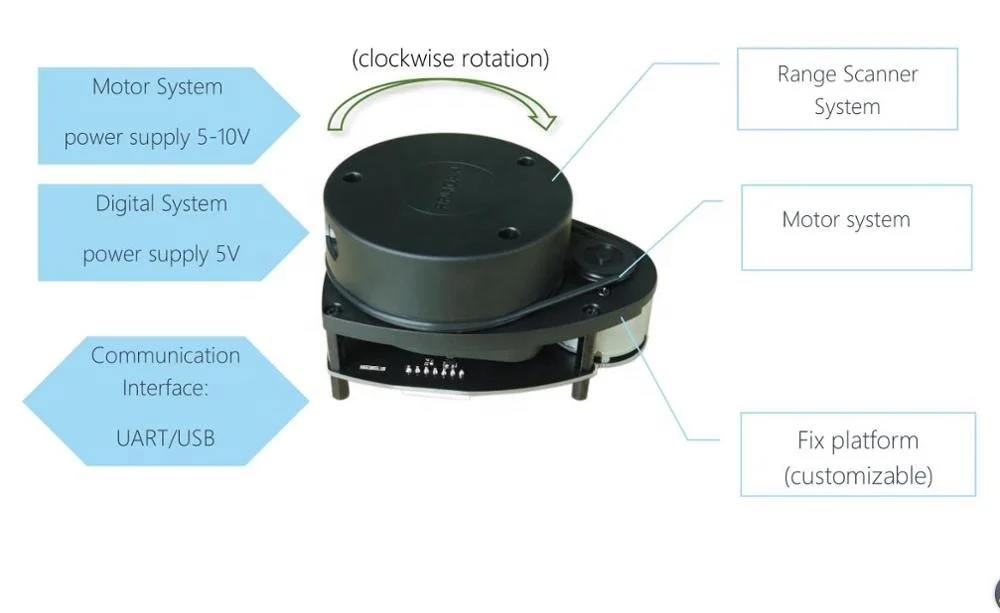

Description: RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360degree scan within 6meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling. RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 360 points each round. And it can be configured up to 10 hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight.

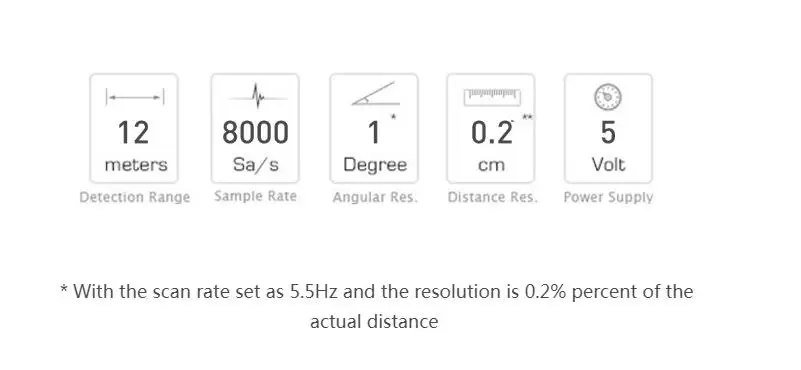

Features: Measures distance data in more than 8000 times/s 360 Degree Omnidirectional Laser Range Scanning 8000 times sample rate,the highest in the current economical LIDAR industry OPTMAG Original Design,prolong the life-span Configurable Scan Rate from 2-10Hz Ideal for Robot Navigation and Localization Plug and Play
Measures distance data in more than 8000 times/s

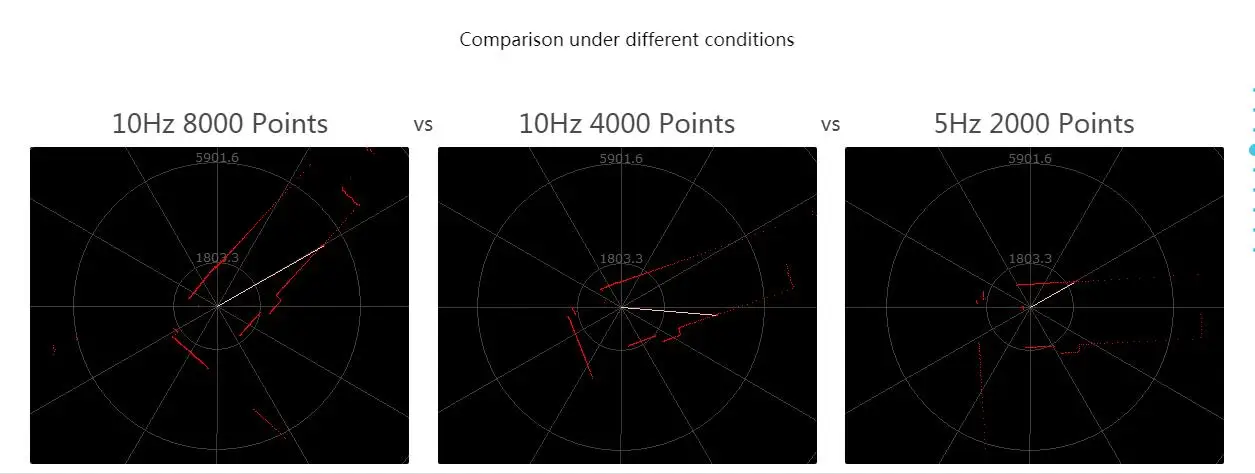

The sample rate of LIDAR directly decides whether the robot can map quickly and accurately. RPLIDAR improves the internal optical design and algorithm system to make the sample rate up to 8000 times, which is the highest in the current economical LIDAR industry.
OPTMAG Original Design
Most traditional non-solid LIDARs use slip ring to transfer power and data information, however, they only have thounds of hours of life due to mechanical wearing out. Slamtec has integrated the wireless power and optical communication technology to self-design the OPTMAG technology, which breakouts the life limitation of traditional LIDAR system. It fixes the electrical connecttion failure caused by the physical wearing out so as to prolong the life-span.
Configurable Scan Rate from 2-10Hz
Users can adjust the scan rate by alternating the motor PWM signal
Ideal for Robot Navigation and Localization
RPLIDAR is the designed sensor for applying SLAM algorithm
Plug and Play
Just connecting the RPLIDAR and a computer via a micro USB cable, users can use the RPLIDAR without any coding job
Application Scenarios
The RPLIDAR A1 can be used in the following application scenarios:
o Home service /cleaning robot navigation and localization
o General robot navigation and localization
o Smart toy’s localization and obstacle avoidance
o Environment scanning and 3D re-modeling
o General simultaneous localization and mapping (SLAM)
| Series | A1 | A2 | A3 | S1 |
 |  |  |  | |
| Model | A1M8 | A2M8 | A3M1 | S1M1 |
| Recommended application | Vacuum robot, home robot | Consumer robot, commercial robot, 3D modeling, multi-point touch | commercial robot, outdoor robot | commercial robot, outdoor robot |
| Measuring range | 12m | 12m | 25m | 40m |
| Samping frequency | 2K-8K | 2K-8K | 2K-16K | 4K-9.2K |
| Rotational speed | 5.5HZ | 5-15HZ | 5-20HZ | 8-15HZ |
| Is OPTMAG supported | Yes | Yes | Yes | Yes |
| Motor | Brush | Brushless | Brushless | Brushless |
| Is motor drving supported? | NO | Yes | Yes | Yes |
| Dimension | 97*71*51mm | 76*76*41mm | 76*76*41mm | 55.5*55.5*51mm |
| Weight | 170g | 190g | 190g | 105g |
| Output | UART Serial 3.3V level | UART Serial 3.3V level | UART Serial 3.3V level | UART Serial 3.3V level |
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days , it is according to the quantity of the mock up parts .
Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%-50% T/T in advance ,balance before shippment.
If you have any other questions, please feel free to contact 24-hour online customer service.
