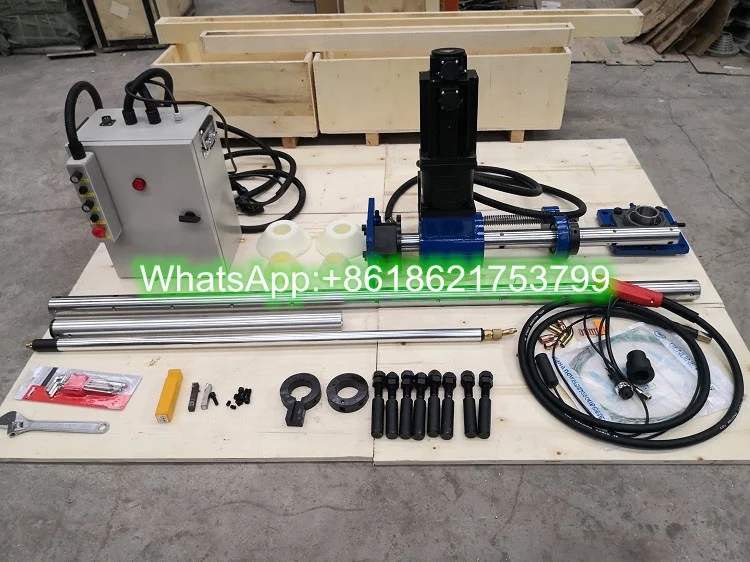

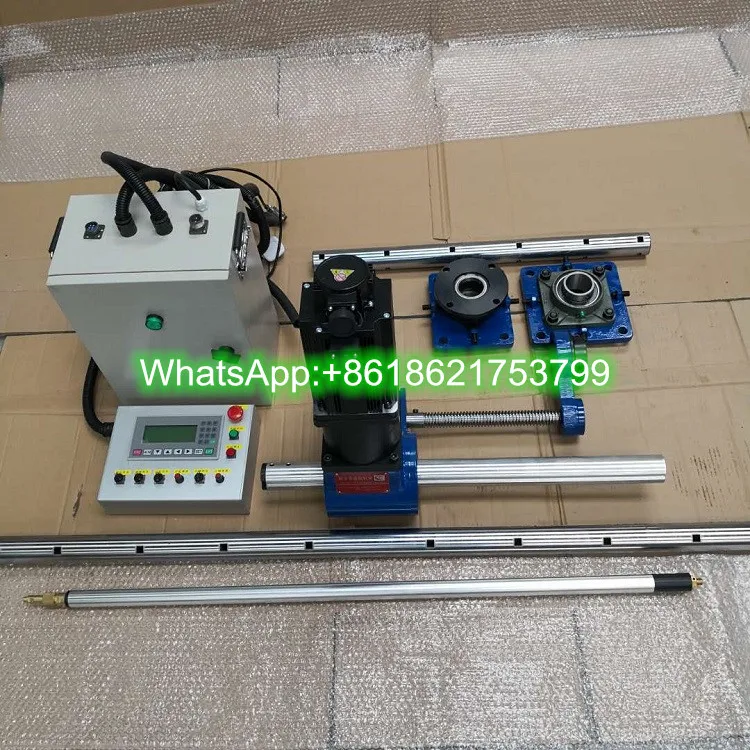

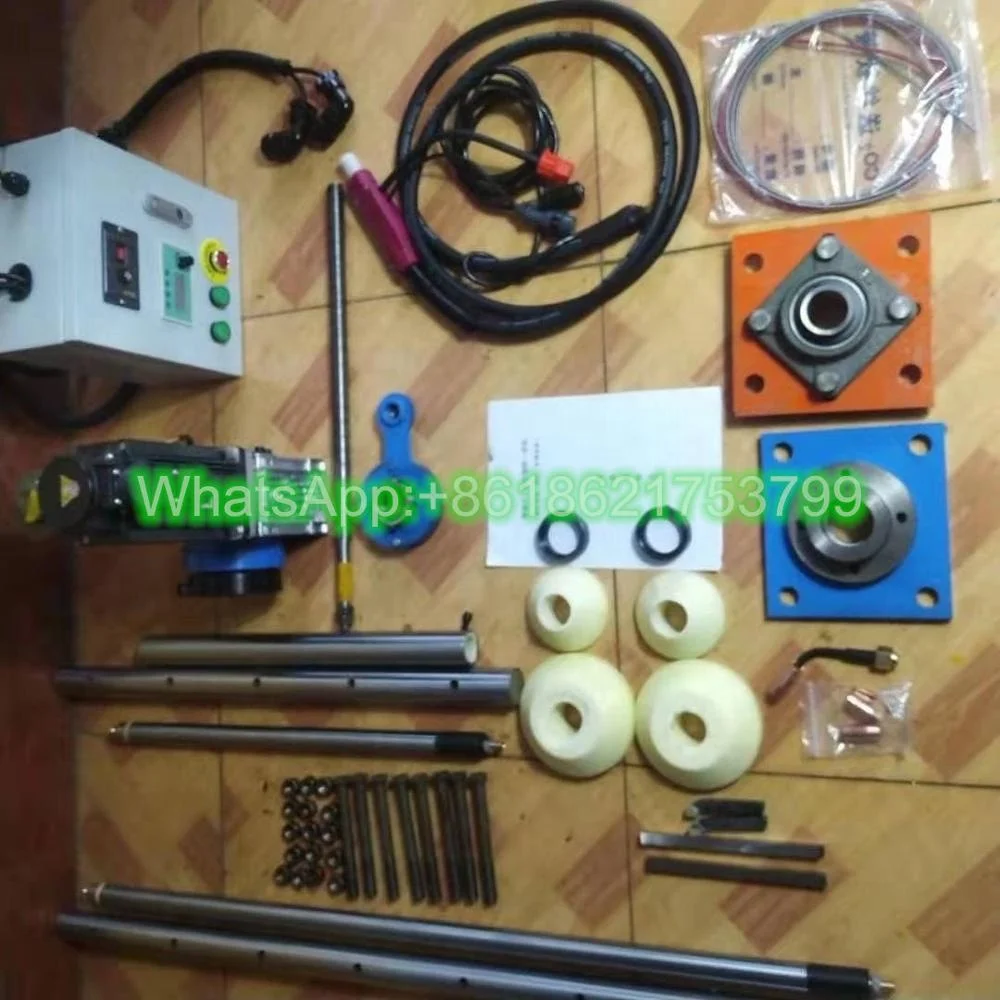

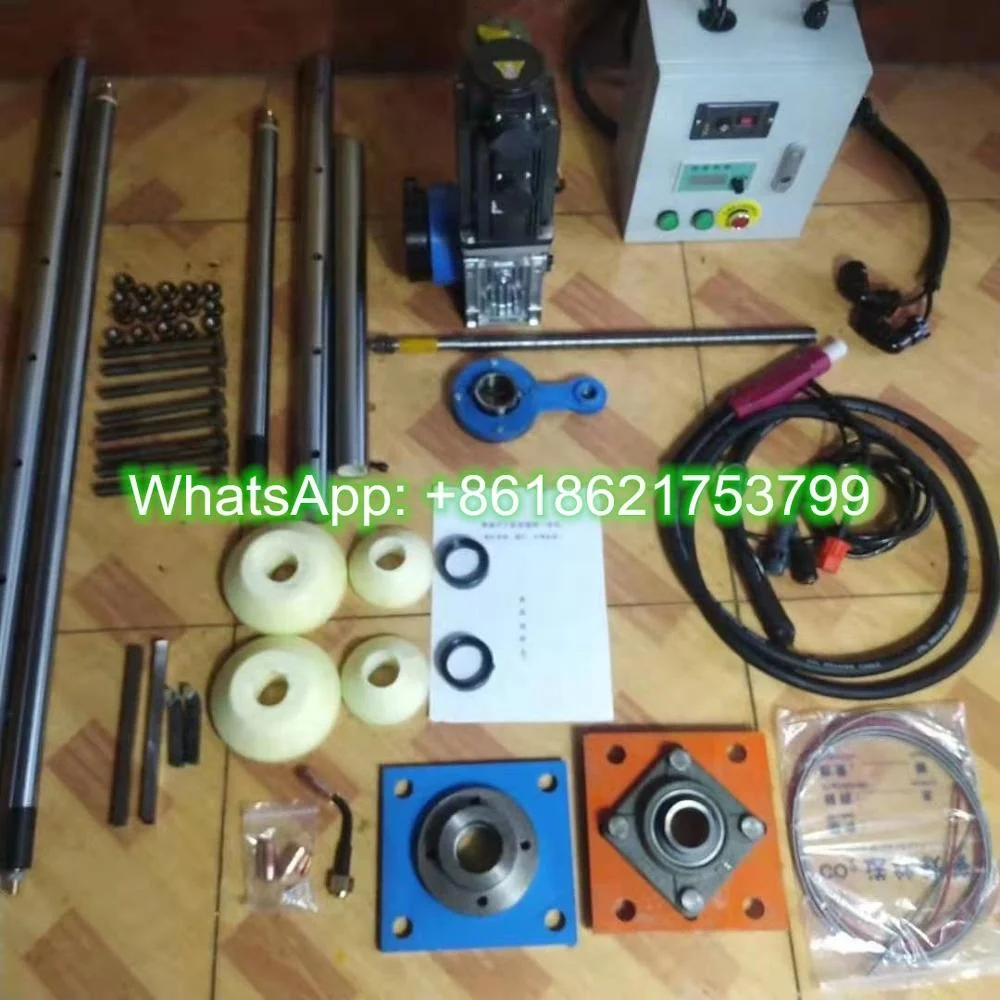

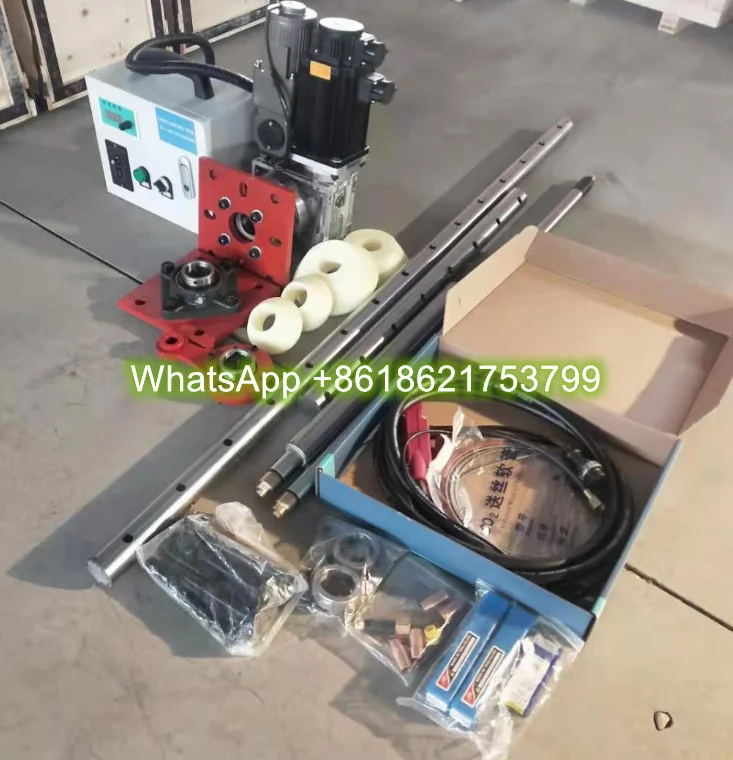

Automatic 2 in 1 Portable Line Boring and Welding Machine bore welding machine
Automatic 2 in 1 Portable Line Boring and Welding Machine bore welding machine is very convenient and specially designed for on-site machining, it is featured with small volume, light weight, easy bringing and high quality welding. It can be widely used to weld and repair the hole of large-sized machinery, pivot pin hole of earth moving equipment and bearing hole. It is ideal and necessary equipment for the industry and mining enterprise and on-site engineering repairing.
Technical parameters
Product name | Automatic 2 in 1 Portable Line Boring and Welding Machine bore welding machine |
Boring diameter | Φ 55-300 - mm |
Boring working stroke | 260mm |
Boring bar specification | 50*1600mm |
Working voltage | AC 220v/50hz |
Maximum power | 2.5kw (electrodeless speed regulation) |
Spindle speed | 0.1-200r/min |
Welding scope | Φ 55-250mm |
Wire diameter | Φ 1.0 |
Machine weight | 90KG |
Features
Automatic 2 in 1 Portable Line Boring and Welding Machine bore welding machine
1,Main Driving Unit
This series adopts the servo motor driven with the feature of lower speed and higher torque. The gear unit of reduction equipped with machine ensures the more powerful cutting.
2, This new type of 2 in 1 borer and welder solves the problem of distortion of boring bar and vibration during cutting process which are caused by the longer cantilever. Also ensure there is no vibration during the process of axial moving and cutting process.
3, Feeding and spindle rotation adopts stepless speed adjustment, the travel of feeding can be set according to actual
requirement. The machine will stop automatically after reaching the limit stop.
4,The tool post can be fixed at any location within effective travel.
5,Just one equipment solves both boring and welding processing.
6, Separate electric cabinet equipped with the controller, convenient for remote operation, convenient and safe.
7, This machine can be equipped with end face milling attachment as request.
This series adopts the servo motor driven with the feature of lower speed and higher torque. The gear unit of reduction equipped with machine ensures the more powerful cutting.
2, This new type of 2 in 1 borer and welder solves the problem of distortion of boring bar and vibration during cutting process which are caused by the longer cantilever. Also ensure there is no vibration during the process of axial moving and cutting process.
3, Feeding and spindle rotation adopts stepless speed adjustment, the travel of feeding can be set according to actual
requirement. The machine will stop automatically after reaching the limit stop.
4,The tool post can be fixed at any location within effective travel.
5,Just one equipment solves both boring and welding processing.
6, Separate electric cabinet equipped with the controller, convenient for remote operation, convenient and safe.
7, This machine can be equipped with end face milling attachment as request.
Packing&Shipping
Packing: Standard export wooden case for Automatic 2 in 1 Portable Line Boring and Welding Machine bore welding machine
Leading time: according your order quantity
