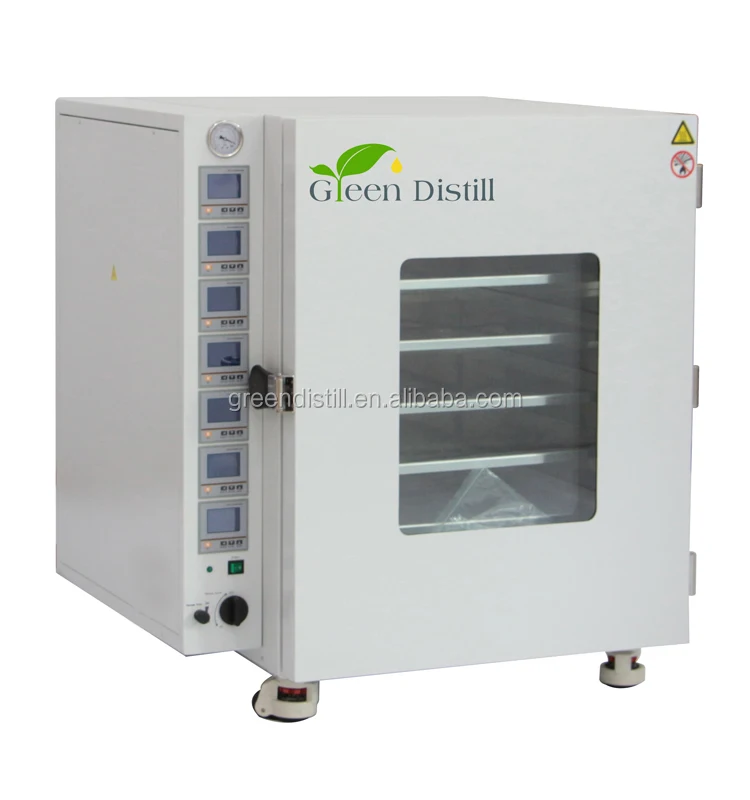

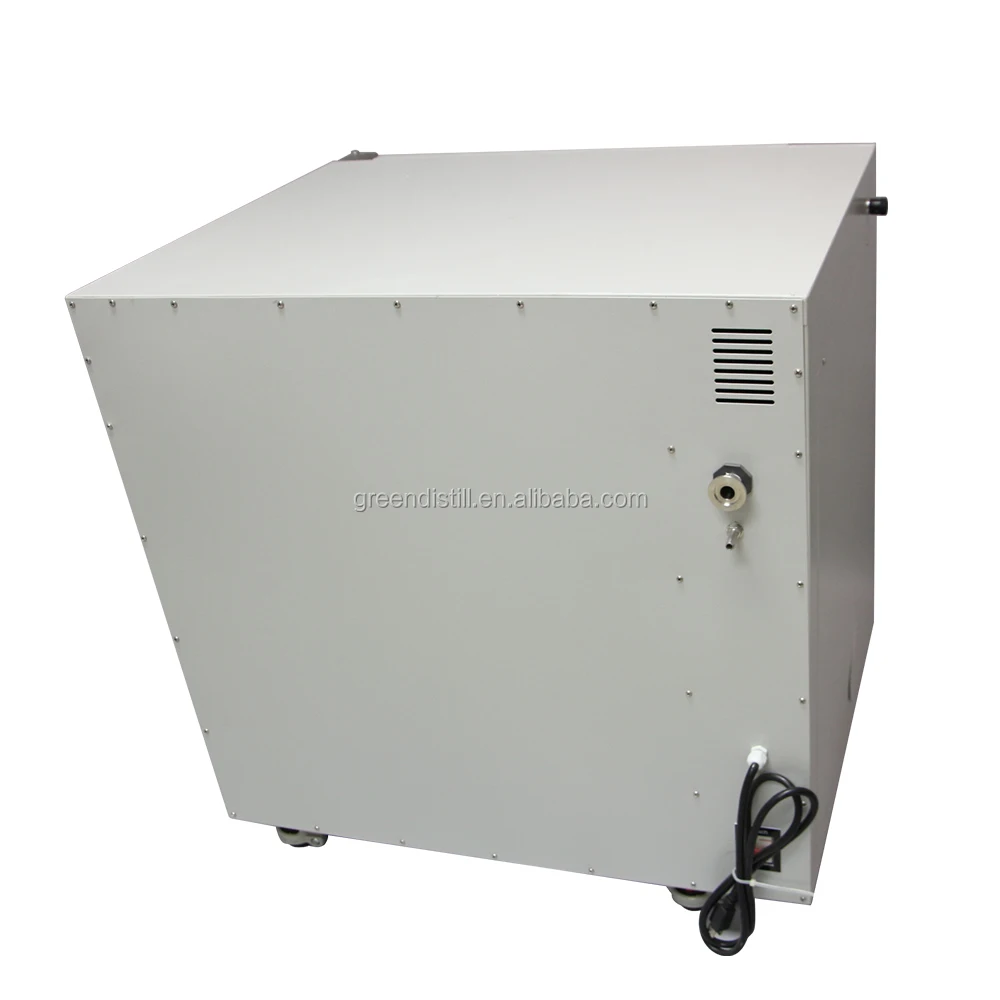

High Quality 210L Vacuum Dryer Drying Oven for Plant Oil Crystalizationne
The DZF vacuum drying oven vacuum is specially designed for drying of material which is thermo-sensitive or decompounded and oxidative easily. The laboratory drying oven can be filled with inert gas to dry some materials with complicated components. The laboratory drying oven has been widely used in pharmaceutics, electrical and chemical industry.
Features of the Vacuum Drying Oven

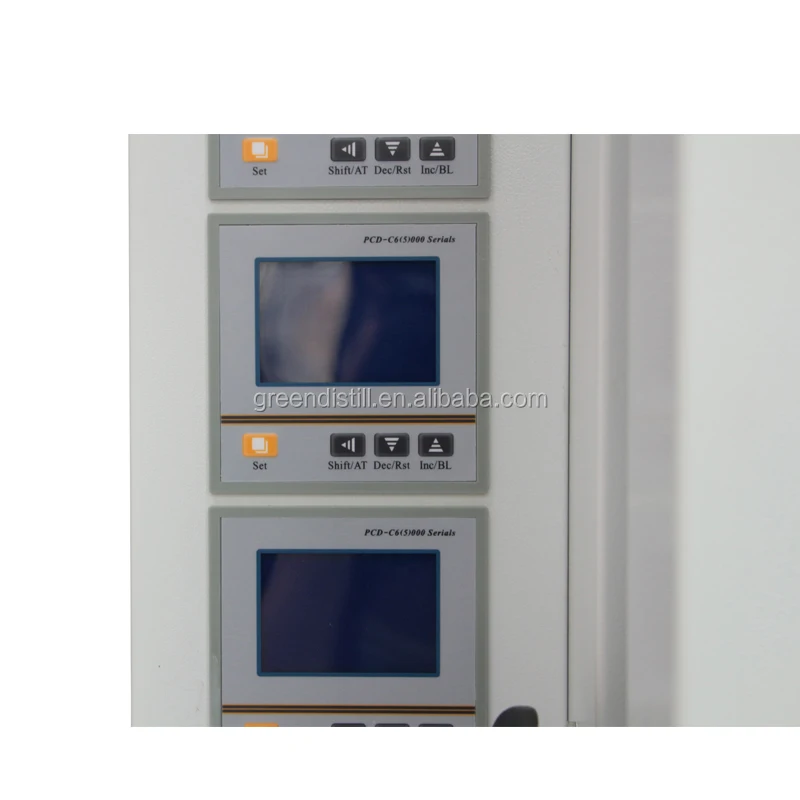

- Intelligent temperature controller for maximized performance in a wide dynamic range of 480°F (250°C), eliminating the need of human intervention in parameter setting. - Evenly distributed heating elements for gentle drying throughout the chamber interior and absolute temperature uniformity. - High performance MCU-based temperature controller with advanced PID algorithm to maintain temperature uniformity (+/- 1°F) from low temperature to 480°F (250°C). - Dual layer observation window with adaptive 1/2" tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation. - Good thermal insulation of vacuum chamber for low energy consumption. - Easy-to-clean and heavy-duty SUS304 electropolished vacuum chamber. - Built-in adjustable temperature limiter and fuse for the protection of both sample and oven. Strong mirror-polished SUS304 shelf plates (each of them has 15kg load capacity). - Complete application-specific vacuum drying system contains vacuum drying oven, vacuum pump, fume/mist filter, cold trap & connection kit of various sizes and features. - Electrical components are isolated from the inner chamber for the protection of user. - Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system. - Modular design for easy and cost-effective maintenance and future upgrades. - Built-in timer of 9999 minutes/hours.
Technical Data
Specifications of the Vacuum Drying Oven
Model
DZF6090(Advanced)
DZF6210(Advanced)
DZF6500(Advanced)
Voltage
220V/50-60Hz,1 phase
220V/50-60Hz,1 phase
380V or 480V,3 phase
Power
2000W
4000W
5500W
Chamber Volume
3.2 Cu.ft (90 Litre)
7.5 Cu.ft (210 Litre)
17.6 Cu.ft (500 Litre)
Chamber Material
SUS304, Mirror Surface
SUS304, Mirror Surface
SUS304, Mirror Surface
Temperature Range
Ambient + 5°C to 200°C
Ambient + 5°C to 200°C
Ambient + 5°C to 200°C
Temperature Control Accuracy
+/- 0.5°C
+/- 0.5°C
+/- 0.5°C
No. of shelves
3
5
7
Control mode
Independent Temperature Controller for each shelf
End Vacuum Level
<133 Pa (1 mmHg)
<133 Pa (1 mmHg)
<133 Pa (1 mmHg)
Max Leak Rate
<0.01 bar/h
<0.01 bar/h
<0.01 bar/h
Max Heating Rate
5-9°C/min
5-9°C/min
5-9°C/min
Chamber Size W x D x H (mm)
450x 450x 455
560x610x640
630*800*850
Overall Size W x D x H (mm)
760x 760x 700
890x780x965
950*960*111
Structure & Details

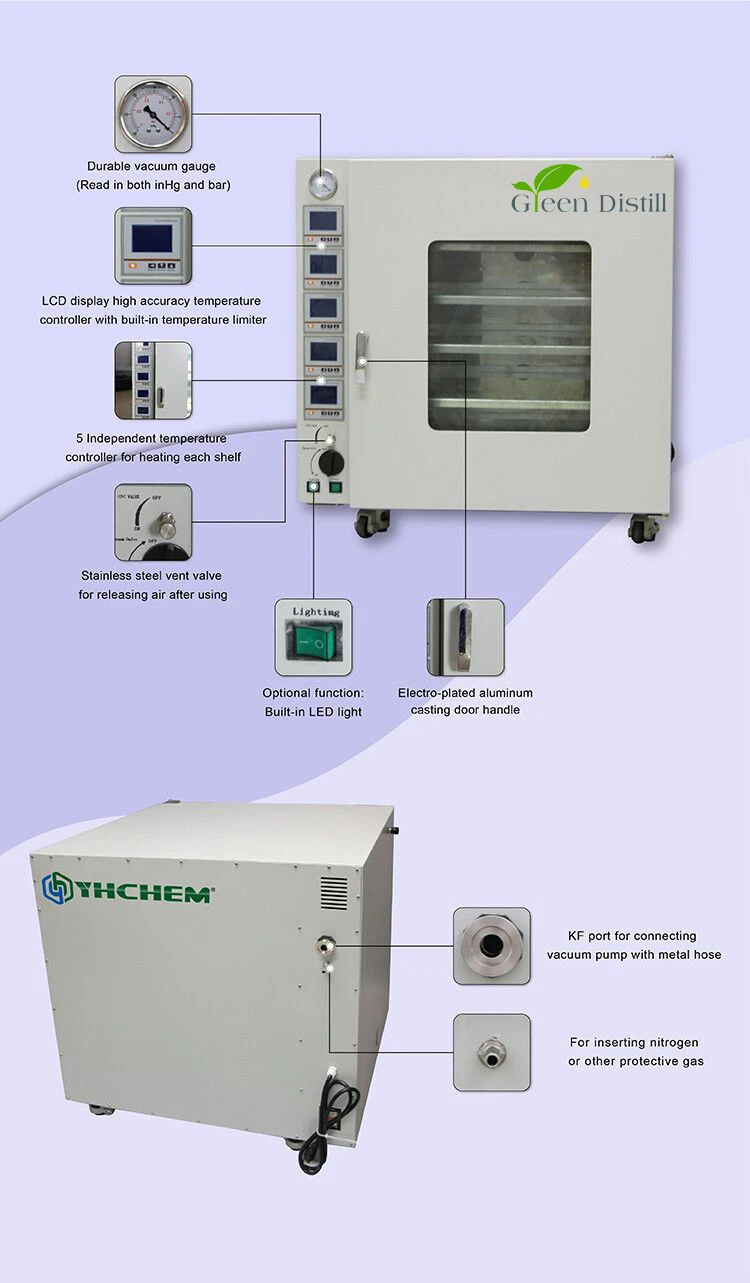

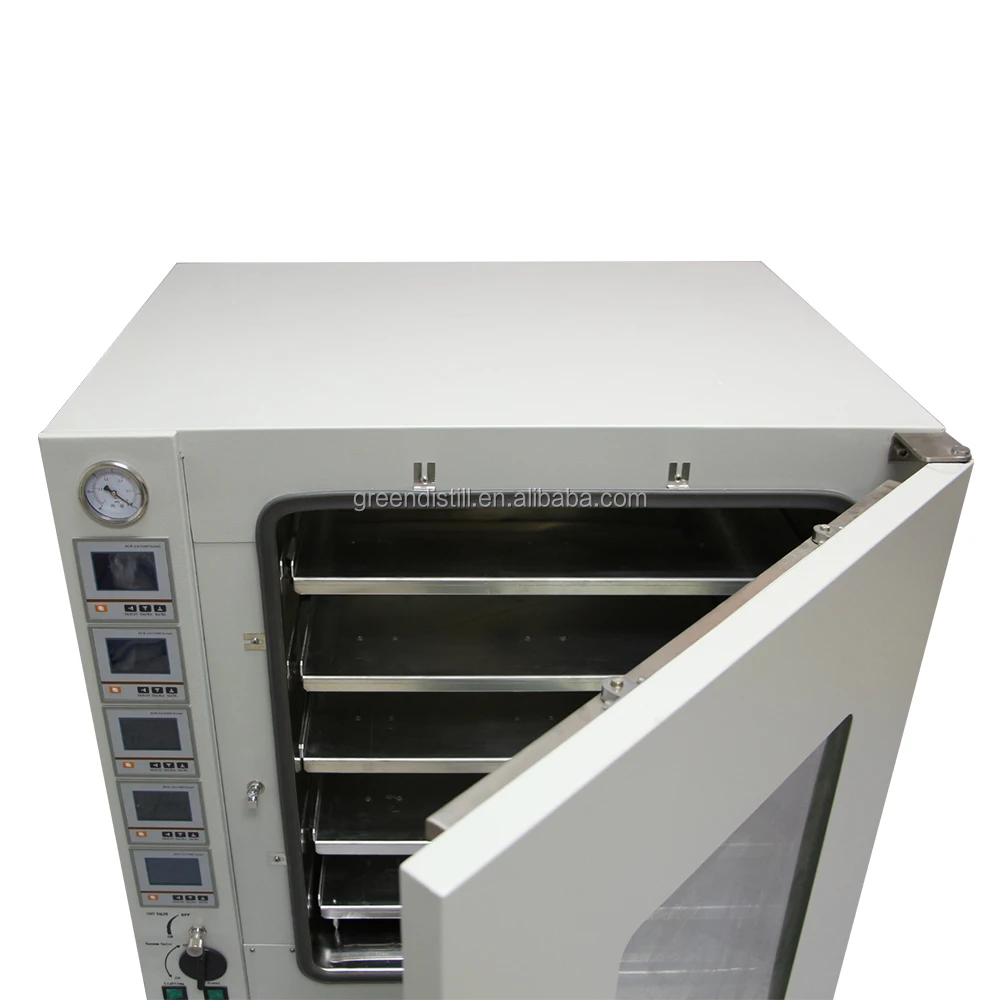

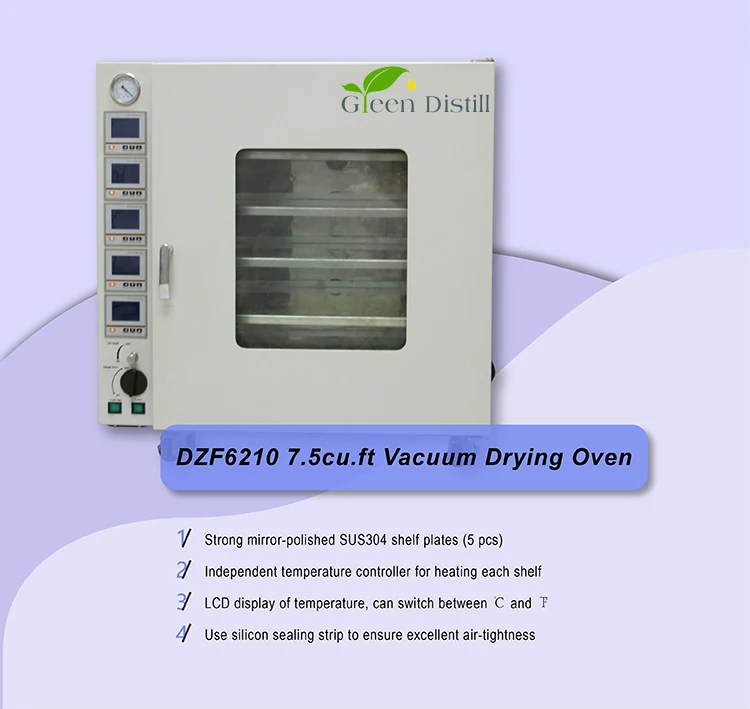

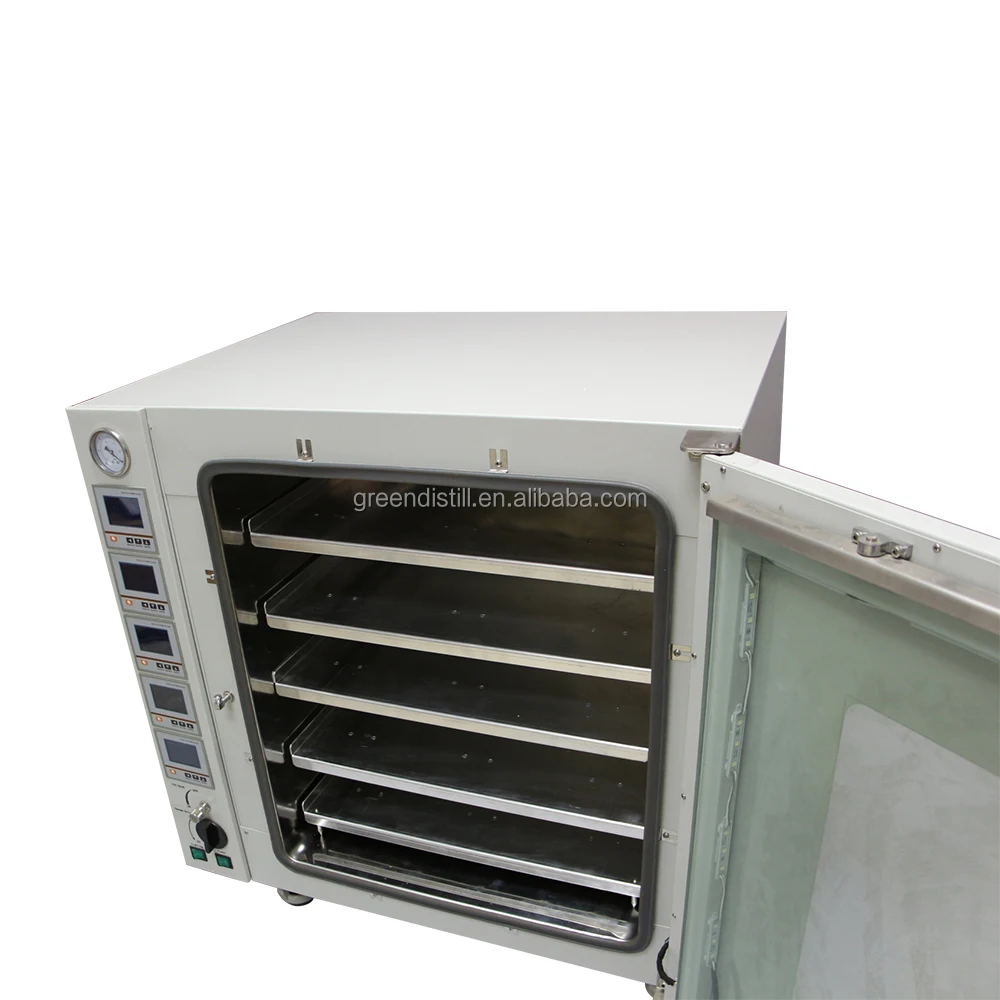

Detailed Display of the Vacuum Drying Oven
