Product Overview

Description



Product Description

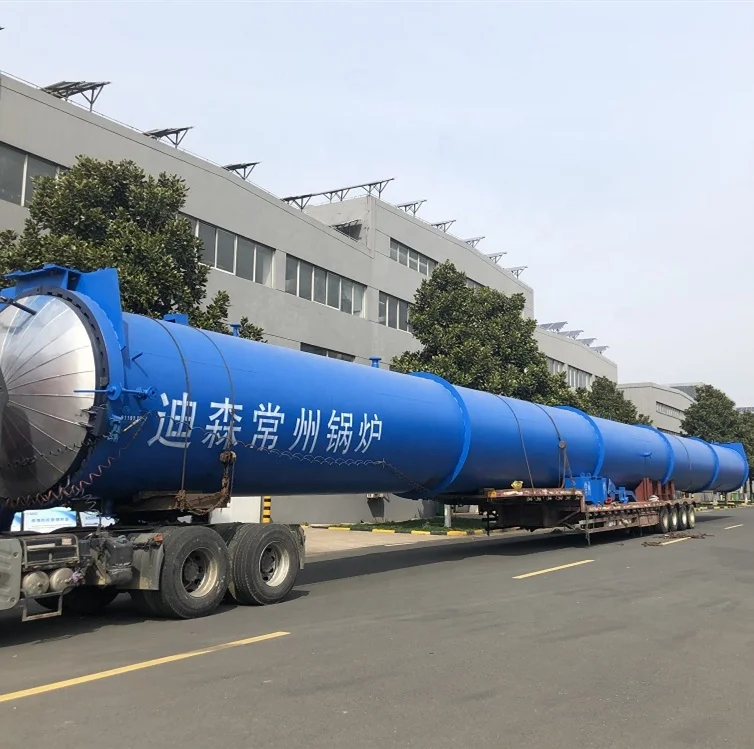

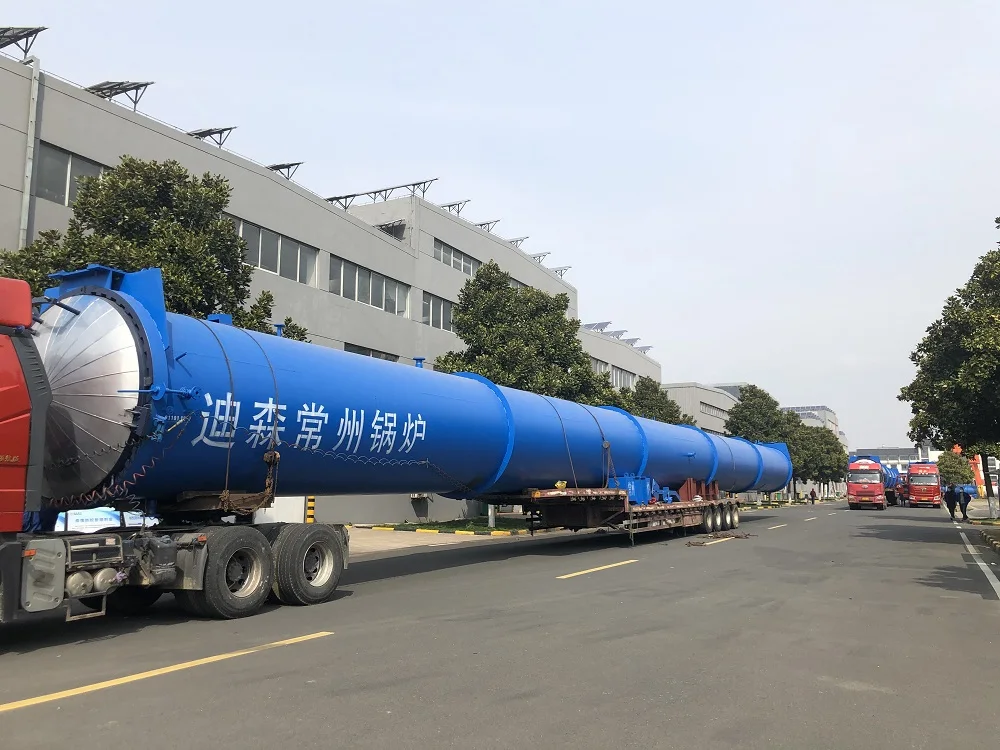

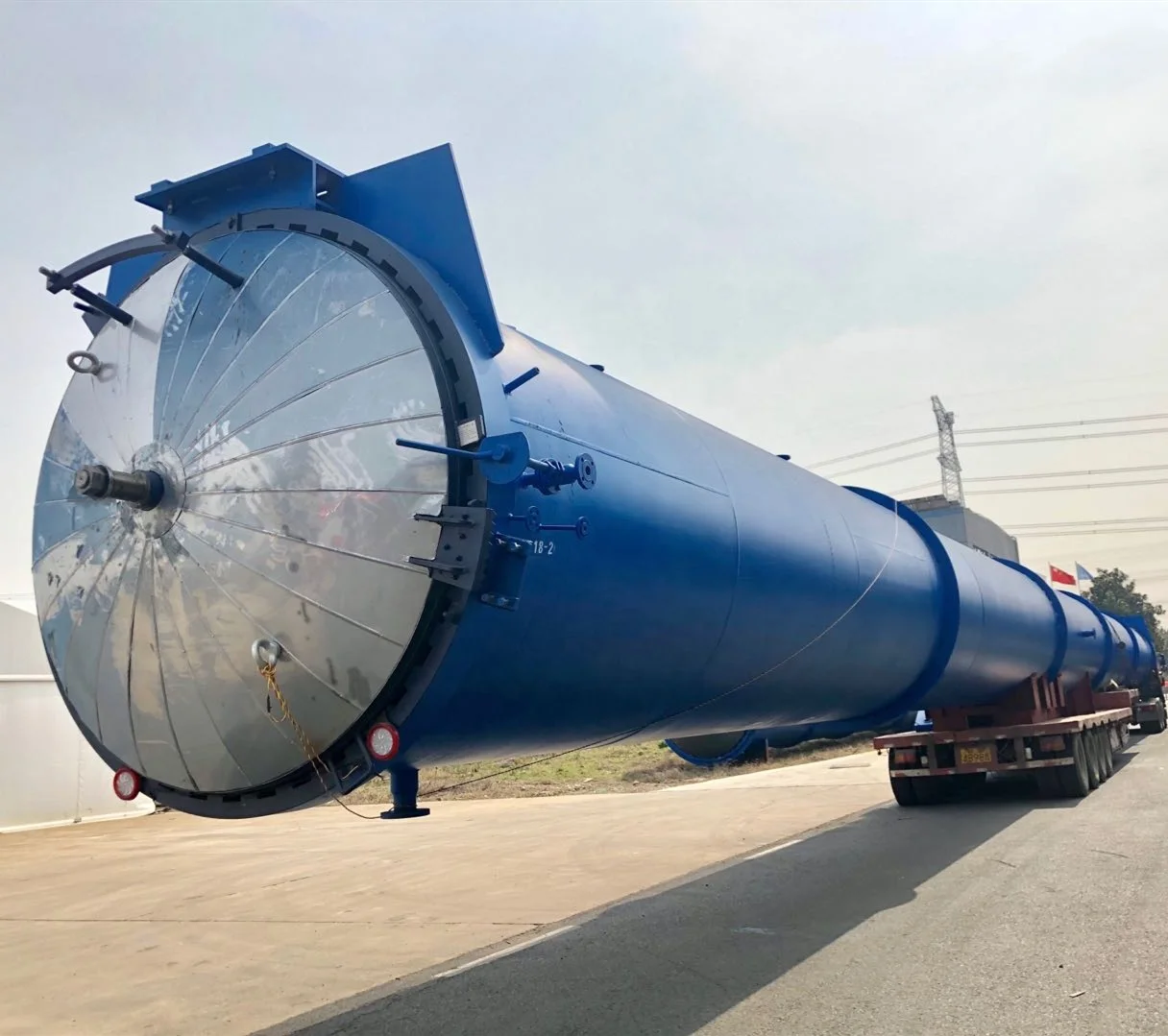

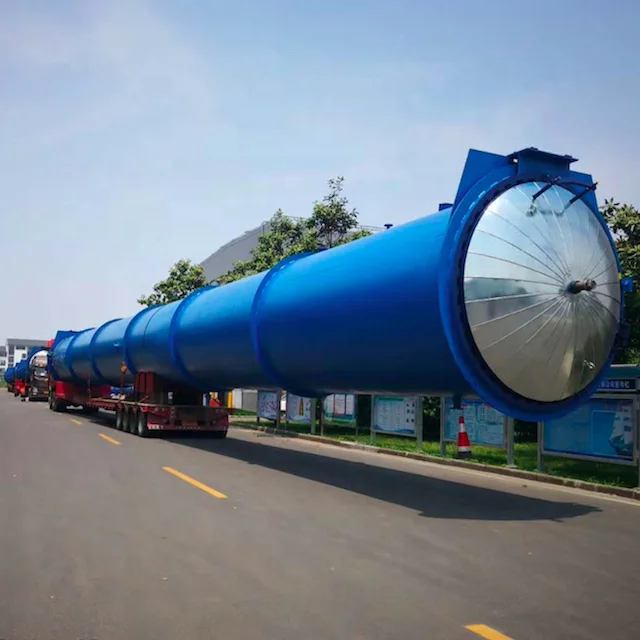

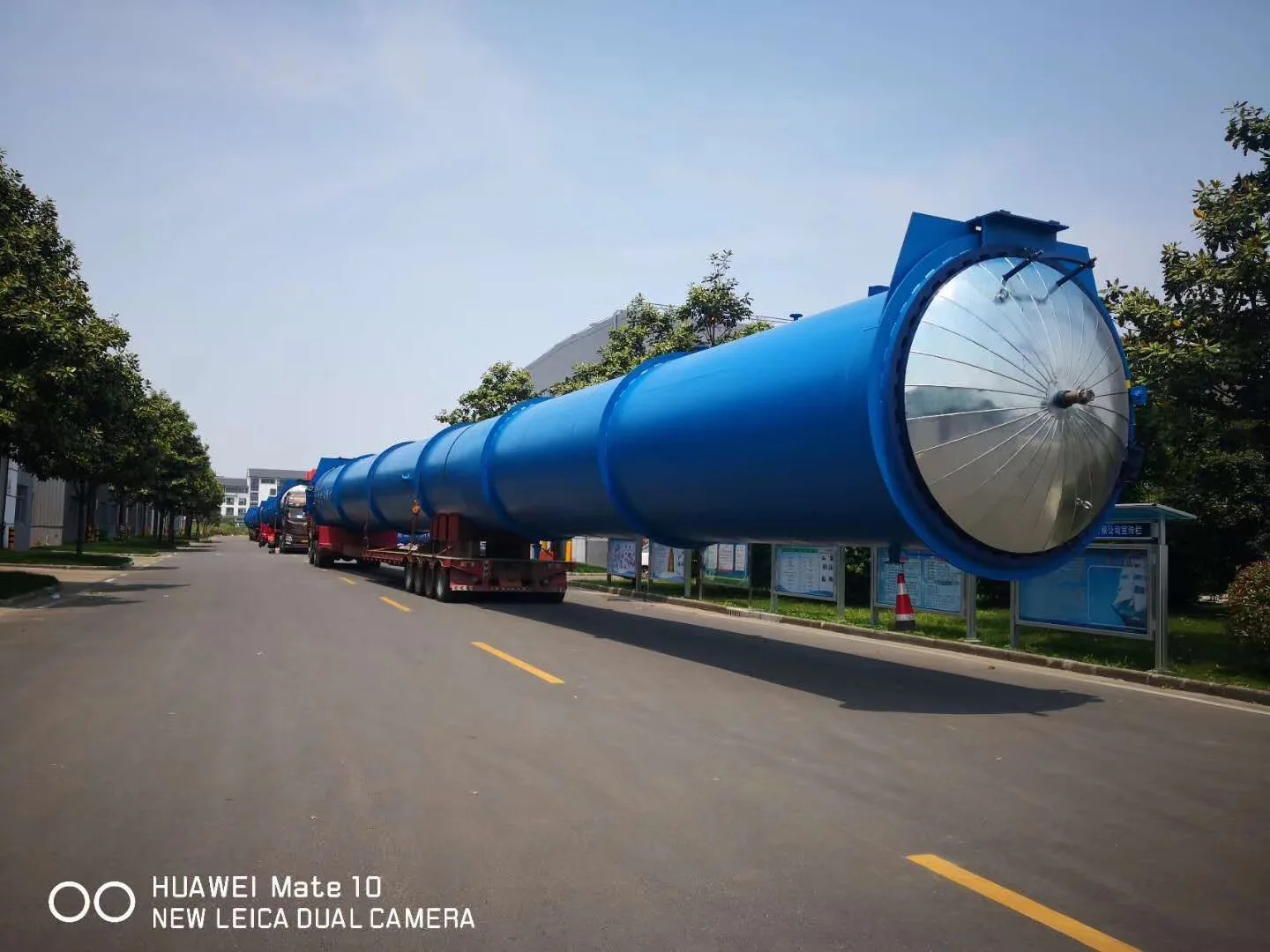

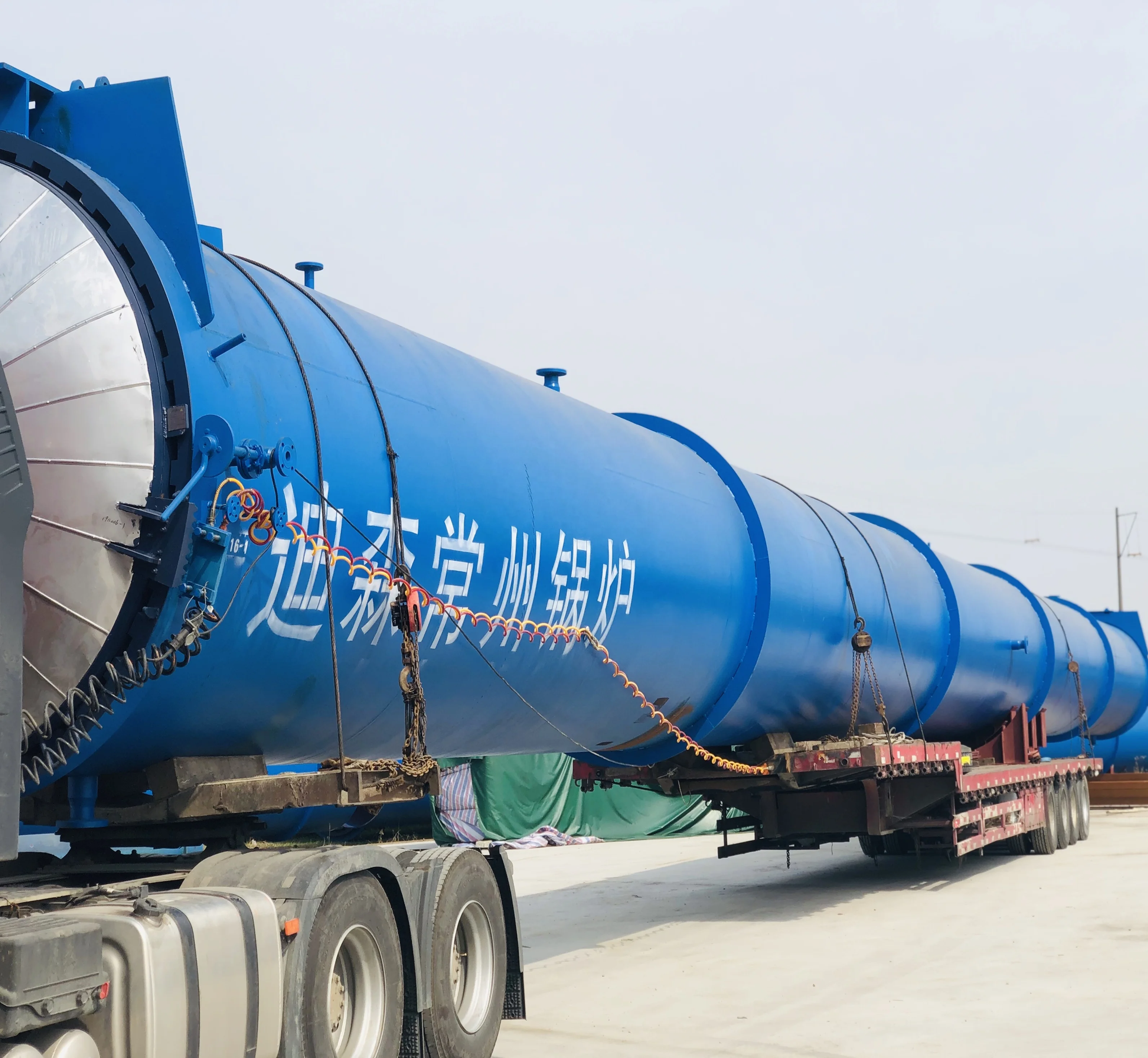

CG brand autoclave is one of the most famous autoclave brands in China, and it’s the earliest brand. φ2x21m autoclave as the national silver medal products, φ1.65x21m, φ2x21m, φ2.85x26m as province excellent products.

CG brand autoclave has a 15 years working life. It is equipped with multiple safety interlocking devices, including PN25 spring full-open safety valves, pressure transmitter, temperature sensor, etc., for safer operation and more secure use.

CG brand autoclave uses high-quality cylinder steel plate manufacturer by big steel mills, which is more reliable than ordinary quality cylinder steel plate used by some other autoclave manufacturers.


Technical Data


Performance and Dimension of The Autoclaves
Type and Specification
No.
Name
Unit
φ1.65xL
φ2xL
φ2.4xL
φ2.5xL
φ2.68xL
φ2.85xL
1
Innerm diamater
m
1.65
2.00
2.40
2.50
2.68
2.85
2
Effective length
m
According to user's requirement





3
Designed pressure
Mpa
1.08
1.4
1.6
1.6
1.6
1.6
4
Designed temperature
℃
187
197
204
204
204
204
5
Working pressure
Mpa
1.0
1.3
1.5
1.5
1.5
1.5
6
Working temperature
℃
184
195
201
201
201
201
7
Medium
Saturated steam, Condensed water






8
Rail distance
According to user's requirements






9
Mode of opening
Manual opening, Automatic opening








m.
L+0.96
L+1.3
L+1.4
L+1.5
L+1.6
L+1.7
10
Overal dimension S (LxWxH)
m.
x2.6
x2.8
x2.84
x3.4
x3.85
x3.5

m.
x2.6
x3.34
x3.87
x4.0
x4.3
x4.5


Our Advantages


Intelligent control system

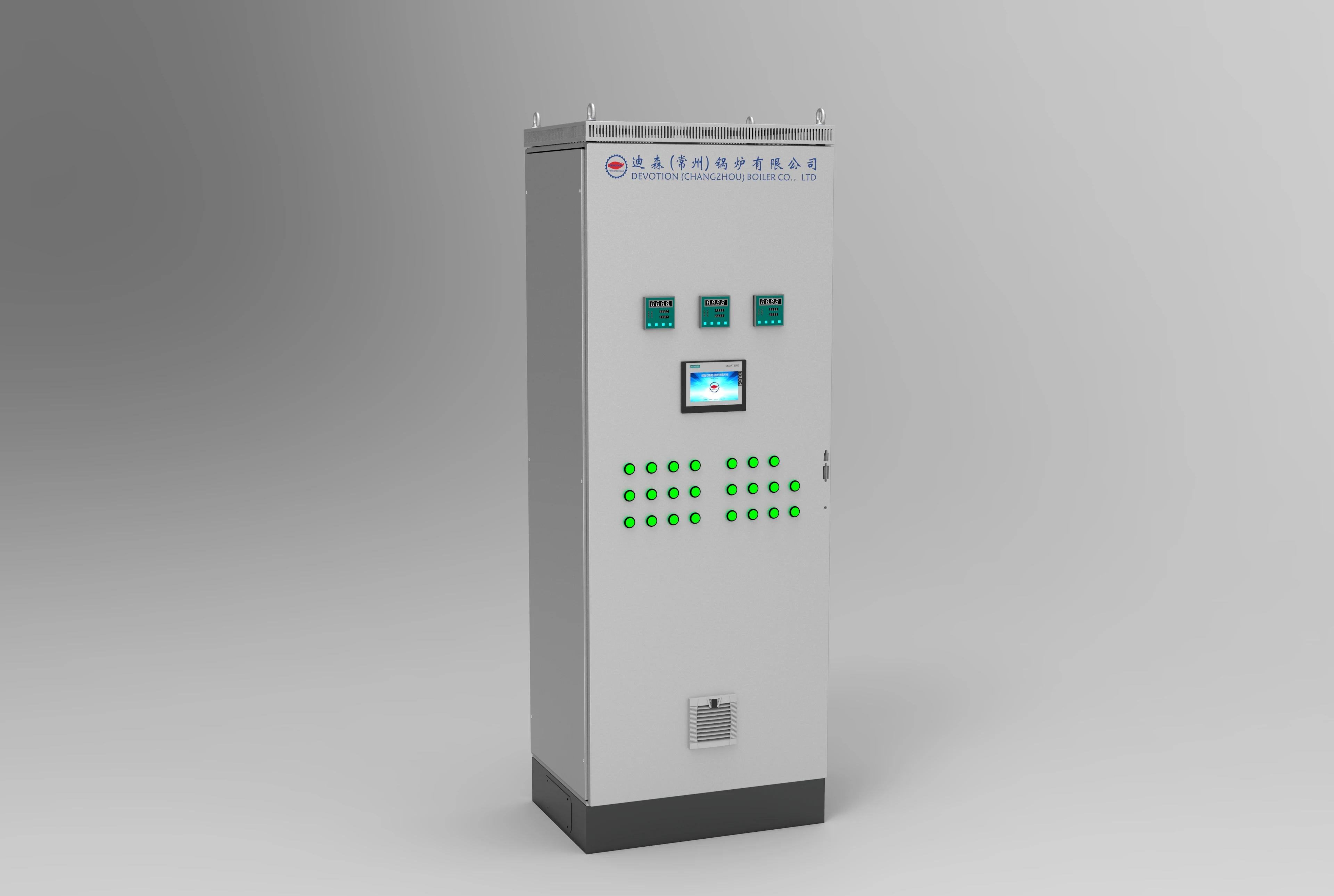

CG brand autoclave's integrated control cabinet has multi level protections to ensure operation safe and precise.


Advanced production technology


All CG brand autoclaves use mechanical milling teeth to effectively reduce crack defects.


Precision works

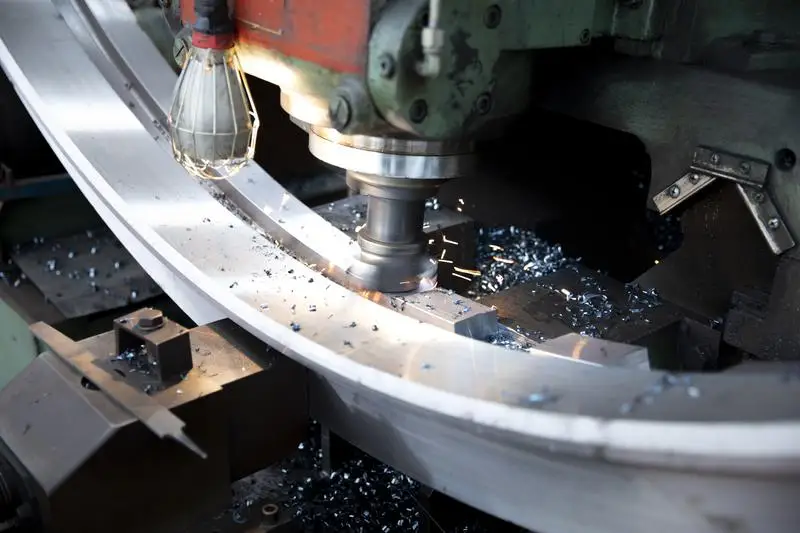

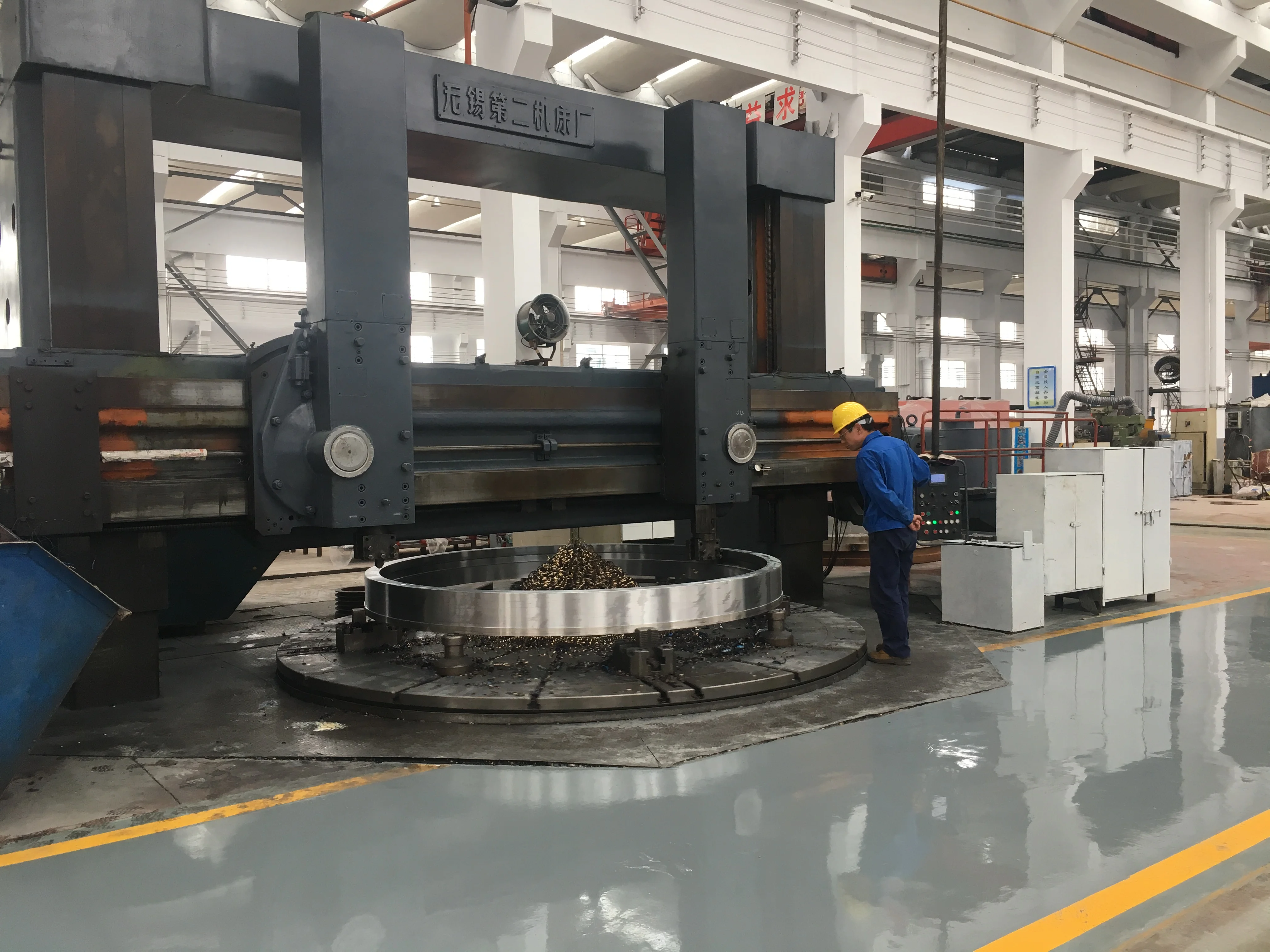

The reinforcing rings used on CG brand autoclave are made by precision machining, which effectively enhances the rigidity and stability of the autoclave.

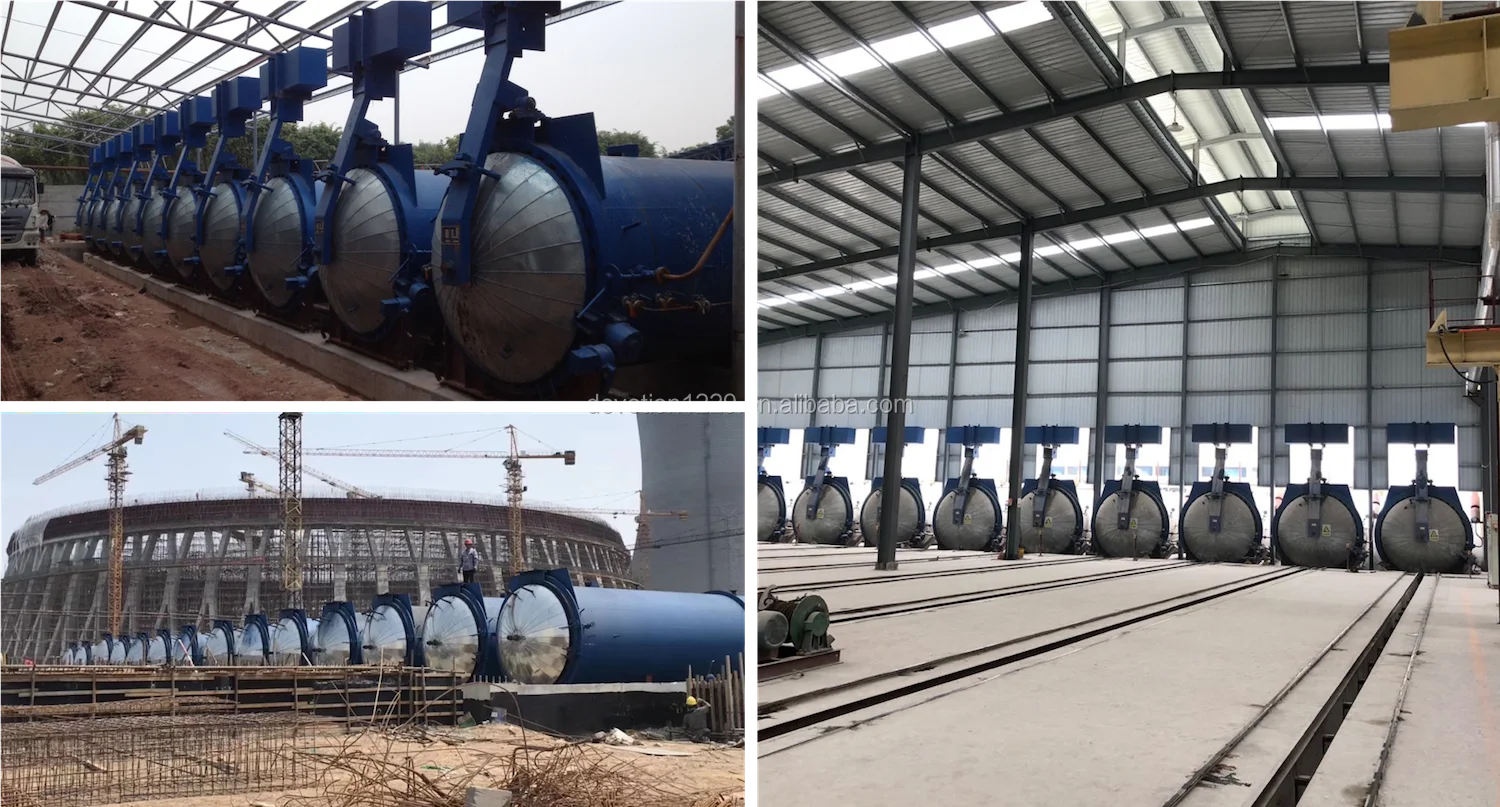

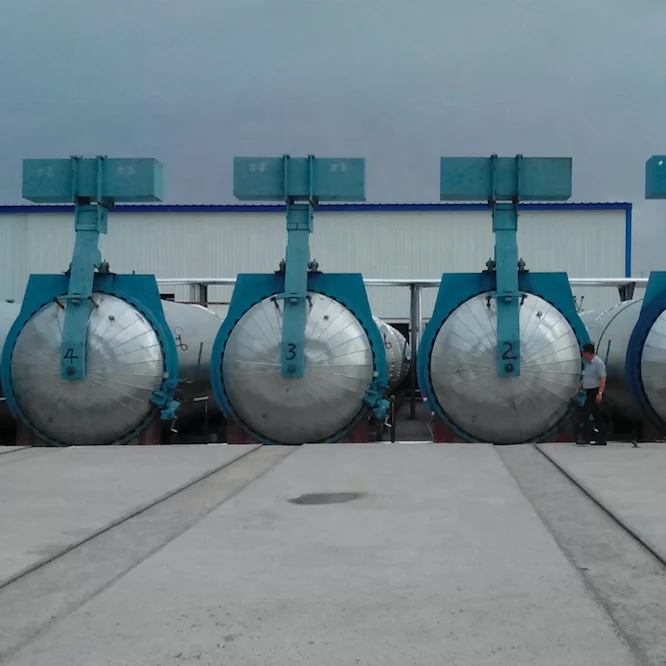

Typical Projects








Company Introduction




Devotion is one of few stock listed companies in the boiler industry in China, its stock code is 300335

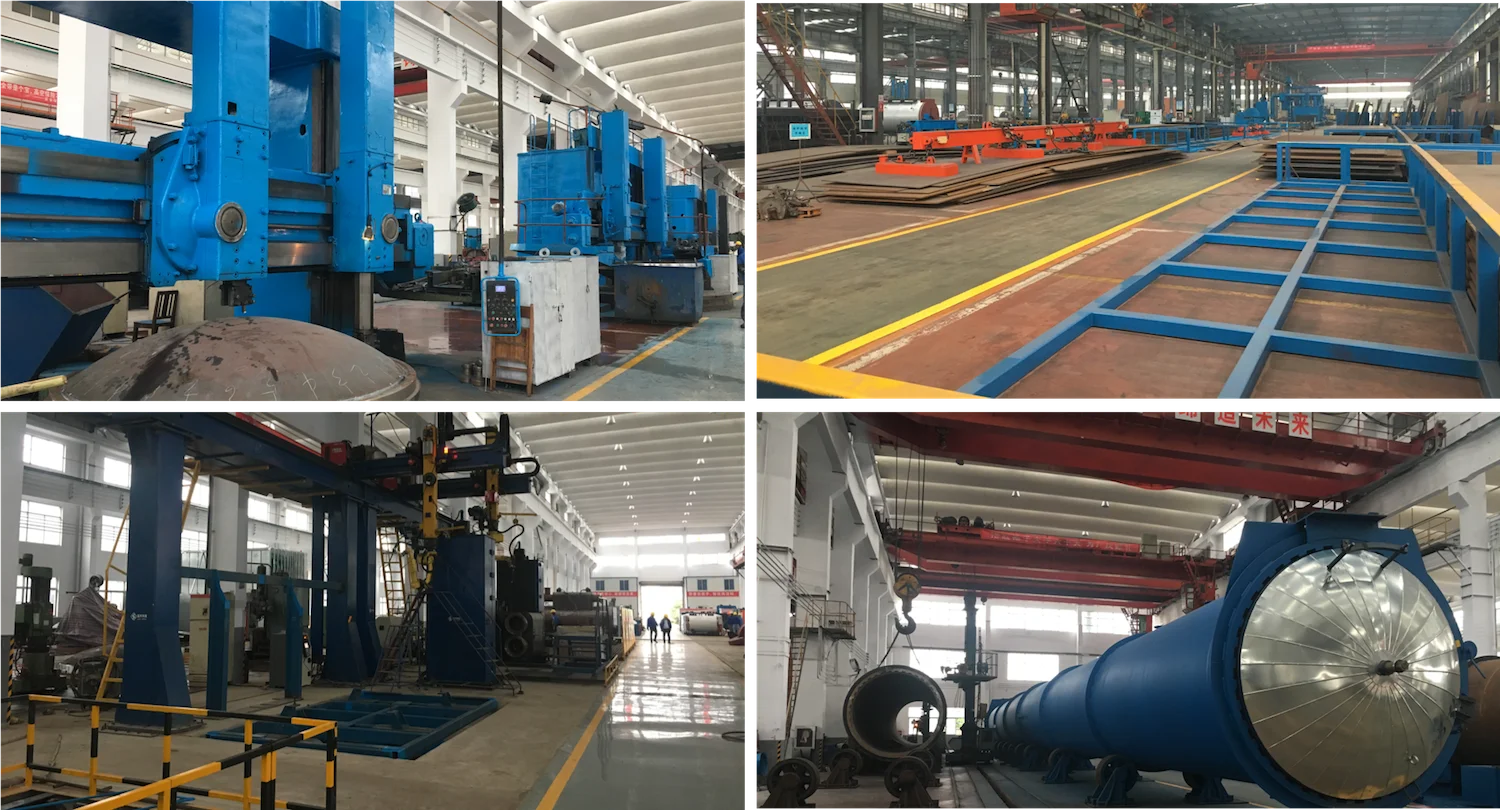

Devotion has 50 years of manufacturing experience in boilers and autoclaves and has two production bases of 222,000 sqm in Changzhou and Guangzhou.

Devotion has high level certifications such as ASME S, ASME U, ISO9001, ISO14001, Class A Manufacture License and others.

With reliable quality and professional services, the company has established relationships with many well-known customers, and has supplied boilers and pressure vessels to more than 100 countries.

Devotion, devoting to warm the world every day. Welcome to visit us for mutual business success!
