Wastewater evaporators price
US $7800
Lab1st solvent recovery large rotovap 20l rotavapor
- Category: Evaporator >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (62501551575):
Product Overview
Description
Products Description

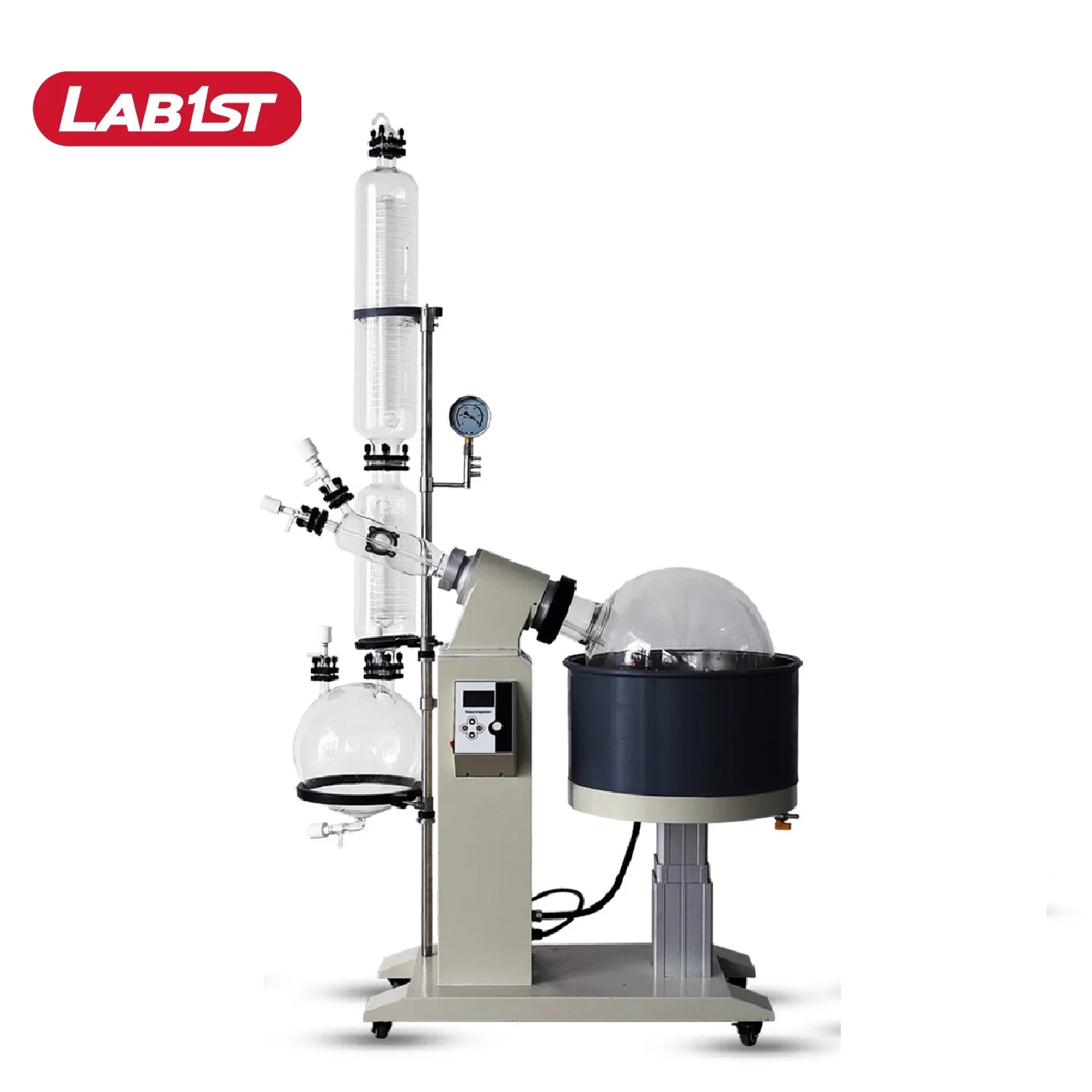

Lab1st Auto Rotary Evaporator 50L
Lab1st auto rotary evaporator is most often and conveniently applied to separate "low boiling" solvents such a n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure.
The set up includes rotory evaporator, chiller and vacuum pump.
Product Paramenters
Model | RE-505 （-EX） | RE-510 （-EX） | RE-520 （-EX） | RE-550（-EX） | |||
Optimum Ambient Temperature (℃) | 5～25 | ||||||
Power (V/Hz) | 220V/60Hz Single-phase (Customizable) | ||||||
Rotate Speed of Main Engine (rpm) | 10-140 | 20-130 | 20-130 | 20-120 | |||
Rotary Motor Power (w) | 40 | 60 | 60 | 120 | |||
Temperature Control (℃) | Digital temperature control, constant temperature -99℃ | ||||||
Maximum Vacuum Degree | 399.9Pa(under 3mmHg) | ||||||
Rotary Flask (L) | 5 | 10 | 20 | 50 | |||
Receiving Flask (L) | 3 | 5 | 10 | 20 | |||
Condenser | Vertical dual coil pipe | Upright, main condenser + auxiliary condenser, efficient tri-backflow condenser pipe | |||||
Evaporative Capacity (L/h) | Water ≥2 | Water ≥3.2 | Water ≥5 | Water ≥9 | |||
Alcohol ≥4 | Alcohol ≥6.5 | Alcohol ≥11 | Alcohol ≥19 | ||||
Water Bath Pot Material | Stainless steel | ||||||
Lifting Function | Electric lifting | Electric + manual lifting | |||||
Lifting Stroke (mm) | 0-150 | 0-160 | 0-190 | 0-180 | |||
Complete Machine Power (kW) | 2 | 3 | 5 | 6.5 | |||
Dimension (LxWxH mm) | 765×400×1070 | 920×550×1700 | 1250×600×2100 | 1320×770×2340 | |||
