Консоль для освещения grand ma MA2, компактный контроллер, сенсорная консоль для освещения dmx
- Category: Dimmers >>>
- Supplier: Cero Tech Co. Ltd.
Share on (62504858482):
Product Overview
Description
Product Description
MA2 console
Compact console MA2 is a high performance lighting control desk. It is a powerful product with compact size.
The compact is the perfect tool to control all kinds of lighting fixture like conventional light, moving lights, LEDs, video, media and supplies an intuitive and fast control of all connected fixtures and channels. It can handle an almost infinite number of presets, cues, pages, sequences and effects.
Product Features

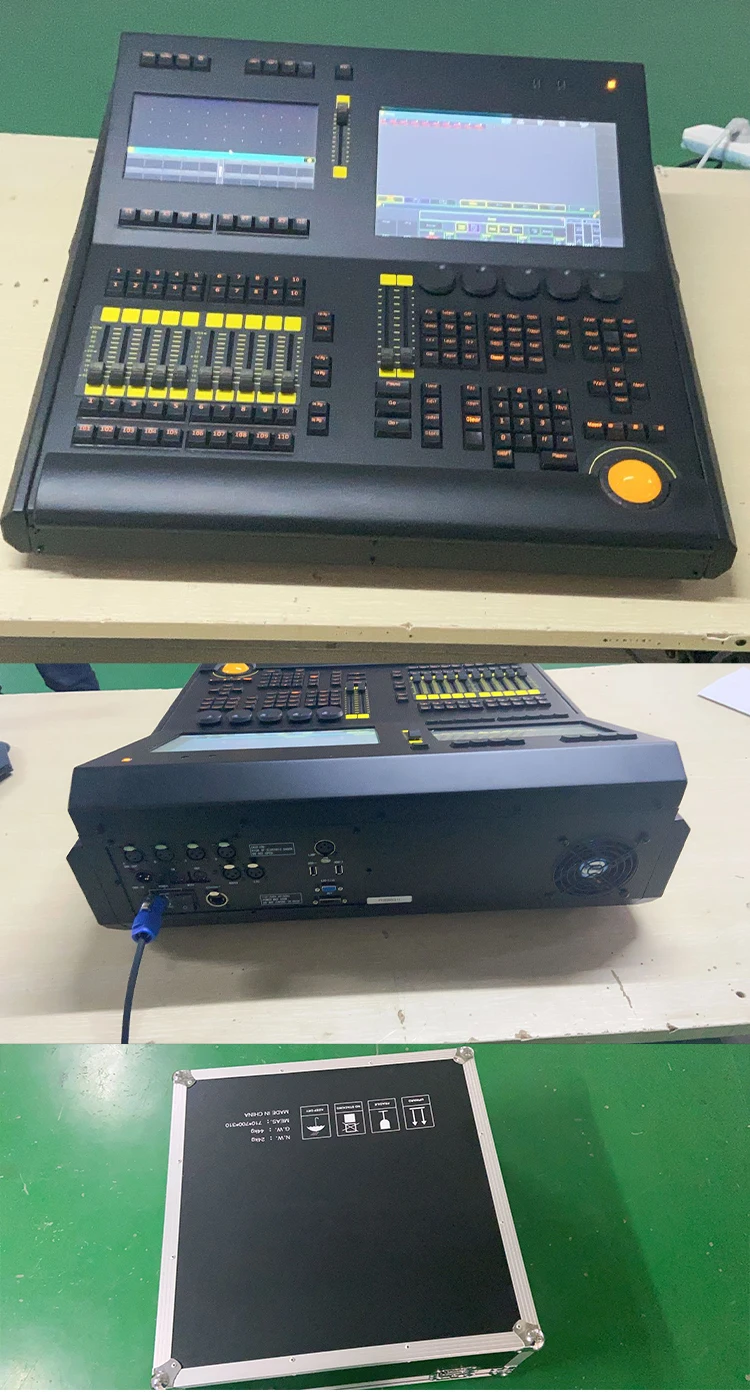

grand ma MA2 lighting console
Hardware Specification:
* 4,096 parameters
* 4 x DMX outputs + 1 x DMX input
* 1 x internal TFT wide mode touchscreens (12.1" WXGA)
* 1 x internal command screen (9" SVGA)
* 10 x motorized faders
* 2 x motorized A/B fader (100mm)
* 5 x encoders
* 1 x trackball
* 1 x gigabit Ethernet port
* 4 x USB2.0
* MIDI in and out
* LTC/SMPTE timecode
* AC power: 90-260VAC, 50/60Hz
grand ma2 lighting controller
Software Specification：
* Linux operation system
* Support ArtNet
* Support DMX512
* Support sACN protocol
* The system can be installed via USB flash
* Program data can be saved on hard disk or U disk
* Support multiple online backup
* Support wireless remote control with iPhone/iPad
* Support stage 3D effect simulation, real-time scene simulation
* Support RDM management
* Support WYSIWYG connection
* Support massive light library
* Support LTP and HTP
* Support MIDI time code and internal time code
* Powerful Layout management
* Support multi-user operation, and can set the user permissions
* Each kind of material such as color, gobo, beam, position can save 1000
* Support 10000 marshals, support 10000 effects
* Support 10000 programs, each program can contain 9999 scenarios
* Support ArtNet
* Support DMX512
* Support sACN protocol
* The system can be installed via USB flash
* Program data can be saved on hard disk or U disk
* Support multiple online backup
* Support wireless remote control with iPhone/iPad
* Support stage 3D effect simulation, real-time scene simulation
* Support RDM management
* Support WYSIWYG connection
* Support massive light library
* Support LTP and HTP
* Support MIDI time code and internal time code
* Powerful Layout management
* Support multi-user operation, and can set the user permissions
* Each kind of material such as color, gobo, beam, position can save 1000
* Support 10000 marshals, support 10000 effects
* Support 10000 programs, each program can contain 9999 scenarios

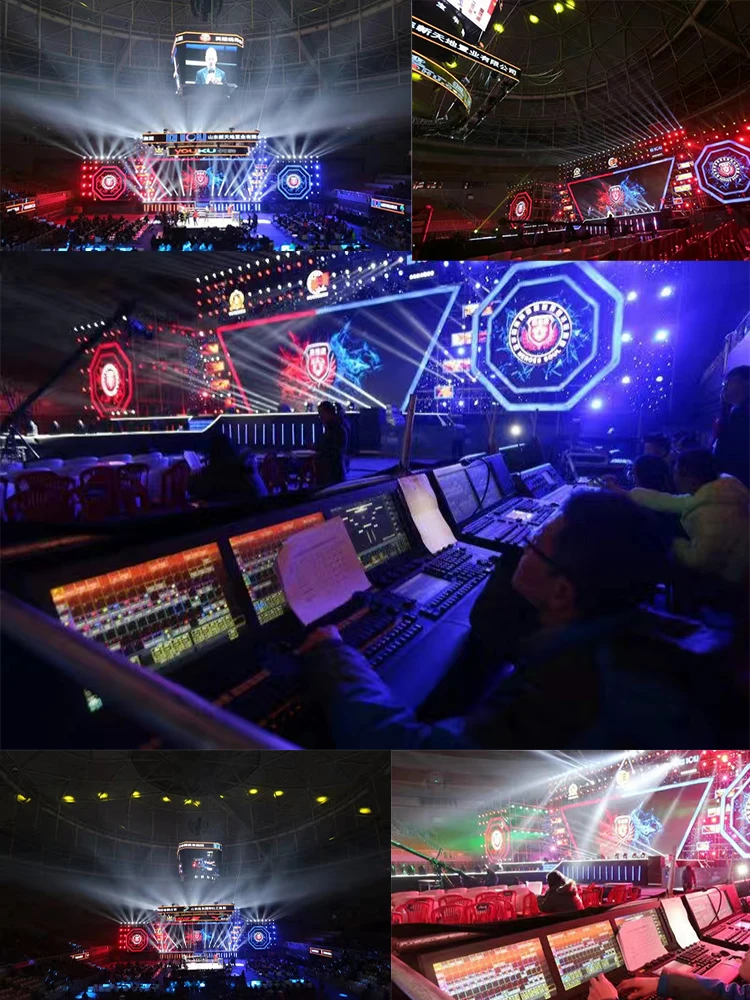

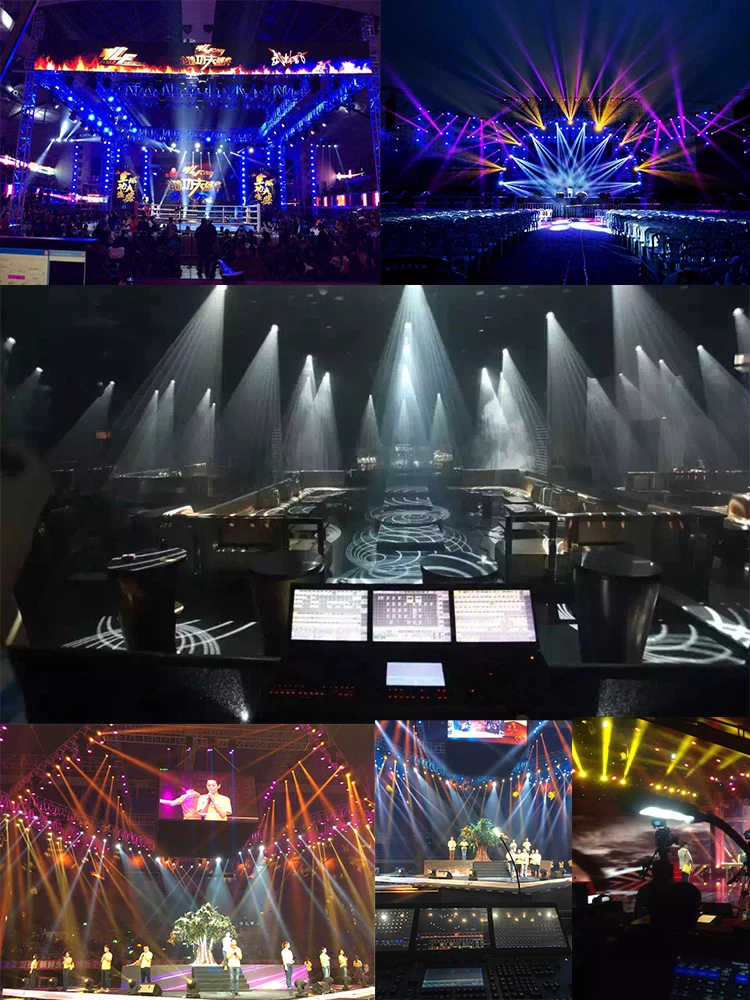

Lighting Cases
Training Courses

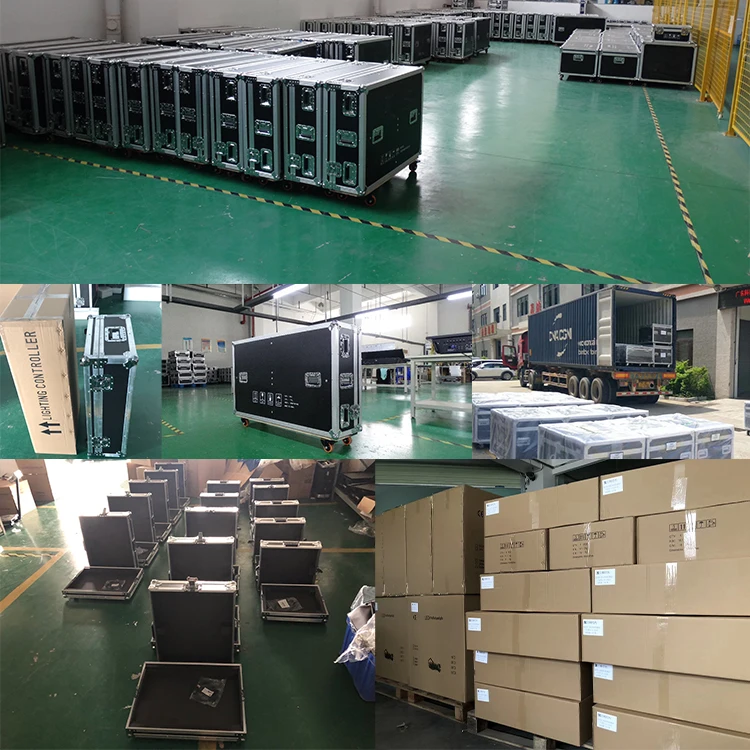

Packaging & Shipping
Accessssories | power cable * 1 | desk light * 1 | dust cover * 1 | |||
Cat6e 3m * 1 | touch pen * 1 | flycase * 1 | ||||
Net weight | 24kg | 53lbs | ||||
Gross weight | 44kg | 97lbs | ||||
Product dimensions | 630*620*234mm | 24.8*24.4* 9.2inch | ||||
Flycase dimensions | 700*310*710mm | 27.6*12.2* 28inch | ||||
FAQ
Q: What is your status for your factory?
A: Our factory has 12 years of rich experiences of lighting control system, only make professional DMX lighting console, network solution, and other control products.
Q: What accessories are included in the price of the lighting console dmx controller ?
A: Including flycase, working lamp, dust cover and powercable.
Q: Where can I see your light mixing desk in China?
A: Shanghai showroom, Guangzhou showroom, Beijing showrooom.
Q: How many DMX universes or DMX channels for the console lighting controller ?
A: Please consout us.
Q: Does the grand lighting console support Midi in and out?
A: Yes.
Q: Does the DMX light controller working with MA console faderwing?
A: Please consult us.
Q: Is the faders motorized or manual of the lighting table?
A: Motorized faders.
Q: Could you do the fixture library of your light board for customers?
A: Yes, free of charge.
