Cheap Factory Price gluer full automatic box folder machine gluing
- Category: Printing Machine >>>
- Supplier: Huizhou Degang Machinery Co. Ltd.
Share on (62506548798):
Product Overview
Description
Product Description
Product Description
High speed automatic folder gluer

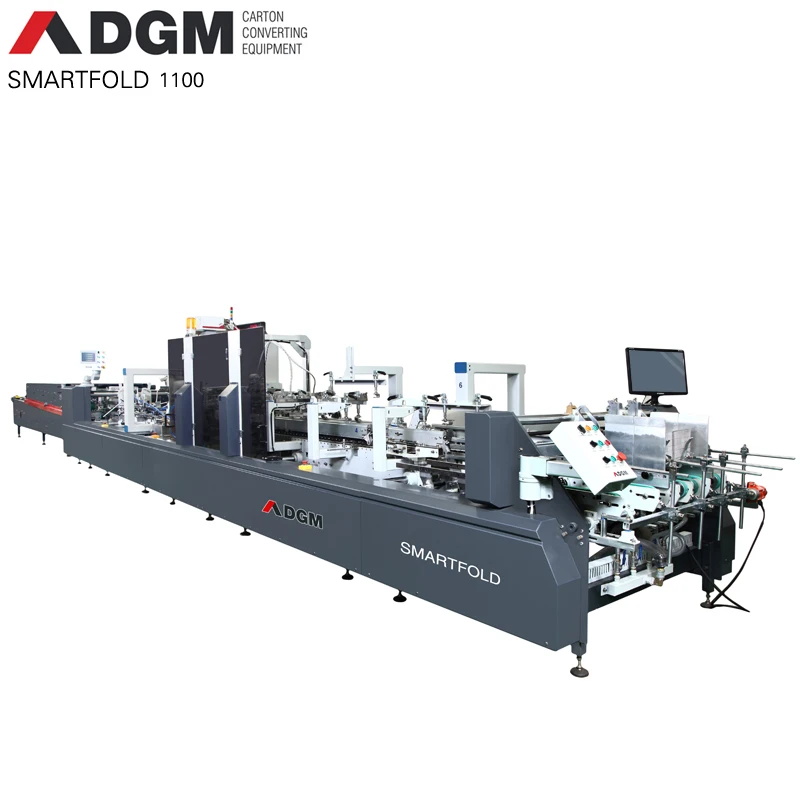

SMARTFOLD 1100 – PC

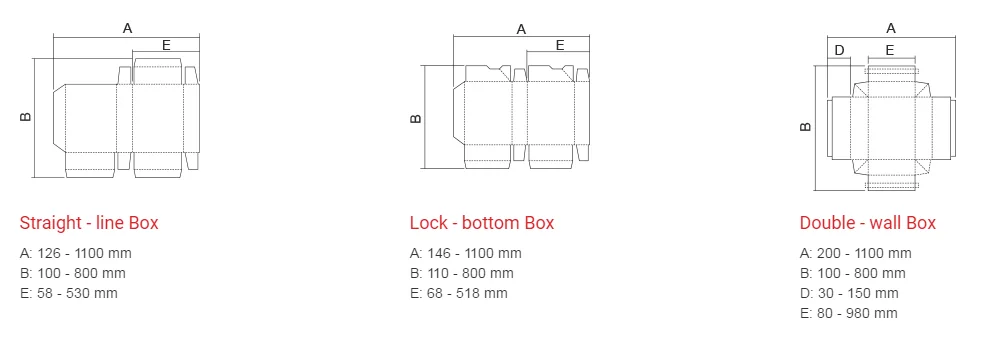

suitable for straight-line, crash-lock bottom & double wall boxes
SMARTFOLD 1100 – SL

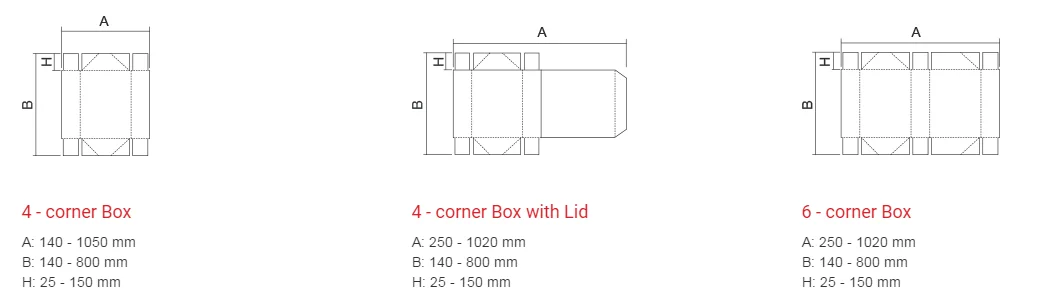

suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD 1100 It is specially indicated for the most demanding packaging companies, commercial printers and finishers. Can run from small to large sized boxes, covering a wide range of industries. It is flexible to operate and it comes with a state of the
art technology and electronics. The standard version includes the accessories for straight line and crash lock bottom boxes. It is
flexible and easy to operate
suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD 1100 It is specially indicated for the most demanding packaging companies, commercial printers and finishers. Can run from small to large sized boxes, covering a wide range of industries. It is flexible to operate and it comes with a state of the
art technology and electronics. The standard version includes the accessories for straight line and crash lock bottom boxes. It is
flexible and easy to operate

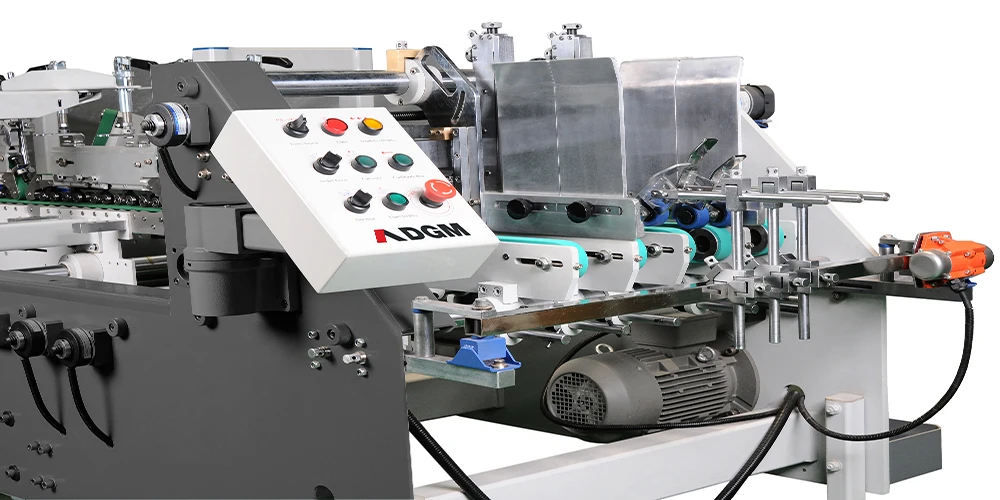

1. Feeder section
* Independently motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.

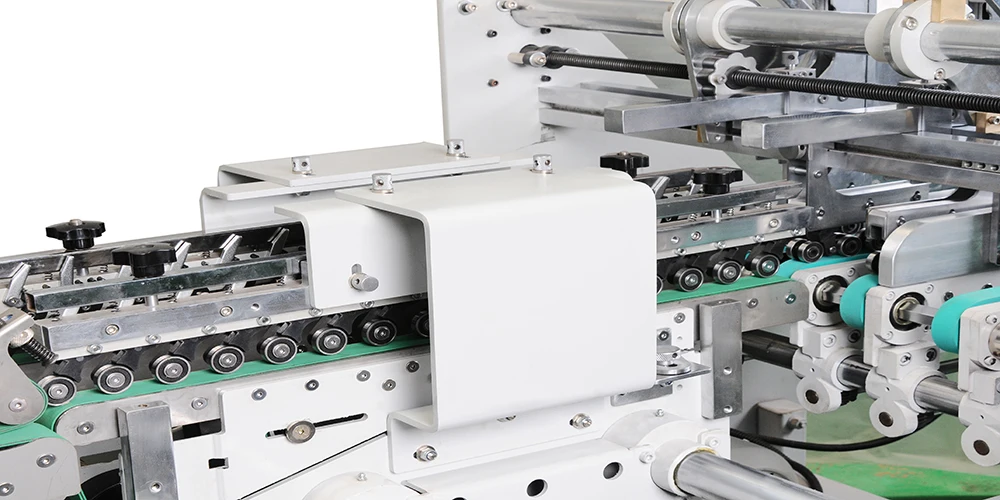

2. Side register section
* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.
alignment.
3. Pre-folding section
* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
4. Crash lock bottom section

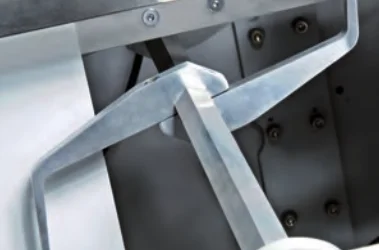

* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accessories for B-type lock bottom.
* Set of accessories for B-type lock bottom.
5. Lower gluing unit
* One lower (left side) gluing tank.
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)

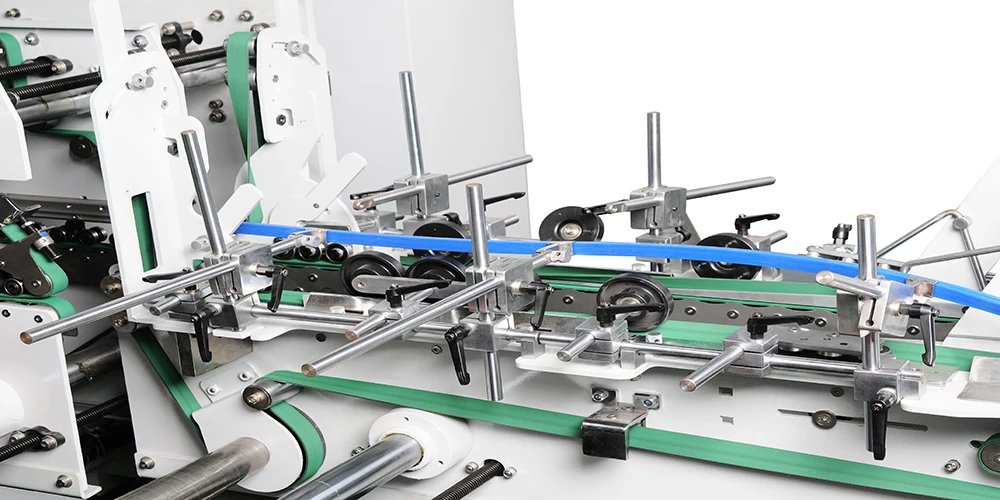

6. Folding & Closing section
* Smooth and accurate folding of 2nd and 4th creases.
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).

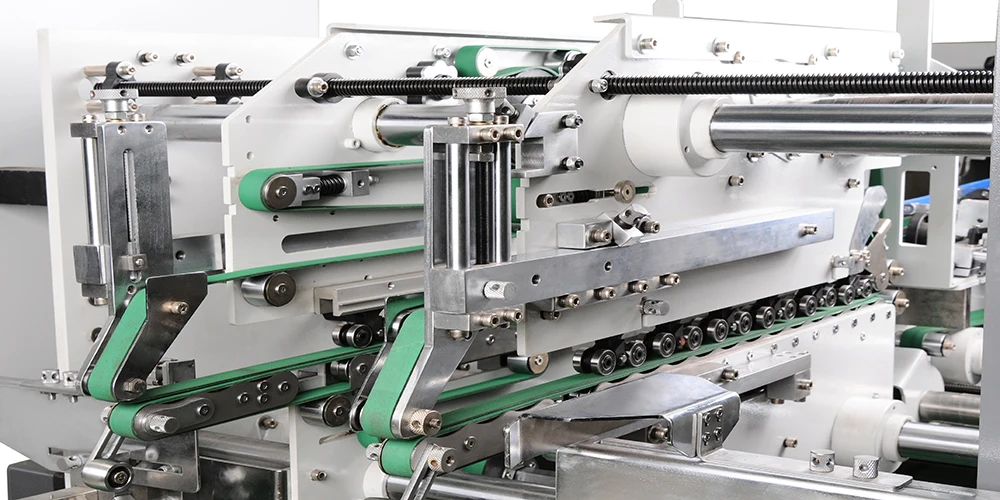

7. Trombone section
* Upper and lower drive mechanism for lengthwise adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.

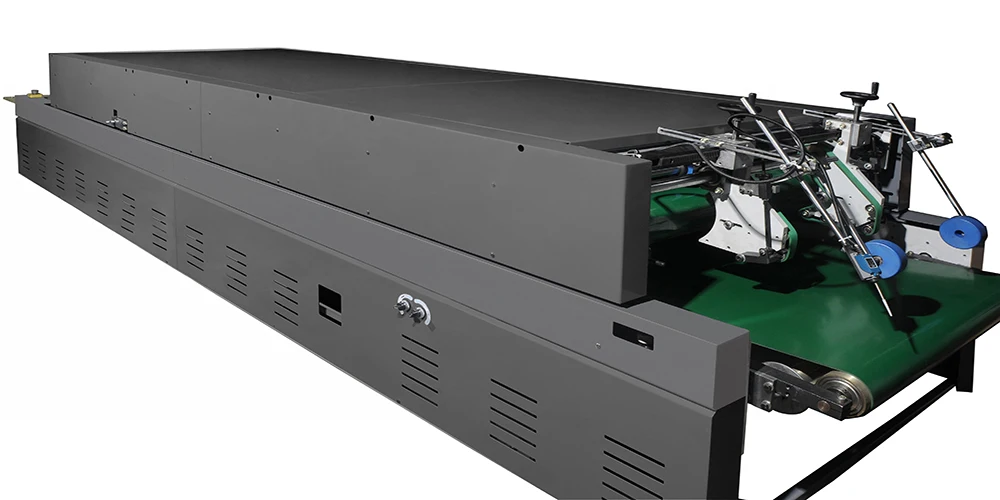

8. Press section
* Independent and motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.

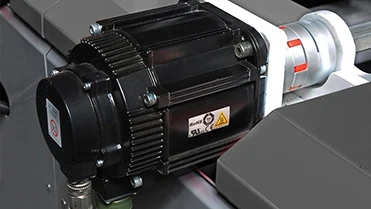

9. Servo-motor of back folding device
* Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.
Material
