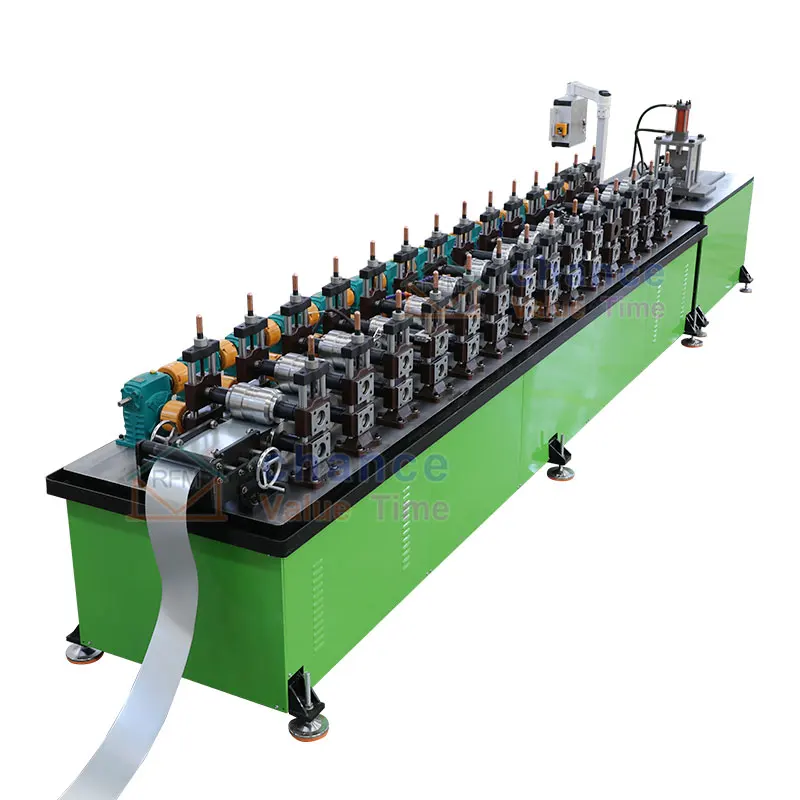

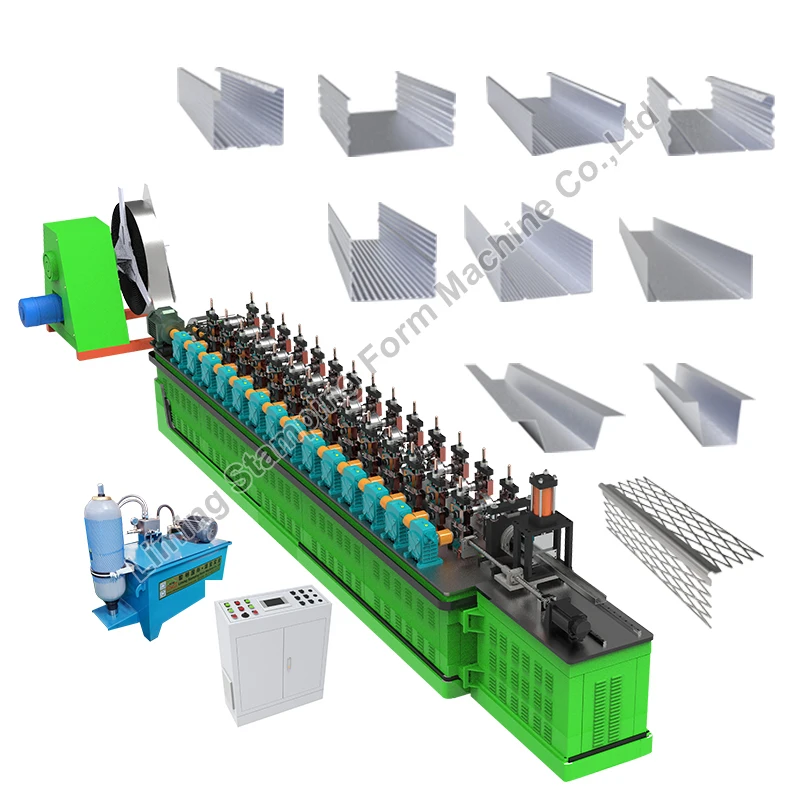

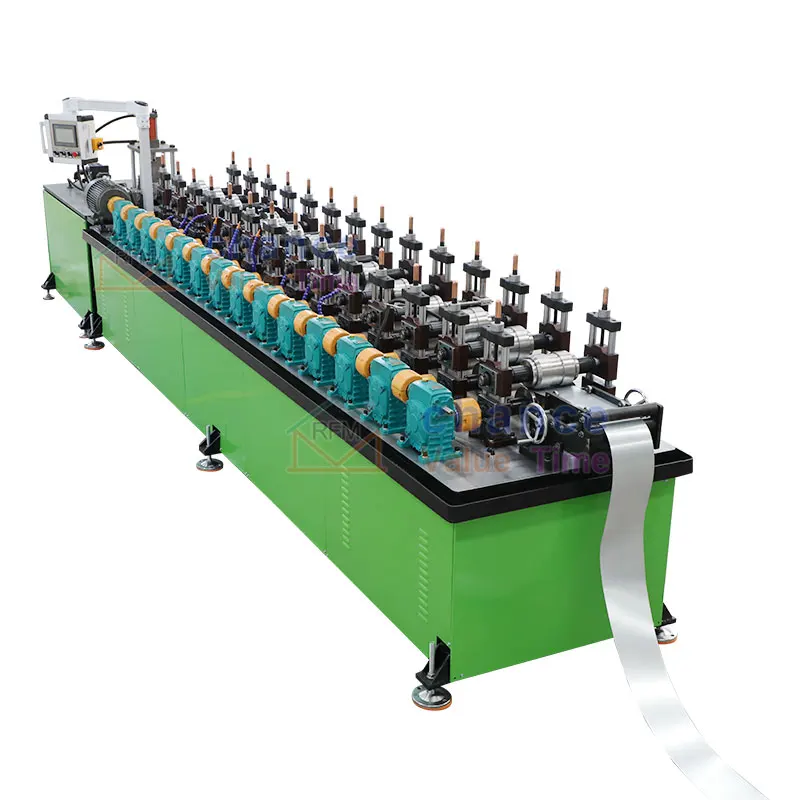

Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine
Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine
Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine
Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine
Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine
Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine
Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine

Liming cold roll forming machine steel C channel machine metal Furring Channel Roll Forming Machine

Share on (62507105458):


Price:$8,500.00 - $16,500.00

Quantity:


Product Overview

Description




We are a production factory with 28 years of experience.
Contact us for the latest discounted prices!


The complete production process is the basis for your choice of machine


Machine attributes

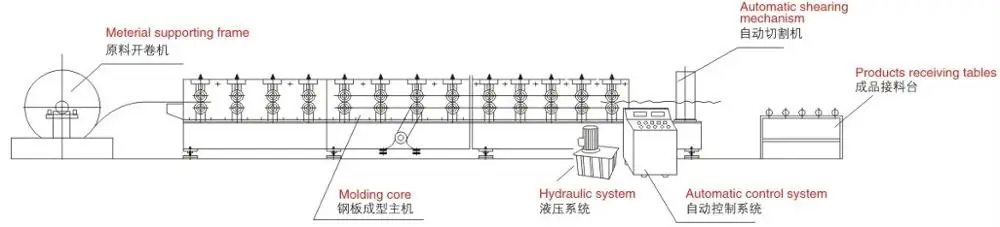

Uncoiling — Material Feeding — Roll Forming — Step Making — Automatic Cutting — Products Receiving




Stud and track roll forming machine configuration components
Name
Quantity
Units
Part details
Item Name
Specification
Material
Raw material
Galvanized steel
Thickness
0.3-0.8 mm
Machine
Roller station
12-14
Shaft diameter
55 mm
Shaft material
45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC
Cr 12
Machine size
About 6×1×1 m
Machine weight
About 3.5 ton
Machine color
As customer' request
Working speed
50 - 120m/min
Cutter
Hardness
50-65 HRC
Cutting tolerance
± 1 mm
Material
Cr 12
Operate
Hydraulic cutting
Power
Driving way
Gear box drive or Chain
Main power
7.5 kw
Pump power
4 kw
Voltage
380v/50HZ,3P or customize
as customer' request
Control system
PLC brand
Delta made in Twaiwan
Screen
Delta Touchable screen
Language
Chinese and English or add language as customer need
Decoiler
Operation
Manual
Weight capicatity
3 ton
Price
Free as gift

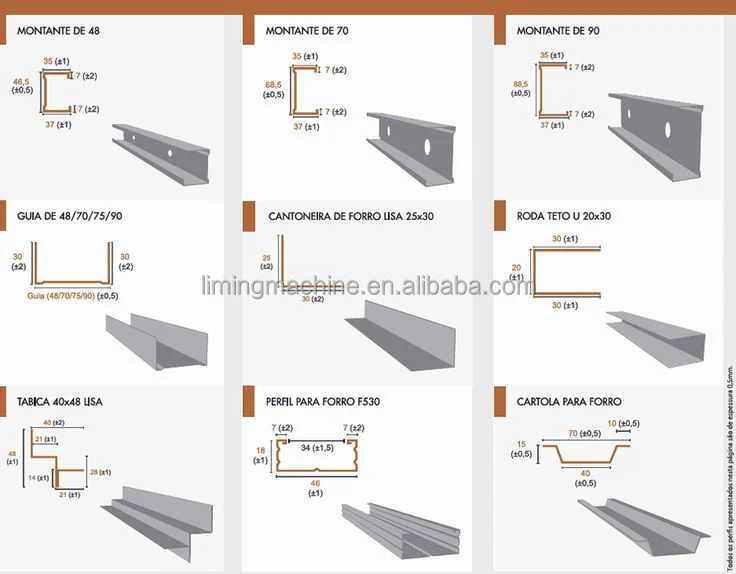

Choice of standard EU size or custom size

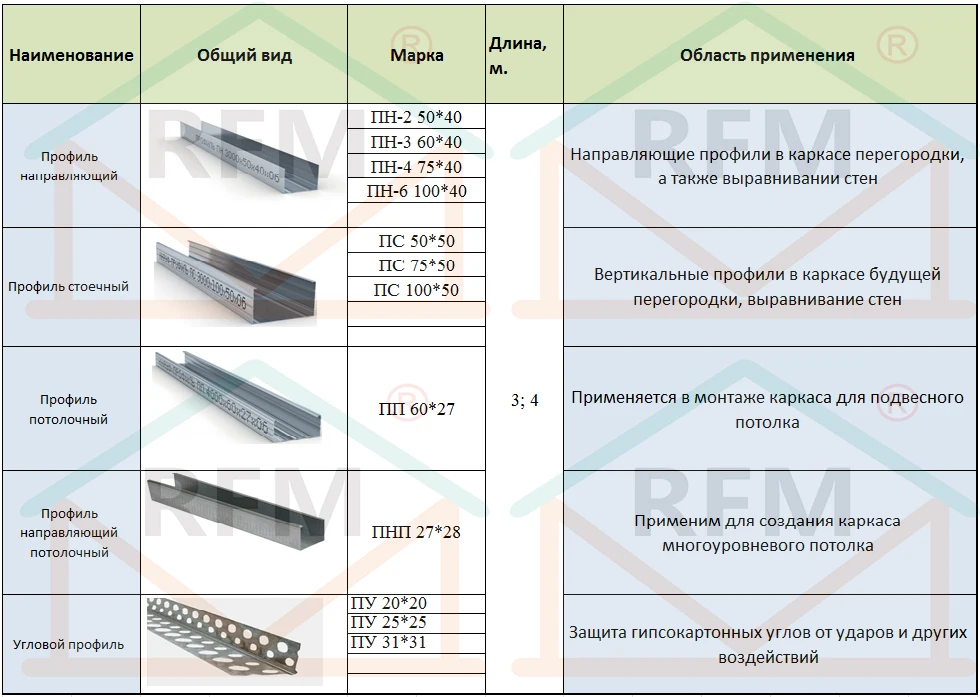

South American size

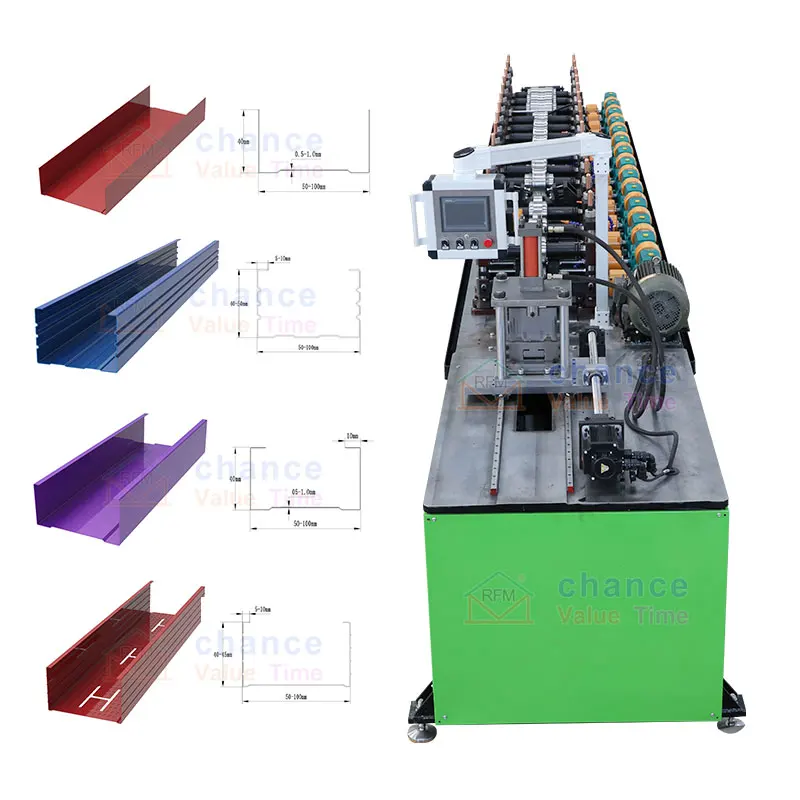

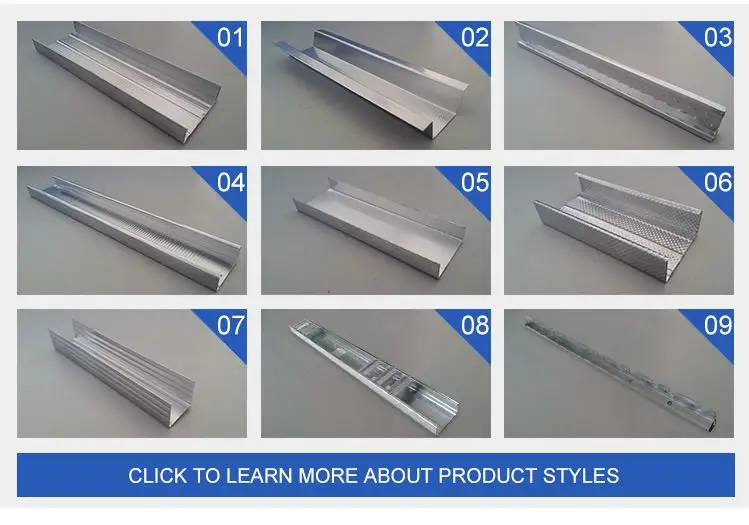

More profile options

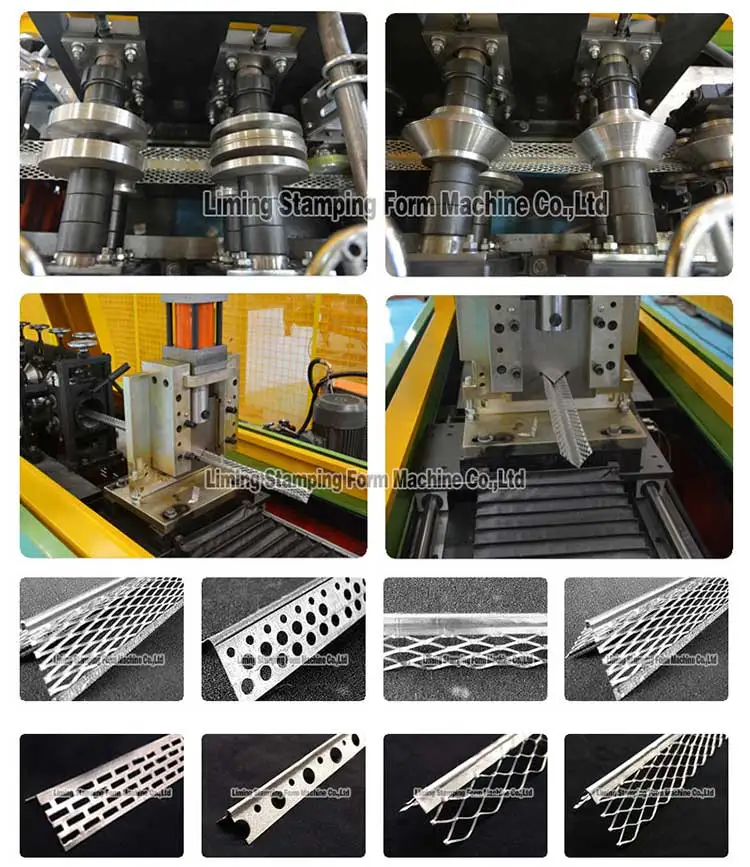

1. Angle bead roll forming machine


Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine
Corner bead forming machine sells well in many countries, the common version outline is as above, the size includes 20*20mm, 25*25mm, 27*27mm, 30*30mm. Product thickness is usually between 0.3-0.6mm

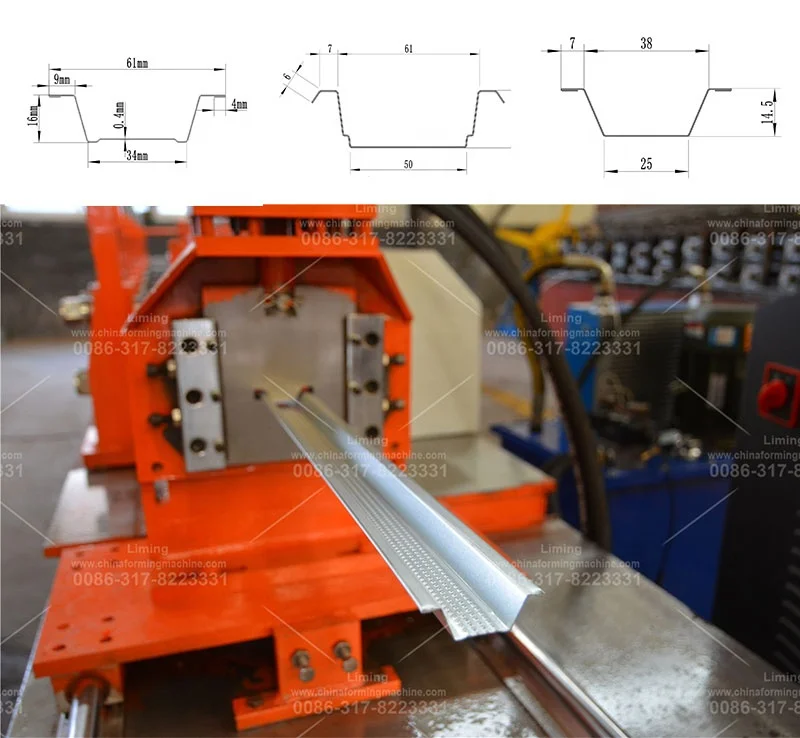

2. Omega profile roll forming machine


Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.7 mm, we sell a large number of such machines to Peru, Mexico, UAE, Chile, South Africa, etc. and sell well in this region

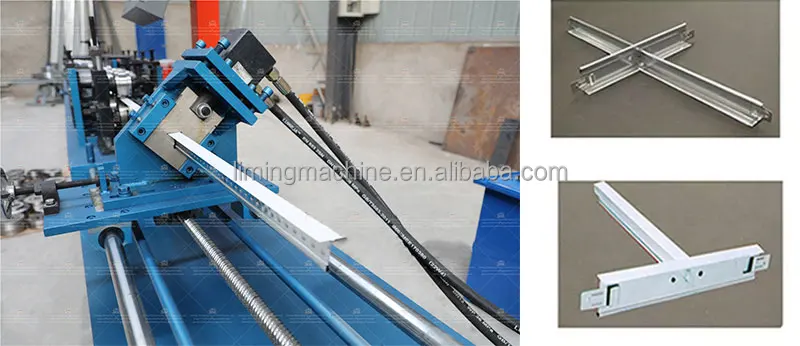

3.T grid roll forming machine


Spring T grid machine |T bar rolling machine | Main T machine | Cross T ceiling keel machine
T grid roll forming machines are popular in many countries, the common size：
Main grid roll forming machine: 24x38, 24x32, 14x32
cross grid roll forming machine: 24x28, 24x25, 14x25


4.Cassette universal keel forming machine


Universal ceiling keel machine, cassette keel forming machine
Cassette keel partition wall has the functions of light weight, high strength, waterproof, shockproof, dustproof, sound insulation, sound absorption, constant temperature, etc.


Customer visits factory




More products






Company Profile




Certifications




Our Service

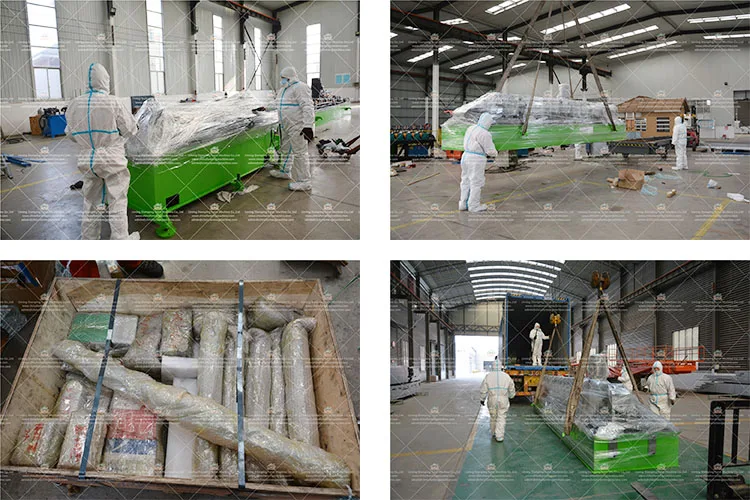

Packing&Shipping


Strict control during the pandemic period, do not delay customer delivery




FAQS


Q1. How do I choose the right machine for me?
1. A machine doesn't just provide a few photos to prove what they can produce
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.

Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.

Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.

Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life.
The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.

Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee

Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
