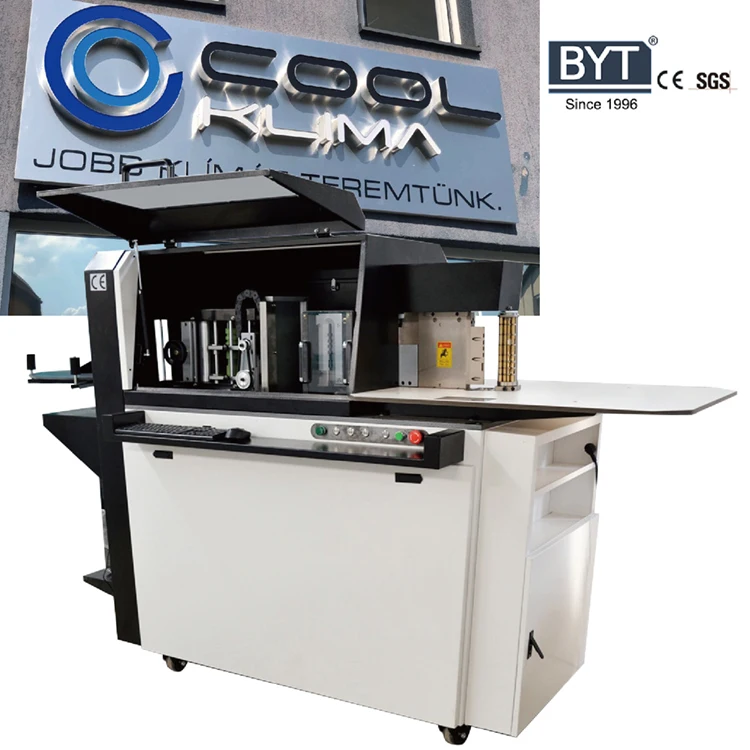

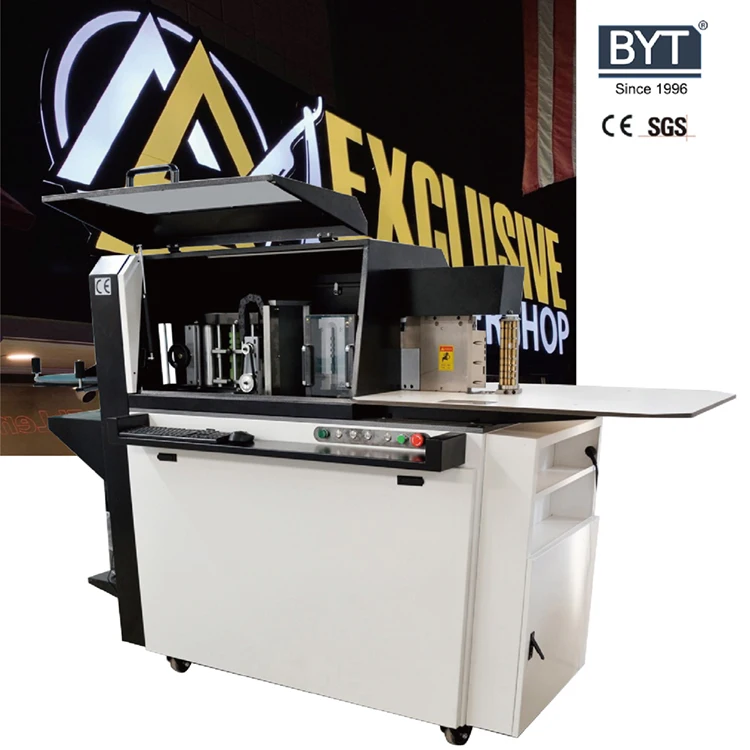

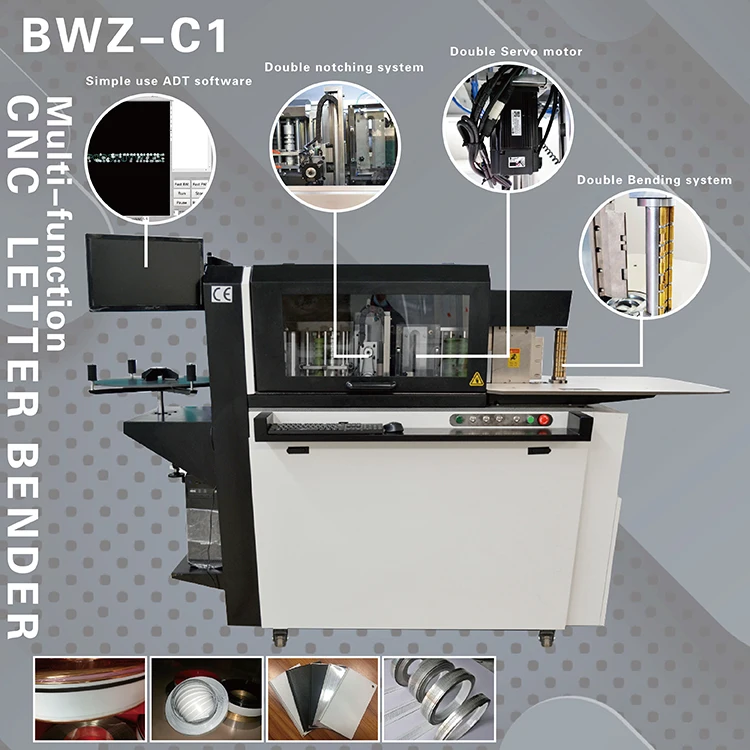

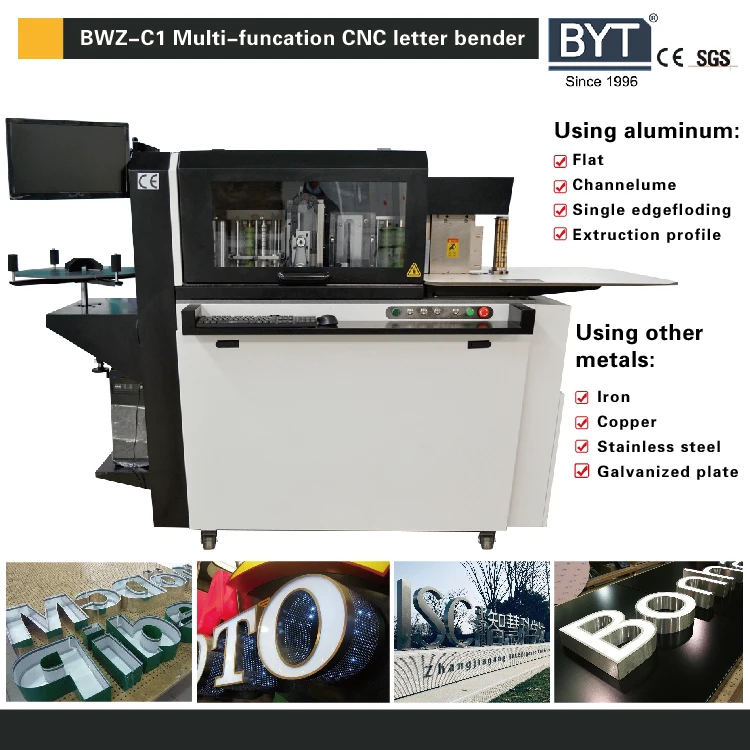

3D Automatic Led Light Cnc Channel Letter Bending Machine Price For Sale
- Category: Machine Tool Equipment >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (62509476771):
Product Overview
Description
Products Information
Channel letter bending machine parameter | |
Model | BWZ-C1 |
Working Principle | High precision automatic feeding,trimming,notching and bending |
Processing Materials | Flat Stainless steel ,Aluminum profile ,Iron &Copper plat and Floding Aluminum profile |
Material Width | 10-160mm |
Material Thickness | Aluminum profile 0.3-1.5mm Stainless steel 0.3-1.2mm |
File format | AI/DXF |
Mini pat radius | R≥3.5MM |
Mini extrusion Radius | R≥7 MM |
Peak Power | 2000W |

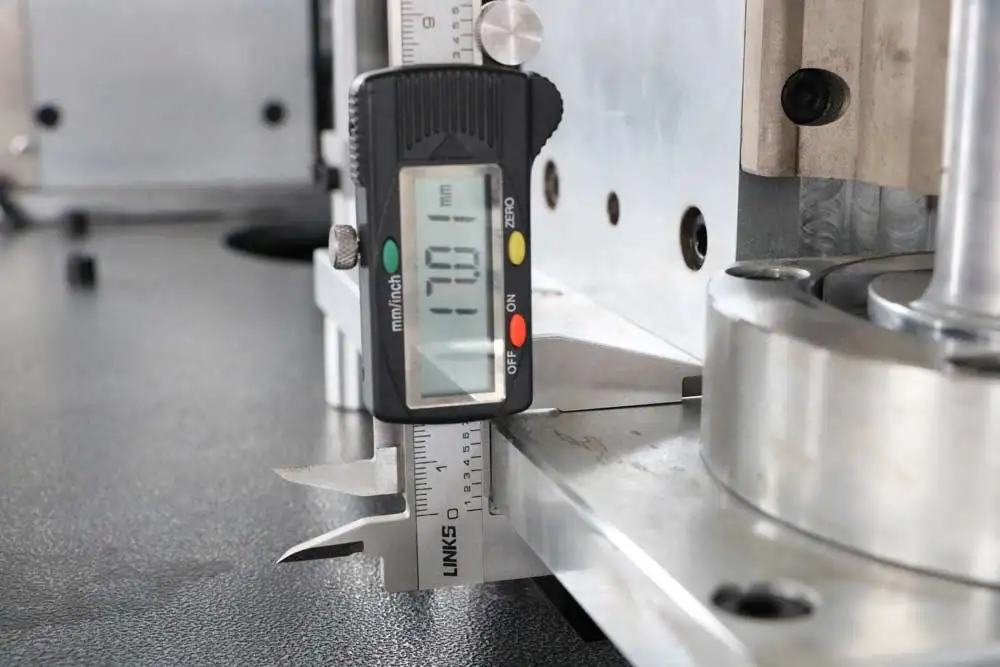

Length Accuracy | 0.1mm/meter |
Feeding Torque | >45Nm |
Planer Slotted Torque Peak | >30Nm |
Arc Bending Torque Peak | >100Nm |
Working Pressure | 0.3-0.6mpa |
Voltage | 220V 50HZ 1P |
Overall Dimensions | 2680*880*1590mm |
N.Weight | 500kg |
Product Advantage
1. Quality Guarantee
Whole machine guarantee 2 years , the motor guarantee 3 years

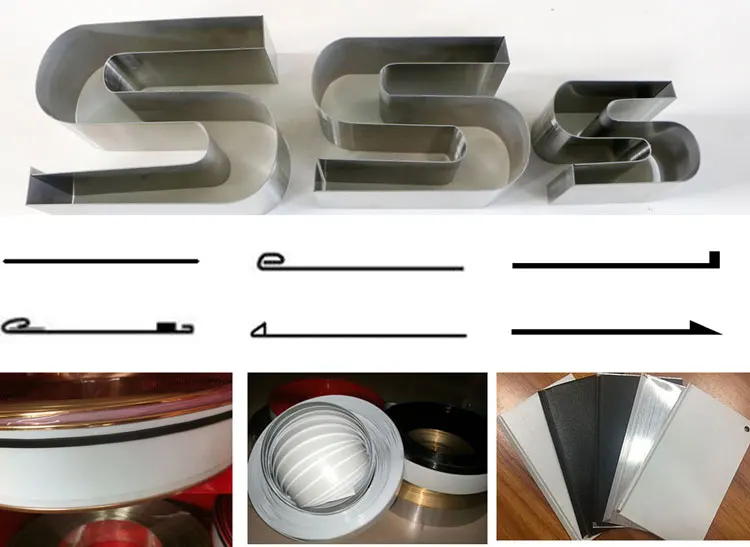

2.Processing material
Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
3.Machining parts 1
All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.Machining parts 2

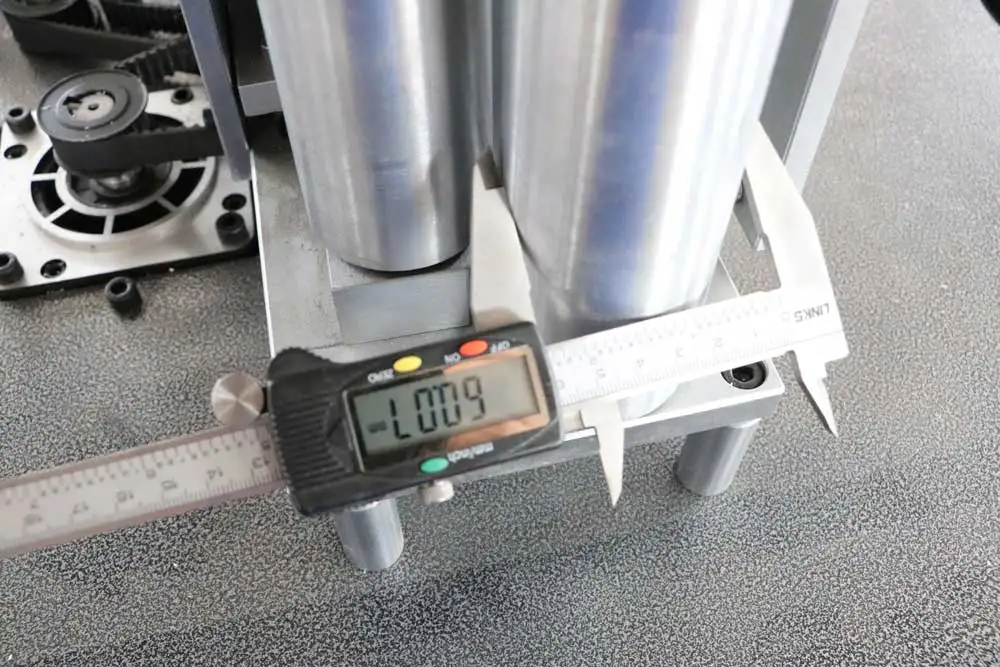

In the overall structure the working platform use 14mm whole plate deal with three times plain grinding finish ,the internal workpiece thickness 17mm,ensures the long-term working stability and accuracy

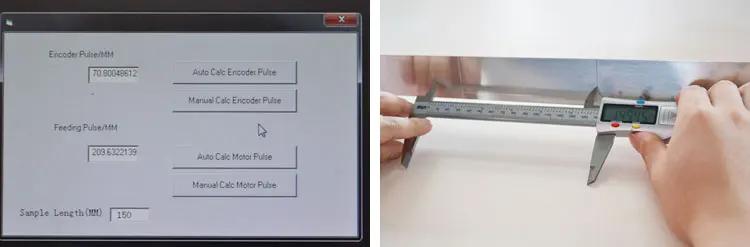

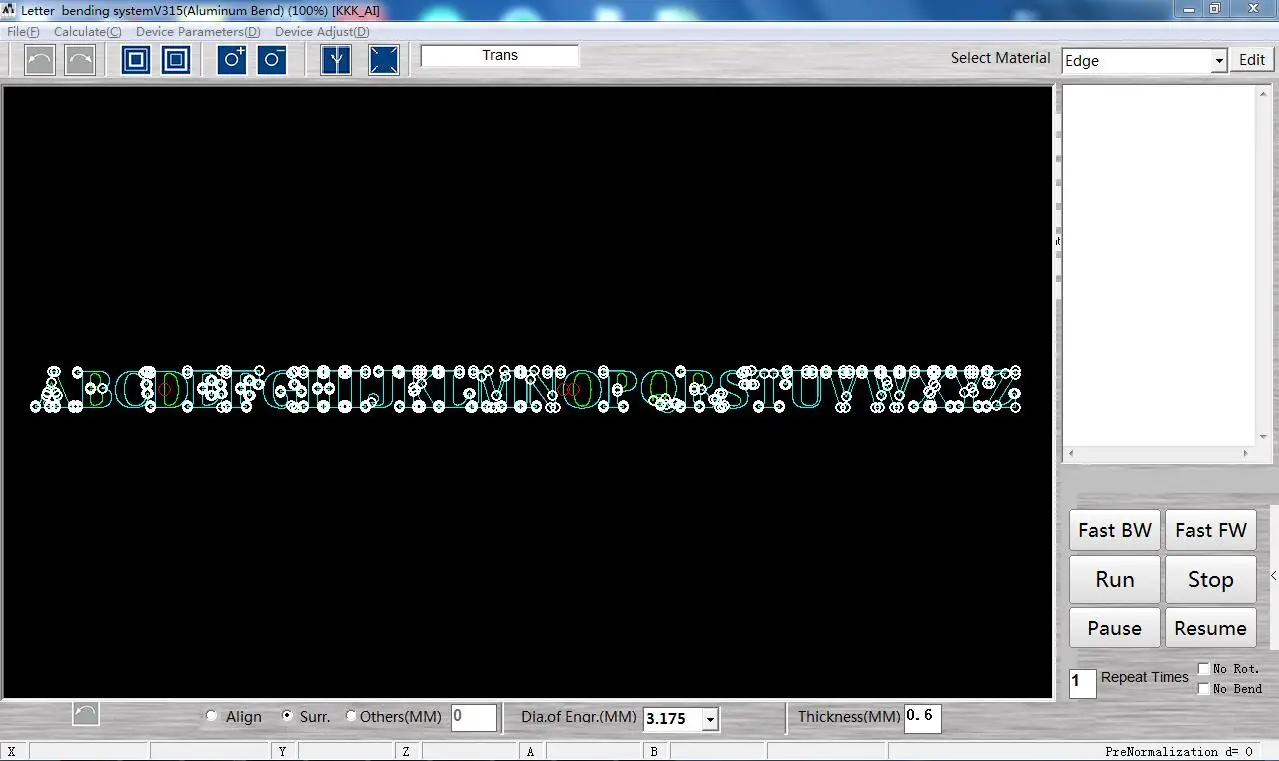

5.Easy operation ADT Control system with Length closed-loop control system
The software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
6.voltage digital display device
The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .
7.Whole machine weight meet 530kgs and more stable.

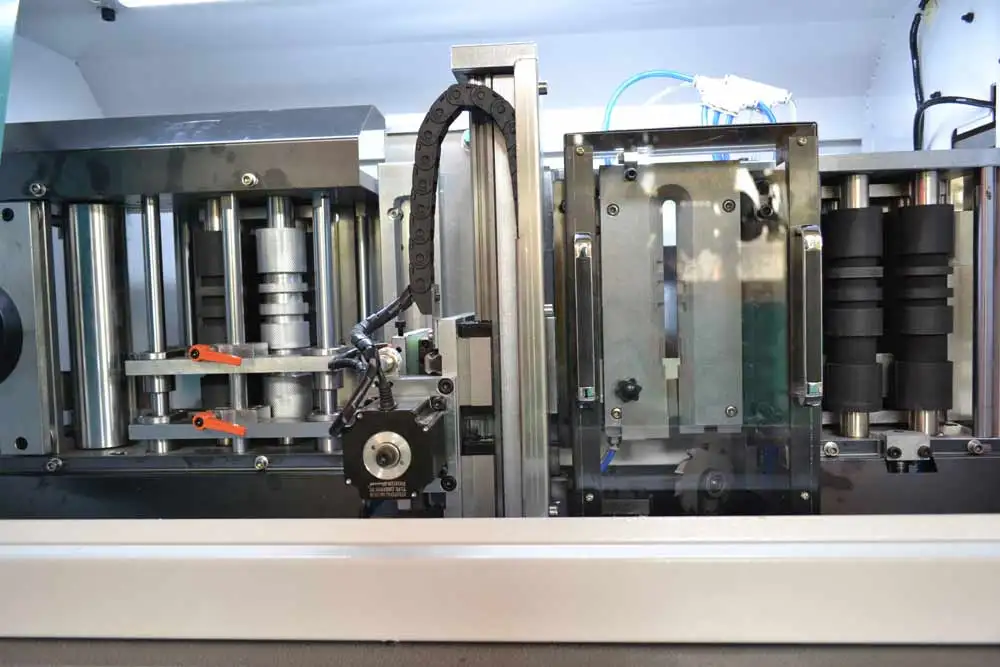

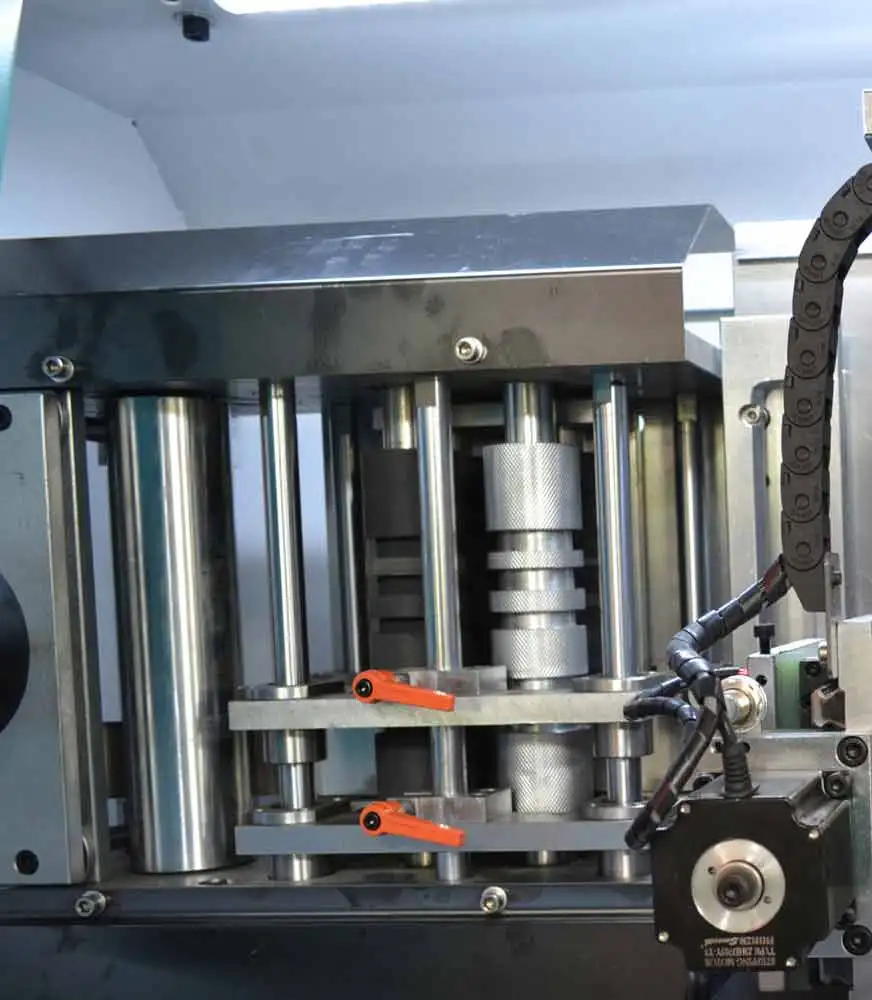

Feeding
1.The feeding roller diameter 45mm and install encoder, the precision and speed is similar as manipulator .
2.Install return material control device which ensure the returned material precision.
3. The guide roll diameter 60mm and ensure the material more straight when feeding.
Aluminum notching

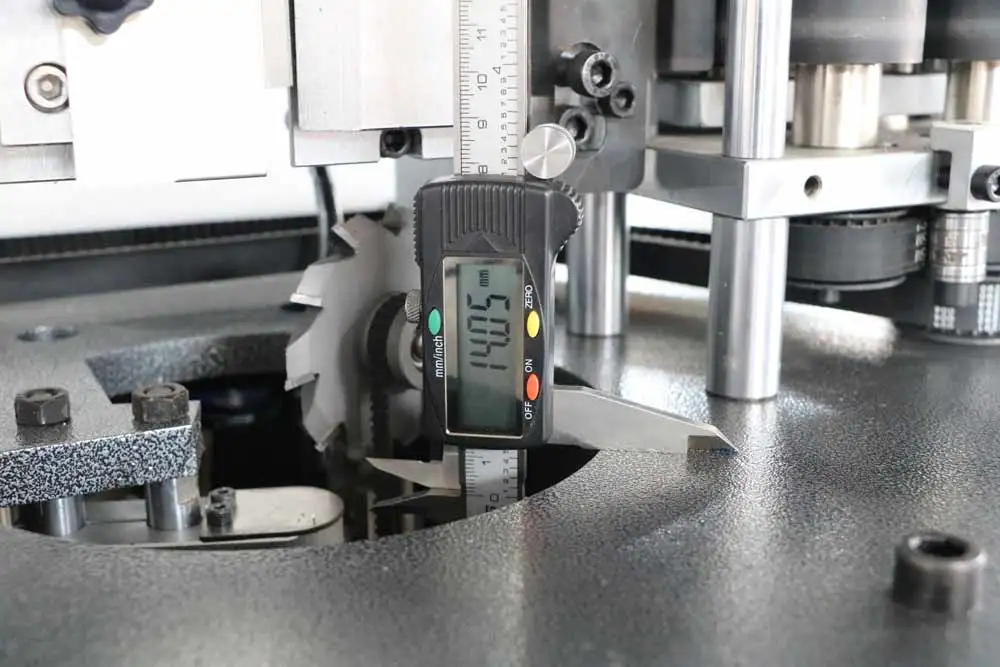

1.Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.
2.Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.
3.Use four-column design ensure the cutting stable and effect.

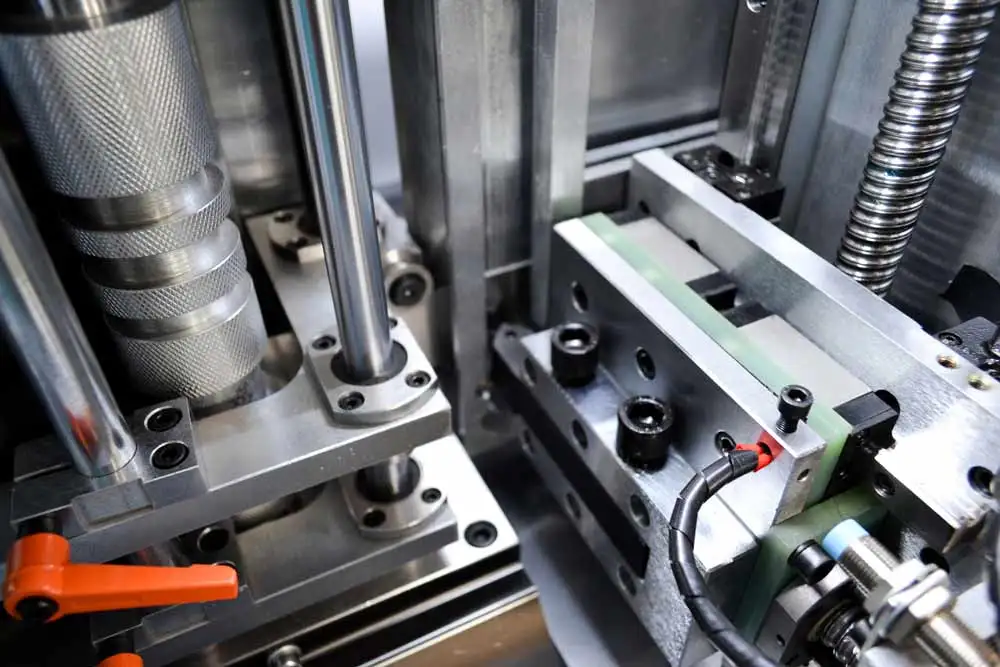

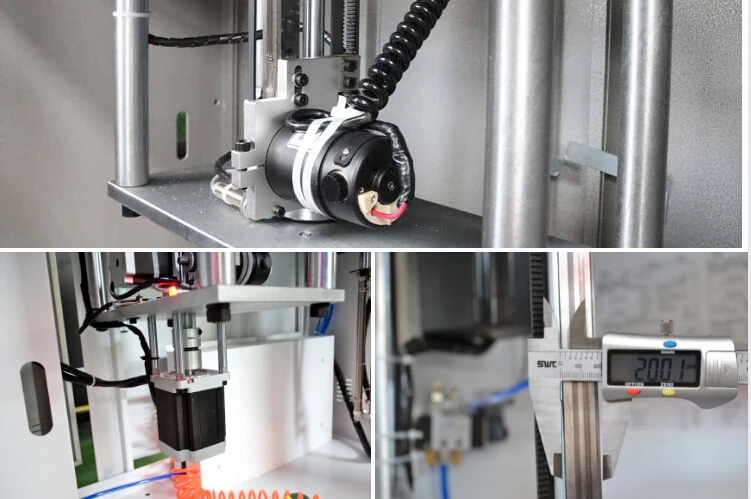

Stainless steel Notching
1.Planer have current induction automatic knife adjustment, very easy finish cutting depth through software ,more precision than manual adjust.

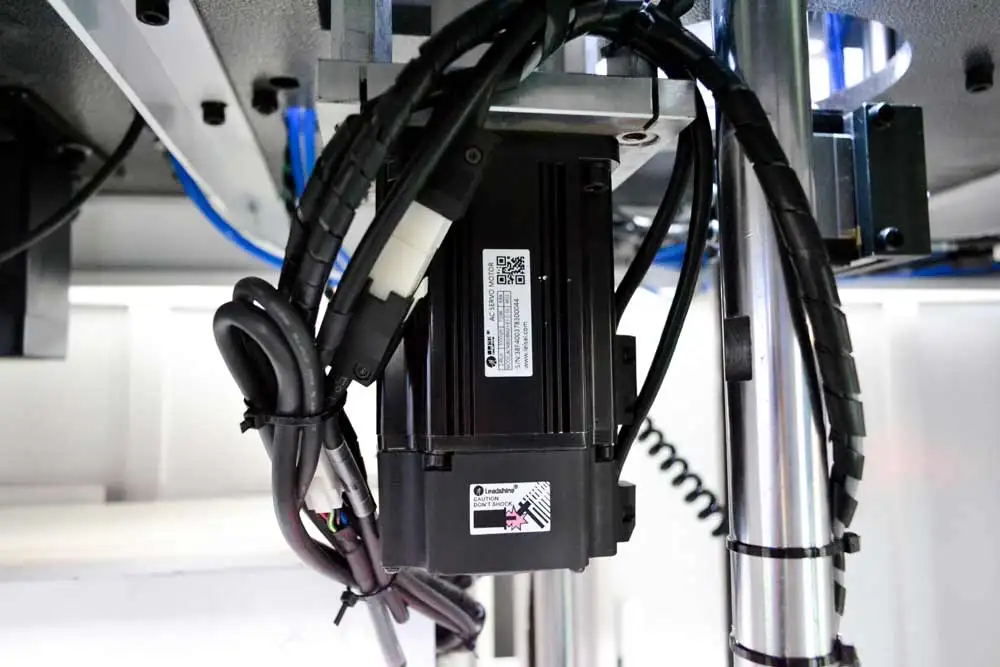

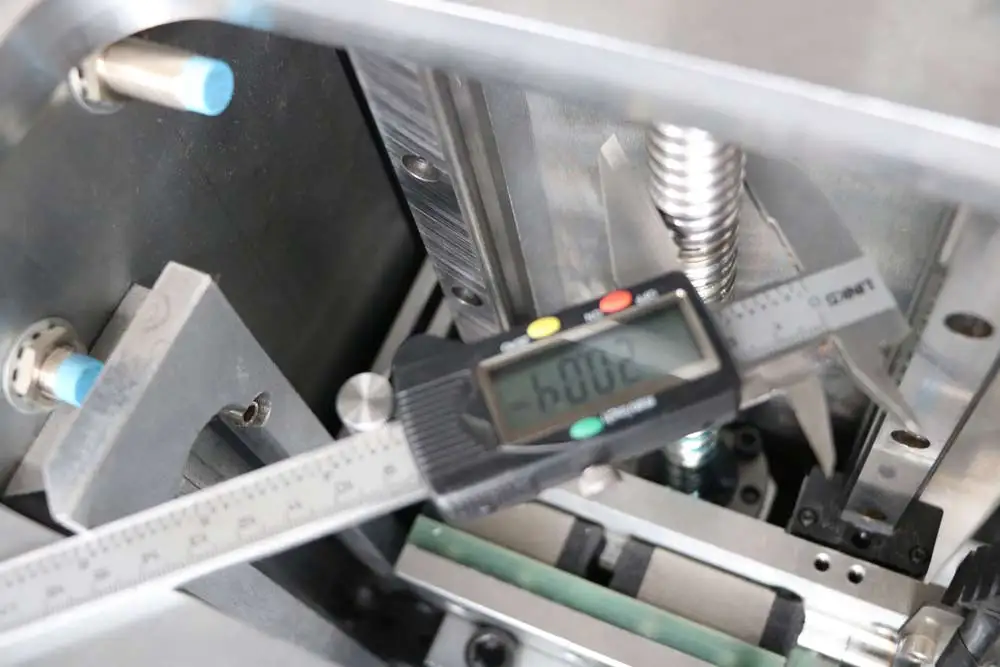

2.Double Japan Fuji Servo motor and driver for cutting and bending , 20mm leading screw, more fast ,stable and high precision . One set bender can service 6sets laser welding working.

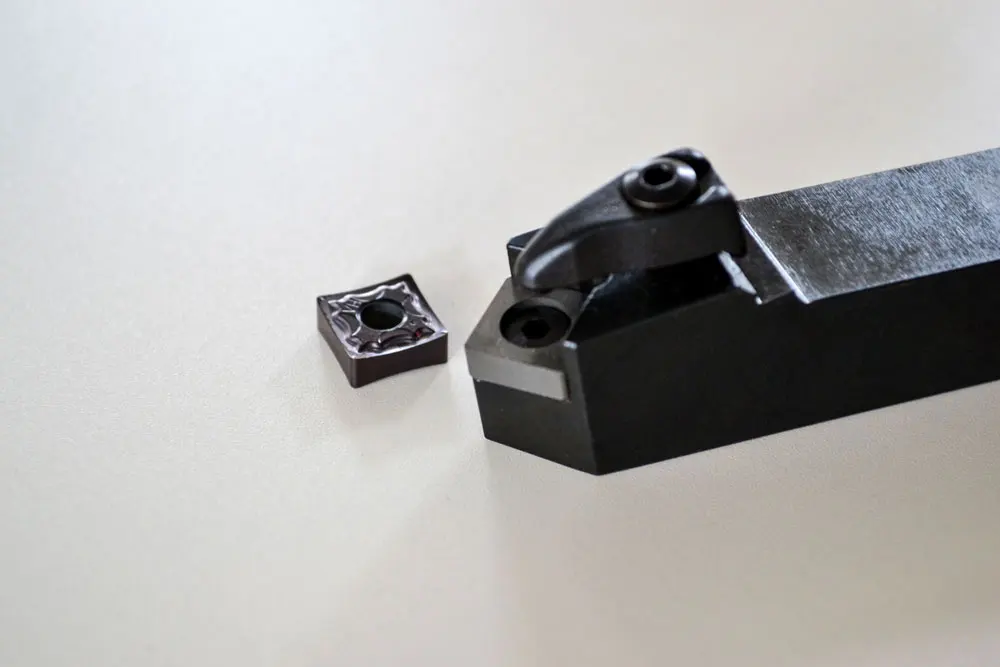

3.The Planner cutter use carbide blade, each blade have 8 sides ,every side can working about 7000 times ,the use cost is very lower and cutting effect is beautiful .

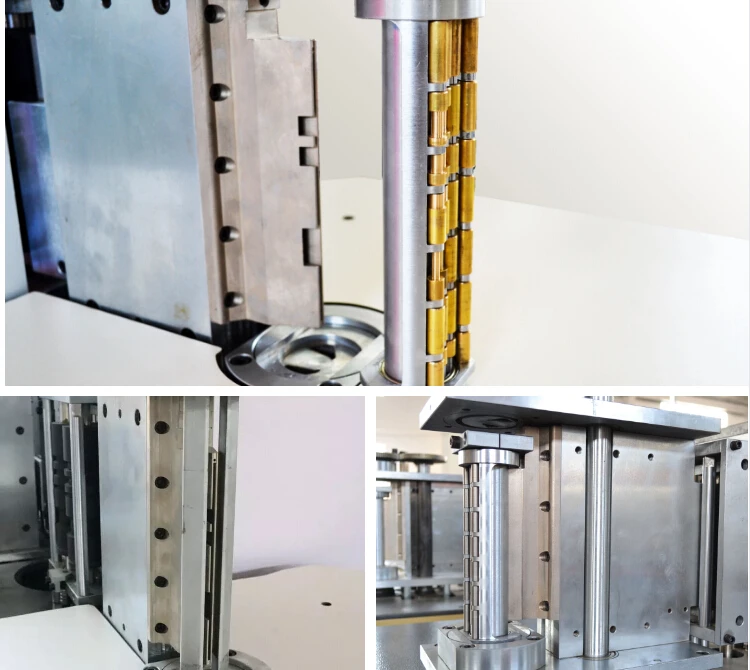

Bending

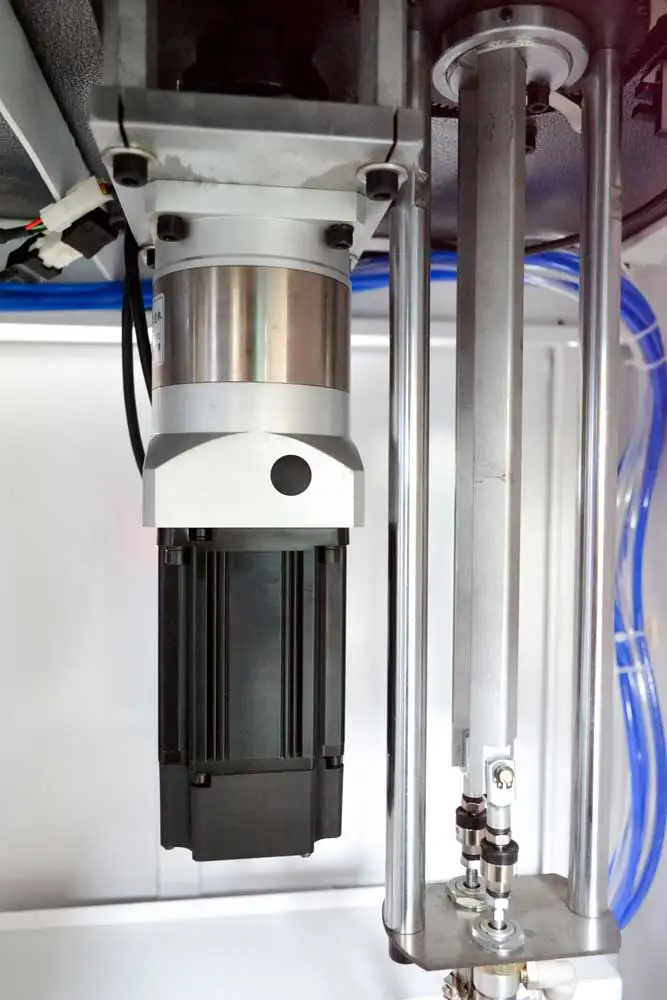

1.Use double arc bender design , lifting arc beating and squeezing, for the bender use one-button disassembly,usually one minutes can finish , improve the working efficiency .
2.At the consistency the lifting arc beating is more better than fixed single axis arc beating ,finish the Stainless steel width can meet 13-16cm . But others only meet 8-10cm.
3.There is two groups grinding gear on arc bending parts ,ensure arc bending accuracy and reduce noise .
Customer Feedback
Click below picture you will find letter bender detail video ,it is our customer recently feedback our CNC letter bending machine and laser welding machine. it is our duty to provide good service to our every customer
Related products
VR
Our Service
Keep Quality and Service Be Our First Responsibility
Sales Service
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

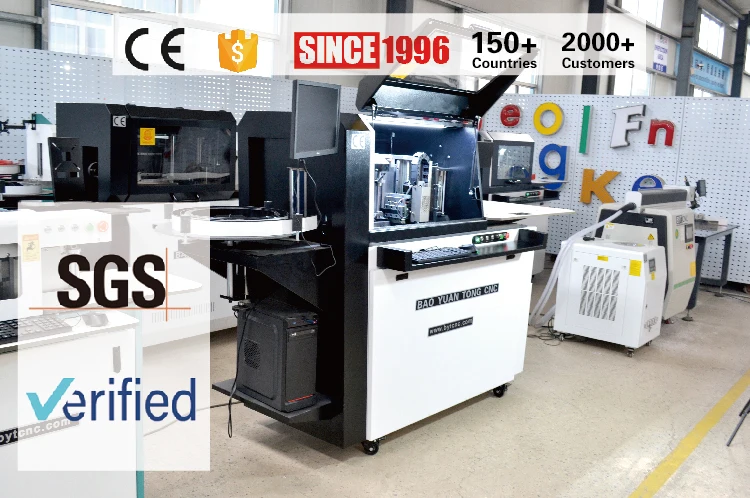

Company Profile
Certifications
FAQ
1. What is Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine More than 5000$, consider
multifunctional one
multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like . When you pay for the deposit , We will arrange producing which about 7-15days delivery .
