DW38CNC*3A1S Automatic steel pipe bending machine price for pipe and tube
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Deyu Machinery Co. Ltd.
Share on (62509478992):
Product Overview
Description
Product Description

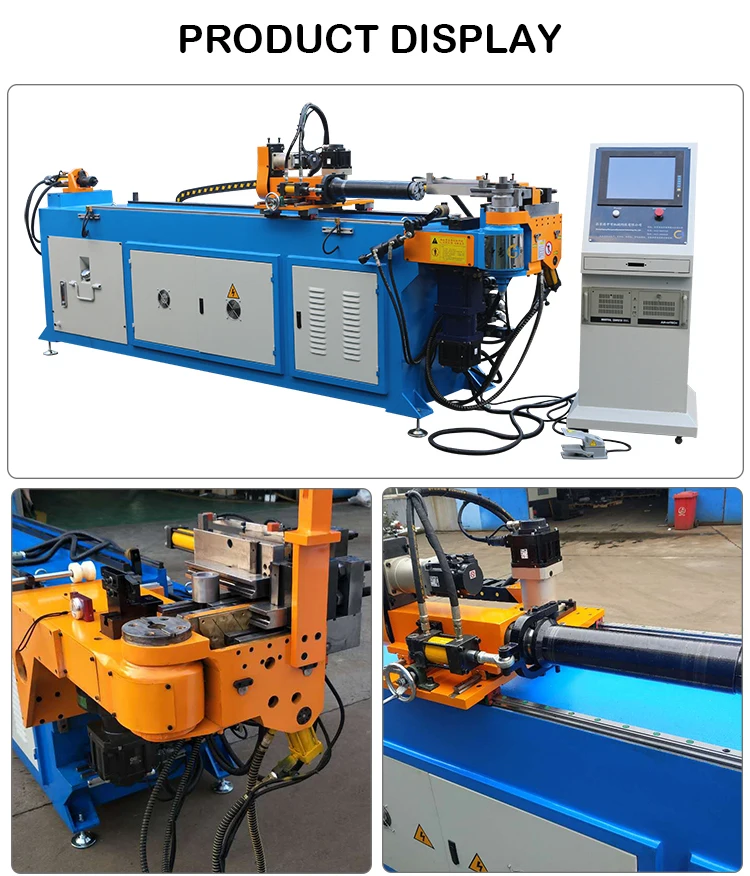

DW38CNC*3A1S Automatic pipe bending machine price
| Model | DW38CNC×2A-1S |
| DW38CNC×3A-1S | |
| Maximum bending pipe diameter x thickness | Φ38mm×2mm |
| Maximum bending radius | R180mm |
| Minimum bending radius | According to the pipediameter |
| The largest bending angle | 190° |
| Maximum feeding length | 2500mm |
| Feeding method | Direct feeding/Clamping feeding/ |
| Working speed | Max150°/s |
| Max200°/s | |
| Max 1000mm/s | |
| Accuracy | ±0.1° |
| ±0.1° | |
| ±0.1mm | |
| Information inputting method | 1.Axis(X Y Z) 2.Working value(Y B C) 3.CAD read |
| Bending method | 1.Servo bending:5KW (more than 3 axis) 2.hydraulic bending |
| Number of elbow bending pipe | 1.16 pieces (PLC type) 2.45 pieces (Industrial PC type) |
| Number of storable parts | 1.1000 groups(PLC type)2.2 million groups (Industrial PC type) |
| Motor power | 4kw |
| Max hydraulic pressure | 12MPa |
| Weight of machine | 1500Kg |
| Measurement size of machine | 3860×720×1230mm |
FEATURES
-This machine adopts PLC control ,plus numerical control module Human-machine interface dialogue,the program steeting simple and easy; industrial computer IPC optional;
-Freely selectable,manual,semi-automatic,slow-bend,slow-pull core functions;feed(Y),rotation(B)for servo control ,and hydrauilc or servo drive for bend(C)
-Program settings,each file can be set to 20 automatic feedings, automatic rotation angle and 20 bend angles,1000 sets of files stored
-in the process of processing ,the touch screen of the mobile controller displays the current value of feed ,rotation,and bending processing. it can also set single-step execution,half-cycle operation,and full cycle operation
-With the funciton of automatic detection of errors and failures,the machine will immediately stop when the abnormal action occurs or any danger exists by giving an alarm ,display the cause of the failure,and help the operator to over come the failure.
