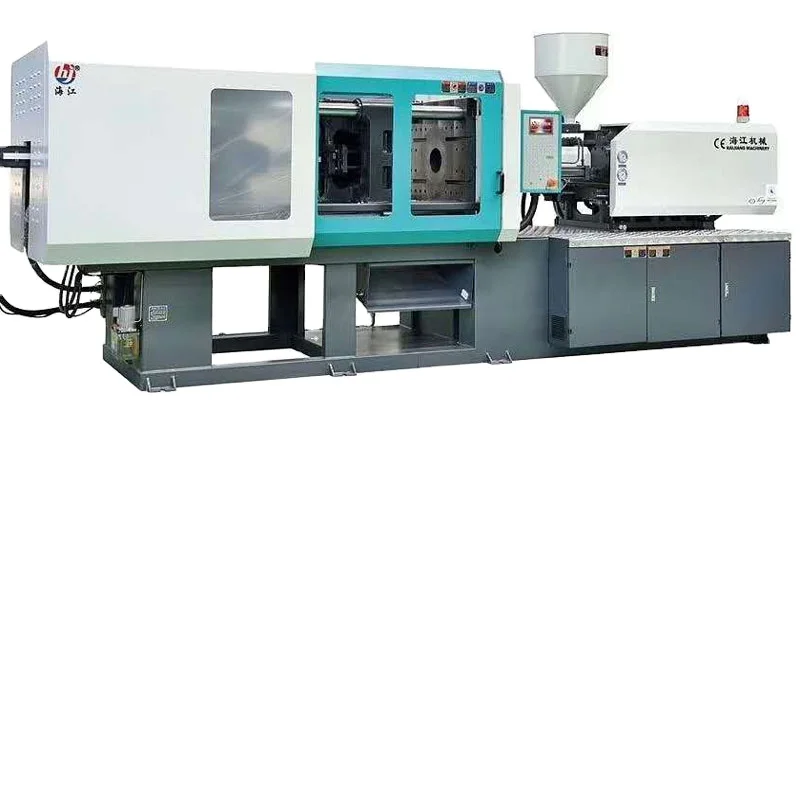

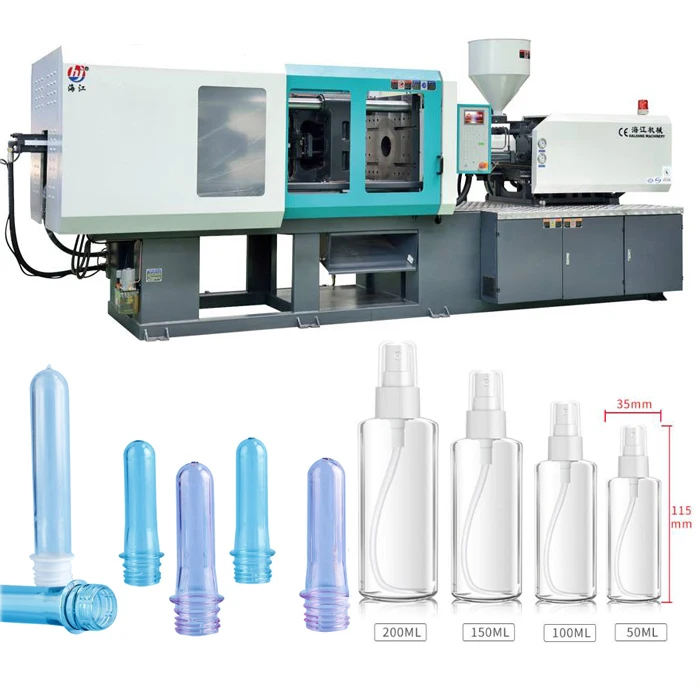

High speed pet preform injection moulding machine

Share on (62514902632):


Price:RUB 758,180.00

Quantity:


Product Overview

Description

High speed pet preform injecttion moulding machine







SPECIFICATION

HJF240

Screw Type

A

B

C

Screw Diameter

Mm

50

55

60

Screw L/D Ration

L/D

22.2

20

18.2

Shot Size(Theoretical)

cm3

508

593

706

Injection Weight(PS)

g

462

534

642

Injection Rate

g/s

148

179

202

Injection Pressure

MPa

180

160.8

128

Screw Speed

rpm

0~180

Clamping Force

KN

2400

Opening stroke

Mm

490

Space Between Tie Bars

mm

530*510

Max.Mold Height

mm

530

Min.Mold Height

mm

200

Ejector Stroke

mm

165

Ejector Tonnage

KN

70

Max.Pump Pressure

MPa

16

Pump Motor Power

KW

18.5

Heater power

KW

11.65

Machine Dimension(L*W*H)

M

5.4*1.5*2

Machine weight

T

7

Oil Tank Capacity

L

340



Company Information

NINGBO HAIJIANG MACHINERY MANUFACTURING CO.,LTD., situated in Ningbo Yinzhou Investment & Innovation Center, coversa land of more than 50,000M2.It was established in 1992 and now employs a staff of more than 500 people. with CE and ISO9001

Haijiang Company is a hihg-tech enterprise specialized in manufacturing injection molding machines that mainly covers dozens of speci?cations with injection shot of 45-2,0000g and mold clamping force of 400-15,000KN. Based on the marrow of the trade gained and through years' accumulation, the company has made constant innovation to ensure the machine quality.Parts built into the machines of defferent mold locking forces are all processed under specialized management. HJF series injection molding machines are developed by Haijiang Company on the basis of a collection of the advantages assimilated from all world famous brand machines with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and thus the design quality of products is secured. The company adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision full automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Its present products such as HJK and KJF series and widely applied in the electronic, automobile and civil industries.
In order to participate in competition in the world market,the company has clustered a group of high quality technical and managerial personnel with innovative spirit by means of optimized combination fo personnel. The company faces the society and users by acting on the principle of pursuit for frst class and sincere service. We will appreciate friends from all circles who have given their concern and support to Haijiang machines with first class products and first class after service.

haijiang machinery.jpg

Customers


Auxiliary Equipment




FAQ
Any questions, welcome to contact us, we ill be always help you and support you.
  • May I know how soon I can get the machine after I transfer the deposit?
    Re:Usually, if the quantity is less than 5 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
  • How long the product warranty period?
    Re:The product warranty period is 12 months.
  • How long have you engaged in this industry?
    Re:We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
  • What kinds of Processing equipment you have?
    Re:CNC laser cutting equipment, CNC plasma cutting equipment, CNC flame cutting equipment, numerical control sheet metal processing equipment, 500 tons of hydraulic press,bending machine etc.
