Lab1st Ex proof rotary evaporator alcohol distiller
- Category: Evaporator >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (62520458984):
Product Overview
Description
Products Description

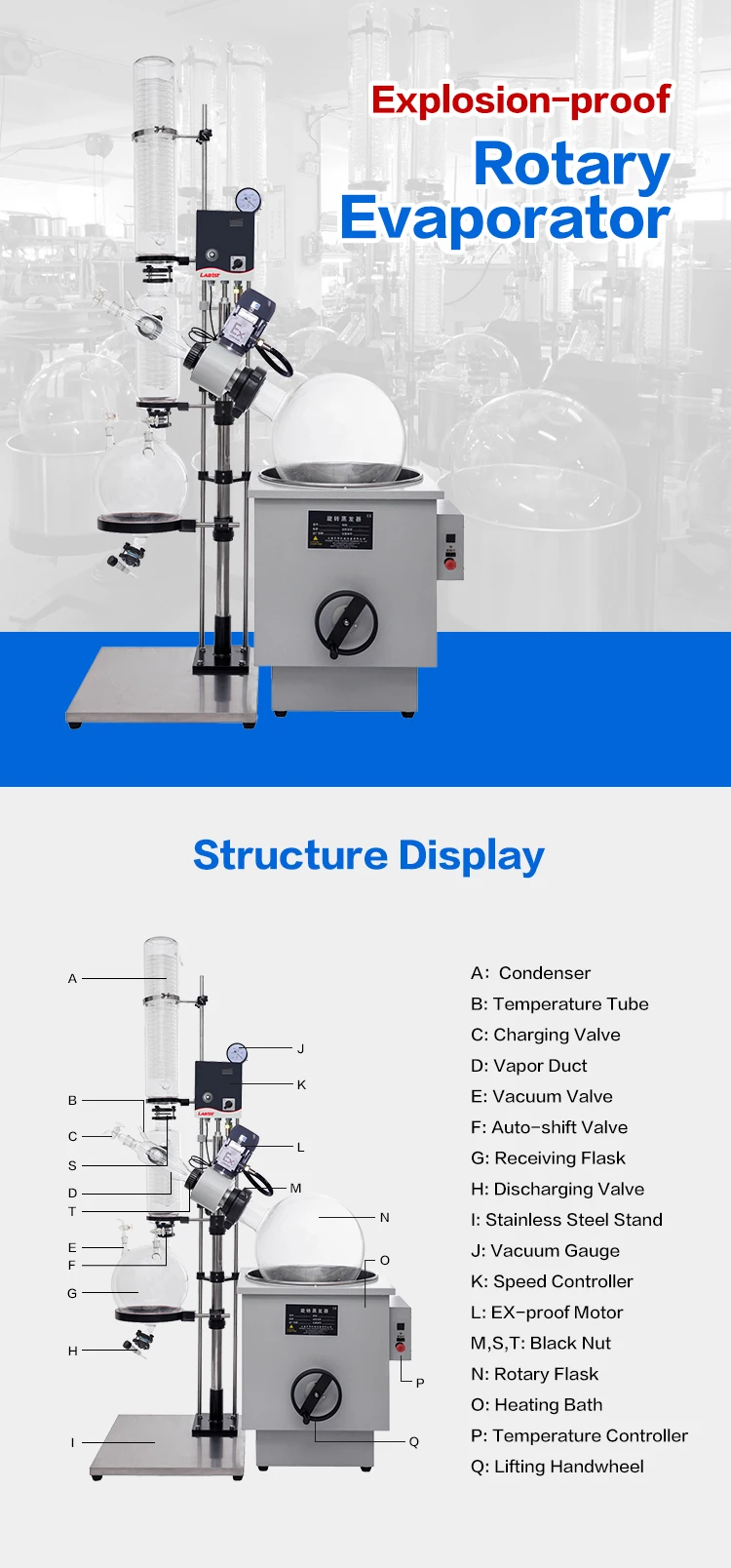

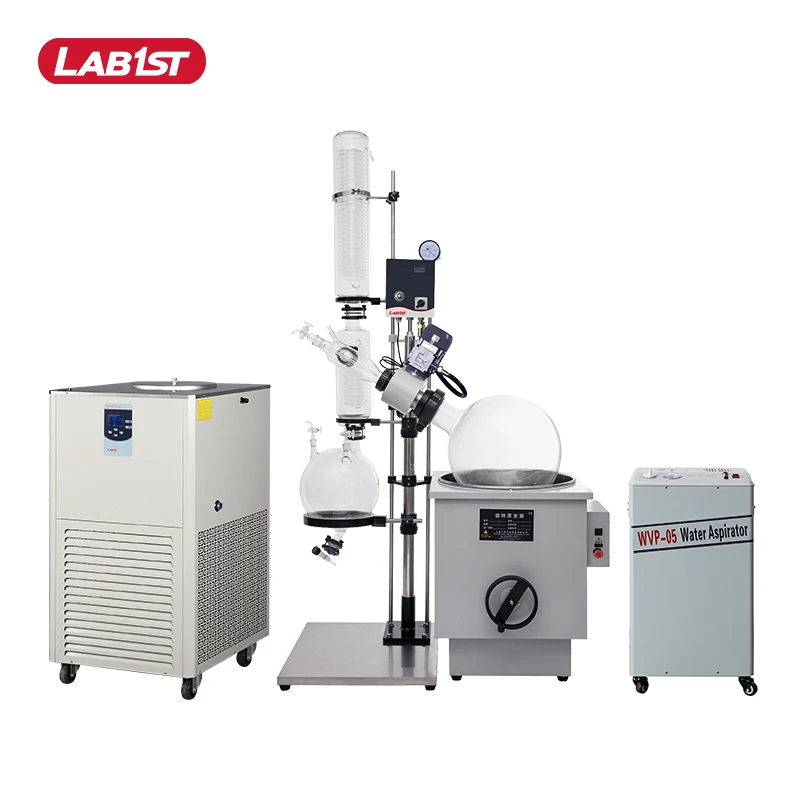

Lab1st Ex-proof Rotary Evaporator
Lab1st rotary evaporator with ex-proof motor is most often and conveniently applied to separate "low boiling" solvents such a n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure.

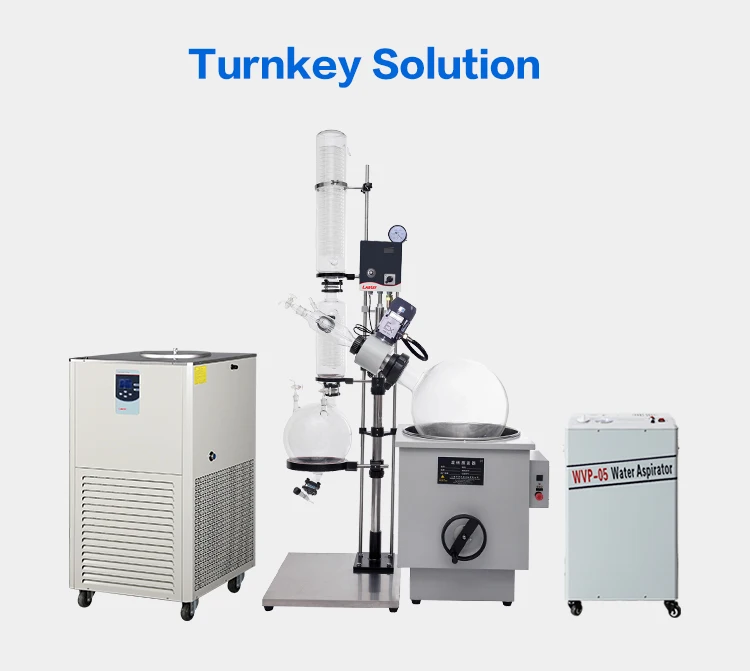

The set up includes rotory evaporator, chiller and vacuum pump.
Product Paramenters
Model | RE-110-EX | RE-120-EX | RE-130-EX | RE-150-EX | |||
Rotary Flask (L) | 10 | 20 | 30 | 50 | |||

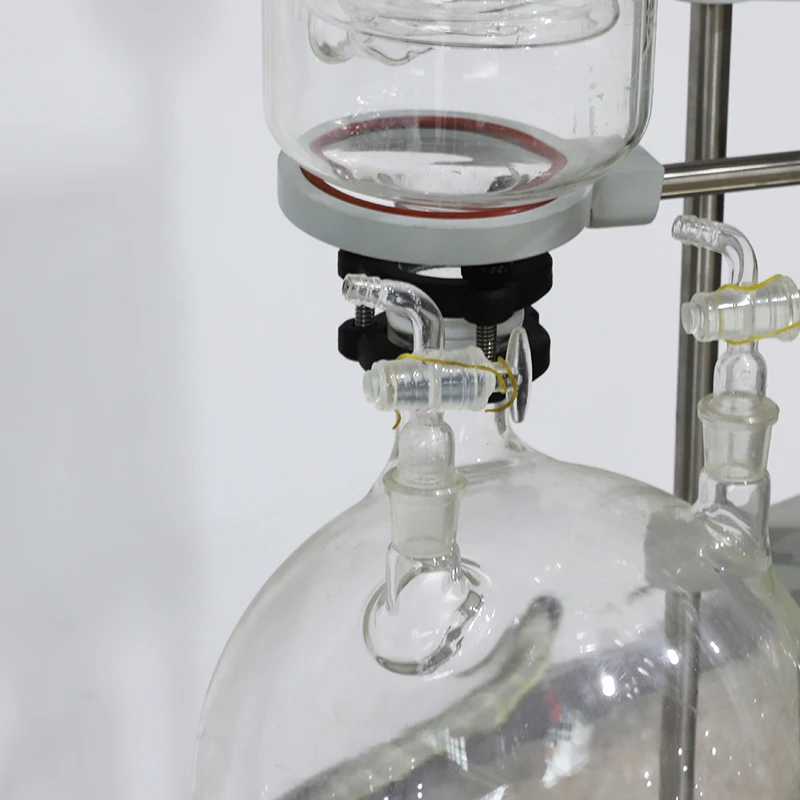

Receiving Flask (L) | 5 | 10 | 20 | 20 | |||
Condensing Area (㎡) | 0.59 | 1 | 1 | 1.5 | |||

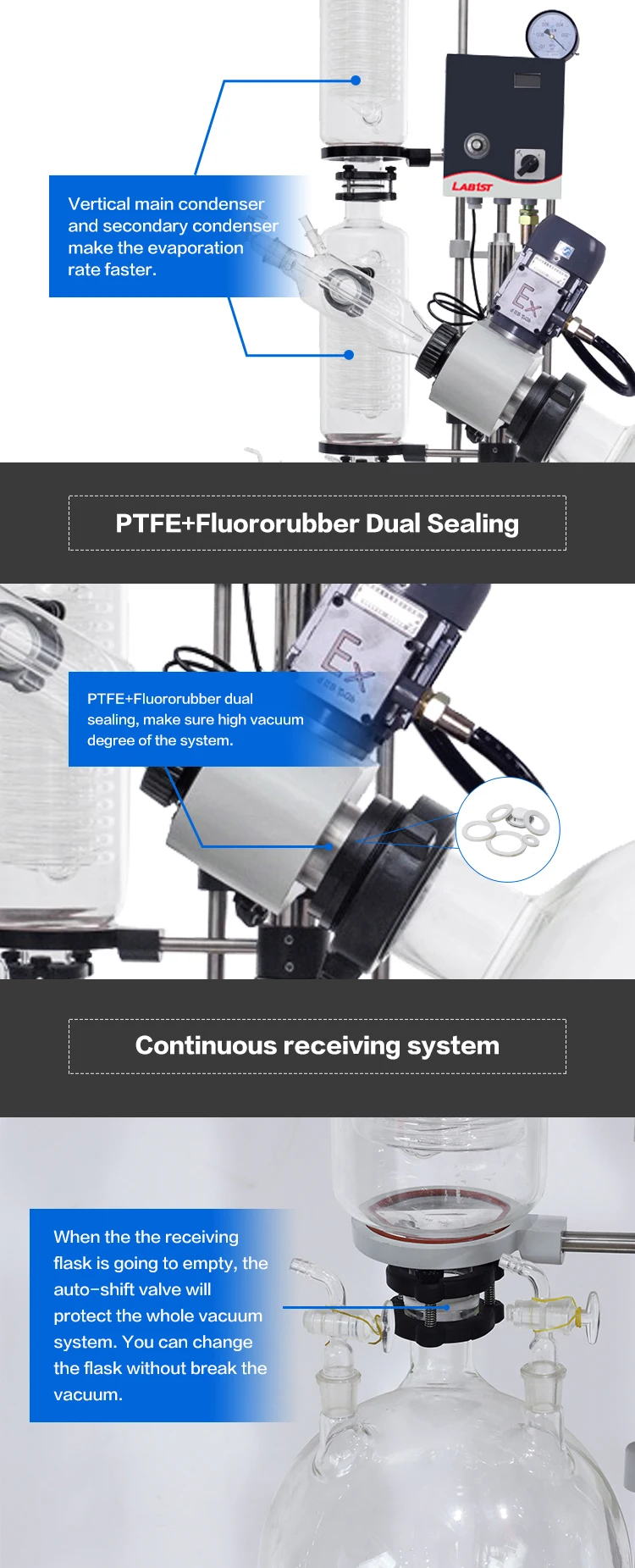

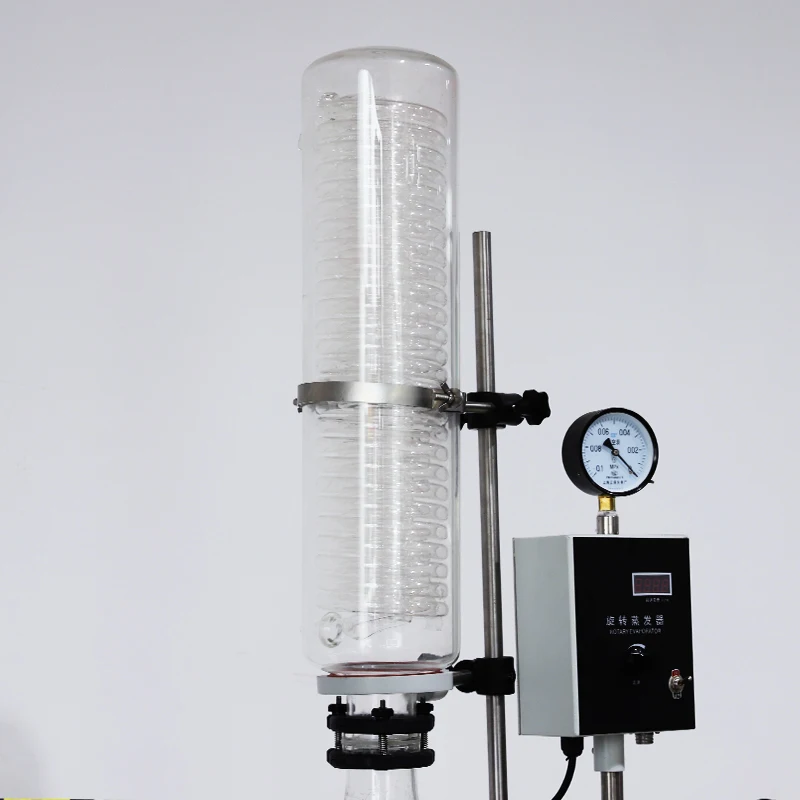

Condenser Type | Main condenser + auxiliary condenser | ||||||
Evaporating Speed (L/h) | Water ≥2 | Water ≥3.2 | Water ≥5 | Water ≥9 | |||
Alcohol ≥4 | Alcohol ≥6.5 | Alcohol ≥11 | Alcohol ≥19 | ||||
Discharge | PTFE (Teflon) Discharge Valve | ||||||
Motor Power (W) | 180 | 250 | |||||
Rotation Speed (rpm) | 10-120 | 10-90 | |||||

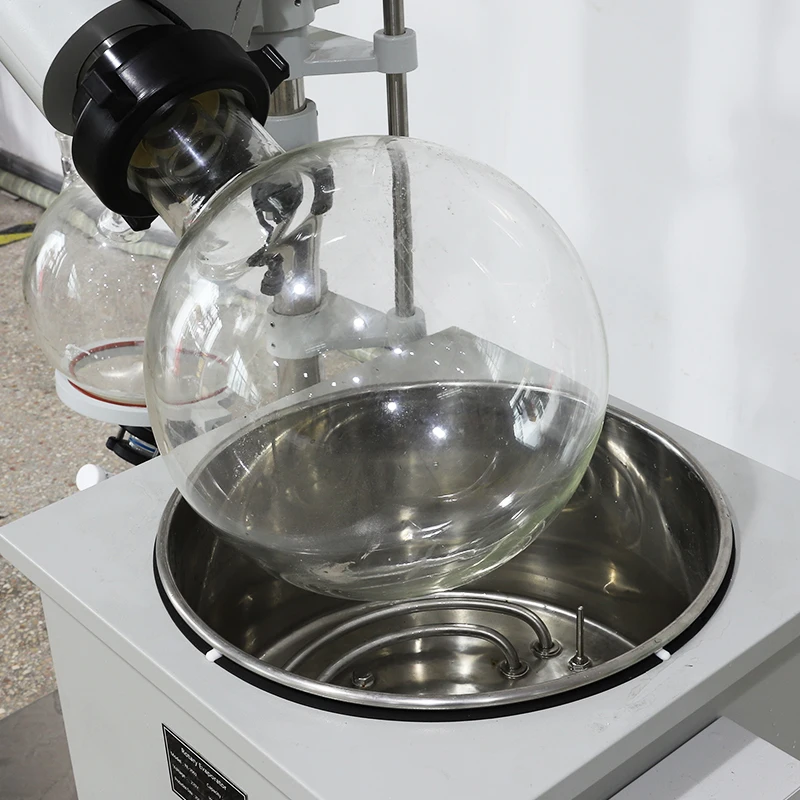

Bath Power (Kw) | 3 | 3 | 6 or 9 | 6 or 9 | |||
Voltage | 220V Single phase | 220V/ Single stage (customizable） | |||||
Bath Temp. Range | Water: RT~99°C Oil: RT~200°C, ±0.2℃ | ||||||
Glass Material | GG-17 (3.3) High Borosilicate Glass | ||||||
PTFE Sealing | Excellent wear and corrosion resistance | ||||||
Reachable Vacuum Rate | <399Pa ( 3mmHg) | ||||||

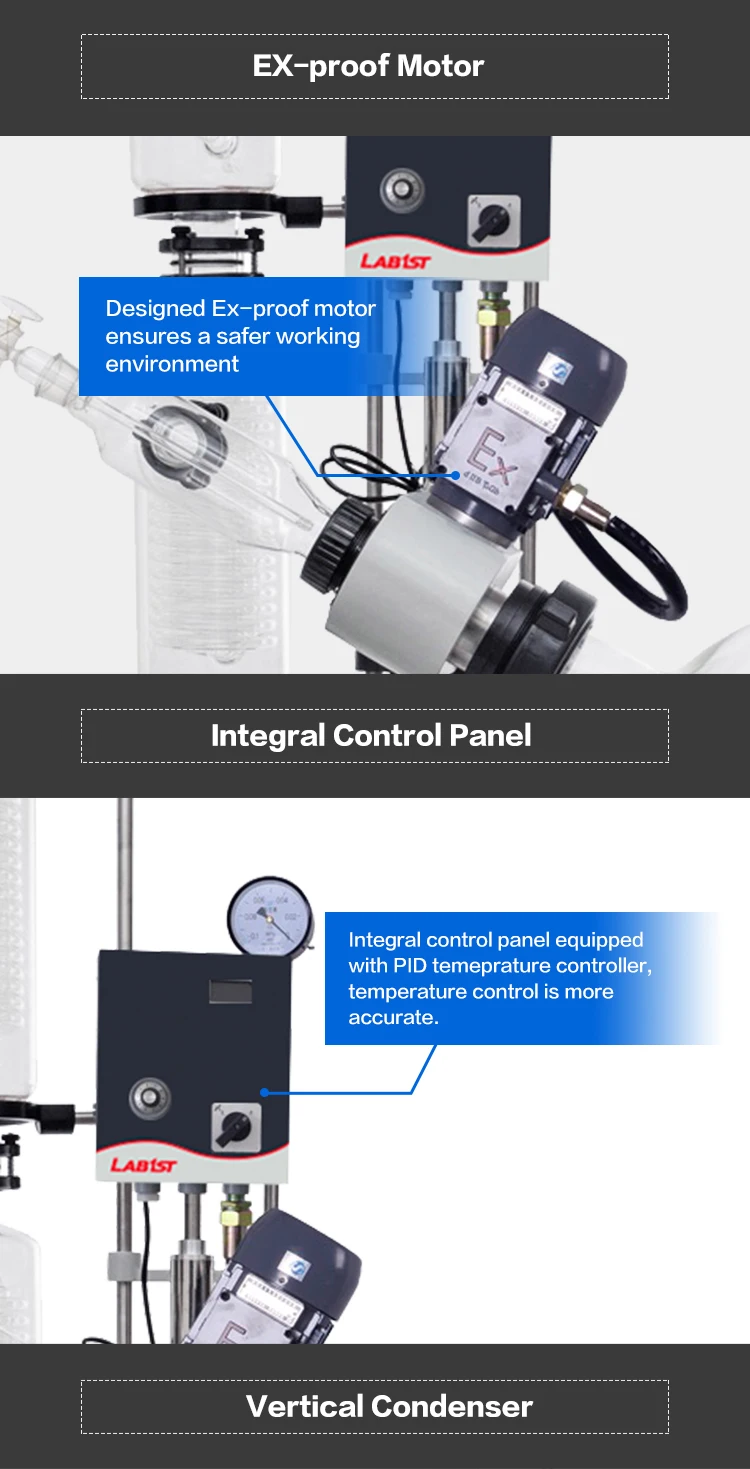

Details Images
