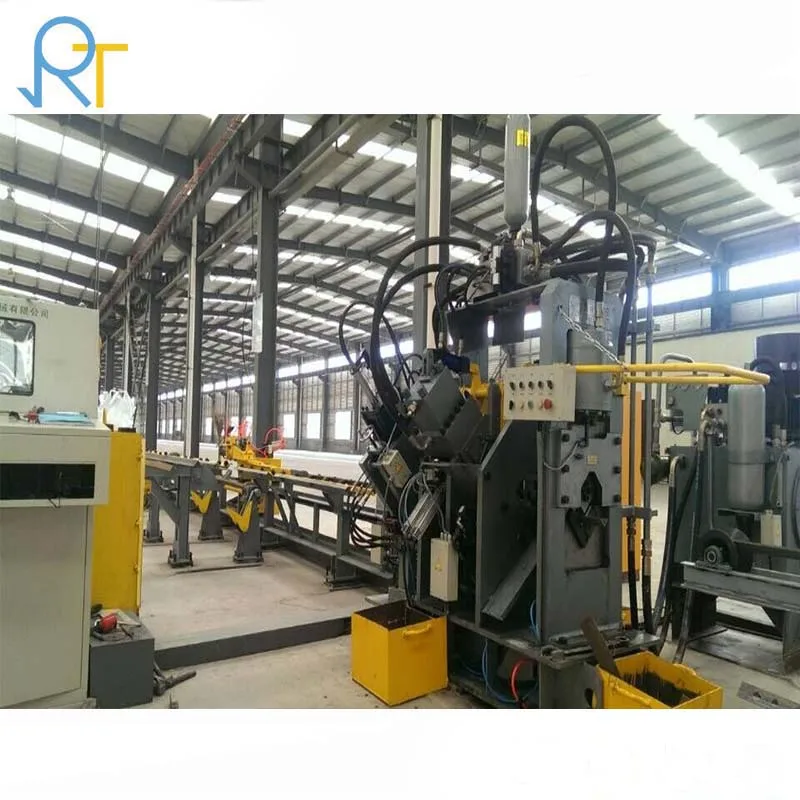

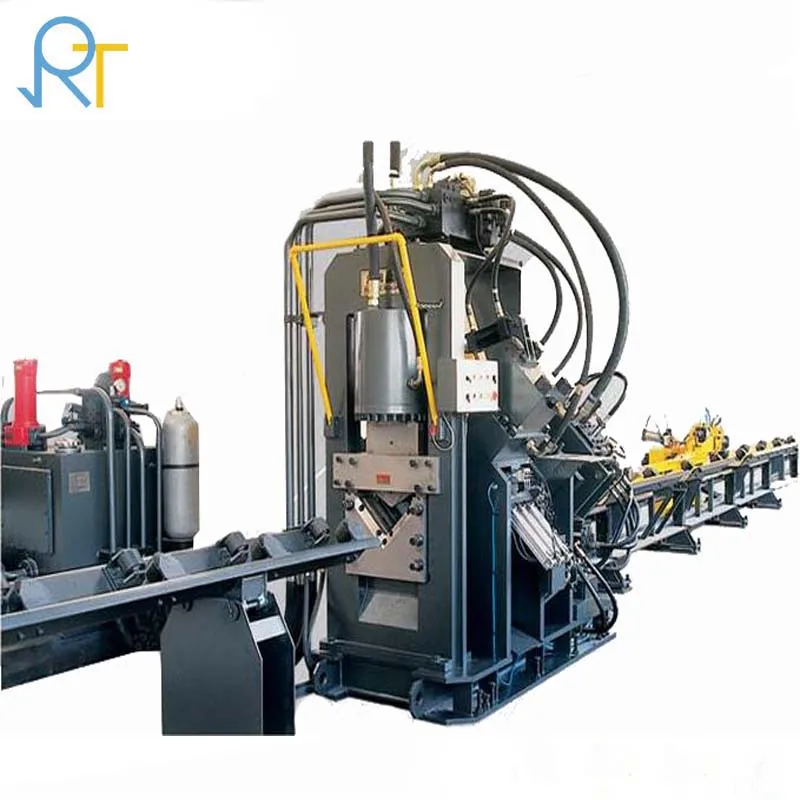

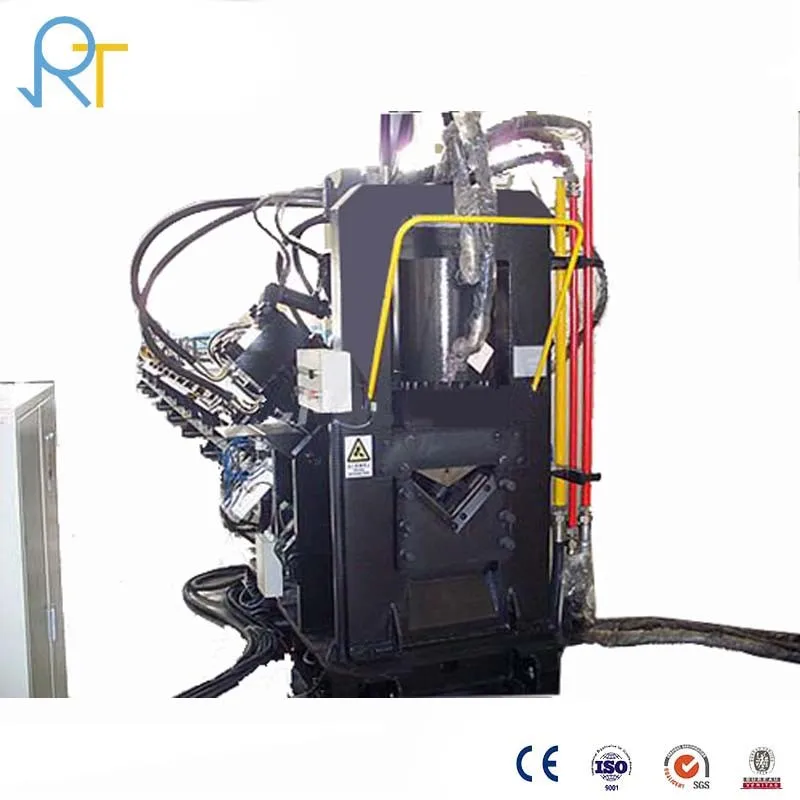

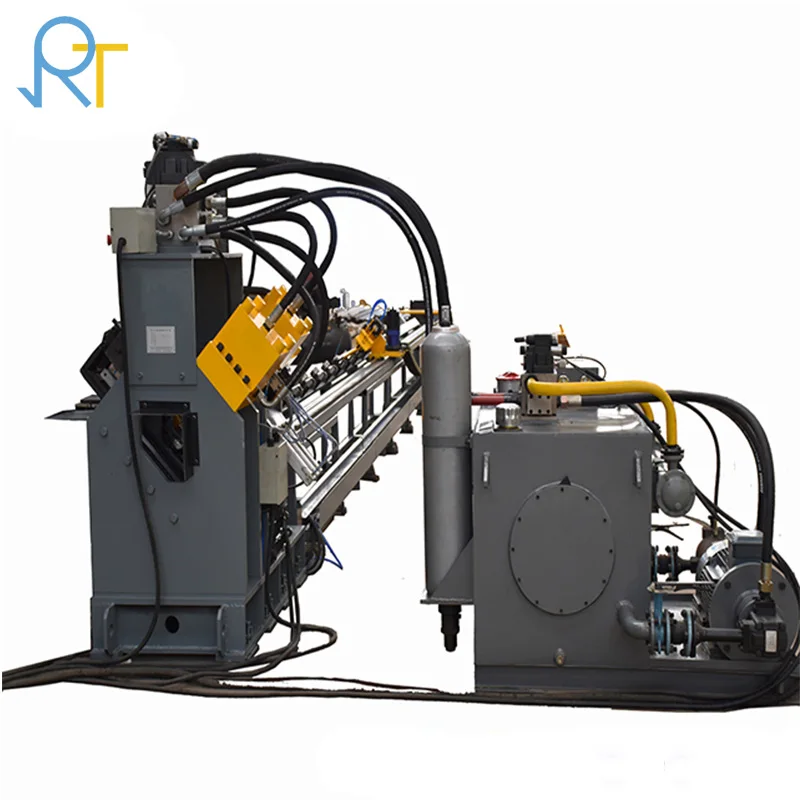

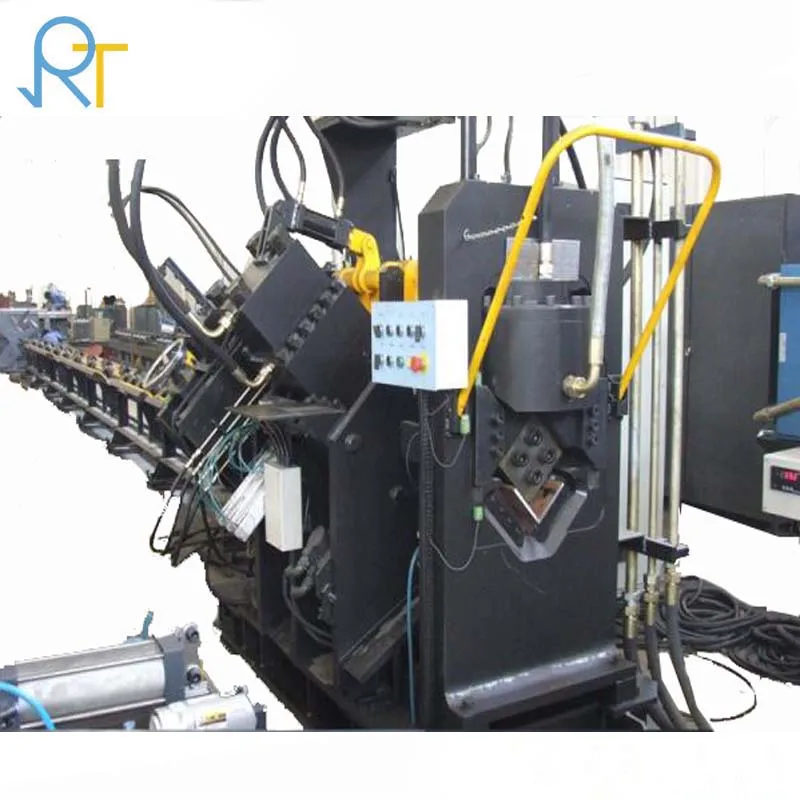

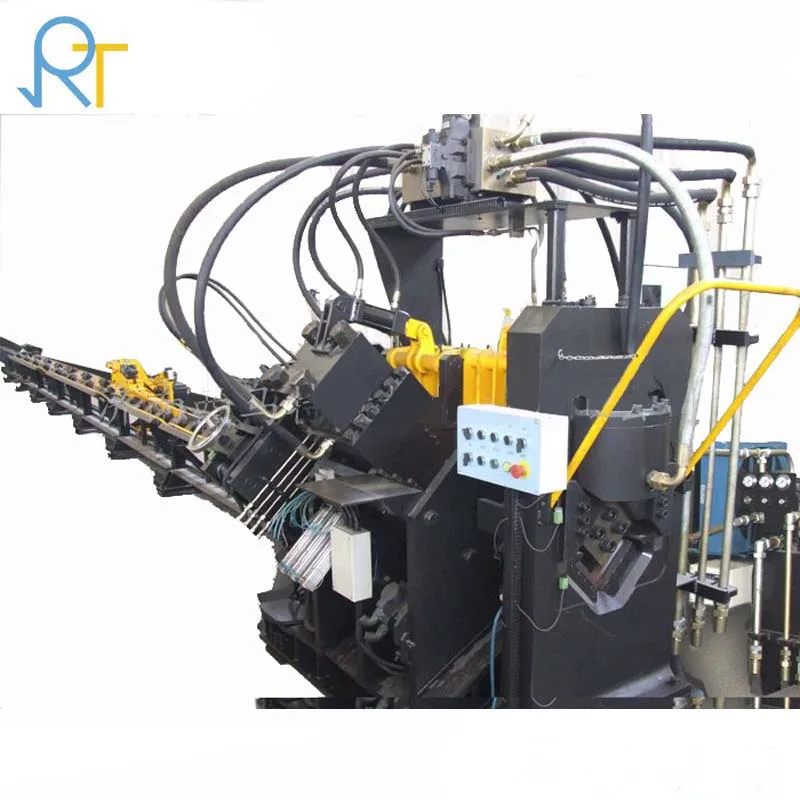

High Quality punching matching for angle iron angle punch machine

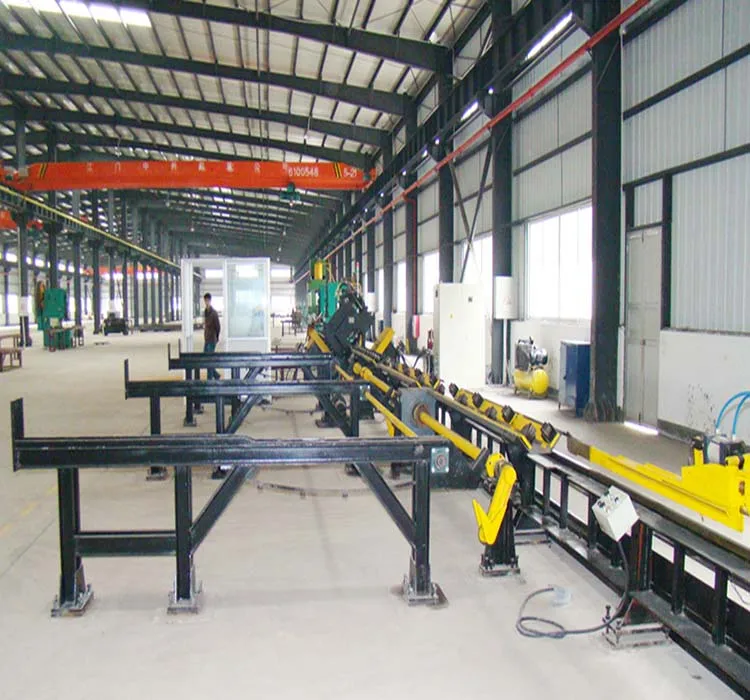

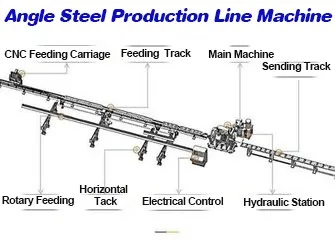

This line is fully automatic equipment for punching, marking, shearing of the angle line, which used widely in telecommunications angel steel tower industry, electric power fittings, warehouse rack, structural steel construction industries etc.

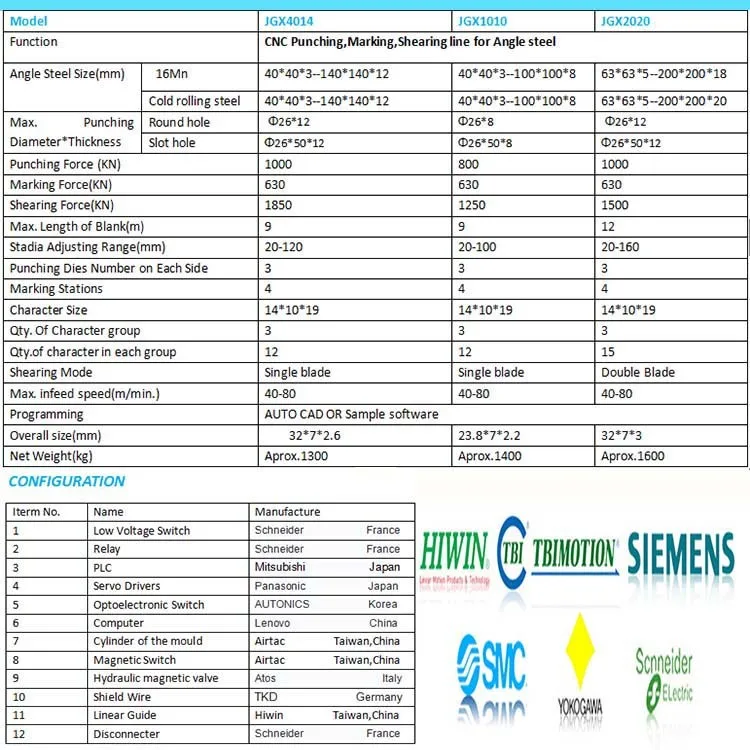

Specification

1.\tAdopt CNC technology ,servo motor infeeding ,with high efficiency ,stable work-price precision .key hydraulic ,pneumatic and electric part all famous brand

2.\tThere are three set of punch and die on each side which can install three kinds of punches with different diameters,three set of mould can move together controlled by PLC to change the back mark.

3.\tSoftware with chines/English interface ,easy operation ,and can display the drawing of workpiece .easy programming ,adopt instruction programming and lofting software.

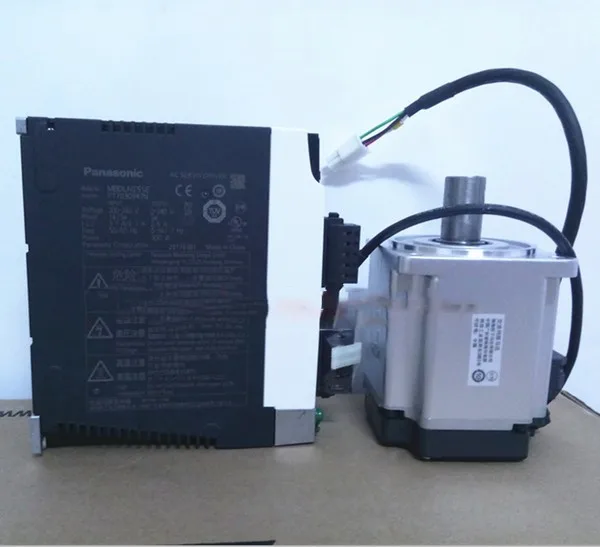

4.\tCNC infeed carriage is driven by servo motor ,ensure high positioning precision

5.\tAll marking punching and shearing in automatic completeness ,all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

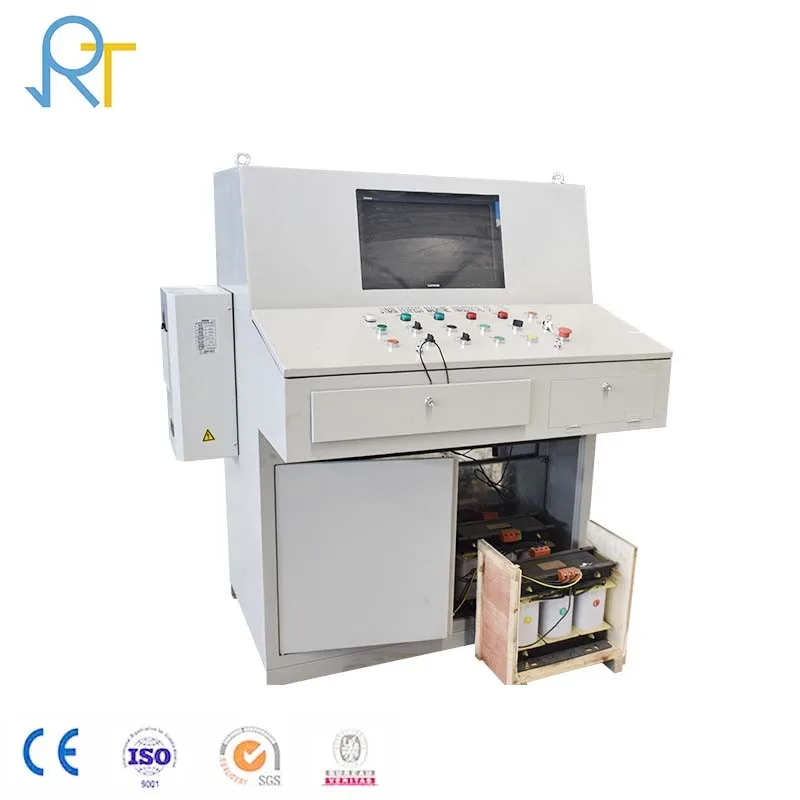

6.\tThe control system consists of computer ,servo motor,PLC,external examination sensors ,etc.

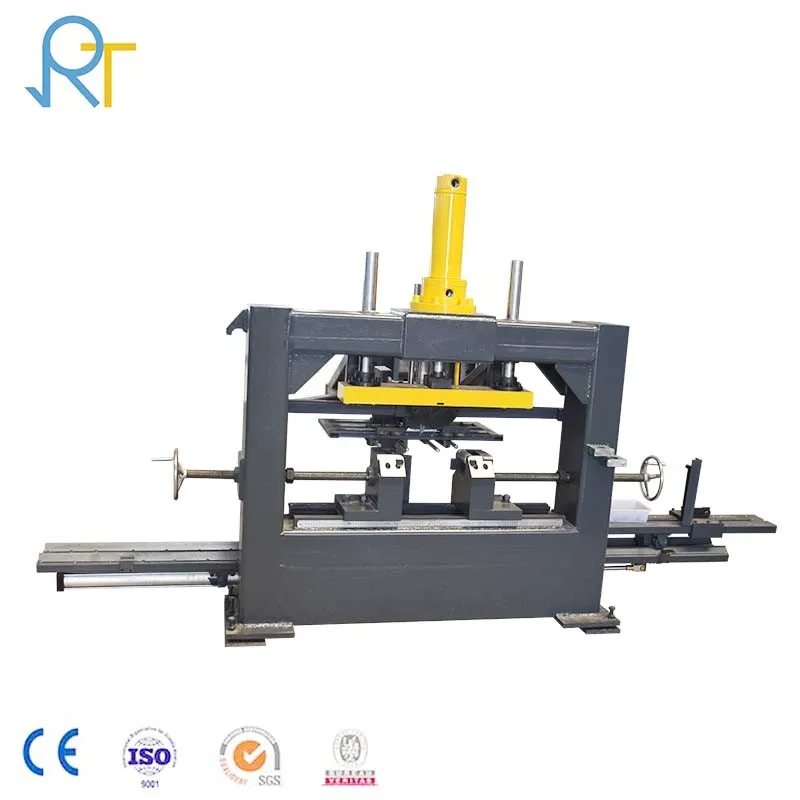

7.\tMarking unit adopt closed frame with good rigidity,four groups of character boxes are fixed in the marking unit which can be selected by program.

8.\tSingle blade shearing section is smooth and save raw material.

Pre-Sales Service

* Inquiry and consulting support.

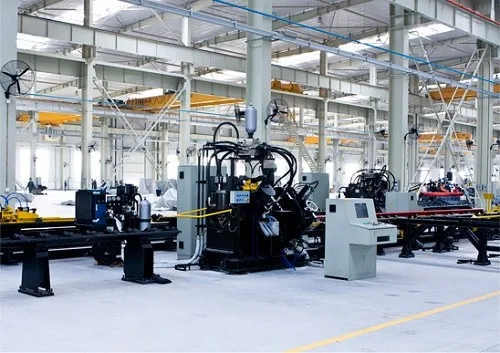

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Clamp Making Machine

CNC Punching Marking and Shearing machine for Flat Bar

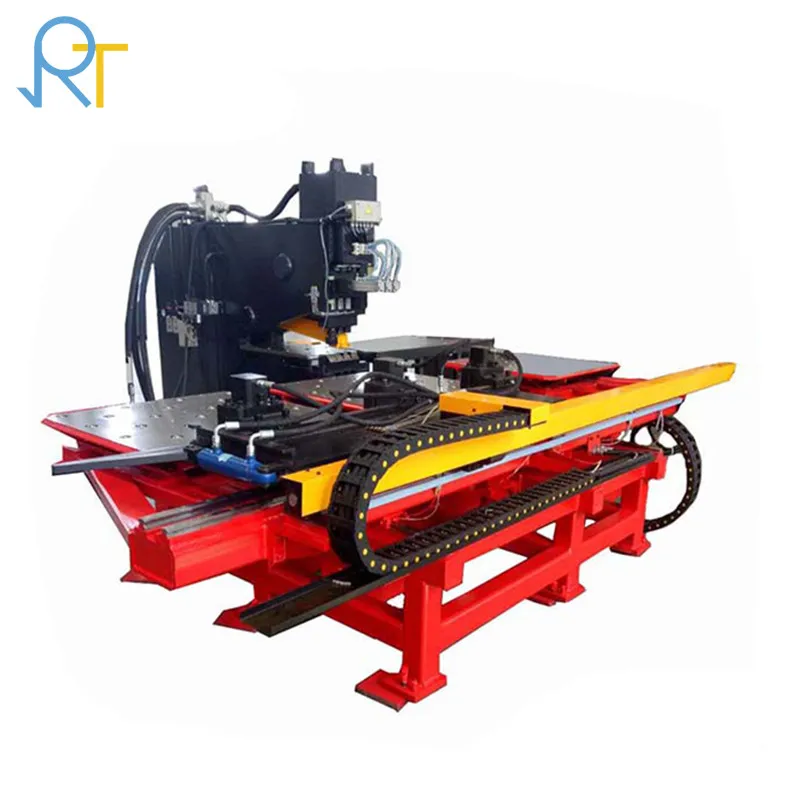

CNC Steel Plate Punching Machine
