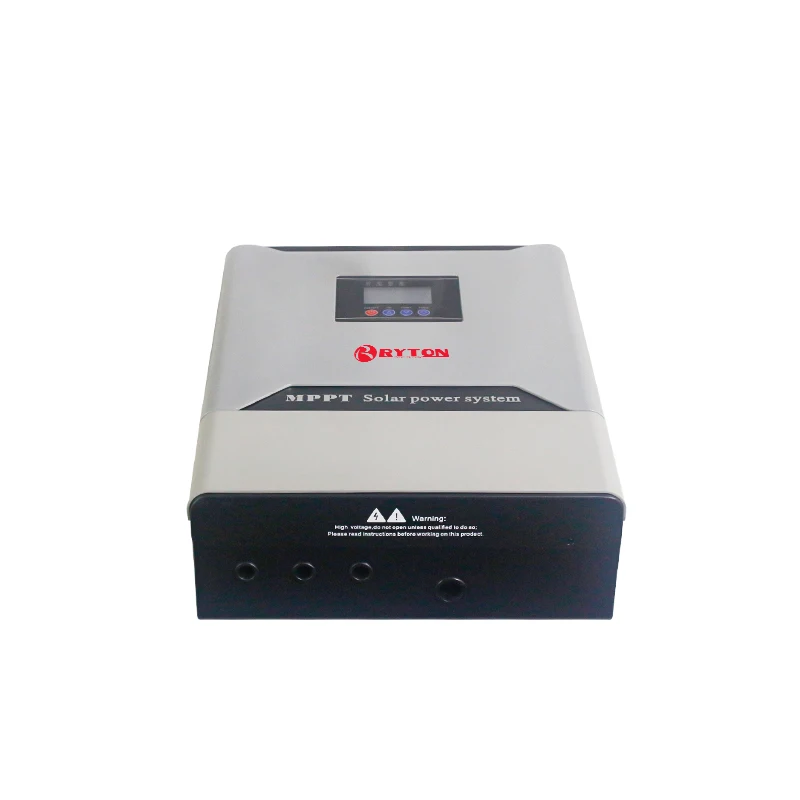

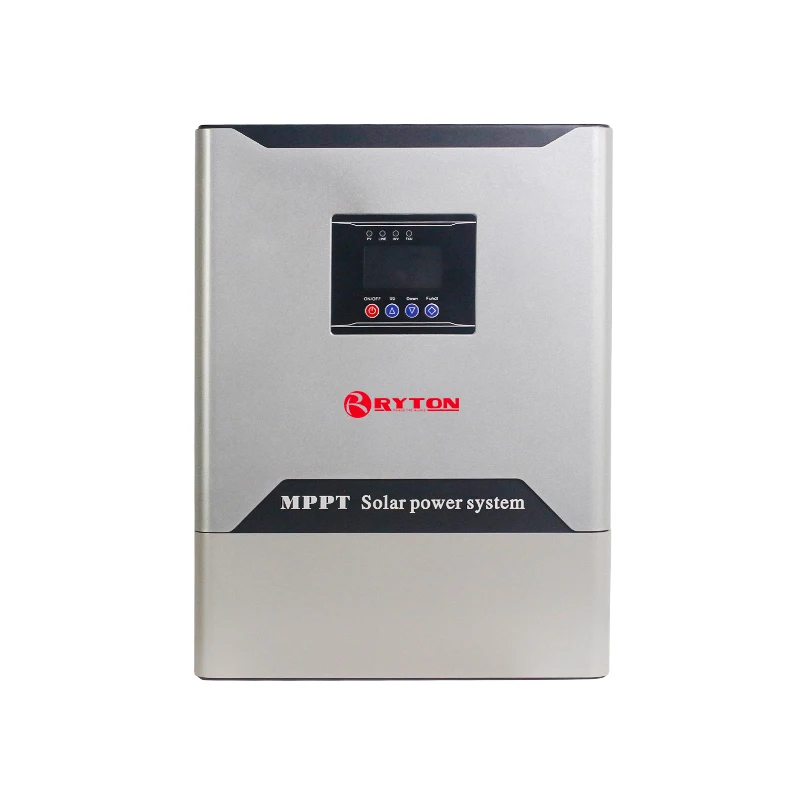

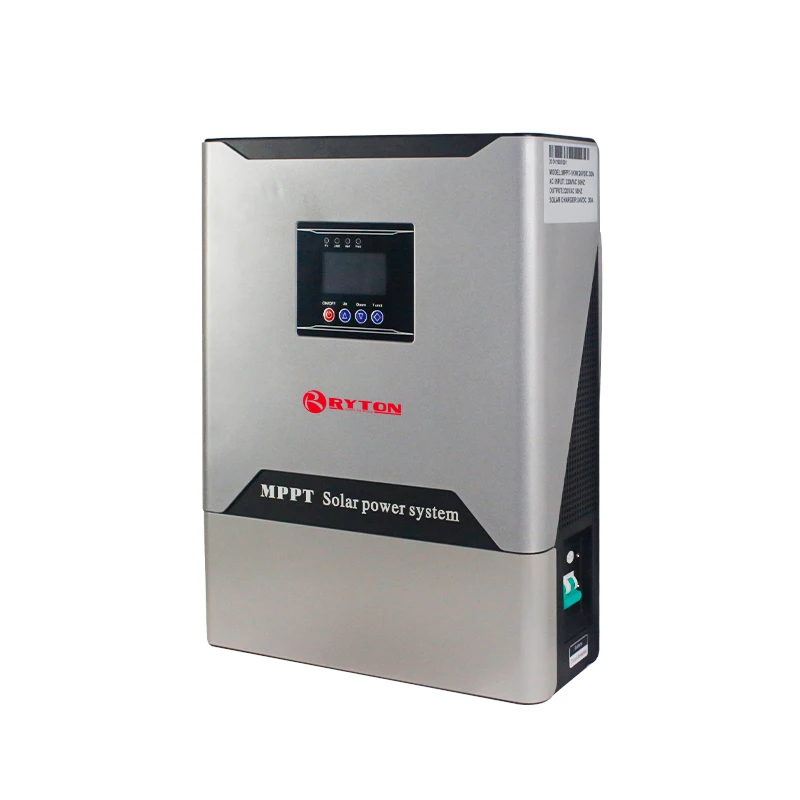

24VDC 1KW 2KW 3KW 4KW 5KW 48V Solar Hybrid Inverter Built in MPPT Solar Controller
- Category: Solar Inverter >>>
- Supplier: Guangdong Riyuetan Power Technology Co. Ltd.
Share on (62520607608):
Product Overview
Description

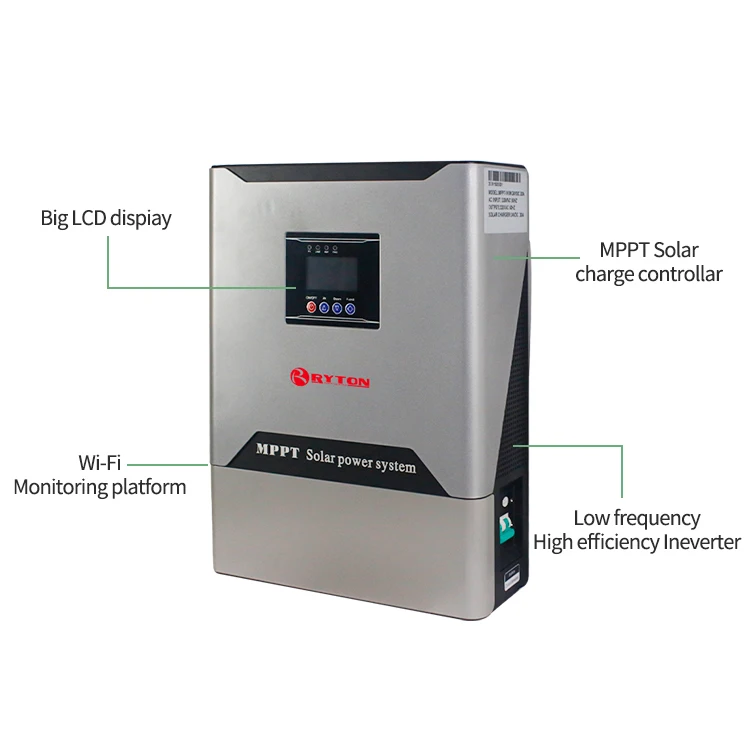

1. NKM series with MPPT solar charge controller inside and with the double MCUs, the product provides different charge voltage and charge current to realize chage management for batteries of diffent types.
2. Its mains supply preferred mode, energy-saving mode and battery preferred mode are all settable, thus making it easy to meet the different application needs of users.
3. It's widely applied for families, schools, streets, frontier defense, pasturing areas, industrial equipment, satellite communication equipment, military vehicle-borne equipment, ambulances, police cars, ships, etc..
Specification
Model: MPPT | 0.3-1KW | 1.5-6KW | |||||||||
Power Rating(w) | 300 | 700 | 1500 | 3000 | 5000 | ||||||
500 | 1000 | 2000 | 4000 | 6000 | |||||||
Battery | Rated Voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | ||||||
Charge Current | 10A MAX | 30A MAX | |||||||||
Battery Type | Can be set | ||||||||||
Input | Voltage Range | 85-138VAC/170-275VAC | |||||||||
Frequency | 45-65Hz | ||||||||||
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | |||||||||
Frequency | 50/60Hz±1%( Inverter mode) | ||||||||||
Output Wave | Pure Sine Wave | ||||||||||
Change Time | <10ms(Typical load) | ||||||||||
Frequency | >85%(80% Resistive load) | ||||||||||
Overcharge | 110-120%/30S;>160%/300ms; | ||||||||||
Protection Function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | ||||||||||
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC; 24VDC:30V~150VDC; 48VDC:60V~150VDC | |||||||||
PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | |||||||||
Rated Charge Current | 30A(Max) | 60A(Max) | |||||||||
MPPT Efficiency | ≥99% | ||||||||||
Average Charging Voltage (lead acid battery | 12V/14.2VDC; 24V/28.4VDC; 48V/56.8VDC | ||||||||||
Floating Charge Voltage | 12V/13.75VDC; 24V/27.5VDC; 48V/55VDC | ||||||||||
Operating Ambient Temperature | -15-+50℃ | ||||||||||
Storage Ambient Temperature | -20 - +50℃ | ||||||||||
Operating / Storage Environment | 0-90% No Condensation | ||||||||||
Dimensions: W * D * H (mm) | 420*320*122 | 520*420*222 | |||||||||
Packing Size: W * D * H (mm) | 535*435*172 | 635*535*252 | |||||||||

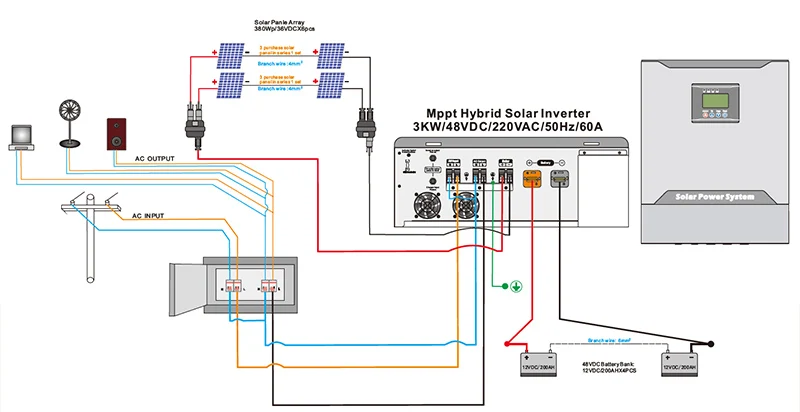

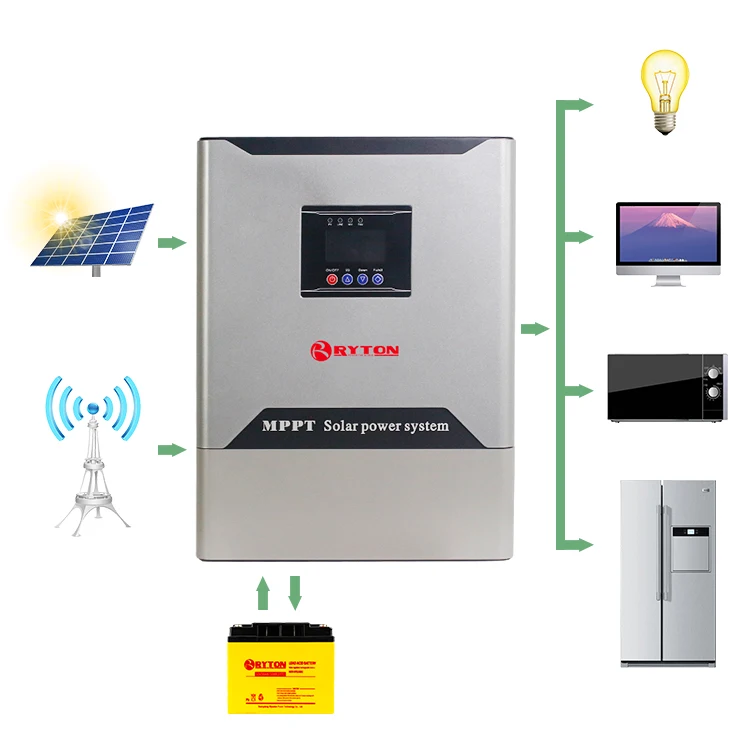

Solar energy system- Hybrid solar inverter connecting diagram
Solar Panel --> Mono solar panel 250W-420WMPPT hybrid solar inverter--> 1KW-6KW (MPPT 12V/24V/48V: 30A-60A)
Solar Battery--> Sealed lead acid, Deep cycle, Gel, Lifepo4 (Lithium battery) and ect
AC Loading (TV, Fan, Lighting, Video, Air conditioner, Refrigerator and so on)
Solar Panel --> Mono solar panel 250W-420WMPPT hybrid solar inverter--> 1KW-6KW (MPPT 12V/24V/48V: 30A-60A)
Solar Battery--> Sealed lead acid, Deep cycle, Gel, Lifepo4 (Lithium battery) and ect
AC Loading (TV, Fan, Lighting, Video, Air conditioner, Refrigerator and so on)

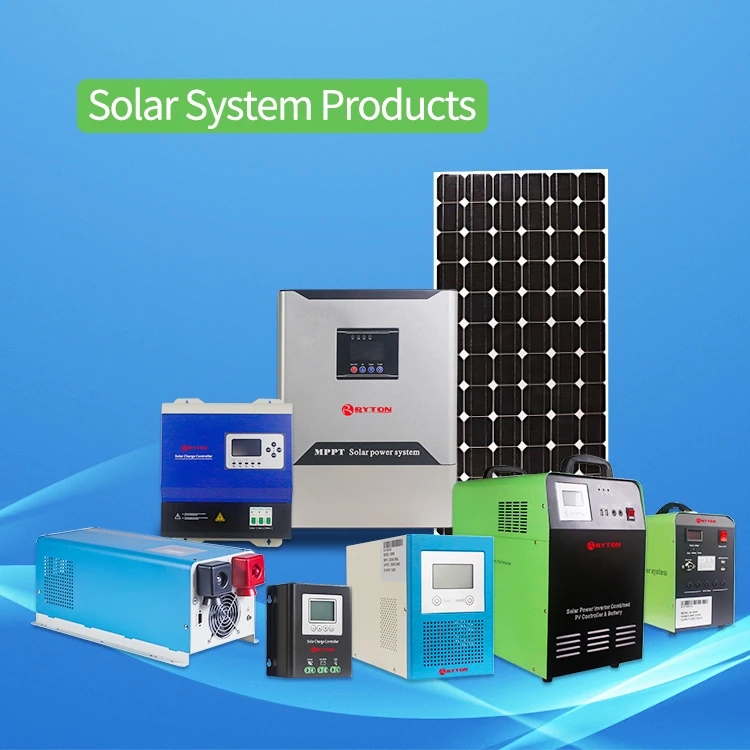

Recommend Products

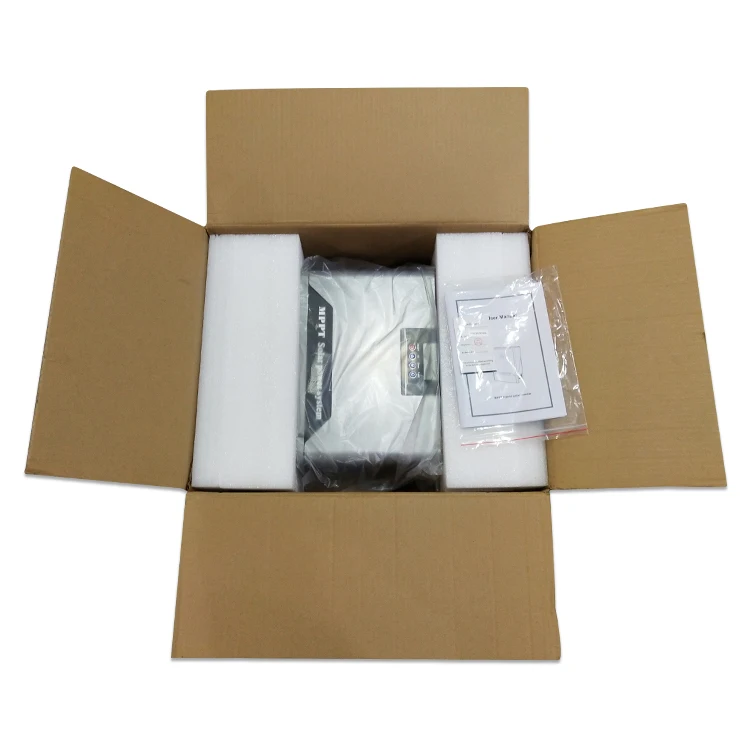

Packing & Delivery
