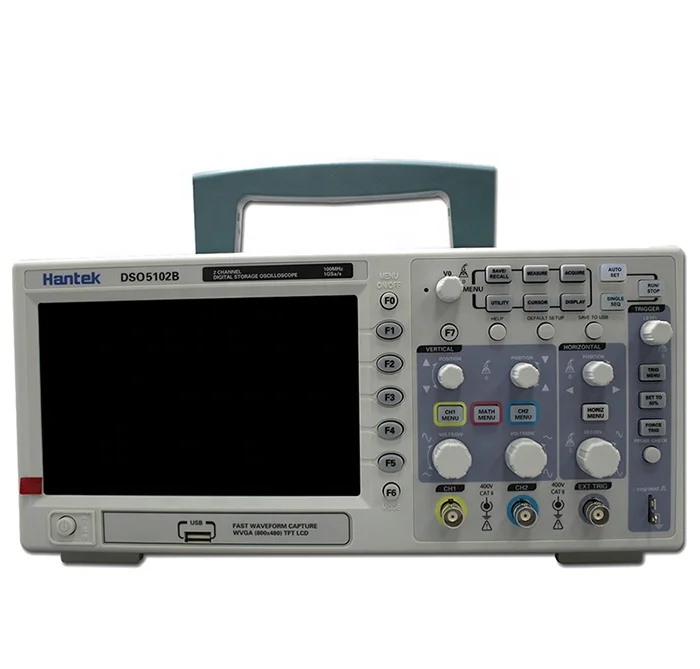

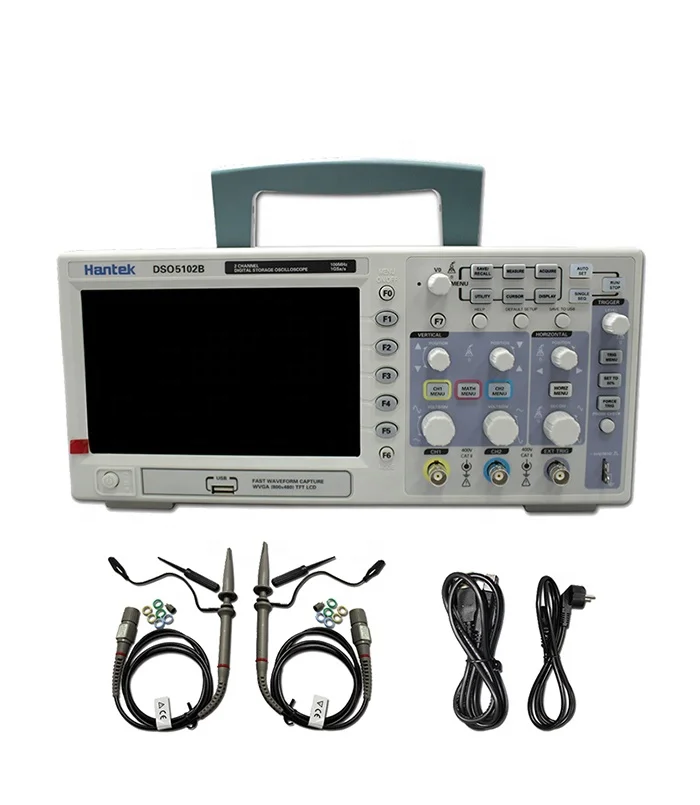

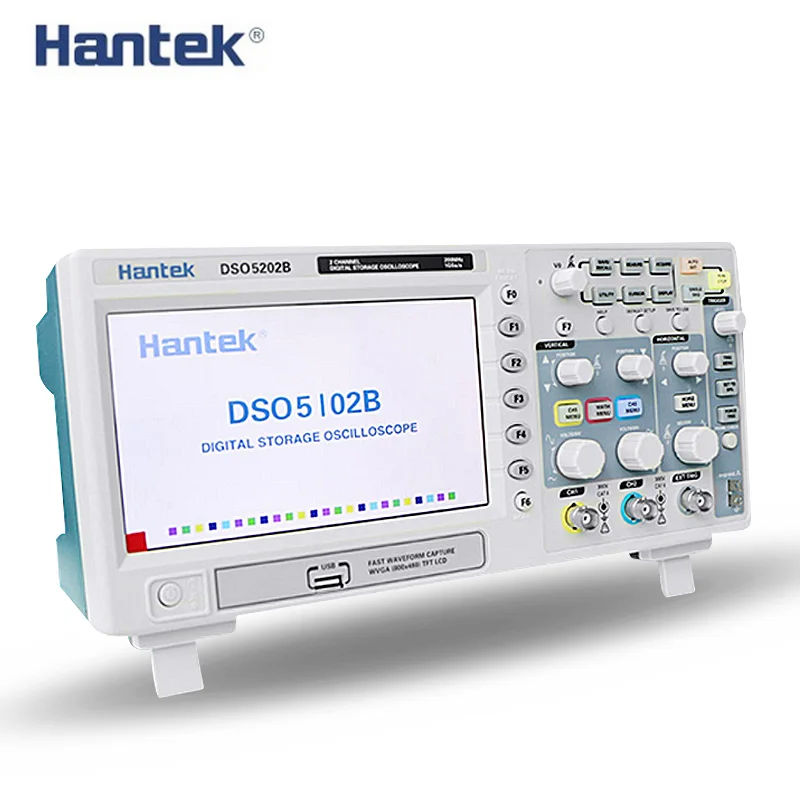

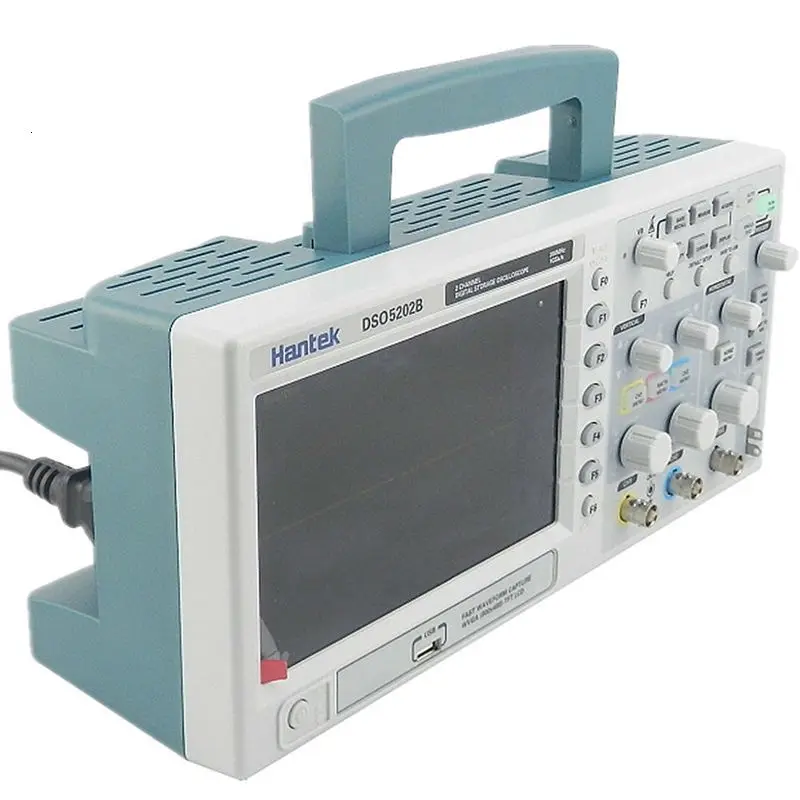

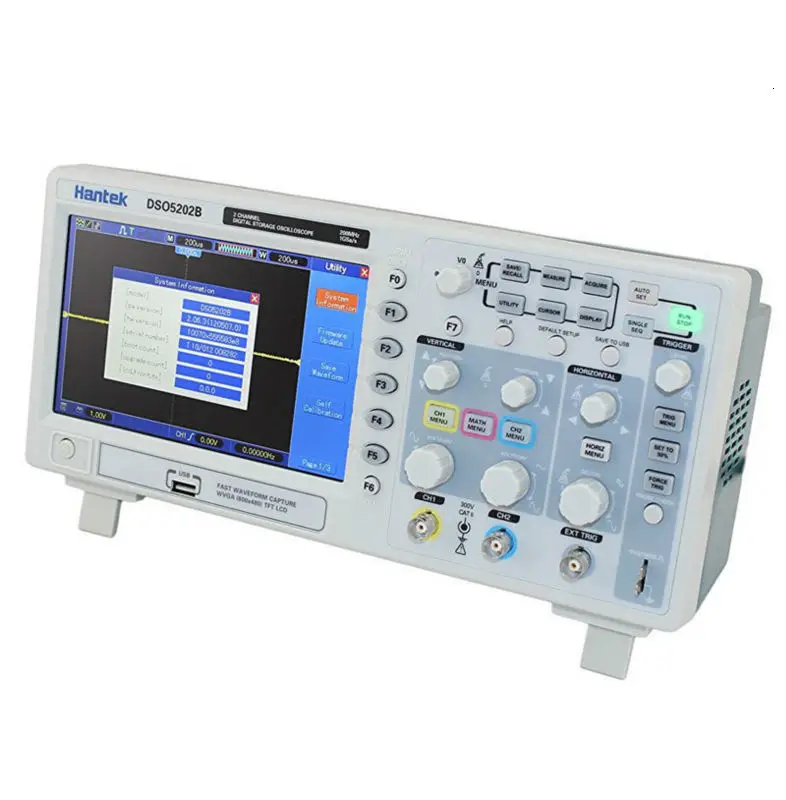

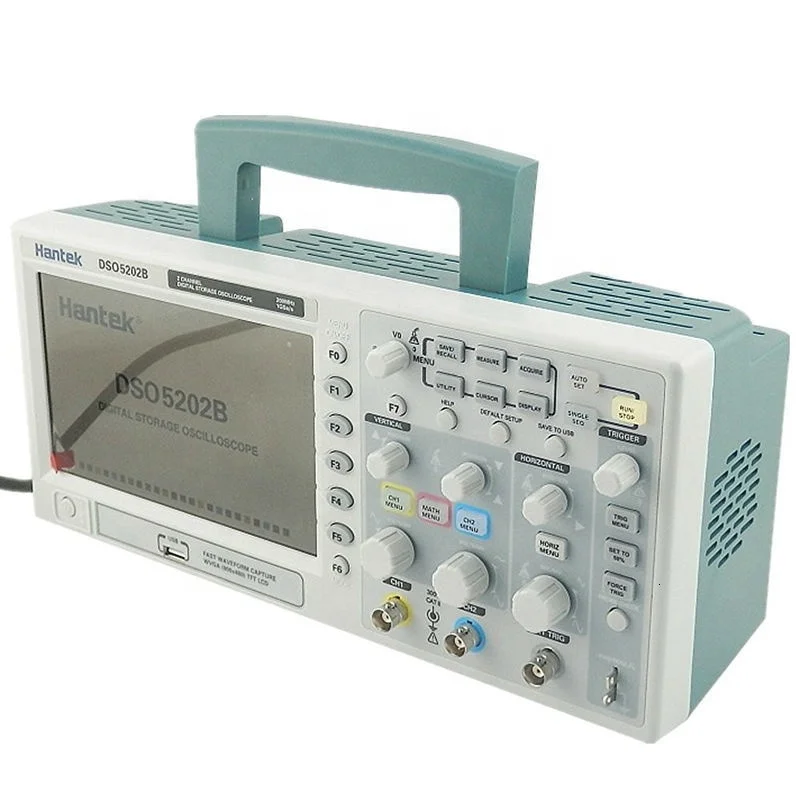

Hantek DSO5062B/DSO5102B/DSO5202B Digital Storage Oscilloscope 1GS/s USB 7' Color 2 Channels 2CH Record Length 1M USB
- Category: Oscilloscopes >>>
- Supplier: Shenzhen Yuan Qi Trading Co. Ltd.
Share on (62521510016):
Product Overview
Description
Product Description
Feature:
- 200/100/60MHz bandwidth
- 1GSa/s Real time sample rate
- Large (7.0-inch) olor display, WVGA(800x480)
- Record length up to 1M
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- VGA Optional
| Model | DSO5202B | DSO5102B | DSO5062B |
| Acquisition | |||
| Sample Rate | Real-Time Sample: 1GS/s Equivalent Sample: 25GS/s | ||
| Acquisition Modes | |||
| Normal | Normal data only | ||
| Peak Detect | High-frequency and randon glith capture | ||
| Average | Wavefom Average, selectable 4,8,16,32,64,128 | ||
| Inputs | |||
| Inputs Coupling | AC, DC, GND | ||
| Inpits Impendance | 1MΩ±2% 20pF±3pF | ||
| Probe Attenuation | 1X, 10X | ||
| Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | ||
| Maximum Input Voltage | CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur. | ||
Packaging & Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
3. By Sea: Delivery from the shenzhen sea port
Our Services
1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing
Company Information
Shenzhen Yuanqi Trading Company Adhering to the exquisite product design and manufacturing process of European industrialized countries, we provide you with a complete range of products with complete specifications and reliable equipment matching combination. Our company has always regard quality as the paramount goal.We are make efforts in order to create a high-level environment, the introduction and absorption of advanced domestic technology and production equipment, the establishment of a scientific and standardized modern enterprise management system and quality system. We equipped with large-scale spot warehouses, sales and service network throughout the country.If you have any questions about the products and services, please feel free to contact us.
FAQ
Q1:What's the MOQ?
A: MOQ: 1 pc
Q2:How to place the order?
A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.
Q3:What's the payment term?
A: We can accept T/T, Western Union and PayPal etc.
Q4:What's the lead time?
A: Standard within 7 working days. Customized need 15-20 working days.
