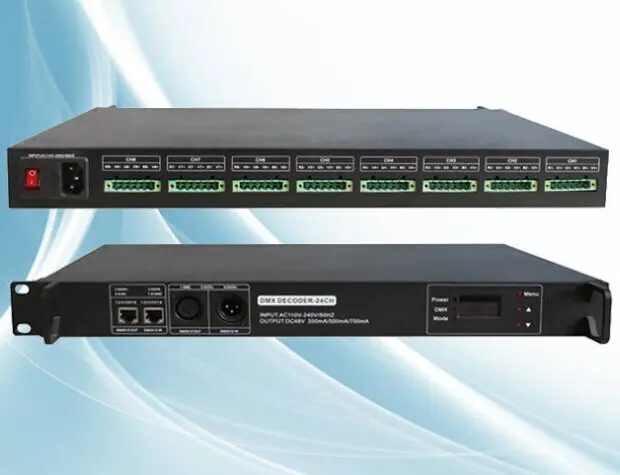

AC110 220V 24CH DMX Controller Constant Current 48V Ethernet DMX Controller DMX multi channel led controller RGBW

Share on (62535017450):


Price:$148.80 - $156.00

Quantity:


Product Overview

Description


Production Description


Supply voltage: AC110-220V
Output voltage: DC48V
Dimensions: L440*W275*H45mm
Packing size: L570*W345*H75 mm
Net weight: 3.1kg
Gross weight: 3.9kg
Control signal input: DMX-512 standard digital control signal

Output circuit: 24 ways
Connection method: Gongyang
Output: 24CH, each channel 350mA / 500mA / 700mA (optional)



 Images

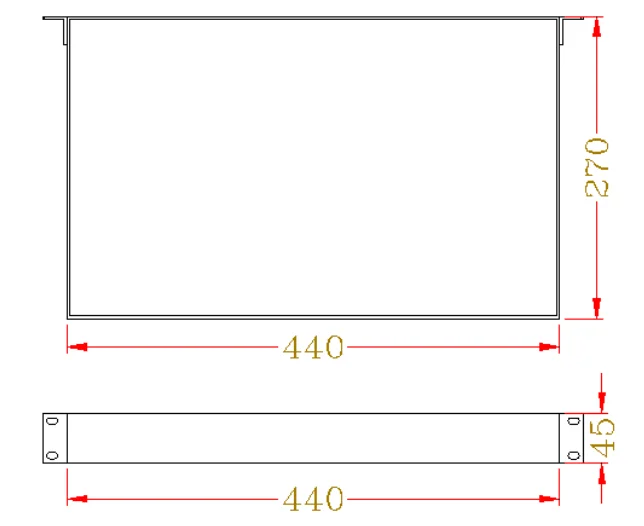

Measure

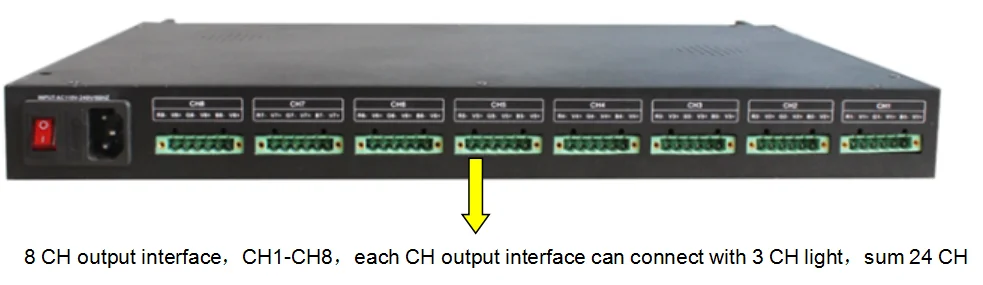

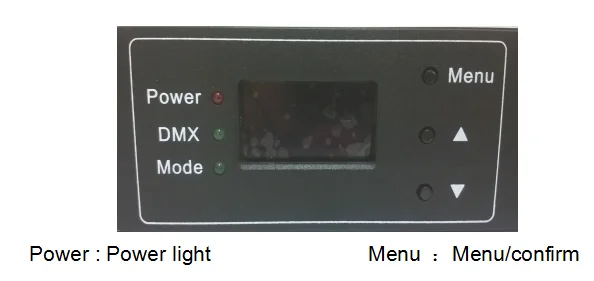

Panel interface introduction

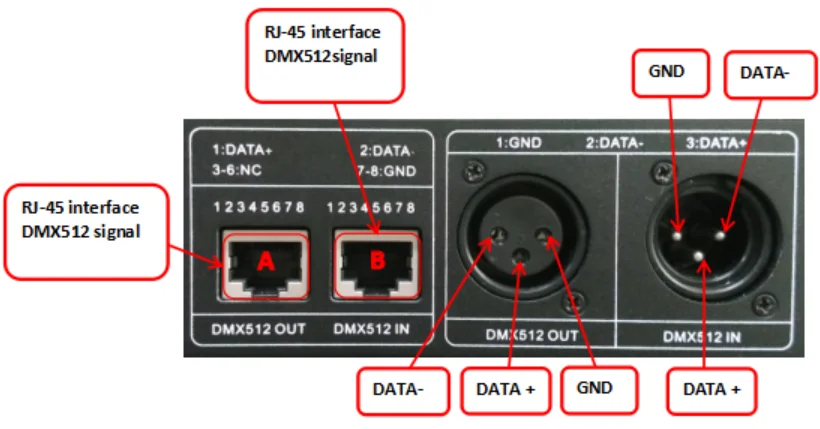

RJ-45 interface:1:DATA+     2:DATA-(mistake)     3-6:NC       7-8:GND

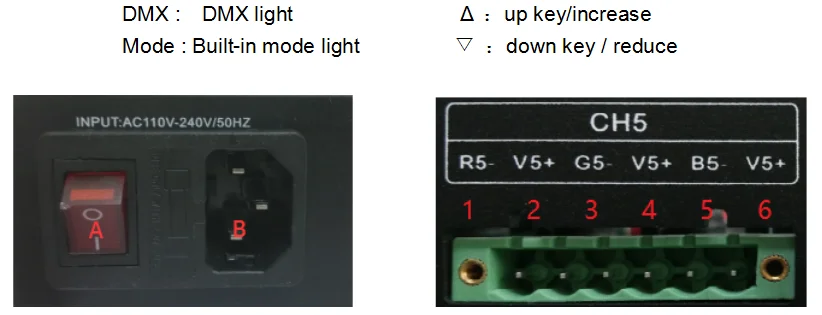

A: Control panel power switch


B: Control panel 220V power supply input interface


1: R light cathode       2: 48V


3 : G light cathode      4: 48V


5: B light cathode       6: 48V

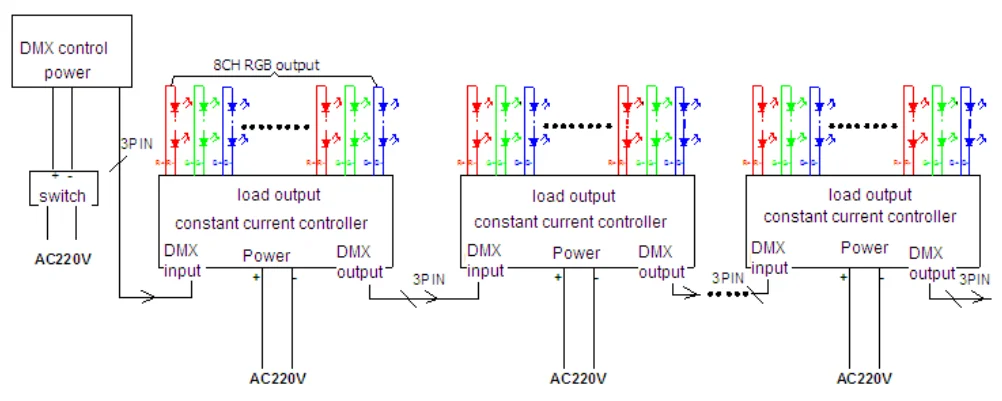

 Wiring Diagram










Application





Applicable for automobile and bicycle decoration, border or contour lighting;
Widely used for home decoration use, hotels, clubs, shopping malls;


Architectural decorative lighting, boutique atmosphere lighting;
Decorative lights for holiday, event, show exhibition.
