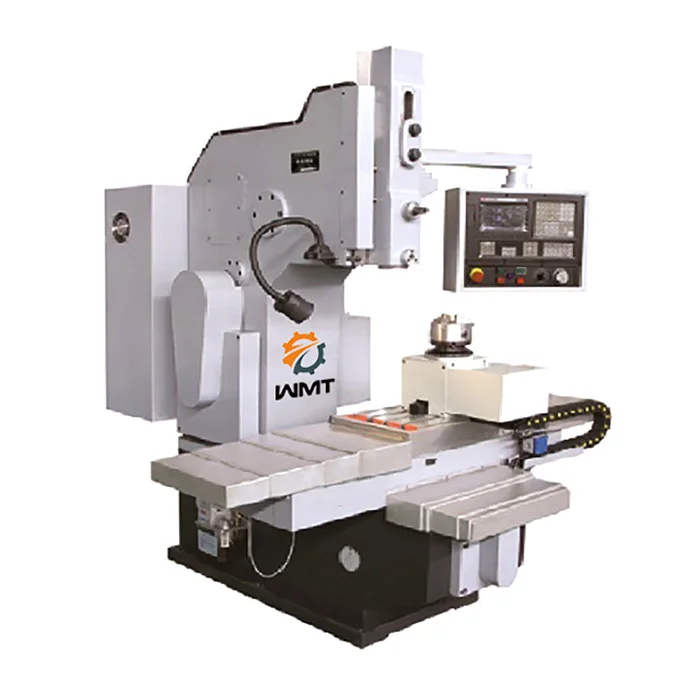

BK5018 full cover CNC slotting machine for sale from China
- Category: Planer & Slotting Machines >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62536363556):
Product Overview
Description
Product Description
Main Technology Data | Model BK5018 |
Ram max. slotting length | 180mm |
Ram stroke adjustment | 100mm |
Ram movement times | 45/60/90 n/min |
Worktable size | 600×320mm |
Travel of worktable(X/Y) | 460×320mm |
The knife head supporting hole axis to column forearm distance | 400mm |
The knif head supporting hole end to table working distance | 480mm |
X to the motor torque | 6 N.M |
Y to the motor torque | 6 N.M |
Fast moving | 5 m/min. |
Ball screw (X) | FFZD3205-3/P4 |
Ball screw (Y) | FFZD3205-3/P4 |
Main motor power | 1.5/2/2.2 kw |
Machine weight | 2200kg |
