Взрывозащищенный промышленный центробежный вентилятор высокого давления из нержавеющей стали, моторный вентилятор 9 19

Product Overview

Description

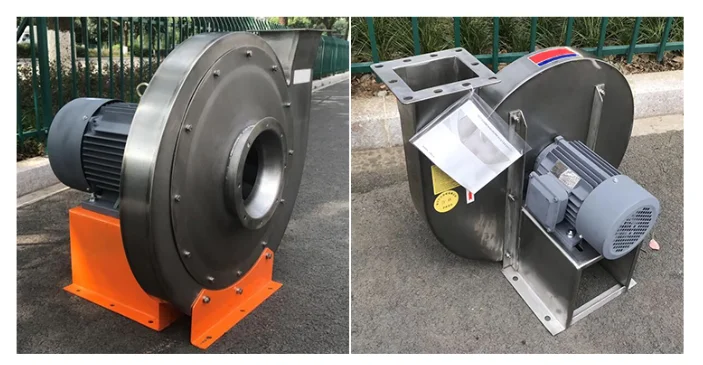

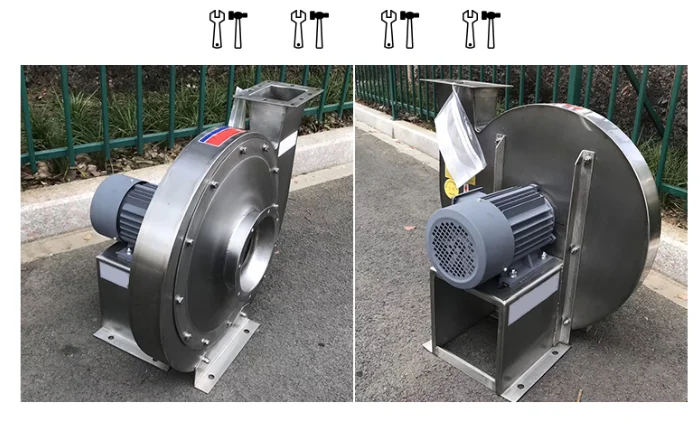

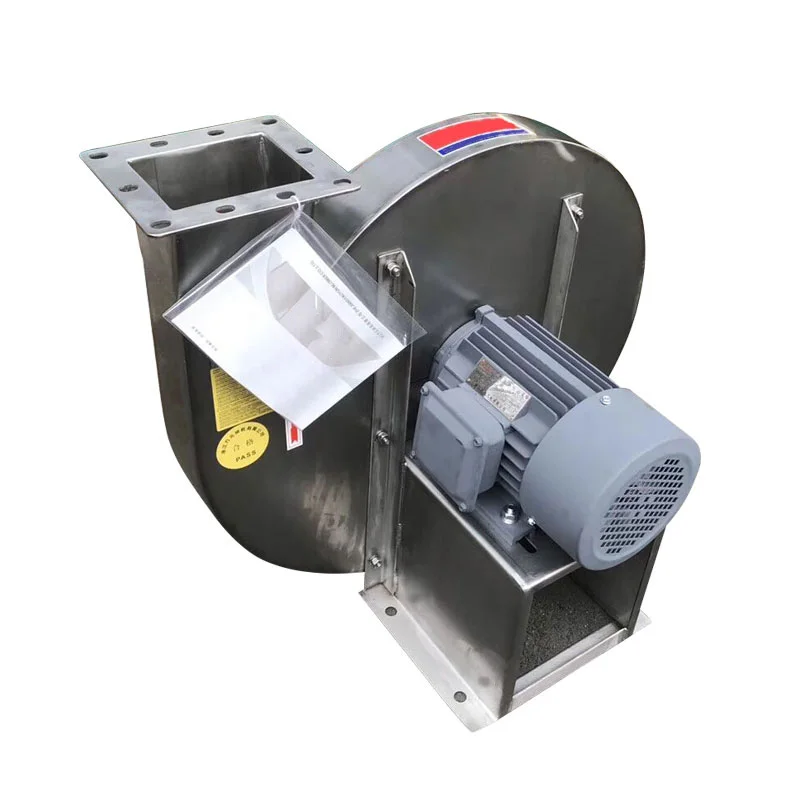

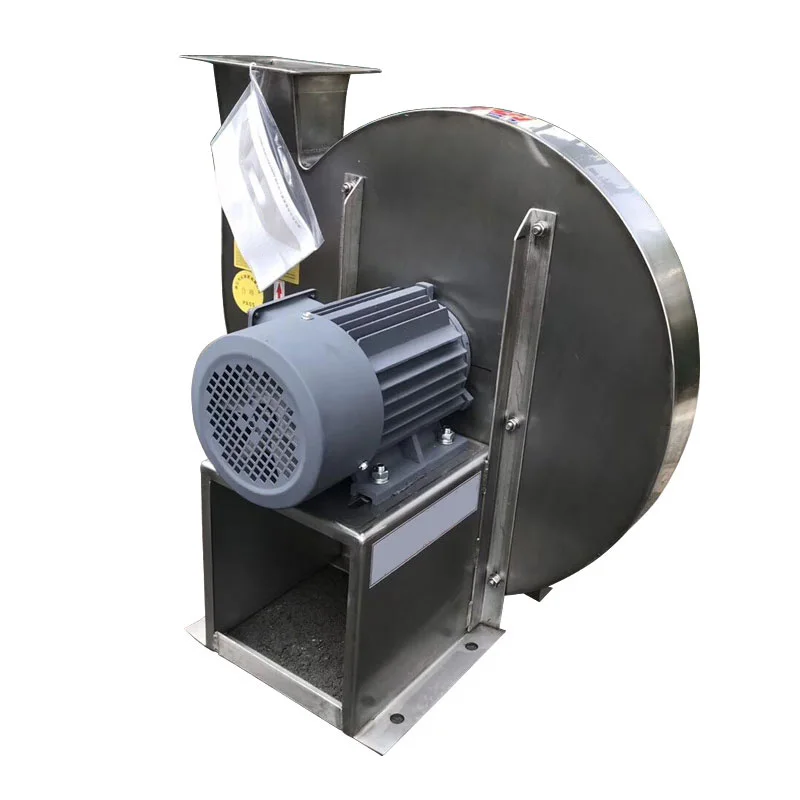

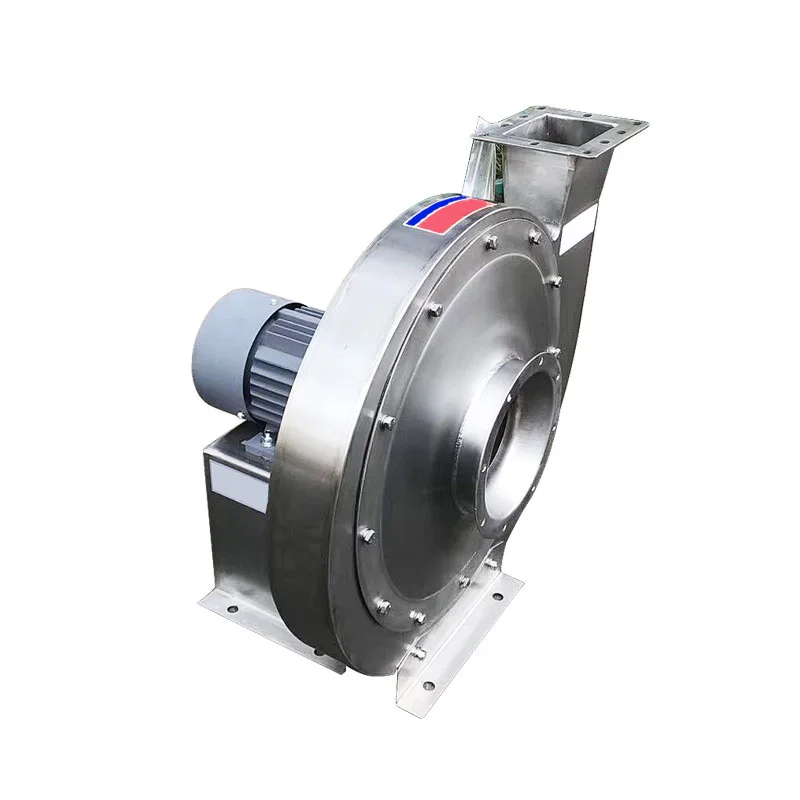

Stainless steel 9-19 industrial centrifugal ventilation fan

 Introduction

The impeller is made of 12 curved curved airfoils, the front cover of the impeller, and the blade-secondary mold are formed. After the impeller is formed, it is strictly corrected for dynamic balance.
The casing is welded into a snail shape, and the fan is compact and flexible as a whole, saving space and suitable for various occasions.
The air inlet adopts a one-time convergent and streamlined overall structure, which is installed on the side of the fan and is bolted to the front cover.



The impeller has high hardness, corrosion resistance, and is not easy to deform and fall off. The impeller is strictly calibrated in dynamic balance and has good aerodynamics, high wind pressure and stable operation.



The air outlet is easy to install and optional silencer, large diameter air outlet, multi-angle design and easy installation.



The fan casing is equipped with a special connection method of pipes to save time and effort. The design and structure of the casing is scientifically installed, which can achieve 0 °, 45 °, 90 °, 135 °, 180 °, 225 ° ,270 ° multiple angle interchange.



Optional fully enclosed rain cover can effectively protect the entire drive part, while extending the life of the fan, completely protect the whole machine, effectively avoiding unintentional personnel from touching the running parts and causing accidental injury.



Fixed foot stand, thickened and enlarged foot stand, fan is not easy to shake and run smoothly, easy to install and long life.



Parameters

Model	Speed (r/min)	Motor		Air volume (m3/h)	Total preesure (Pa)
		Power (kw-p)	Motor No.
3.15A	2900	0.75-2	Y132S-2	18h	2223-2262
		1.1-2	Y80M-2	8.5h	2231-2017
3.55A	2900	1.5-2	Y90S-2	3.5h	2545-2590
		2.2-2	Y90L-2	5.2h	2554-2310
4A	2900	2.2-2	Y90L-2	12h	3584-3597
		3.0-2	Y100L-2	12h	3507-3253
4.5A	2900	4.0-2	Y112M-2	12h	4603-4447
		5.5-2	Y132S-2	12h	4297-4112
5A	2900	7.5-2	Y132S-2	12h	5697-5517
		11.0-2	Y160M-2	12h	5323-5080
5.6A	2900	11.0-2	Y160M-2	12h	7182-7109
		18.5-2	Y160L-2	12h	6954-6400
6.3A	2900	18.5-2	Y160L-2	12h	9149-9055
		30.0-2	Y200L-2	12h	8857-8148
7.1D	2900	37.0-2	Y200L-2	12h	11711-11596
		55.0-2	Y250M-2	12h	11340-10426
